The Honeywell 05701-A-0361 is an engineering card designed for Honeywell System 57 racks. It provides configuration, calibration, and testing functions for installed control modules in industrial gas detection...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

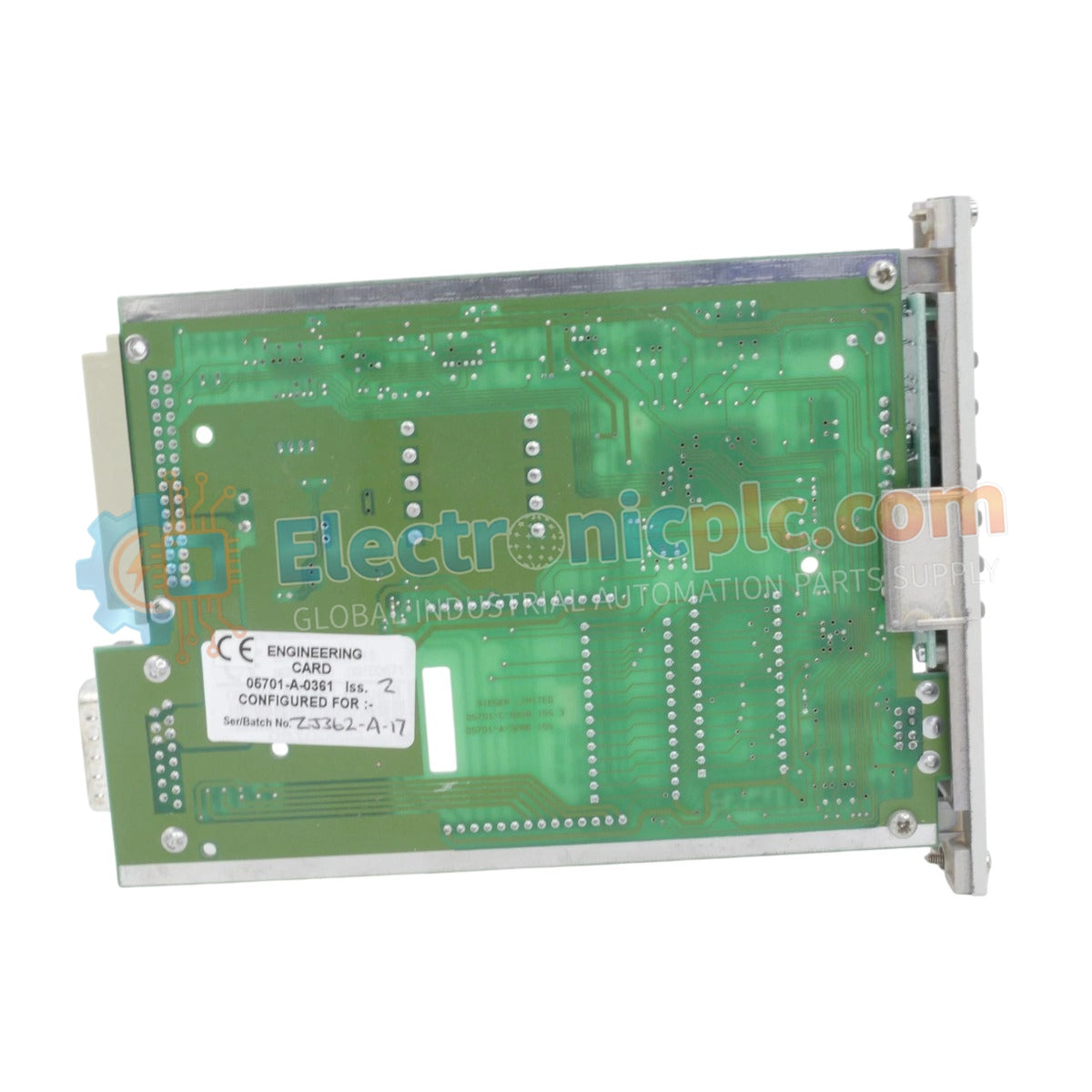

The Honeywell 05701-A-0361 is an engineering card designed for Honeywell System 57 racks. It provides configuration, calibration, and testing functions for installed control modules in industrial gas detection systems. We supply this unit as 100% brand new and original for reliable commissioning and maintenance operations.
| Specification | Details |
|---|---|
| Brand / Manufacturer | Honeywell |
| Part Number | 05701-A-0361 |
| Product Type | Engineering Card |
| System Platform | Honeywell System 57 |
| DC Supply Range | 18V to 32V DC |
| Power Consumption | 1.5W typical |
| LED Indicators | Green (Power On), Red (Unlocked) |
| Push-Buttons | Up, Down, Reject, Accept, Print |
| Core Functions | Zero, Span, Alarms, Signal, Inhibit, Clock |
| Dimensions | 132 mm × 25 mm × 170 mm |
| Weight | 0.3kg |
Allows calibration and setup of multiple System 57 control cards from one interface.
Supports accurate zero and span calibration for gas detection systems.
Efficient 1.5W design minimizes panel heat generation.
Red “Unlocked” LED warns operators when configuration mode is active.
Yes, it can stay installed for monitoring and maintenance tasks.
Press the Up and Down buttons simultaneously to trigger a print command.
The card supports adjustment of alarms, zero/span values, signal settings, and clock parameters.
