Product Overview

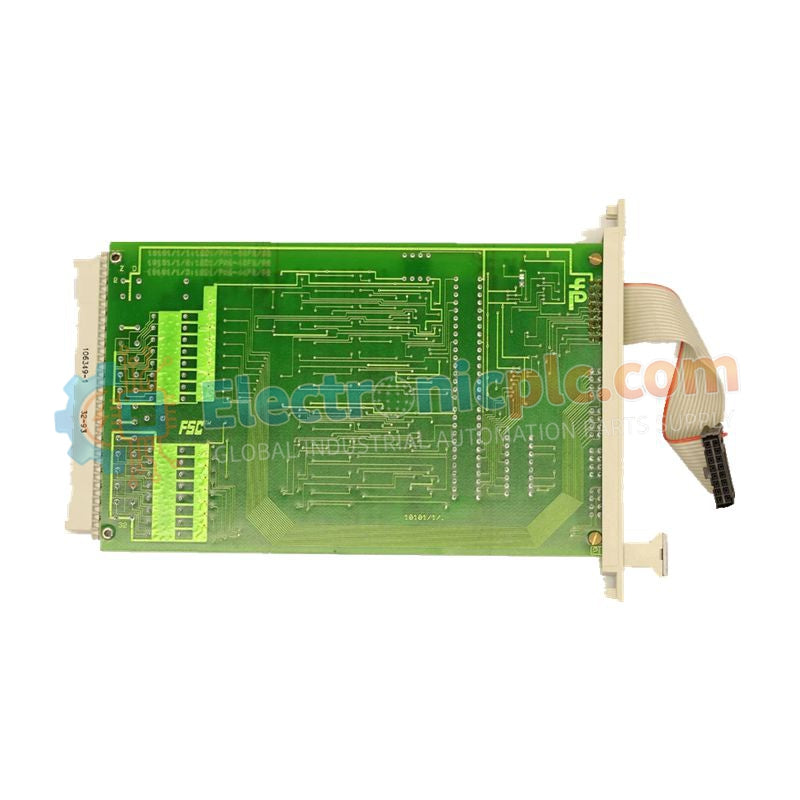

The Honeywell 10101/2/3 functions as a high-integrity Digital Input Module within the Fail-Safe Control (FSC) system architecture. This module monitors discrete signals from critical field instrumentation, such as emergency stop buttons, flow switches, and limit sensors. It converts field-side electrical states into digital data for the safety processor, ensuring the system maintains a deterministic and safe operating environment. We supply this unit as 100% brand new, original factory stock to guarantee the performance required for certified safety-instrumented functions (SIF).

Technical Specifications

Engineering Advantages

• Rigid Signal Integrity:
  The module features advanced optical isolation to protect the internal safety bus from high-voltage transients and field-side electrical noise, preventing logic corruption.

• Rapid Fault Detection:
  Built-in diagnostic routines instantly identify channel-specific failures (e.g., wire breaks, short circuits), reporting them directly to the central processor to trigger immediate protective actions.

• Optimized Heat Dissipation:
  The specialized housing ensures effective natural convective cooling, maintaining stable performance in high-density cabinet installations.

• Simplified Field Wiring:
  The module interfaces with standard FSC termination assemblies, enabling quick and secure field wiring setup, reducing commissioning and maintenance time.

FAQs

• What types of field contacts are compatible with the 10101/2/3?
  This module supports signals from potential-free (dry) contacts and standard industrial electronic switches, making it versatile for various safety loop configurations.

• Does this module support hot-swapping during live operations?
  Yes, the Honeywell FSC architecture allows for hot-swapping. However, ensure you follow the safety protocols to avoid nuisance trips in non-redundant loops.

• How do I verify the input status for a specific channel?
  The module features front-panel LED indicators that provide real-time confirmation of each input state, helping maintenance personnel during routine loop checks.

• What defines the difference between the /2/1 and /2/3 revisions?
  The /2/3 revision generally features hardware enhancements or slightly different physical dimensions compared to the /2/1 revision. Always confirm rack spacing and backplane compatibility before installation.
