Description

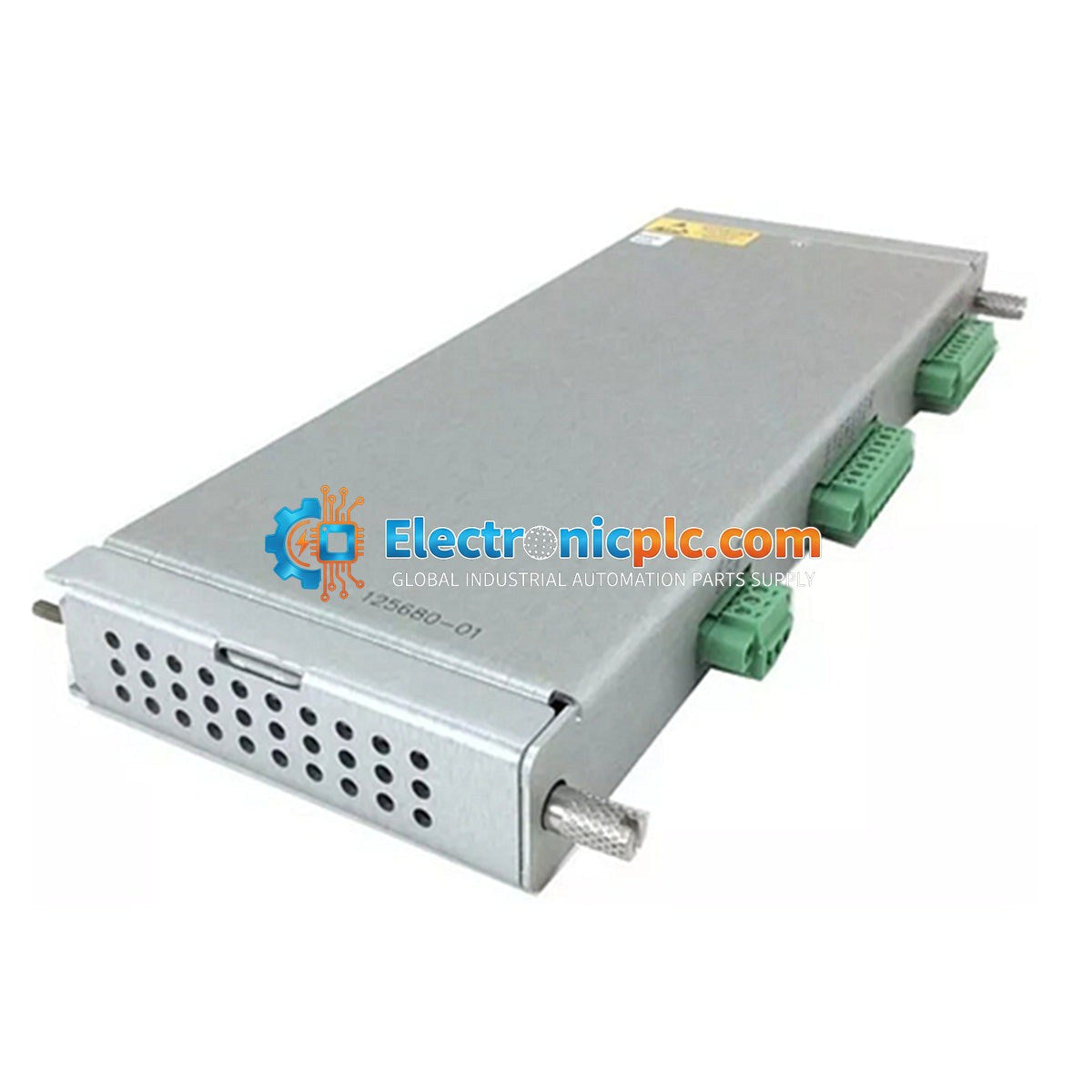

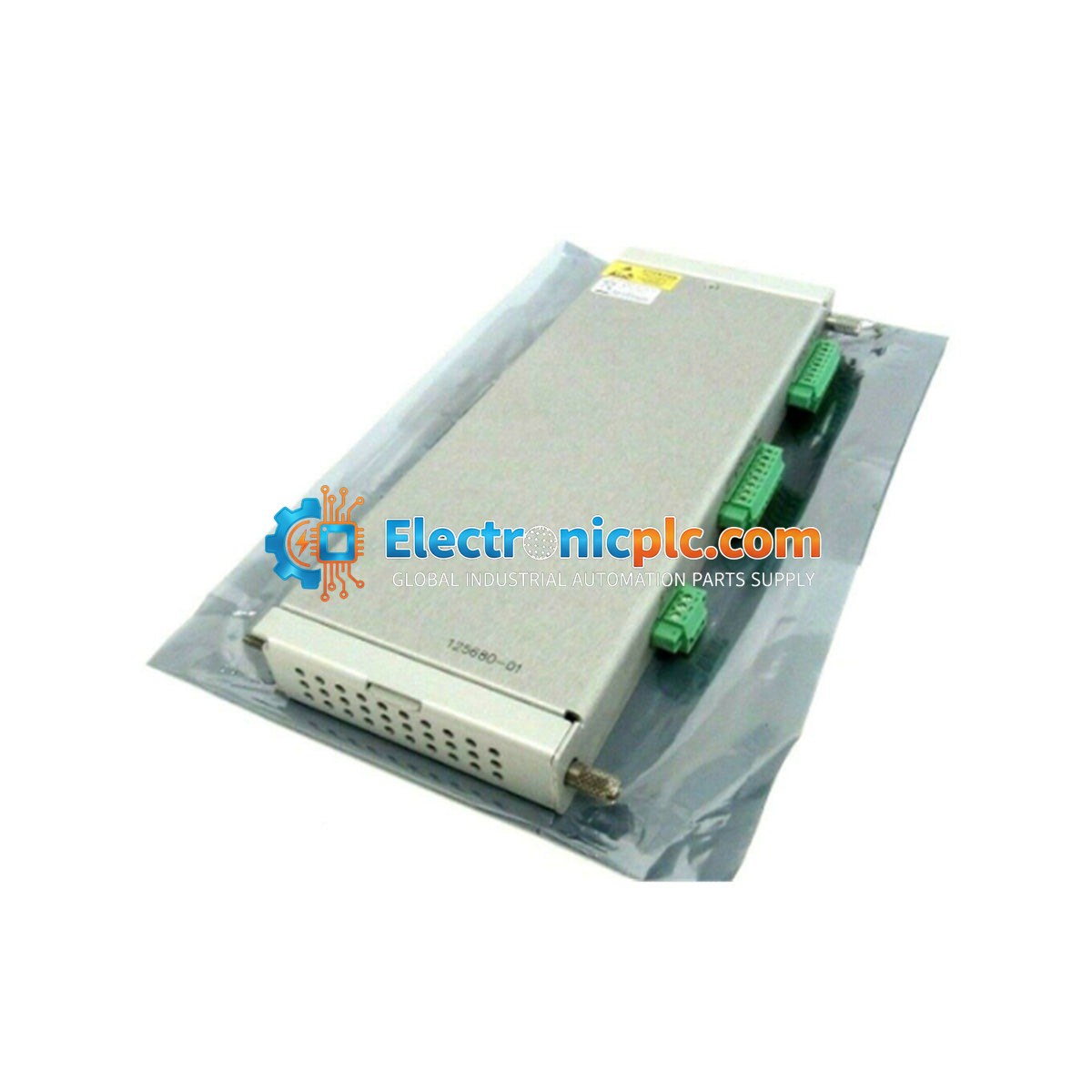

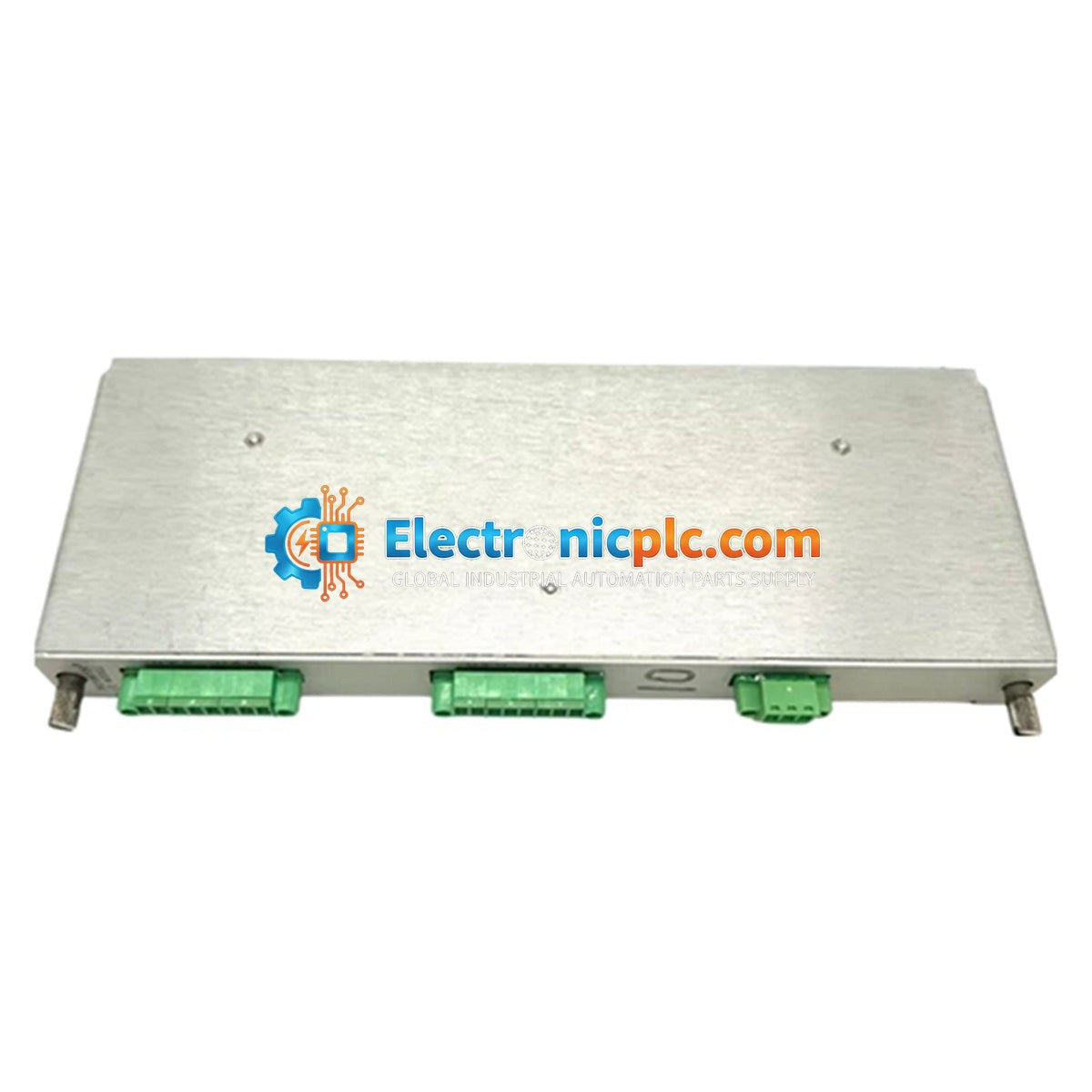

The Bently Nevada 125680-01 is a Proximitor I/O Module designed for integration within the 3500 Machinery Protection System. This module serves as a critical interface component for the 3500/40M Proximitor Monitor, facilitating the conditioning and transmission of transducer signals for vibration and position monitoring in rotating machinery.

Features

• Designed specifically for the 3500 series rack-based monitoring architecture.
• Supports high-reliability signal processing for proximity transducer inputs.
• Robust construction suitable for demanding industrial environments.
• Integrated PWA 140734-01H circuitry for precise signal handling.

Applications

This I/O module is used in critical asset protection systems, including steam turbines, gas turbines, compressors, and large electric motors. It is essential for monitoring radial vibration, thrust position, and speed/phase reference signals when paired with the corresponding 3500/40M monitor module.

Technical Specifications

Installation Guidelines

• Ensure the 3500 system rack is powered down before inserting or removing the I/O module to prevent electrical damage.
• Verify that the module is properly seated in the designated slot of the 3500 rack and that the connector pins are aligned.
• Use appropriate ESD protection when handling the module to prevent damage to sensitive internal components.
• Ensure all field wiring is routed away from high-voltage power cables to minimize electromagnetic interference (EMI).
• Confirm that the module is securely fastened using the integrated locking mechanisms to maintain proper ground contact with the rack backplane.

FAQ

What is the primary function of the 125680-01 module?

The 125680-01 acts as the I/O interface for the 3500/40M Proximitor Monitor, providing the necessary signal conditioning for proximity probes used in vibration and position monitoring.

Is this module compatible with other 3500 series monitors?

The 125680-01 is specifically engineered for the 3500/40M Proximitor Monitor. It should not be used with other monitor types unless explicitly specified in the Bently Nevada 3500 system documentation.
