Description

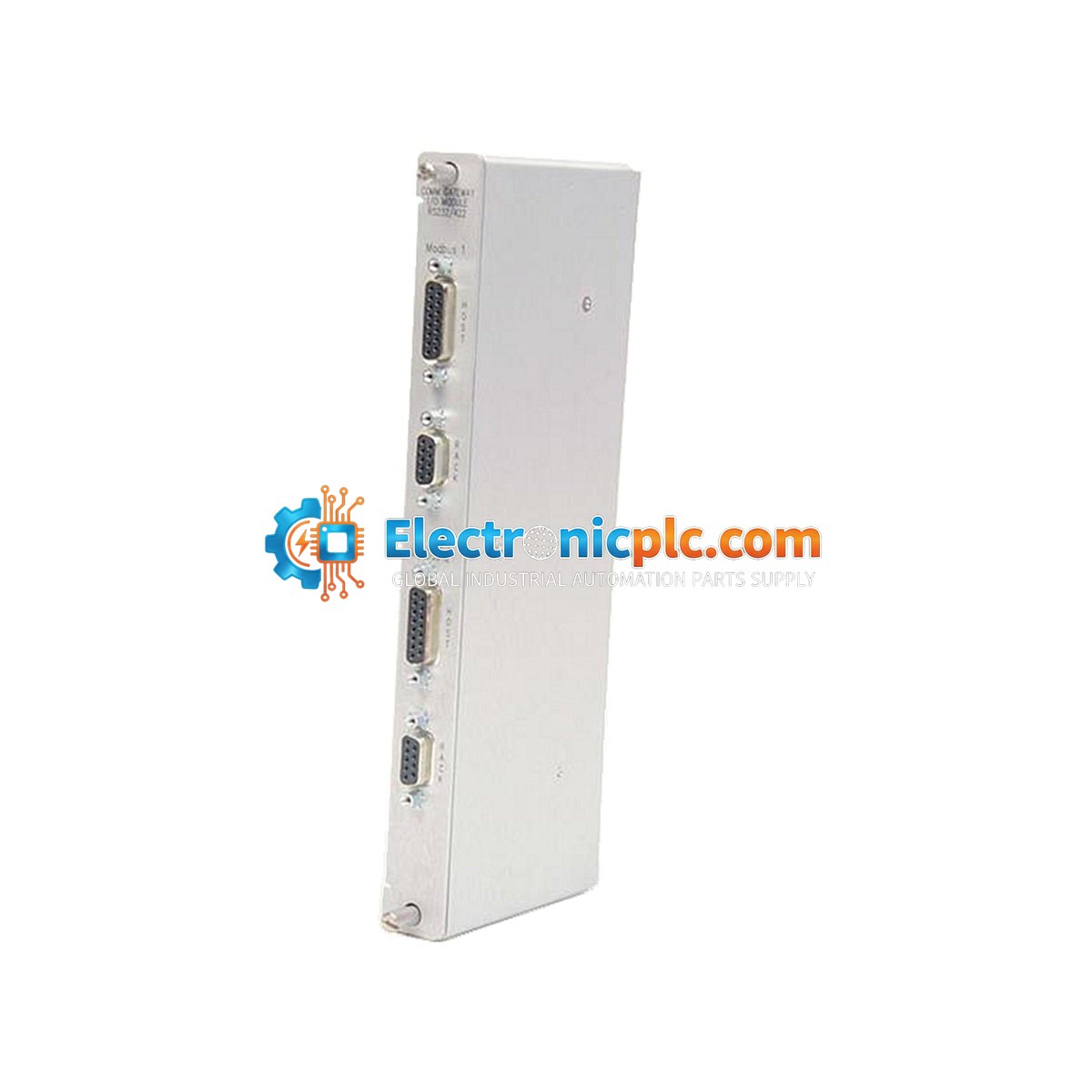

The Bently Nevada 125736-01 is a specialized Communication Gateway I/O Module designed to facilitate data exchange within industrial monitoring systems. This module provides robust connectivity for Modbus RS232 and RS422 protocols, allowing for seamless integration of Bently Nevada monitoring equipment with external automation systems, PLCs, or DCS platforms.

Features

• Supports Modbus RS232 and RS422 communication standards.
• Designed for high-reliability data acquisition and transmission in industrial environments.
• Provides 1500 V AC isolation to protect sensitive internal circuitry from ground loops and electrical noise.
• Wide operating temperature range suitable for demanding field conditions.

Applications

This module is typically used in Bently Nevada machinery protection and condition monitoring systems to bridge the gap between proprietary monitoring data and standard industrial communication networks. It is commonly deployed in power generation, oil and gas, and heavy manufacturing facilities where Modbus connectivity is required for supervisory control and data acquisition (SCADA).

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal components.
• Ensure the module is fully seated in the designated rack slot to maintain proper backplane communication.
• Use shielded communication cables for RS232/RS422 connections to minimize EMI interference.
• Verify that the supply voltage is stable and within the specified 24 V DC range before powering on.

FAQ

What is the primary function of the 125736-01 module?
The 125736-01 acts as a communication gateway, allowing Bently Nevada monitoring systems to communicate via Modbus RS232 or RS422 protocols.

Can this module be used in high-temperature environments?
Yes, the module is rated for operation in temperatures ranging from -40 degC to +70 degC, making it suitable for most industrial control room and field cabinet environments.
