Description

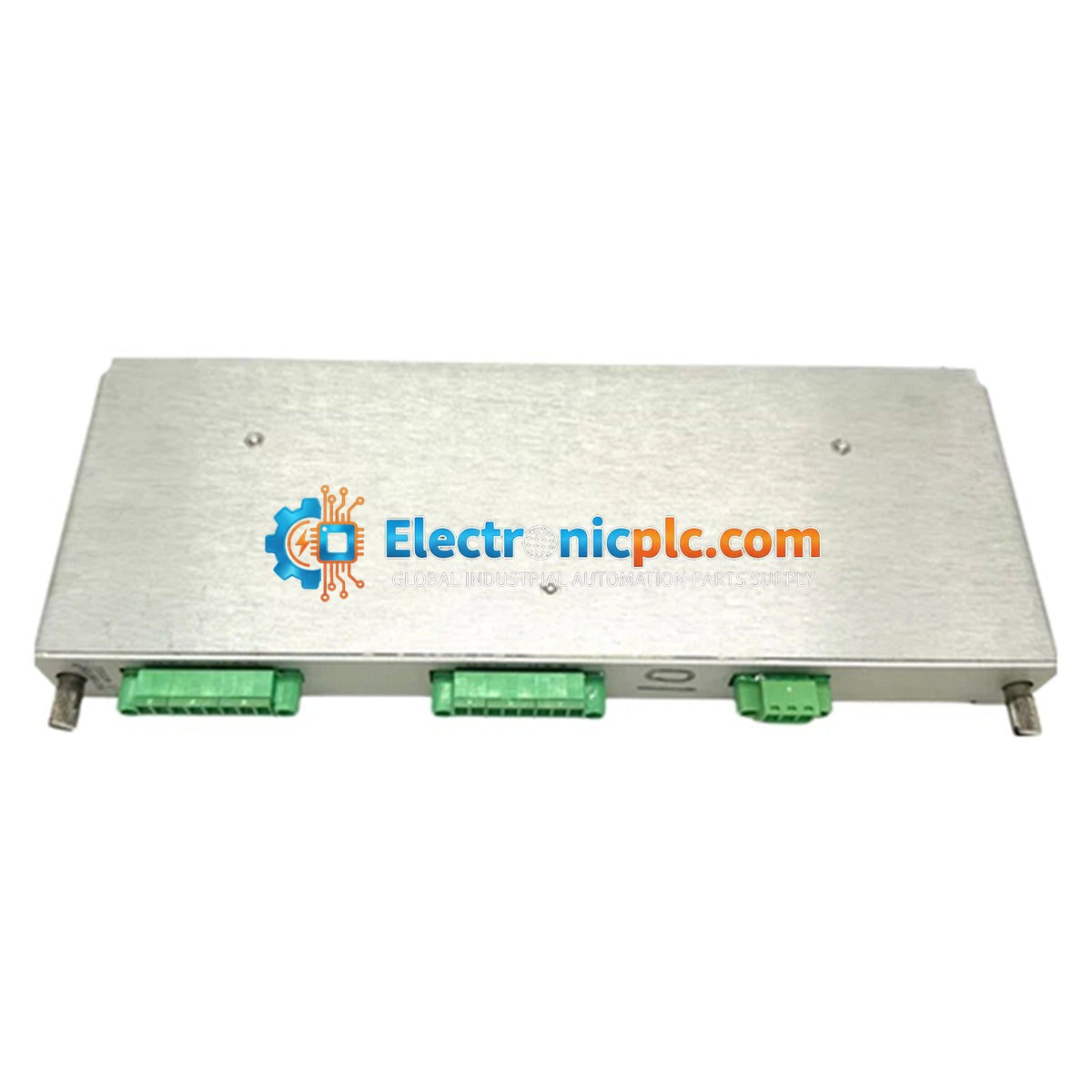

The Bently Nevada 126615-01 is a Proximitor I/O Module designed for use within the 3500 Series machinery protection system. This module serves as the interface for proximity and seismic transducers, conditioning input signals to provide precise vibration and position measurements. It is engineered to support the 3500/40M four-channel monitor, facilitating robust alarm logic and predictive maintenance capabilities for critical rotating equipment such as turbines and compressors.

Features

• Designed for seamless integration with the 3500 Series rack system.
• Supports input signal ranges from -10 VDC to +10 VDC.
• Features 100Base-FX fiber-optic Ethernet connectivity for reliable data communication.
• Provides advanced signal conditioning for vibration and position monitoring.
• Compatible with 3500/40M monitor modules for comprehensive machinery protection.

Applications

This I/O module is utilized in industrial environments requiring continuous monitoring of rotating machinery. Typical applications include the protection of steam and gas turbines, centrifugal compressors, pumps, and gearboxes where vibration and position data are critical for operational safety and predictive maintenance.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the I/O module.
• The module is designed for a full-height rear slot installation; ensure proper alignment with the backplane connector.
• Follow standard ESD (Electrostatic Discharge) handling procedures when touching internal components or connectors.
• Verify that all external wiring is properly shielded and routed away from high-EMI sources to maintain signal integrity.
• Ensure the module is securely seated in the rack to maintain proper grounding and electrical contact.

FAQ

What is the primary function of the 126615-01 module?

The 126615-01 is an I/O module for the Bently Nevada 3500 system that conditions signals from proximity and seismic sensors for vibration and position monitoring.

Is this module compatible with the 3500/40M monitor?

Yes, the 126615-01 is specifically designed for use with the 3500/40M four-channel monitor module.

What type of communication interface does this module use?

This module utilizes a 100Base-FX fiber-optic Ethernet interface for data communication within the 3500 rack environment.
