Description

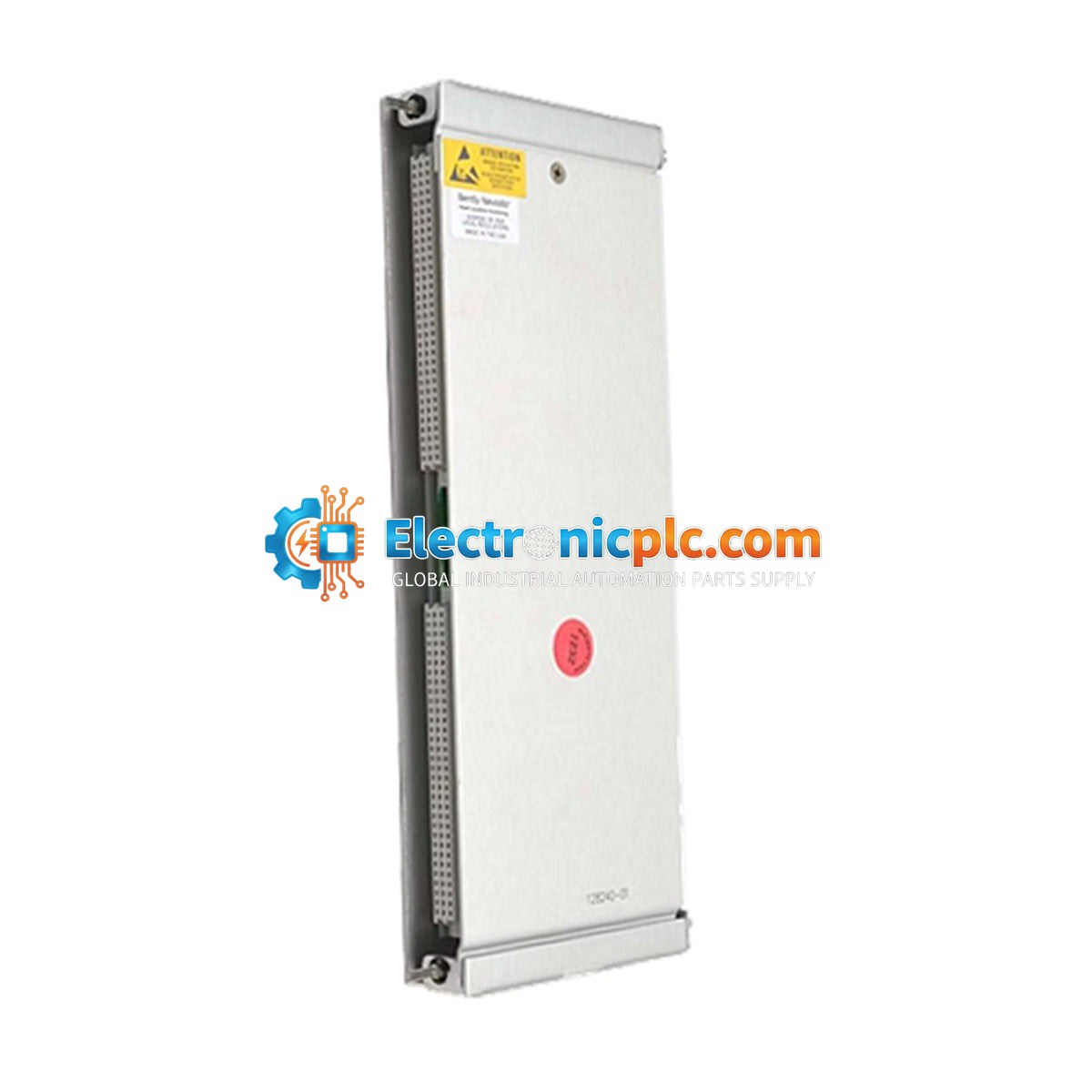

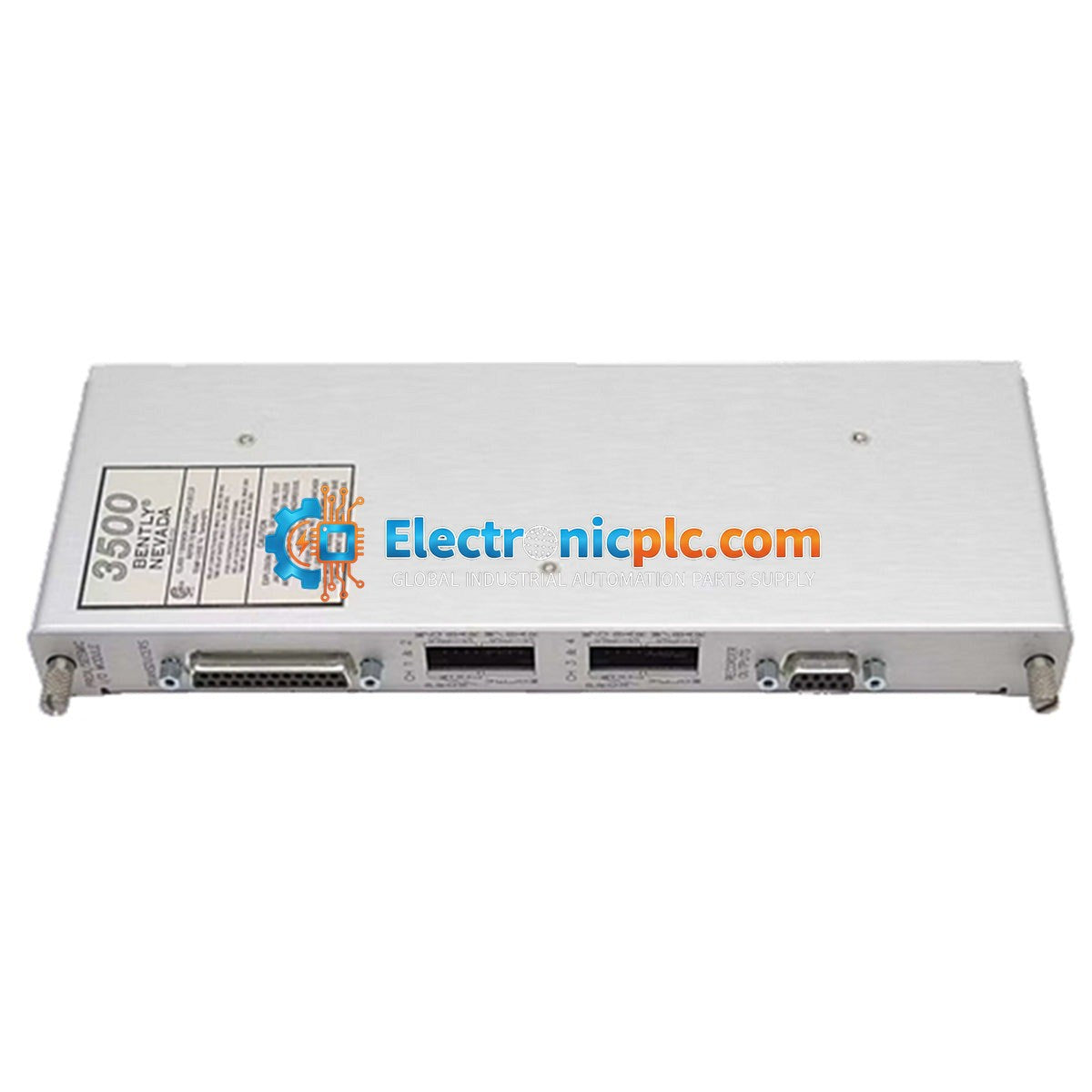

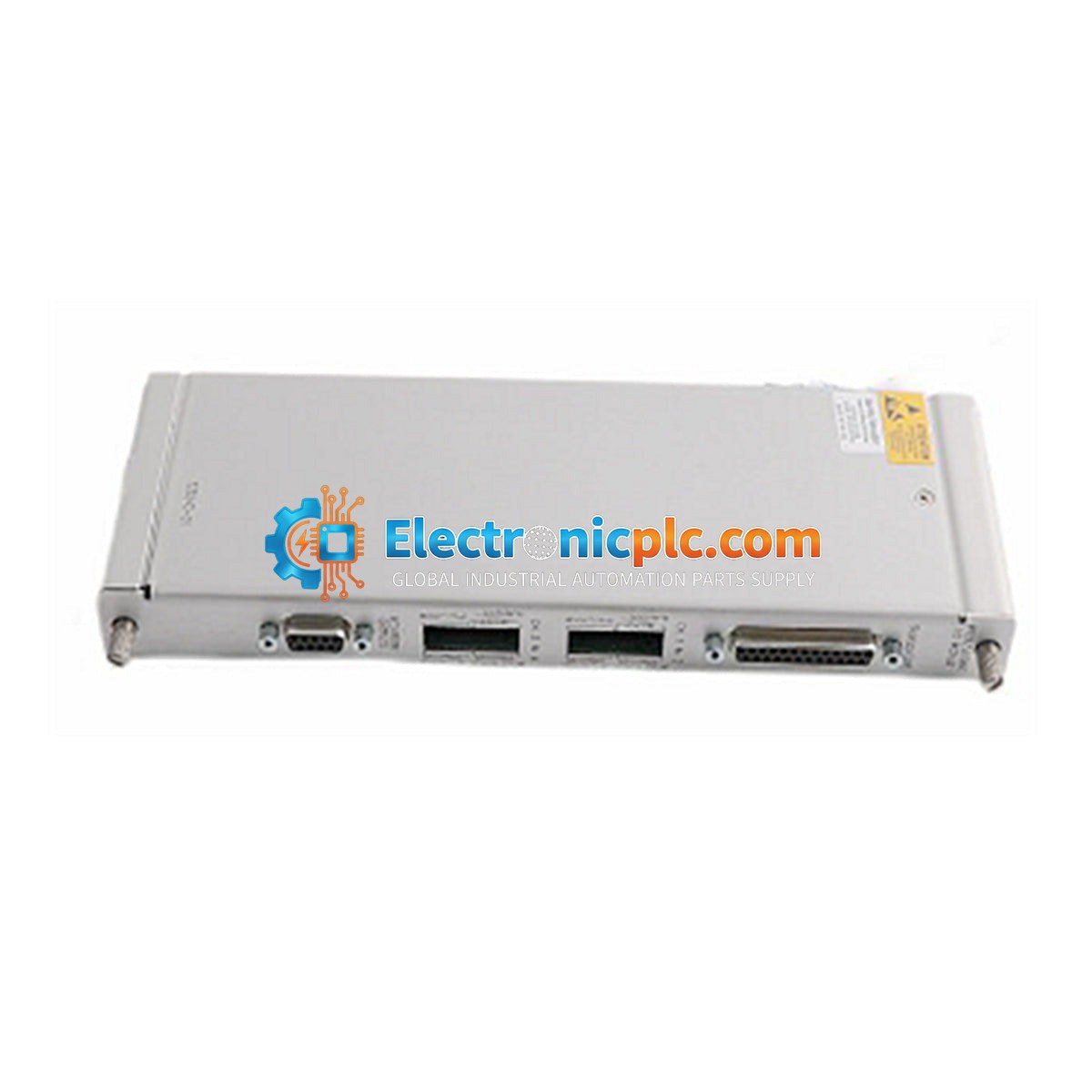

The Bently Nevada 128240-01 is a specialized I/O module designed for Proximitor and seismic monitoring applications. This module serves as a critical interface component within the Bently Nevada monitoring system, facilitating the connection between field sensors and the monitoring rack. It features external terminations to support robust signal routing and system integration.

Features

• Designed specifically for Proximitor and seismic monitoring sensor inputs.
• Equipped with external terminations for simplified field wiring.
• Provides 6 relay outputs for alarm and trip logic integration.
• Designed for high-reliability operation in industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the monitoring rack power is disconnected before installing or removing the I/O module.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to internal circuitry.
• Verify that the external termination blocks are securely seated and wired according to the specific system loop diagrams.
• Ensure adequate ventilation around the rack to maintain operating temperatures within the specified range.
• Route signal cables away from high-EMI sources, such as high-voltage power lines or variable frequency drives, to maintain signal integrity.

FAQ

What is the primary function of the 128240-01 module?

The 128240-01 is an I/O module used in Bently Nevada monitoring systems to interface Proximitor and seismic sensors with the rack, providing relay outputs for system monitoring and protection.

Does this module require external power?

No, the module draws its operating power (+24 Vdc) directly from the Bently Nevada monitoring rack backplane.

What is the switching capacity of the relay outputs?

The relay outputs are rated for a switching capacity of 250 Vac, with a minimum load requirement of 10 mA at 5 Vdc.
