Description

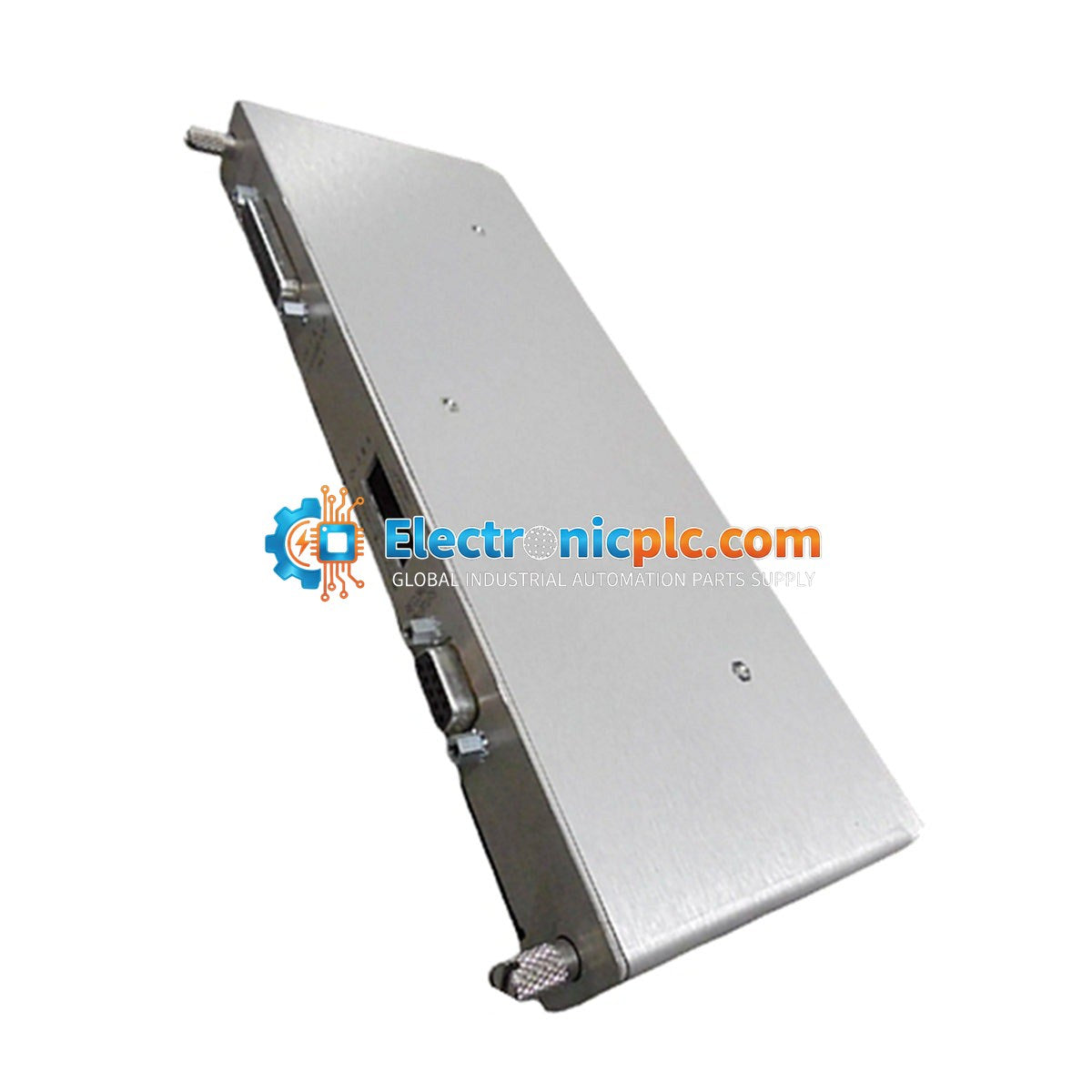

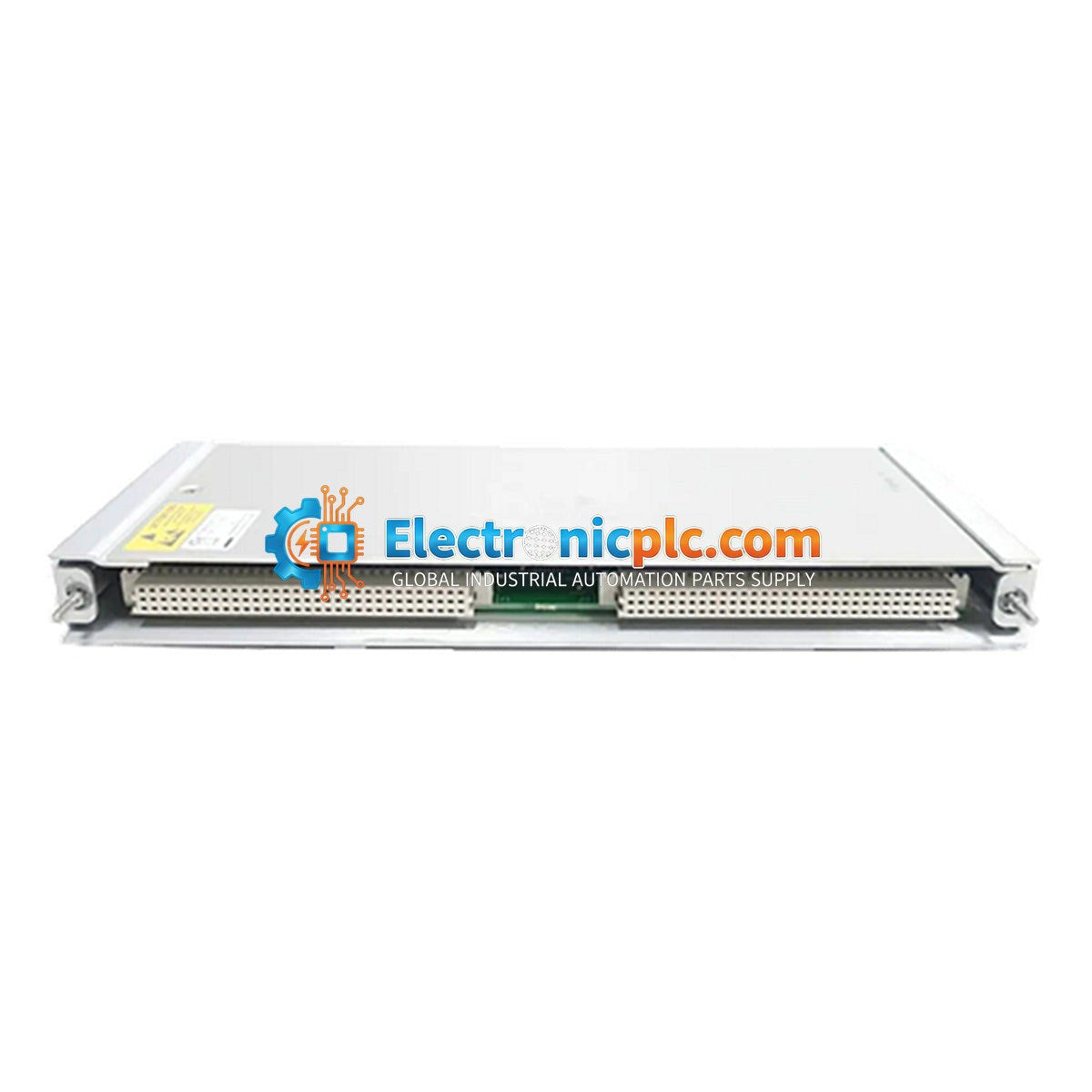

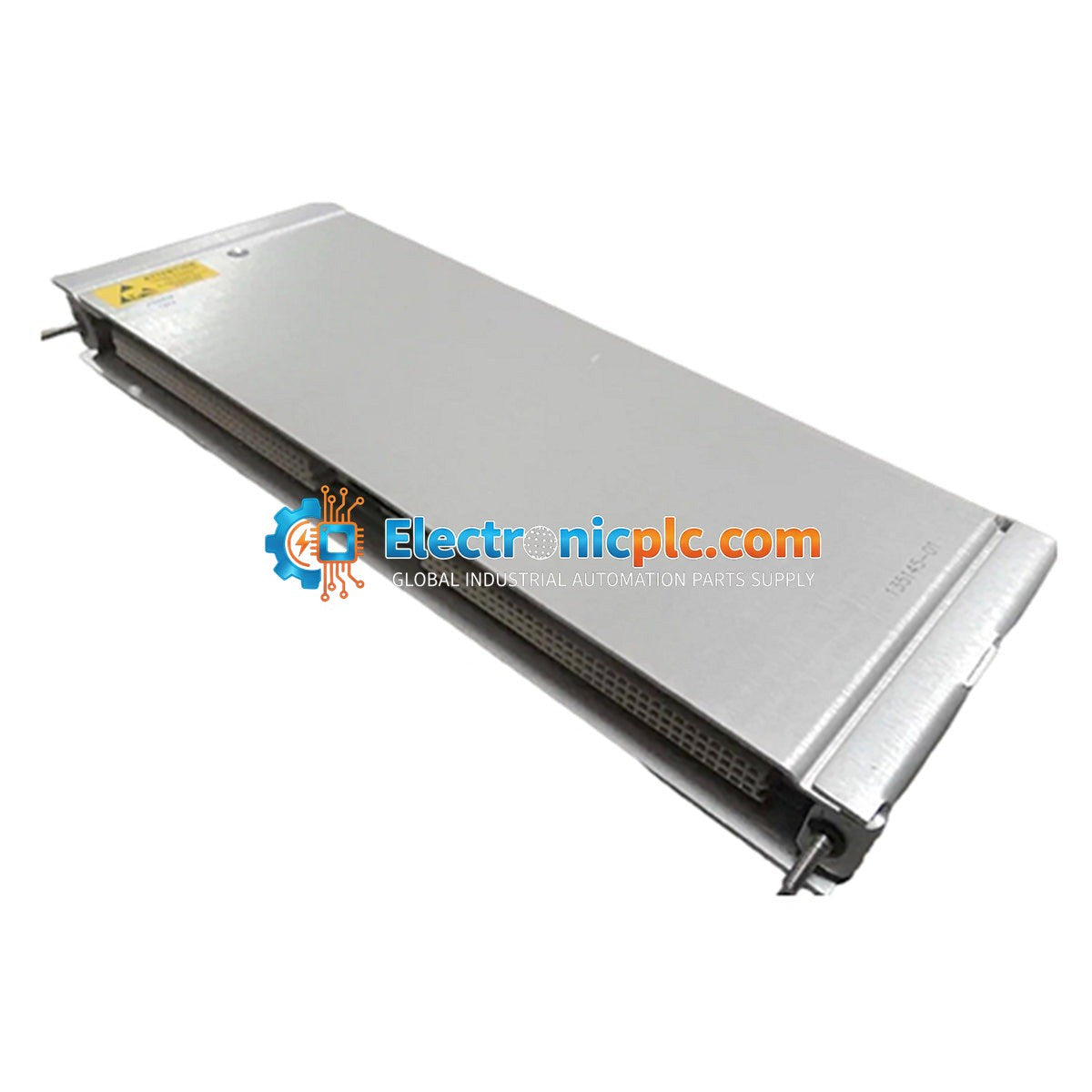

The Bently Nevada 135813-01 is a Display Interface I/O Module designed specifically for use with the 3500/93 System Display. This module serves as the critical communication link between the 3500 rack and the display unit, facilitating the transmission of monitoring data and system status information. It ensures reliable integration within the Bently Nevada 3500 series machinery protection system architecture.

Features

• Designed for seamless integration with the 3500/93 System Display.
• Robust construction for industrial monitoring environments.
• Supports standard 3500 series rack communication protocols.
• Wide operating temperature range for diverse plant conditions.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack power is disconnected before installing or removing the I/O module.
• Verify that the module is correctly seated in the designated slot within the 3500 rack to ensure proper backplane connection.
• Handle the module using standard ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal components.
• Ensure that all field wiring is properly routed and secured to prevent mechanical strain on the module terminals.
• Maintain adequate ventilation around the rack to ensure the module operates within its specified temperature range.

FAQ

What is the primary function of the 135813-01 module?

The 135813-01 is an I/O module specifically engineered to interface the 3500/93 System Display with the Bently Nevada 3500 rack, allowing operators to view system data and alarm statuses.

Can this module be used in other racks?

No, this module is specifically designed for the 3500/93 system configuration. Always verify compatibility with your specific rack model before installation.

What are the storage requirements for this module?

The module should be stored in a clean, dry environment within the specified temperature range of -55 to +85 degC to maintain long-term reliability.
