Description

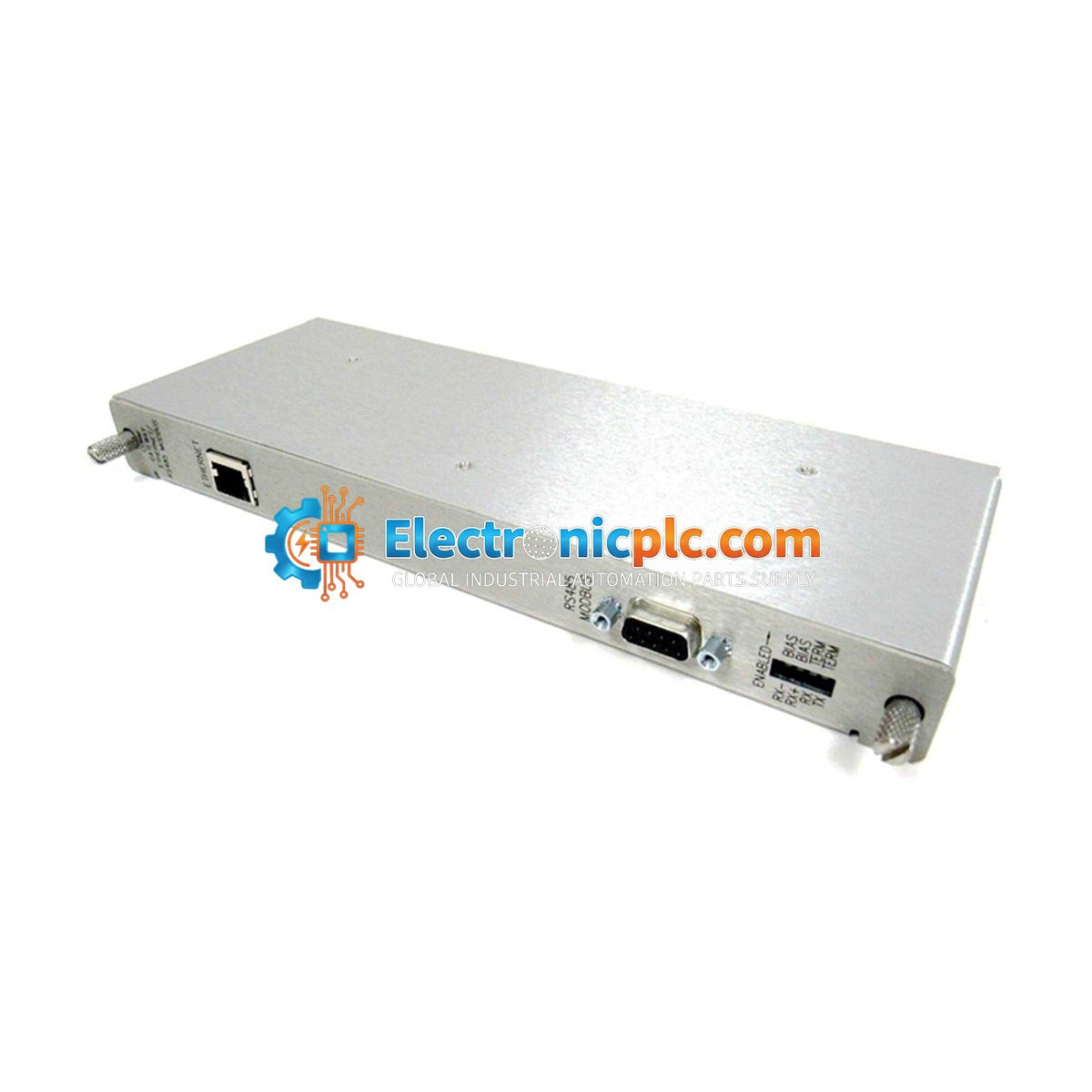

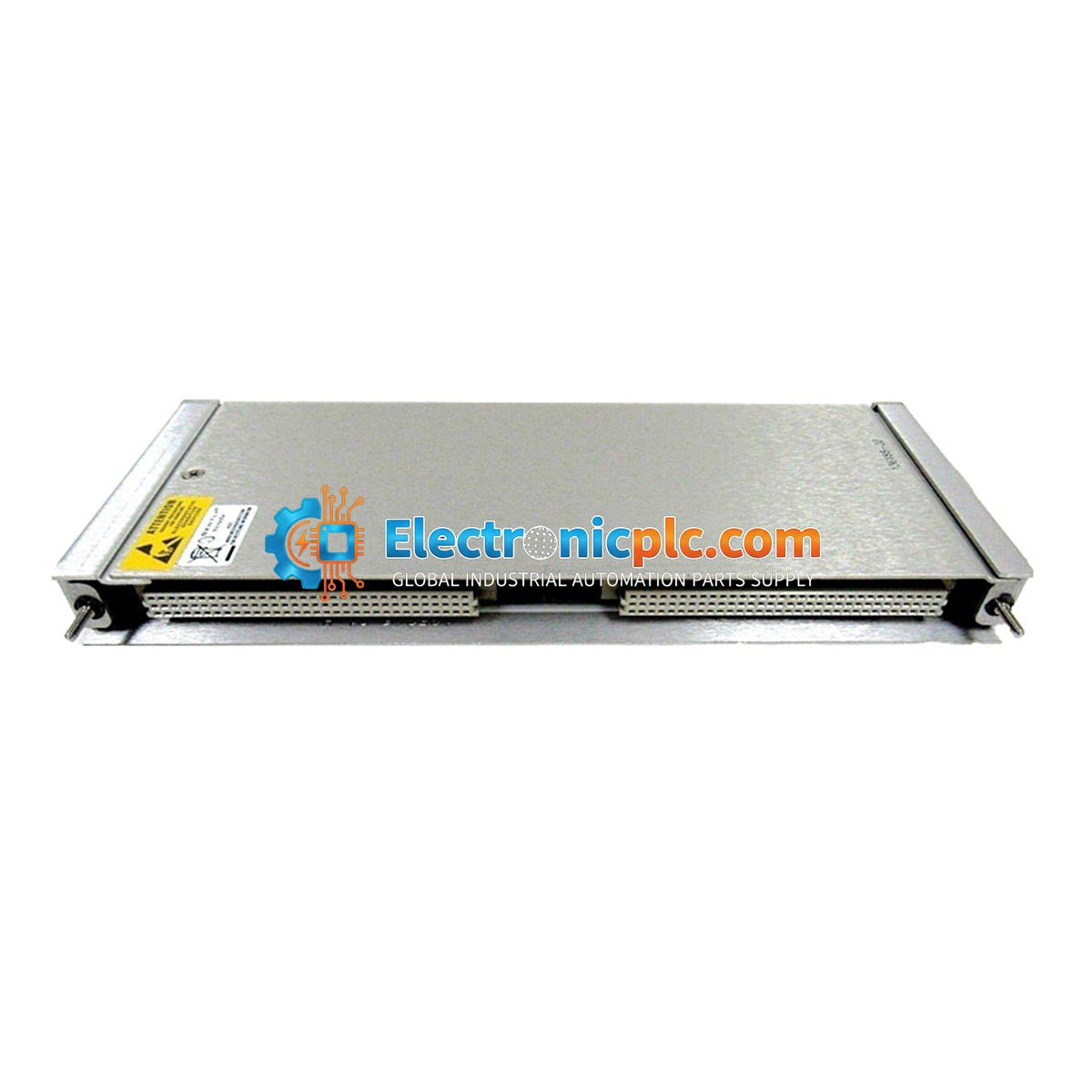

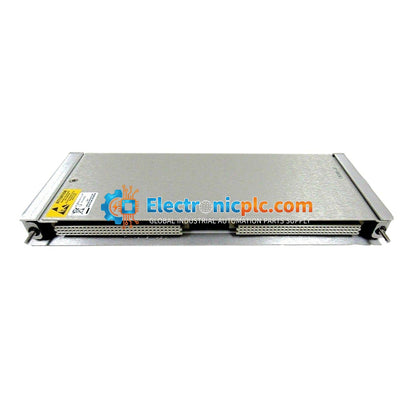

The Bently Nevada 146031-02 is a specialized I/O module designed for the 3500 Machinery Protection System. This Transient Data Interface (TDI) module serves as the primary gateway for communication between the 3500 rack and external software, such as Bently Nevada's System 1 condition monitoring platform. This specific model features 100Base-FX fiber optic connectivity, ensuring robust data transmission in environments where electromagnetic interference (EMI) is a concern.

Features

• Designed for integration with the Bently Nevada 3500 series monitoring system.
• Supports 100Base-FX fiber optic communication for high-speed, noise-immune data transfer.
• Facilitates transient data collection and rack configuration management.
• Rugged construction suitable for demanding industrial environments.

Applications

This module is utilized in critical rotating machinery protection applications, including steam turbines, gas turbines, compressors, and large pumps. It is essential for facilities requiring high-fidelity transient data capture for predictive maintenance and root-cause analysis.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack power is disconnected before installing or removing the I/O module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
• Verify that the module is correctly seated in the designated rack slot and that the backplane connectors are properly aligned.
• When using fiber optic connections, ensure the cable ends are clean and free of debris to maintain signal integrity.
• Route fiber optic cables away from high-heat sources and avoid sharp bends that could damage the internal glass fibers.

FAQ

What is the primary function of the 146031-02 module?

The 146031-02 acts as the communication bridge for the 3500 rack, allowing the system to transmit transient data to external monitoring software and providing a configuration interface for the rack.

Is this module compatible with standard copper Ethernet?

No, this specific model (146031-02) is configured for 100Base-FX fiber optic communication. Ensure your network infrastructure supports fiber optic inputs before installation.
