Description

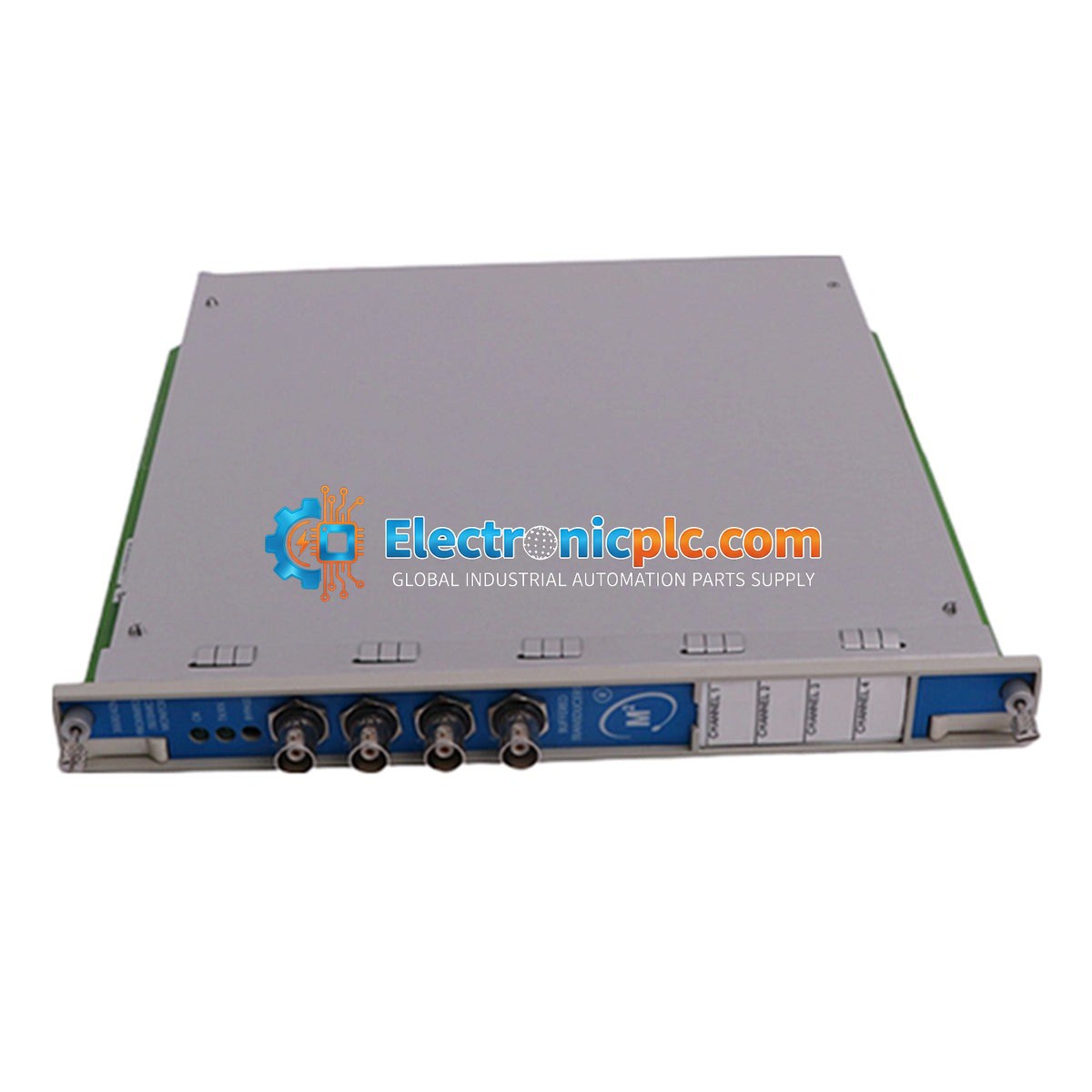

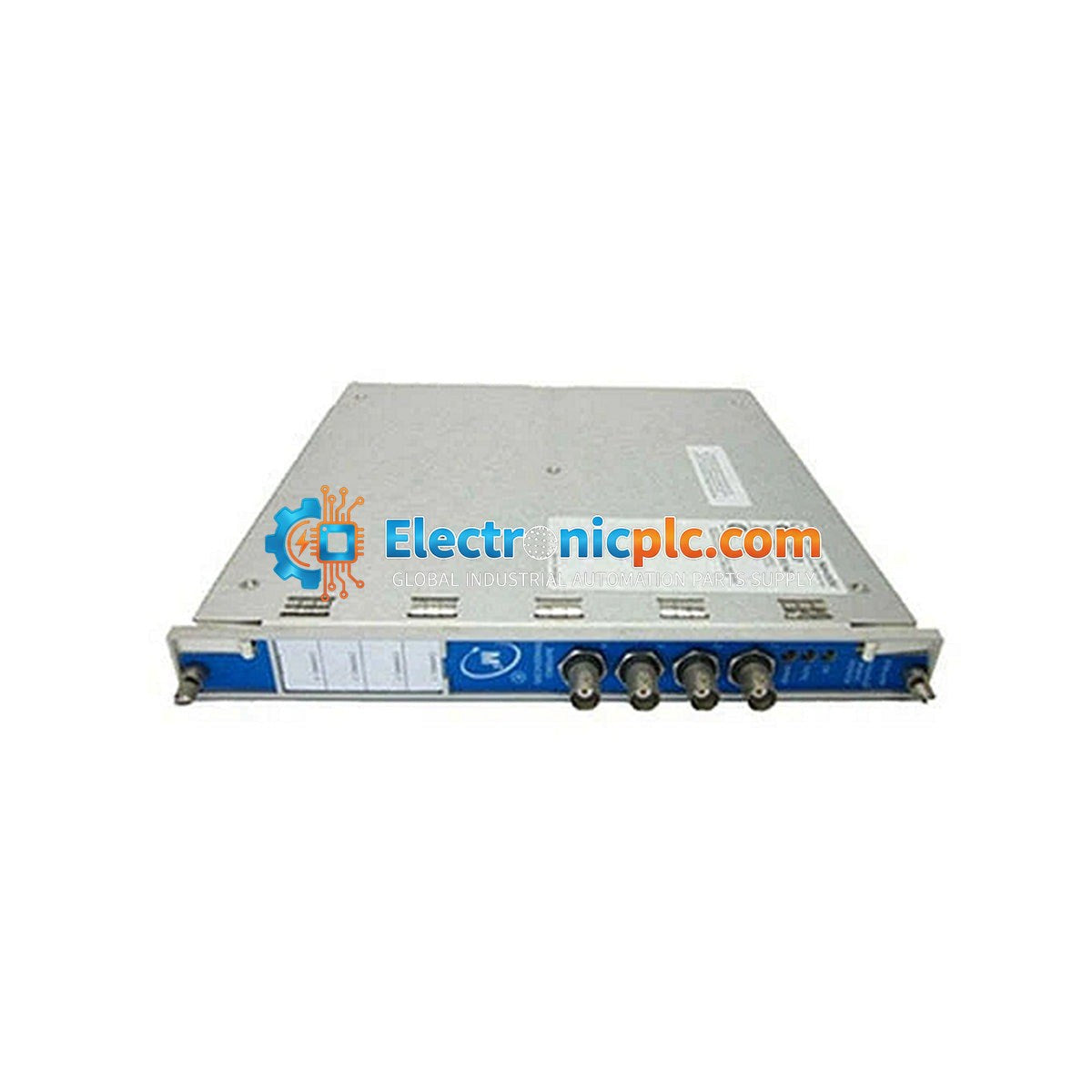

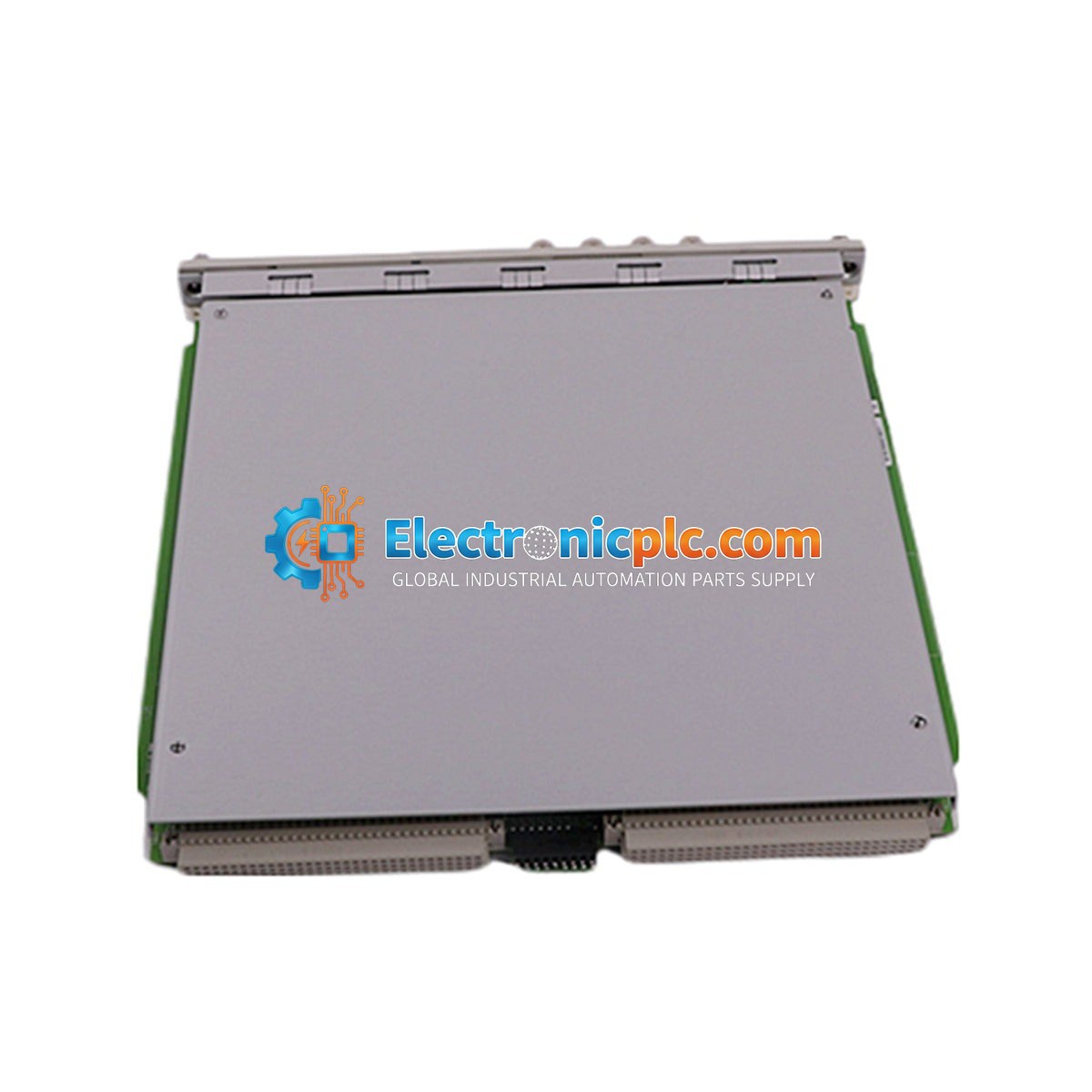

The Bently Nevada 3500/77M 140734-07 is a high-performance four-channel monitor module engineered for the 3500 Machinery Protection System. This module is specifically designed to measure and analyze dynamic cylinder pressure in reciprocating machinery, such as compressors and reciprocating engines. By processing signals from dynamic pressure transducers, the 3500/77M provides continuous monitoring of pressure profiles, peak values, and critical diagnostic parameters to ensure machinery integrity and prevent catastrophic failure.

Features

• Four independent monitoring channels for high-density data acquisition.
• Compatible with dynamic cylinder pressure transducers.
• Provides real-time cylinder pressure waveform analysis, peak pressure tracking, and diagnostic parameter calculation.
• Programmable alert and danger thresholds with configurable voting logic for alarm and trip functions.
• Seamless integration into the 3500 rack system, fully configurable via Bently Nevada 3500 Rack Configuration Software.

Applications

• Reciprocating compressors.
• Large-scale reciprocating engines.
• Machinery protection systems requiring cylinder pressure monitoring and diagnostic waveform capture.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the module to prevent electrical damage.
• Use appropriate ESD protection when handling the module to avoid damage to sensitive electronic components.
• Ensure the module is fully seated in the rack slot and the front panel screws are tightened to maintain proper grounding and EMI shielding.
• Route signal cables away from high-voltage lines or sources of electromagnetic interference to maintain signal integrity.
• Verify that the I/O module and the monitor module match the configuration defined in the 3500 software.

Compliance and Certifications

• Safety Standards: EN 61010-1, LV Directive 2014/35/EU
• EMC Compliance: EN 61000-6-2 (Immunity), EN 61000-6-4 (Emissions)
• Hazardous Area: CSA/NRTL/C Class I, Zone 2
• RoHS: Directive 2011/65/EU compliant

FAQ

Does this module include the I/O card?

The 3500/77M module typically requires a corresponding I/O module for field wiring termination. Please verify if your specific order includes the required I/O module or if it is being purchased separately.

Is this module compatible with all 3500 racks?

The 3500/77M is designed for standard 3500 rack systems. Ensure your rack firmware and configuration software versions are compatible with this module revision.
