Description

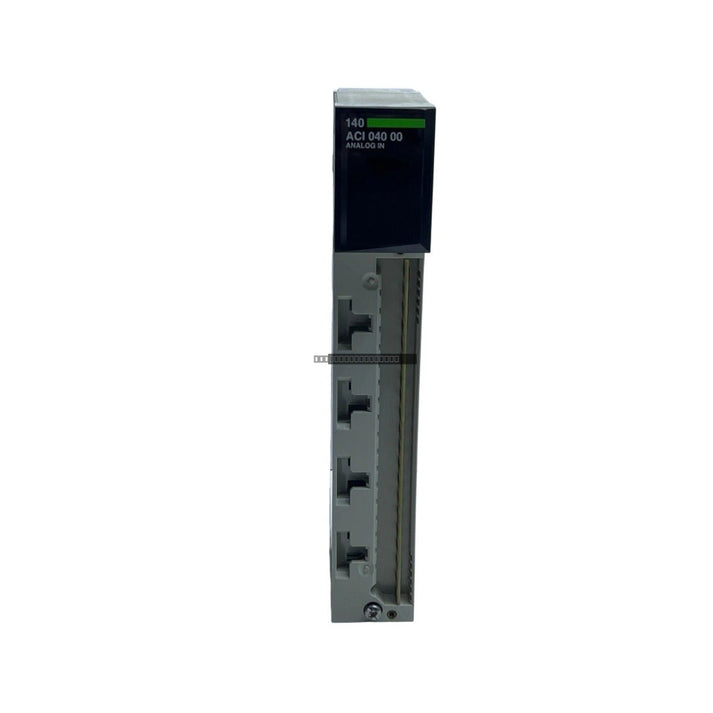

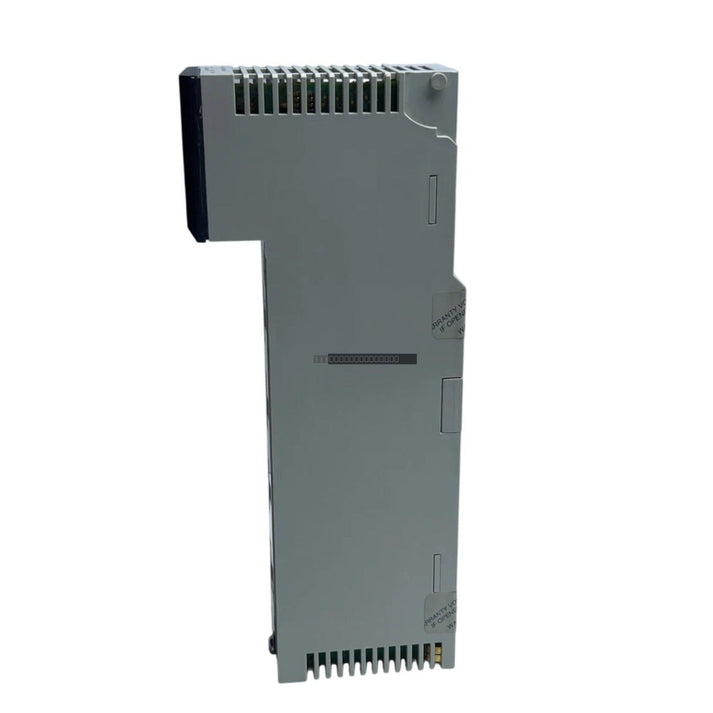

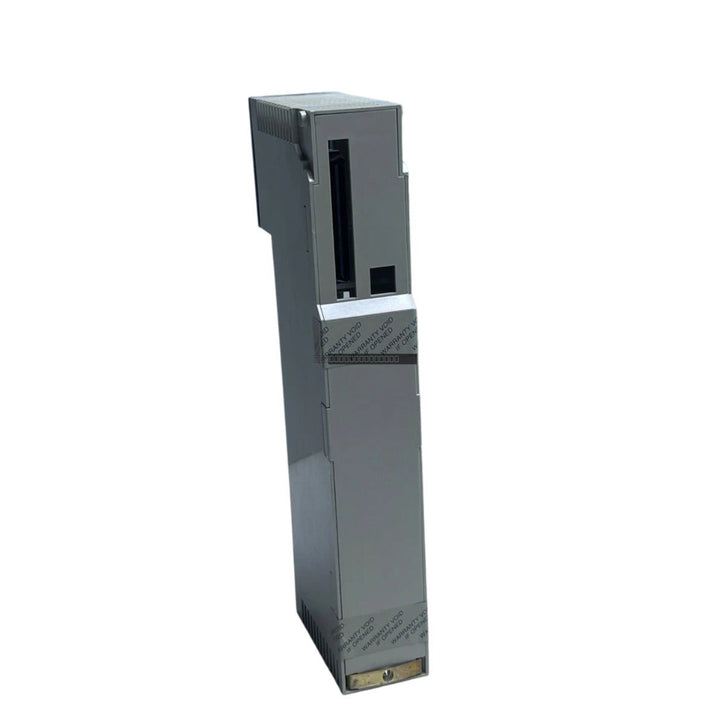

The Schneider Electric 140ACI04000C is a high-performance analog input module designed for integration within the Modicon Quantum automation platform. This module provides 16 differential analog input channels, engineered for precise signal acquisition in industrial control environments. It is optimized for applications requiring reliable current signal processing with a robust input impedance of 250 Ohm.

Features

• 16 differential analog input channels for high-density signal monitoring.
• Standardized 250 Ohm input impedance for compatibility with common industrial instrumentation.
• Requires 17 input words for system addressing.
• Designed for seamless integration with the Modicon Quantum backplane.
• Efficient power dissipation of 5 W under standard operating conditions.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the backplane slot and secured with the integrated locking mechanism.
• Use shielded twisted-pair cabling for analog signals to minimize electromagnetic interference (EMI) and noise.
• Maintain proper grounding practices for the cable shields at the control cabinet entry point.
• Ensure adequate ventilation around the rack to accommodate the 5 W power dissipation and prevent thermal throttling.
• Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.

FAQ

What is the primary function of the 140ACI04000C?
This module is an analog input card for the Modicon Quantum series, used to convert field analog current signals into digital values for PLC processing.

Does this module support single-ended inputs?
No, the 140ACI04000C is specifically designed for differential input configurations to provide improved noise immunity in industrial environments.
