Description

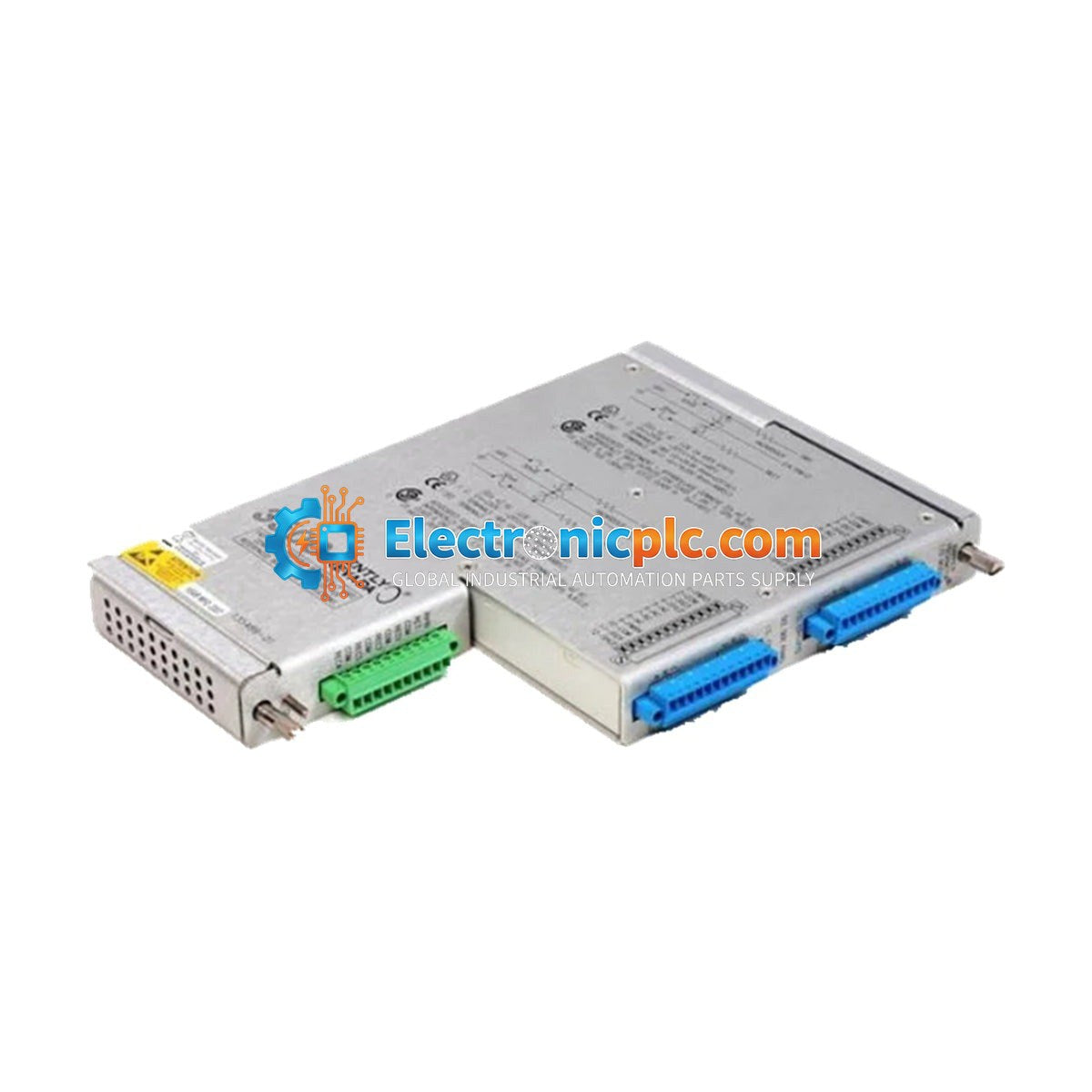

The Bently Nevada 149716-01 is a TMR (Triple Modular Redundant) Proximitor I/O Module designed for use within the 3500 Series machinery protection system. This module serves as a critical interface for proximity transducer inputs, facilitating high-reliability vibration and position monitoring for rotating machinery such as steam turbines, gas turbines, compressors, and large pumps. By utilizing a TMR configuration, the module enhances system fault tolerance, ensuring continuous operation and accurate signal conditioning in mission-critical industrial applications.

Features

• Designed for integration with the Bently Nevada 3500/40 Proximitor Monitor series.
• Supports Triple Modular Redundant (TMR) system architectures for high availability.
• Provides precise signal conditioning for proximity probe inputs.
• Integrated diagnostics for real-time monitoring of sensor health and module status.
• Rack-mounted design for seamless installation within standard 3500 series chassis.

Applications

• Refinery and petrochemical plant machinery protection.
• Power generation turbine monitoring.
• Heavy manufacturing rotating equipment surveillance.
• Critical asset vibration and position analysis.

Technical Specifications

Installation Guidelines

• Ensure the 3500 rack is powered down before inserting or removing the I/O module to prevent electrical damage.
• Verify that the module is properly seated in the designated slot to ensure reliable backplane communication.
• Use shielded cabling for all proximity probe inputs to minimize EMI/RFI interference in industrial environments.
• Maintain proper grounding practices for the 3500 rack system to ensure signal integrity.
• Handle the module using ESD-safe procedures to protect sensitive internal components.

FAQ

What is the primary function of the 149716-01 module?

The 149716-01 is an I/O module for the 3500/40 Proximitor monitor, responsible for receiving and conditioning signals from proximity transducers to provide vibration and position data for machinery protection.

Is this module compatible with non-TMR systems?

This module is specifically designed for TMR configurations within the 3500 series. Please consult your system documentation to ensure compatibility with your existing rack setup.

What is the operating temperature range for this unit?

The module is rated for operation in environments ranging from -40 to +85 deg C.
