Description

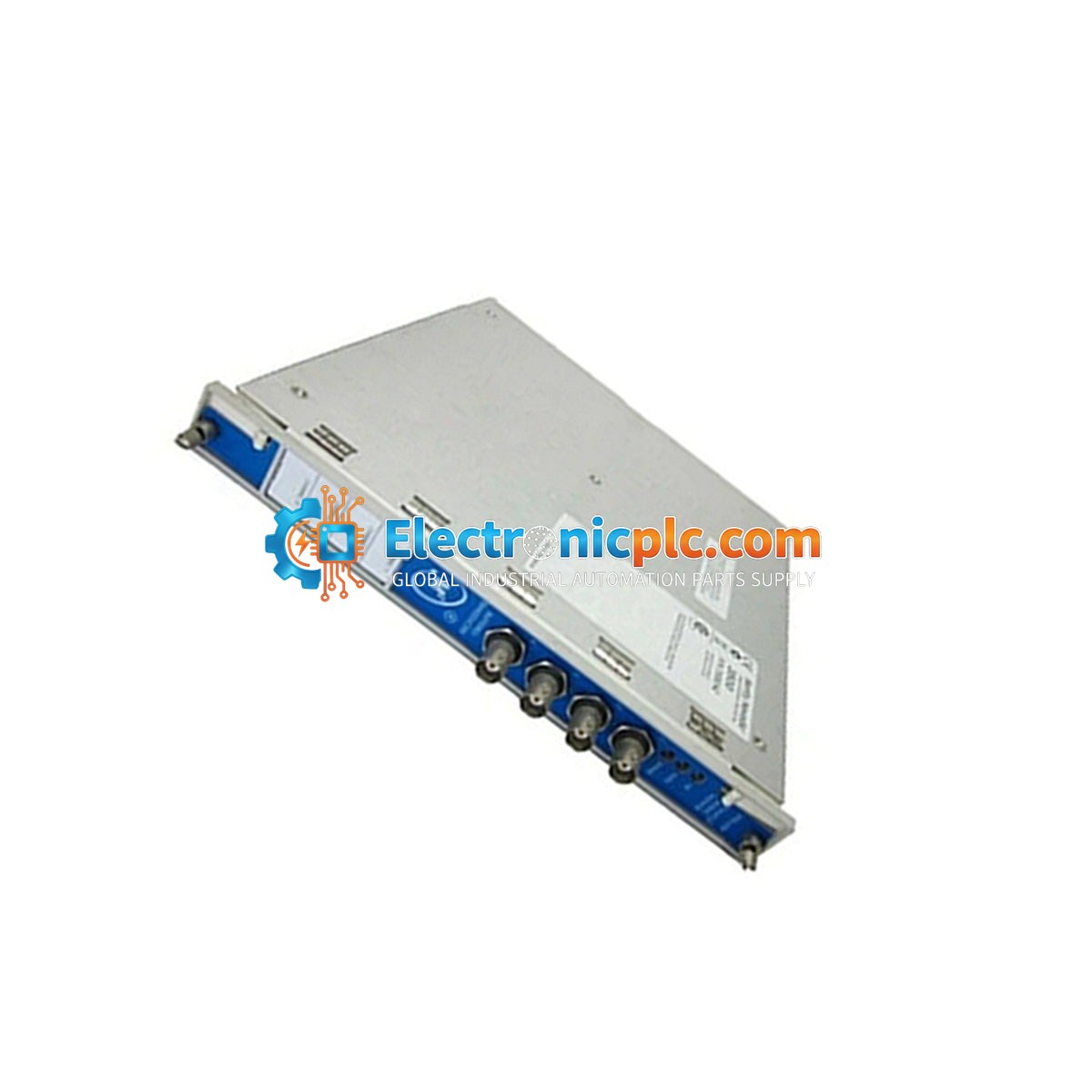

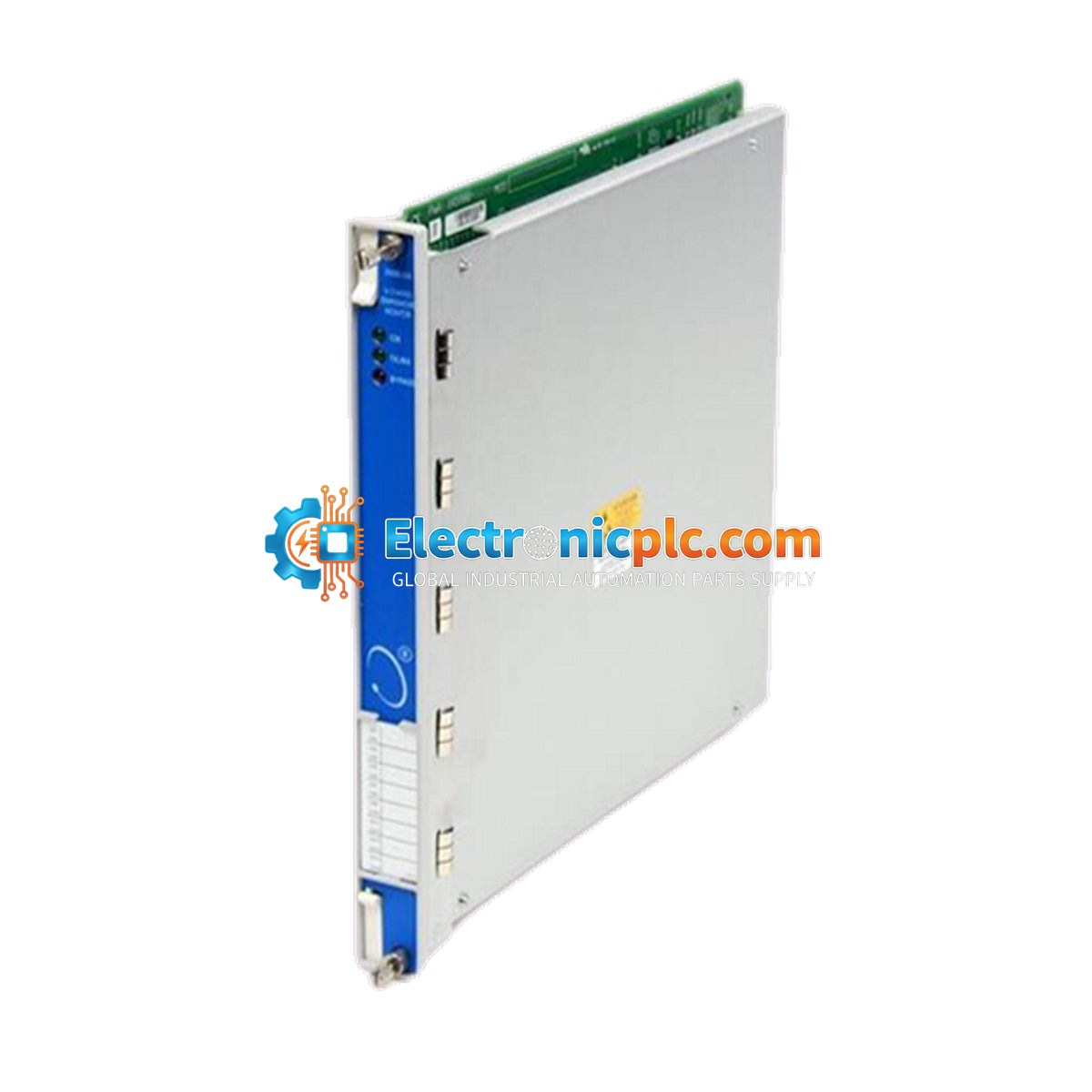

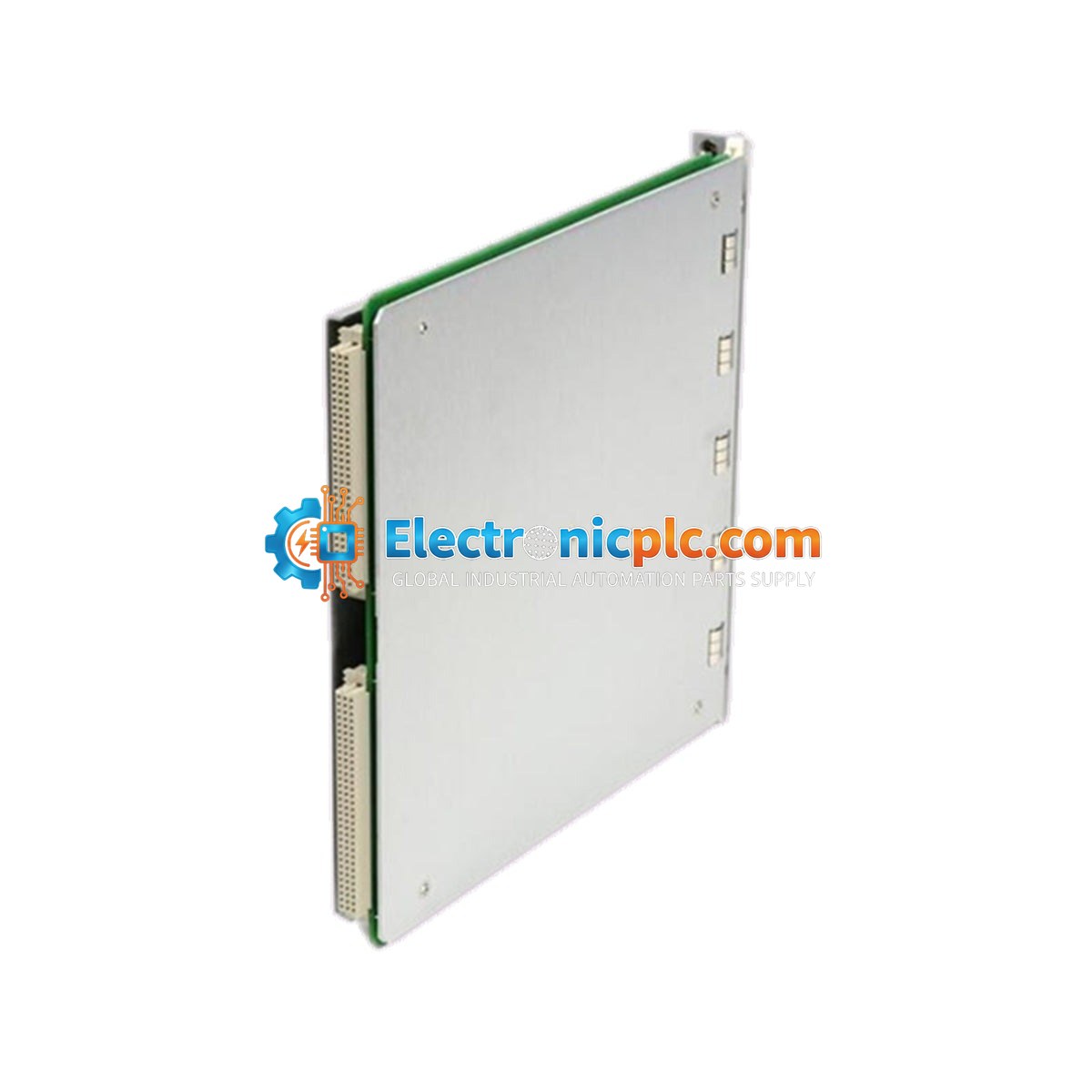

The Bently Nevada 164466-01 is a 3500/60 Temperature Monitor Module designed for the Bently Nevada 3500 Machinery Protection System. This module provides continuous, high-accuracy monitoring of temperature inputs from thermocouples and Resistance Temperature Detectors (RTDs). By tracking thermal data from critical points on rotating machinery, the 3500/60 enables early detection of abnormal conditions, helping to prevent equipment failure and minimize unplanned downtime in industrial environments.

Features

• Multi-Channel Input: Supports a variety of RTD and thermocouple sensor types for flexible thermal monitoring.
• Programmable Alarms: Features user-configurable Alert and Danger setpoints to trigger protective actions based on machinery health requirements.
• System Integration: Fully compatible with the 3500 rack architecture, supporting redundant power and communication configurations.
• Diagnostic Capabilities: Includes internal system diagnostics to ensure module health and signal integrity.

Applications

This module is primarily used in critical rotating machinery protection, including:

• Gas and steam turbines
• Centrifugal and reciprocating compressors
• Large electric motors and generators
• Bearing and stator temperature monitoring

Technical Specifications

Installation Guidelines

• Rack Mounting: Ensure the module is fully seated in the designated 3500 rack slot to maintain proper backplane connection.
• ESD Handling: Always use an anti-static wrist strap when handling the module to prevent damage to sensitive electronic components.
• Power Safety: Ensure the rack power is disconnected or the system is in a safe state before inserting or removing the module.
• Wiring: Use shielded cabling for sensor inputs to minimize electromagnetic interference (EMI) and ensure signal accuracy.
• Grounding: Follow standard industrial grounding practices for the 3500 rack to ensure system stability and safety.

Compliance and Certifications

The 3500/60 module meets international standards for industrial safety and performance, including EN 61010-1, EN 61000-6-2 (Immunity), and EN 61000-6-4 (Emissions). It is compliant with the Low Voltage Directive 2014/35/EU and RoHS Directive 2011/65/EU. Hazardous area approvals include CSA/NRTL/C Class I, Zone 2.

FAQ

Is this module compatible with all 3500 racks?

Yes, the 164466-01 is designed for standard 3500 series racks. Ensure your rack firmware and configuration software are updated to support the 3500/60 module.

Can this module be used with both RTDs and thermocouples?

Yes, the 3500/60 is designed to accept multiple temperature sensor types. Please refer to the specific configuration manual to ensure the correct input type is selected for your sensors.
