Description

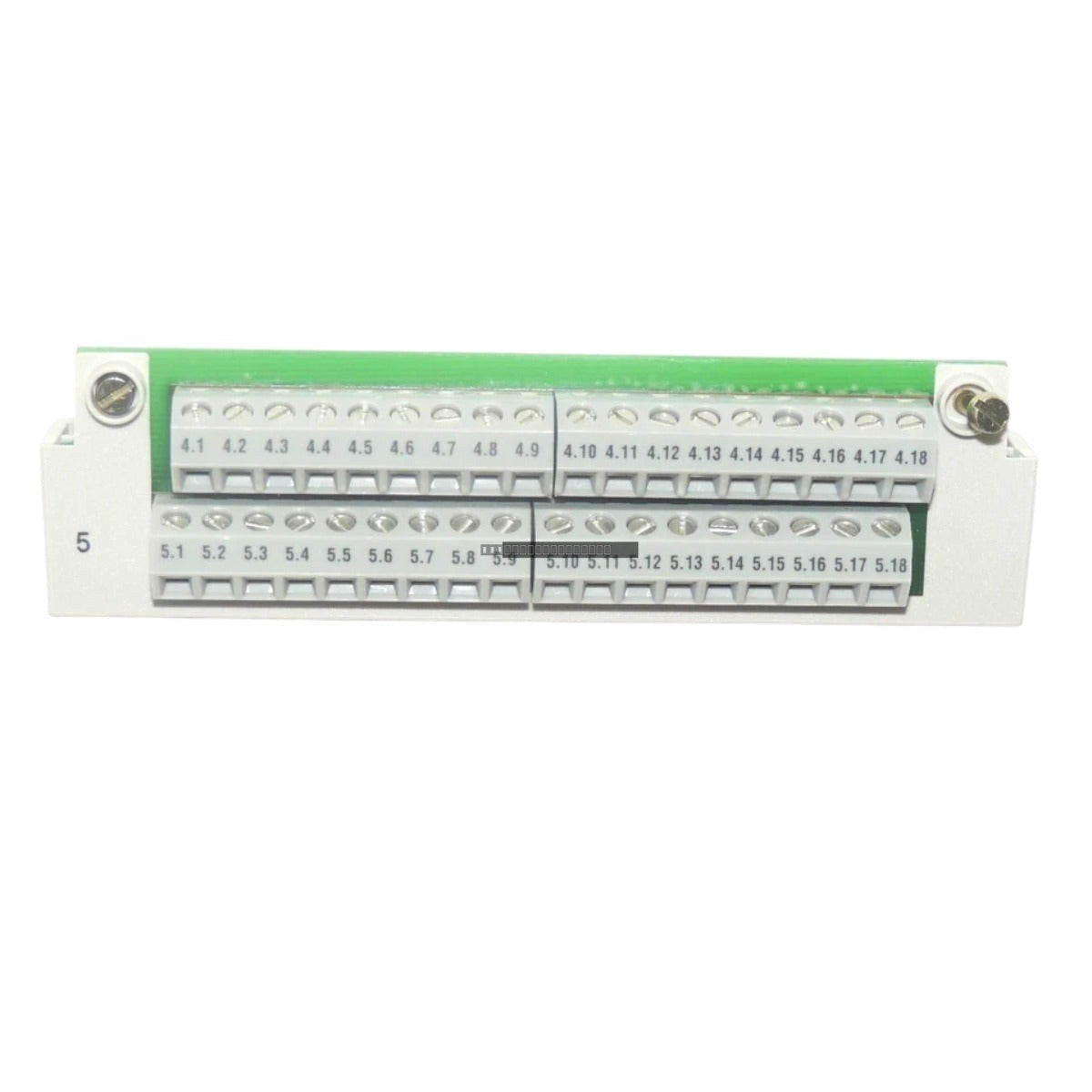

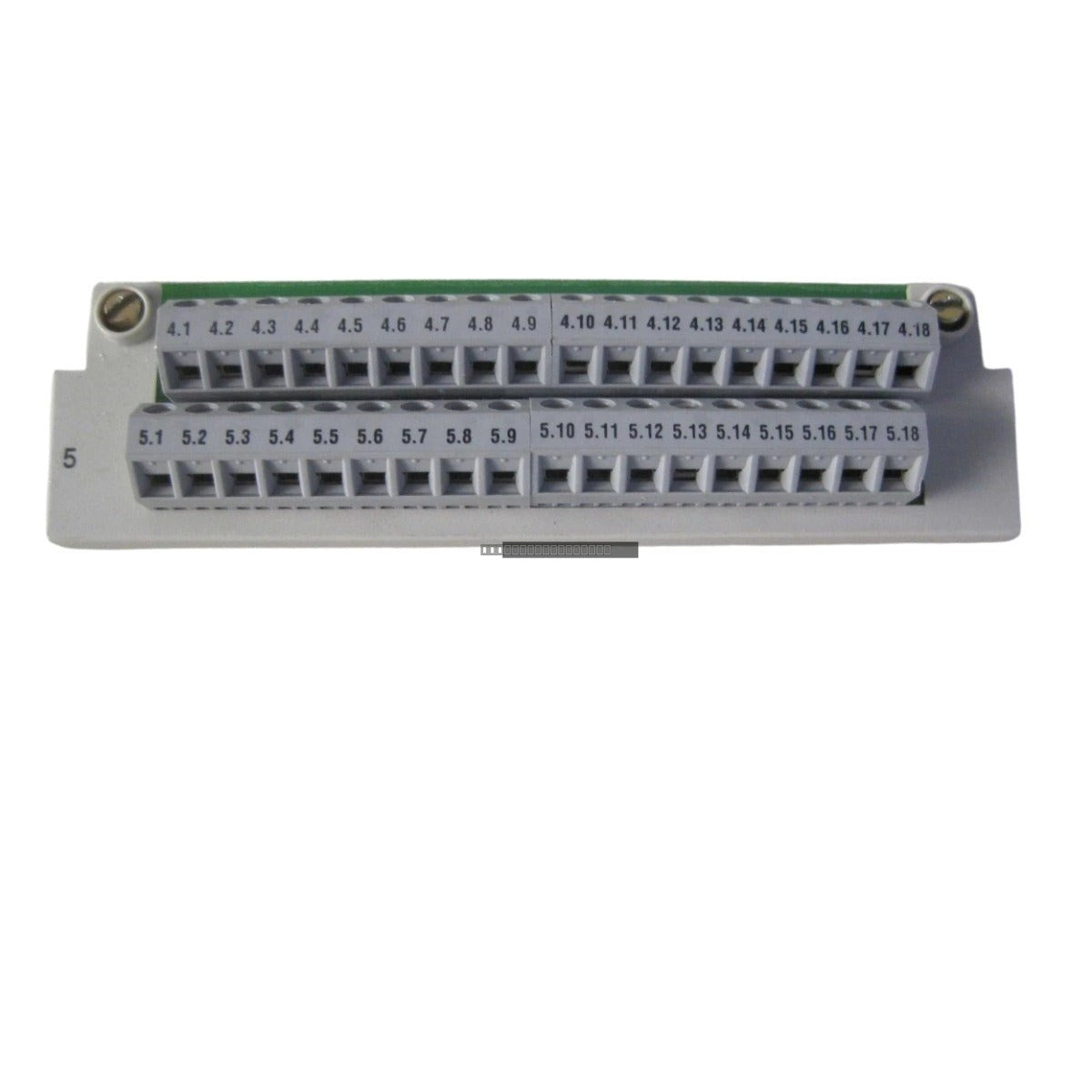

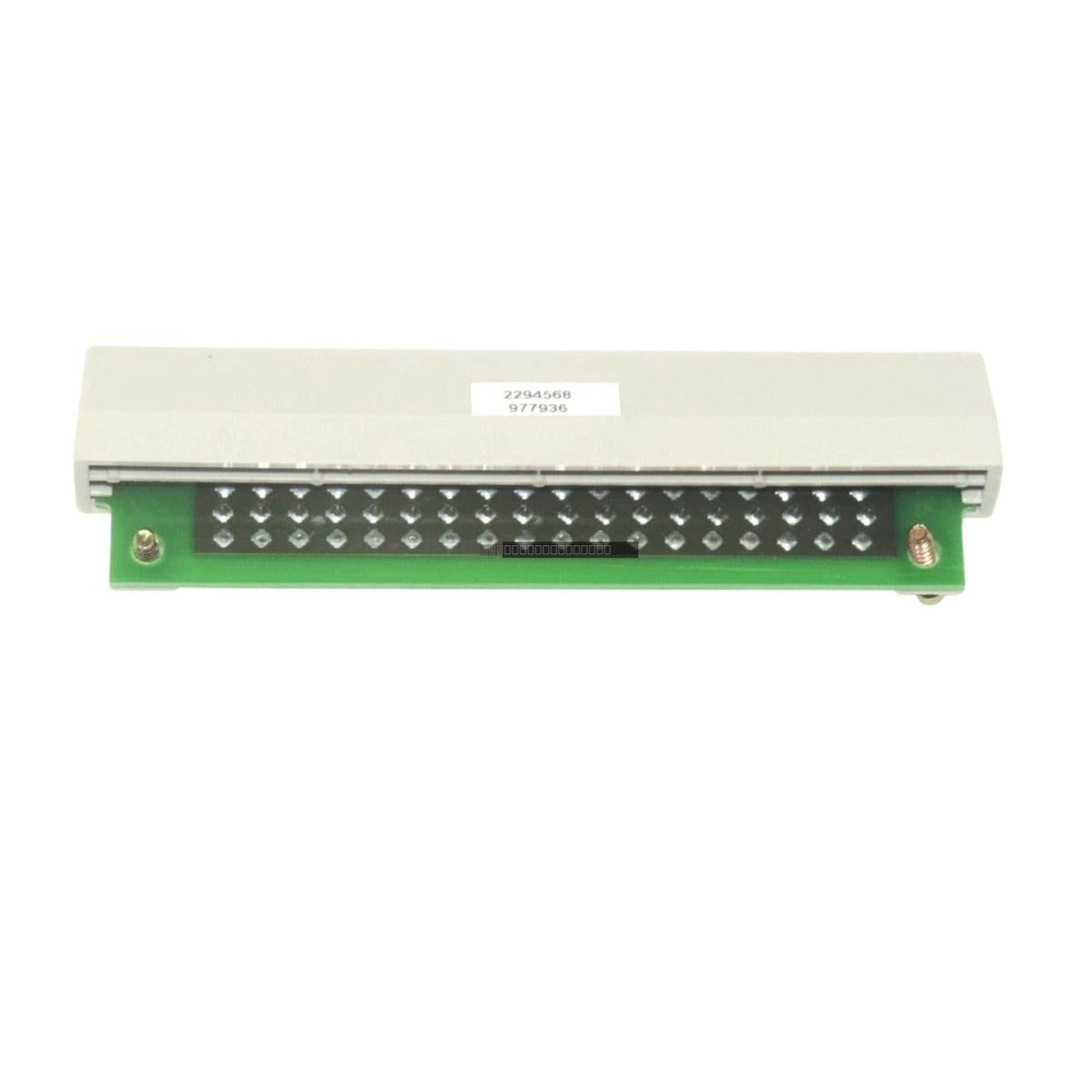

The 170XTS00501 is a specialized bus bar component designed for the Schneider Modicon Momentum automation platform. This hardware accessory provides a reliable electrical distribution and signal bridging interface for backplane configurations, ensuring stable connectivity between I/O modules. It is engineered to maintain low contact resistance and prevent signal degradation, which is vital for high-availability industrial control systems.

Features

• Designed for seamless integration with Modicon Momentum I/O bases.
• Features a dual-row terminal layout for efficient wiring in compact control cabinets.
• Utilizes high-pressure screw-type terminals to resist vibration-induced loosening.
• Rigid construction facilitates rapid maintenance and field wire replacement.
• Supports stable power and communication signal cascading across the backplane.

Applications

This bus bar is commonly utilized in various industrial automation sectors, including:

• Water and wastewater treatment facilities.
• Automated packaging and material handling lines.
• Distributed power monitoring and management systems.
• General-purpose industrial process control infrastructures.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before attempting to install or remove the bus bar.
• Verify that the I/O base is properly seated before securing the bus bar connections.
• Ensure all screw terminals are tightened to the appropriate torque to maintain a secure electrical connection.
• Maintain a clean, dry environment within the control cabinet to prevent oxidation of the terminal contacts.
• Route field wiring away from high-EMI sources to maintain signal integrity.
• Handle with care to avoid damage to the insulation or contact pins during assembly.

FAQ

What is the primary function of the 170XTS00501?

The 170XTS00501 acts as a bus bar for the Modicon Momentum system, enabling electrical distribution and signal bridging between I/O modules on the backplane.

Is this component compatible with all Modicon Momentum bases?

This model is specifically designed for the Modicon Momentum platform. Please verify your specific I/O base part number to ensure mechanical and electrical compatibility.

What type of wiring does this bus bar support?

The unit features a 2-row screw-type terminal interface, which is designed to accommodate standard industrial field wiring.
