The 1769-IF16V is a 16-channel voltage input module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It enables high-density acquisition of analog voltage signals from field devices such as...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

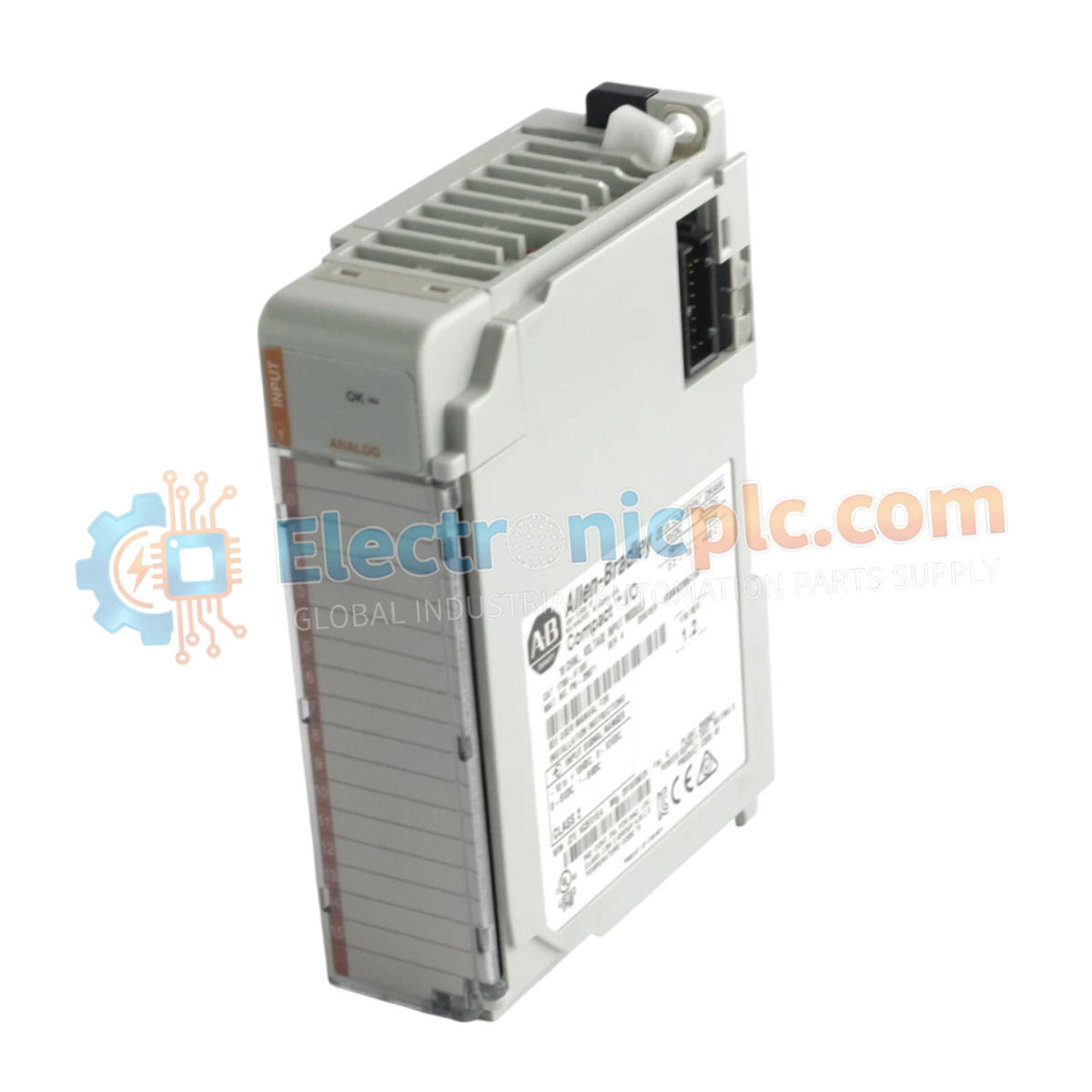

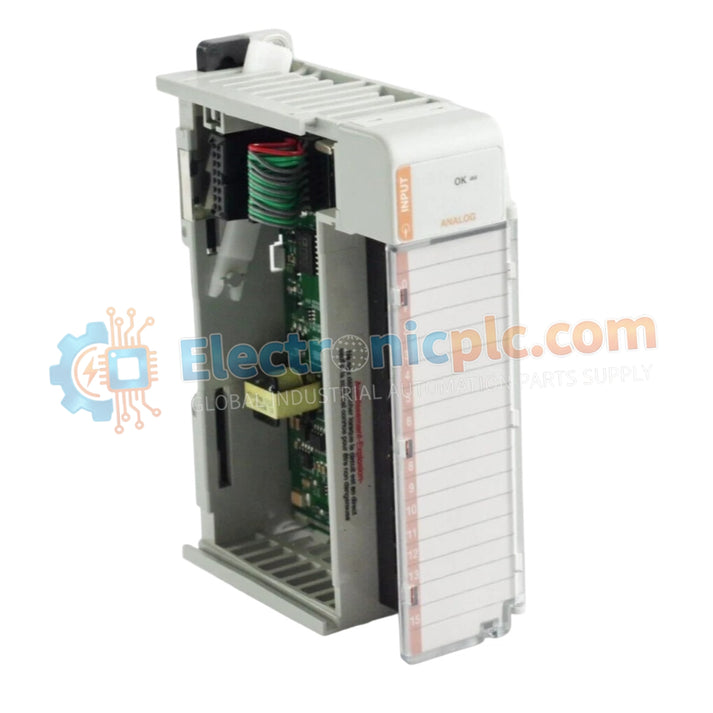

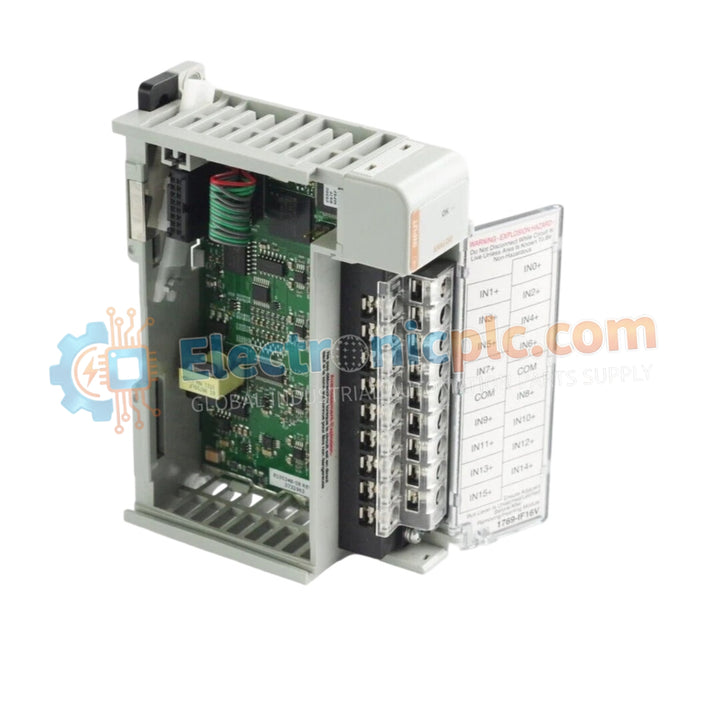

The 1769-IF16V is a 16-channel voltage input module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It enables high-density acquisition of analog voltage signals from field devices such as sensors and transmitters. We supply this unit as 100% Brand New and original in factory-sealed packaging.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Part Number | 1769-IF16V |
| Inputs | 16 single-ended voltage channels |
| Input Ranges | ±10V, 0–10V, 0–5V, 1–5V |
| Resolution | 16-bit (unipolar), 15-bit + sign (bipolar) |
| Accuracy | ±0.2% full scale @ 25°C |
| Response Time | ~12 ms (filter dependent) |
| Backplane Current | 190 mA @ 5.1V DC; 70 mA @ 24V DC |
| Input Impedance | >1 MΩ |
| Weight | 0.09 kg |
Provides 16 voltage inputs in a single module, reducing rack space and system cost.
Built-in digital filtering reduces noise from industrial environments.
Specialized for voltage-based sensors, improving cost efficiency in HVAC and process systems.
No. It is voltage-only. Use a universal or current input module instead.
No. It supports single-ended inputs only.
Yes. 24V DC power is required for analog circuitry operation.
Yes. We supply 100% Brand New and genuine Allen-Bradley modules in factory-sealed packaging.
