The 1769-IF8 is an 8-channel analog input module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It supports both voltage and current signals, delivering high-precision analog data acquisition for...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

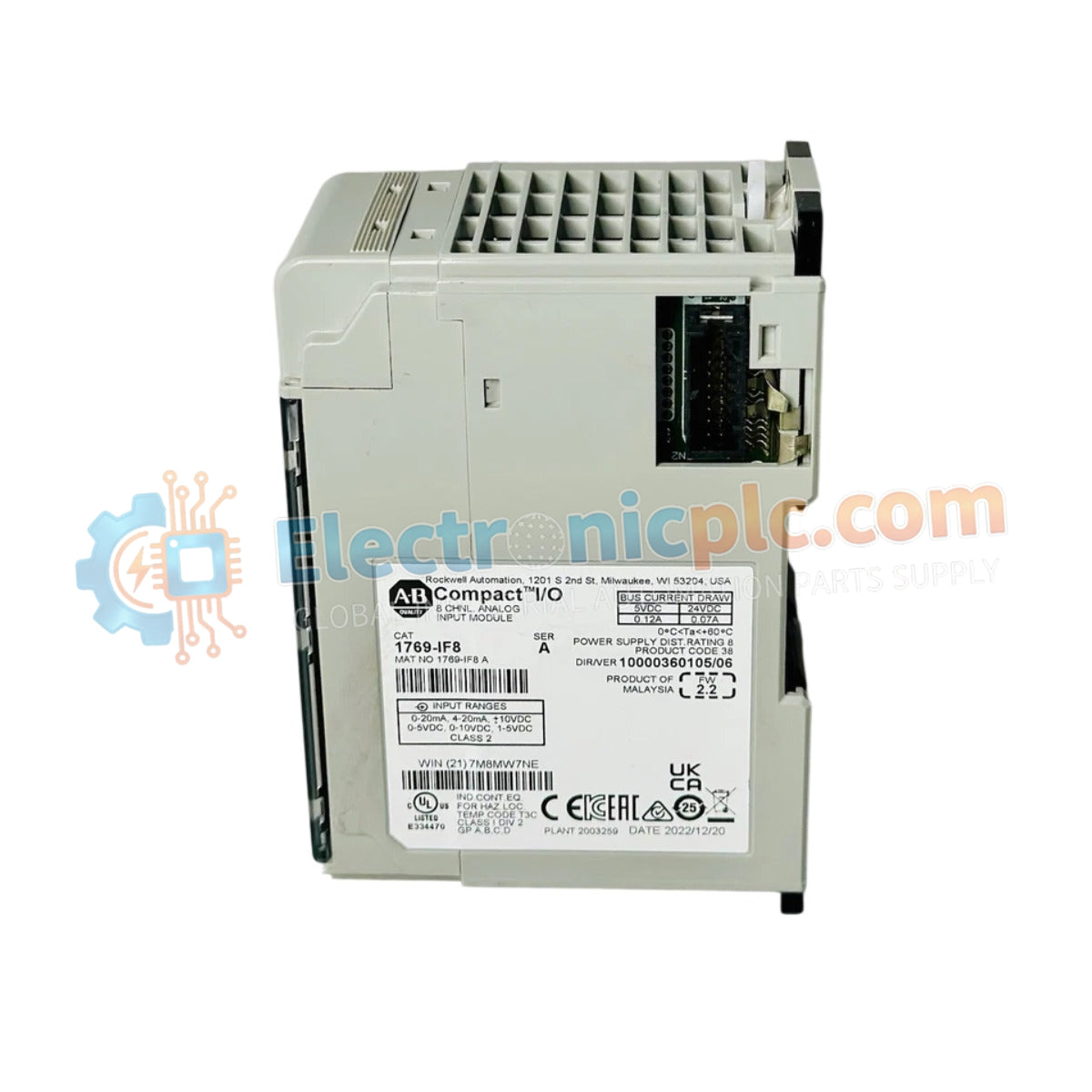

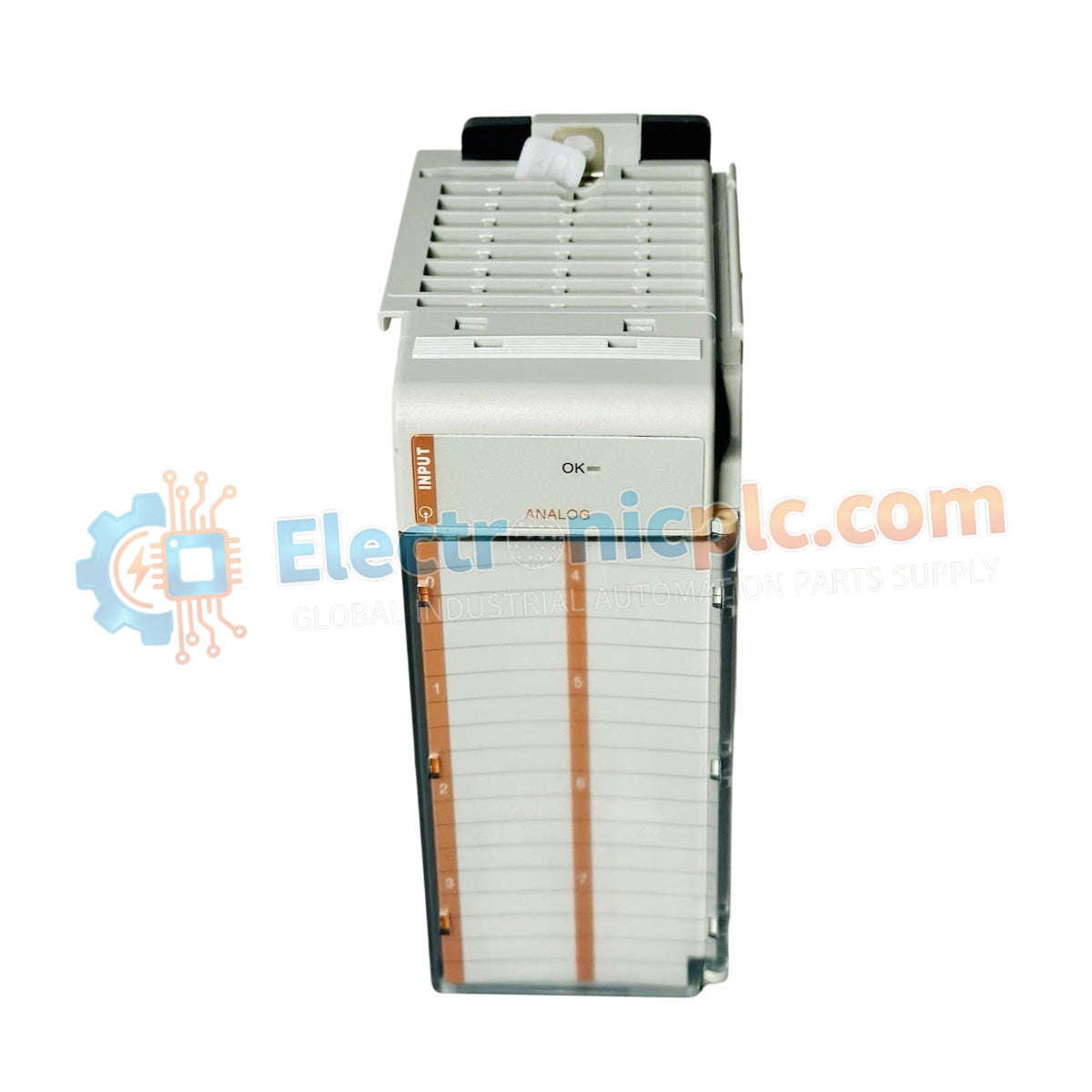

The 1769-IF8 is an 8-channel analog input module for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It supports both voltage and current signals, delivering high-precision analog data acquisition for industrial process control applications. We supply this module as 100% Brand New and original.
| Parameter | Specification |
|---|---|
| Inputs | 8 Analog Inputs |
| Input Type | Differential or Single-Ended |
| Resolution | 16-bit / 15-bit + Sign |
| Current Ranges | 0–20 mA, 4–20 mA |
| Voltage Ranges | ±10V, 0–10V, 0–5V, 1–5V |
| Backplane Current | 120 mA @ 5.1V DC |
| Input Impedance | 220 kΩ (Voltage), 250 Ω (Current) |
| Operating Temperature | 0°C to 60°C |

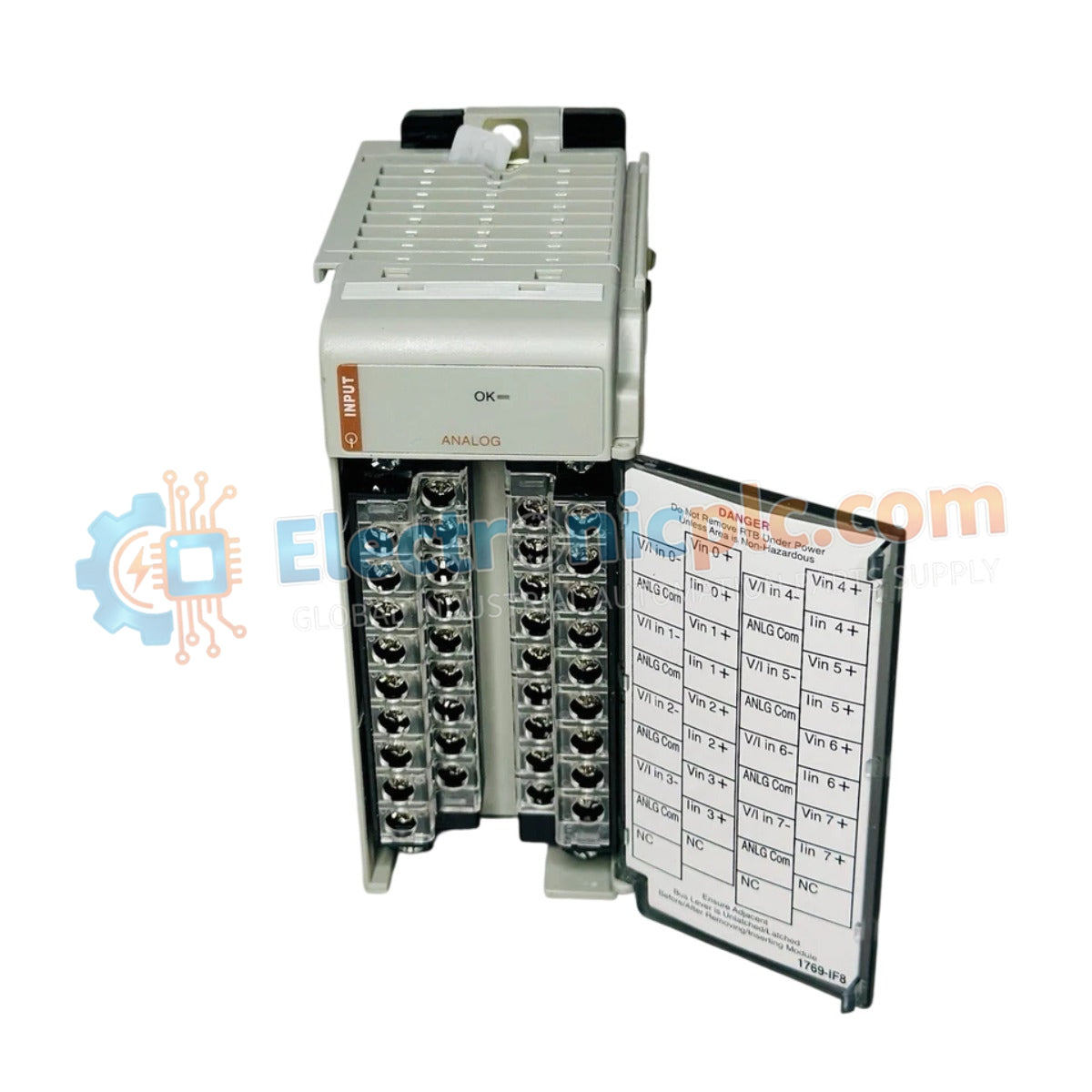

| Terminal Type | Removable Screw Terminal |
| Weight | 0.45 kg |
Provides 8 analog channels in a compact module to save cabinet space.
16-bit resolution enables precise monitoring and control of process signals.
Supports both voltage and current inputs on individually configurable channels.
Yes. Each channel can be configured independently.
Yes. External power is required for connected field devices.
Yes. The module supports CompactLogix 5370 L3 controllers such as the 1769-L33ERM.
Yes. We provide 100% Brand New and genuine Allen-Bradley products in original packaging.
