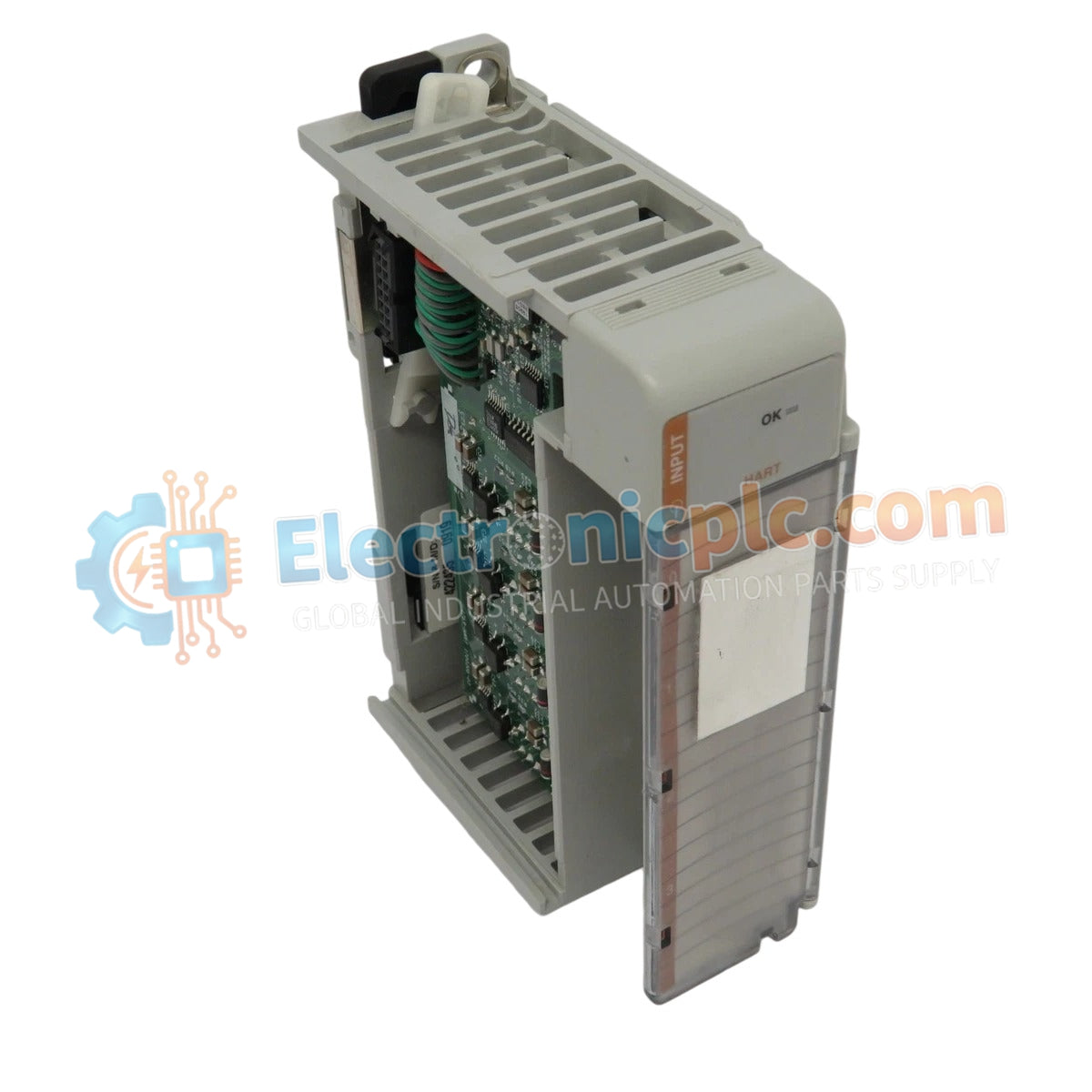

The 1769sc-IF4IH is a 4-channel isolated analog input module with integrated HART communication for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It supports both current and voltage signals while...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.
The 1769sc-IF4IH is a 4-channel isolated analog input module with integrated HART communication for Allen-Bradley CompactLogix and MicroLogix 1500 systems. It supports both current and voltage signals while enabling direct access to HART device diagnostics and configuration data. We supply this module as 100% Brand New and original.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Spectrum Controls |
| Part Number | 1769sc-IF4IH |
| Inputs | 4 Isolated Analog Channels |
| Input Types | 4–20 mA, 0–20 mA, ±10V, 0–10V, 0–5V, 1–5V |
| Resolution | 16-bit |
| HART Support | Integrated HART Modem |
| Backplane Current | 120 mA @ 5.1V DC; 170 mA @ 24V DC |
| Isolation | 500V AC / 710V DC |
| Weight | 0.28 kg |
Allows direct communication with HART-enabled field devices without external multiplexers.
16-bit resolution delivers precise analog signal measurement for process applications.
Individual channel isolation improves noise immunity and protects the control system.
Yes. It includes a built-in HART modem for direct communication with smart transmitters.
Yes. Each channel can be configured independently for current or voltage input.
Yes. It supports most 1769 CompactLogix and MicroLogix 1500 controllers.
Yes. We provide 100% Brand New and genuine Allen-Bradley products in original packaging.
