Description

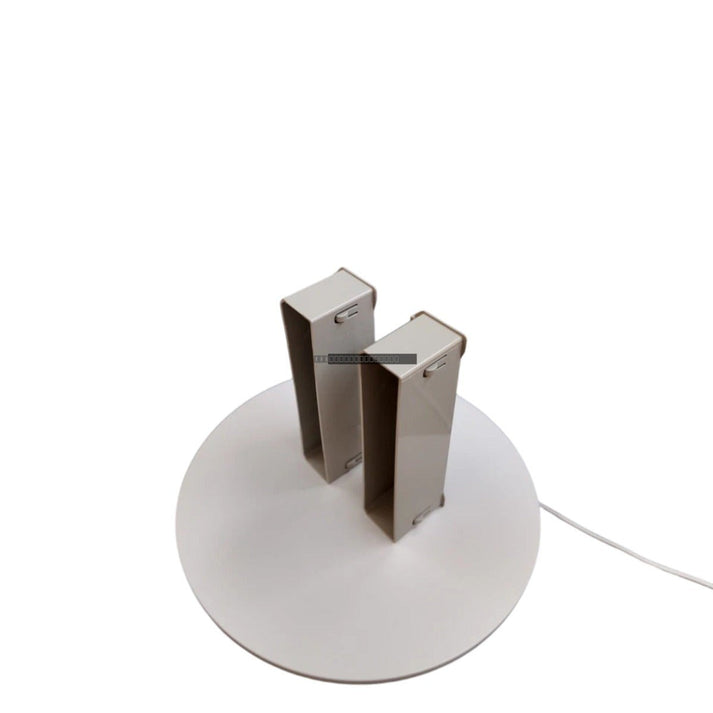

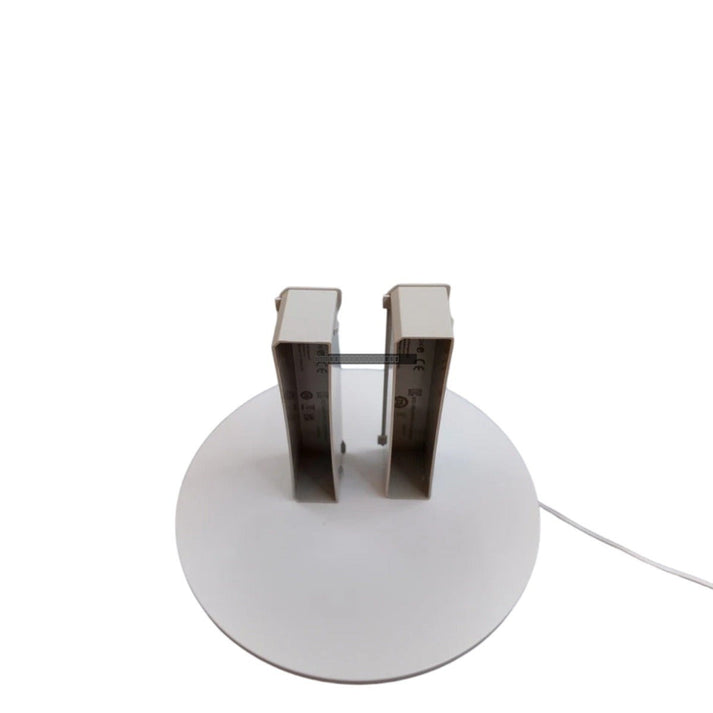

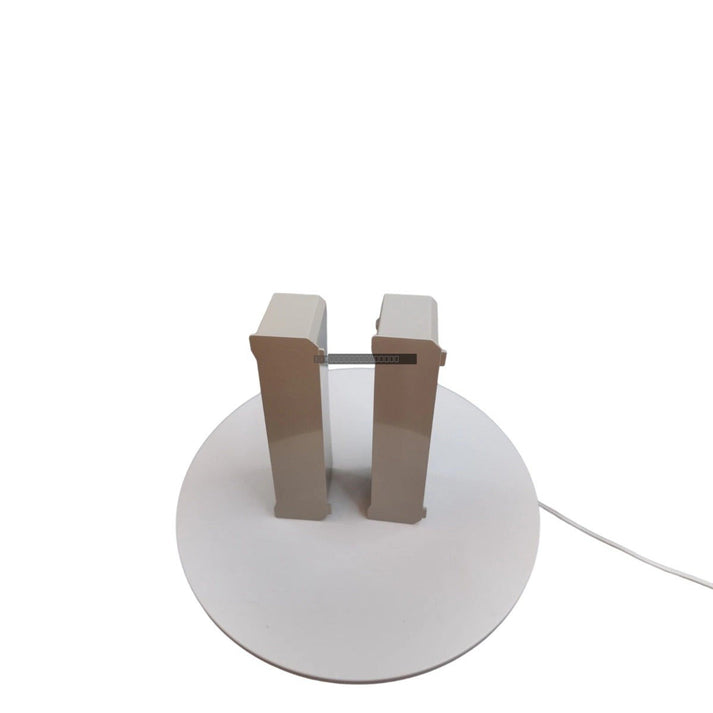

The Emerson Westinghouse 1X00569H01 is a Pmod cavity insert designed for integration within industrial control systems. This component serves as a structural and electrical interface element, featuring a blank configuration with the part number silkscreened on the bottom for clear identification. It is engineered to support high-voltage and high-current environments, ensuring reliable performance in demanding industrial applications.

Features

• Designed for standard Pmod cavity mounting configurations.
• Robust construction with a 600VAC voltage rating and 100A amperage capacity.
• Integrated 32-pin back-plane interface for secure connectivity.
• Designed for operation in extreme temperatures ranging from -40 degC to +70 degC.
• High environmental tolerance with non-condensing humidity support up to 95% RH.
• Includes 500 V DC isolation for enhanced system protection.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before attempting to install or remove the cavity insert.
• Verify that the 32-pin back-plane connection is properly aligned to prevent pin damage or improper seating.
• Handle the unit with standard ESD precautions to protect internal components.
• Ensure the installation environment remains within the specified temperature and humidity ranges to prevent premature degradation.
• Check that all mechanical fasteners are secure to maintain structural integrity during operation.

FAQ

What is the primary function of the 1X00569H01?

This component acts as a cavity insert for Pmod systems, providing the necessary mechanical and electrical interface for modular industrial control setups.

Is this part suitable for high-temperature environments?

Yes, the module is rated for an operating temperature range of -40 degC to +70 degC, making it suitable for most industrial cabinet environments.
