Description

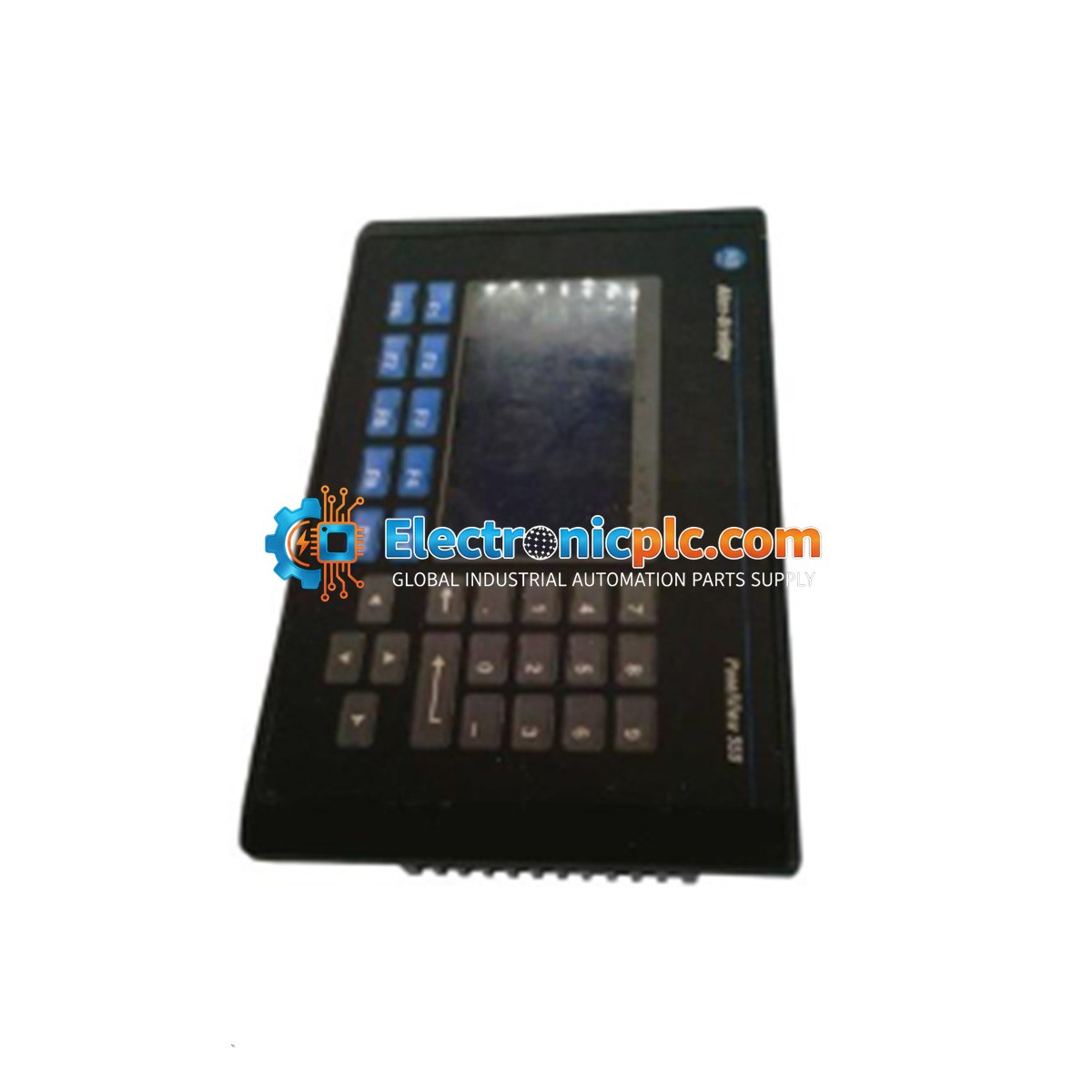

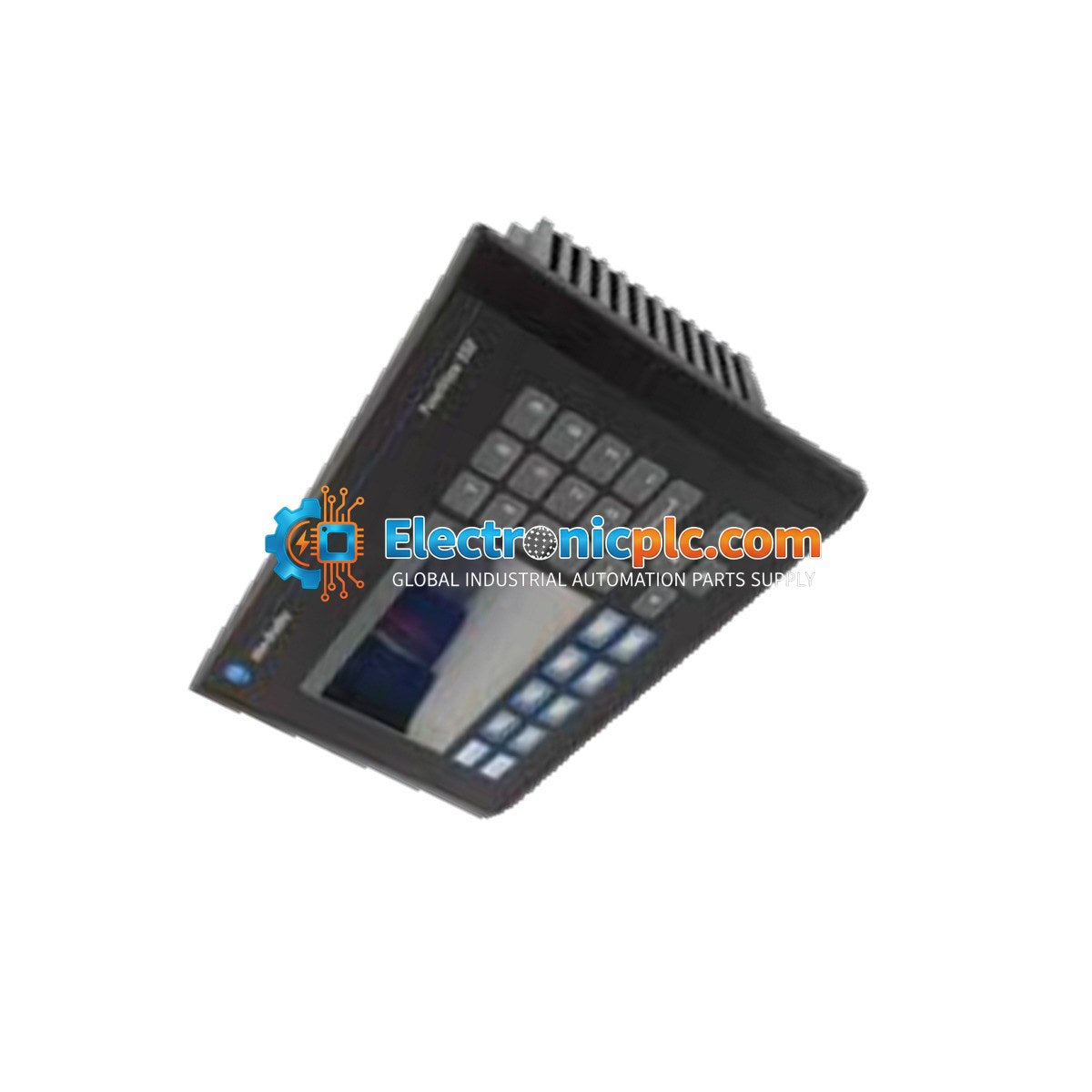

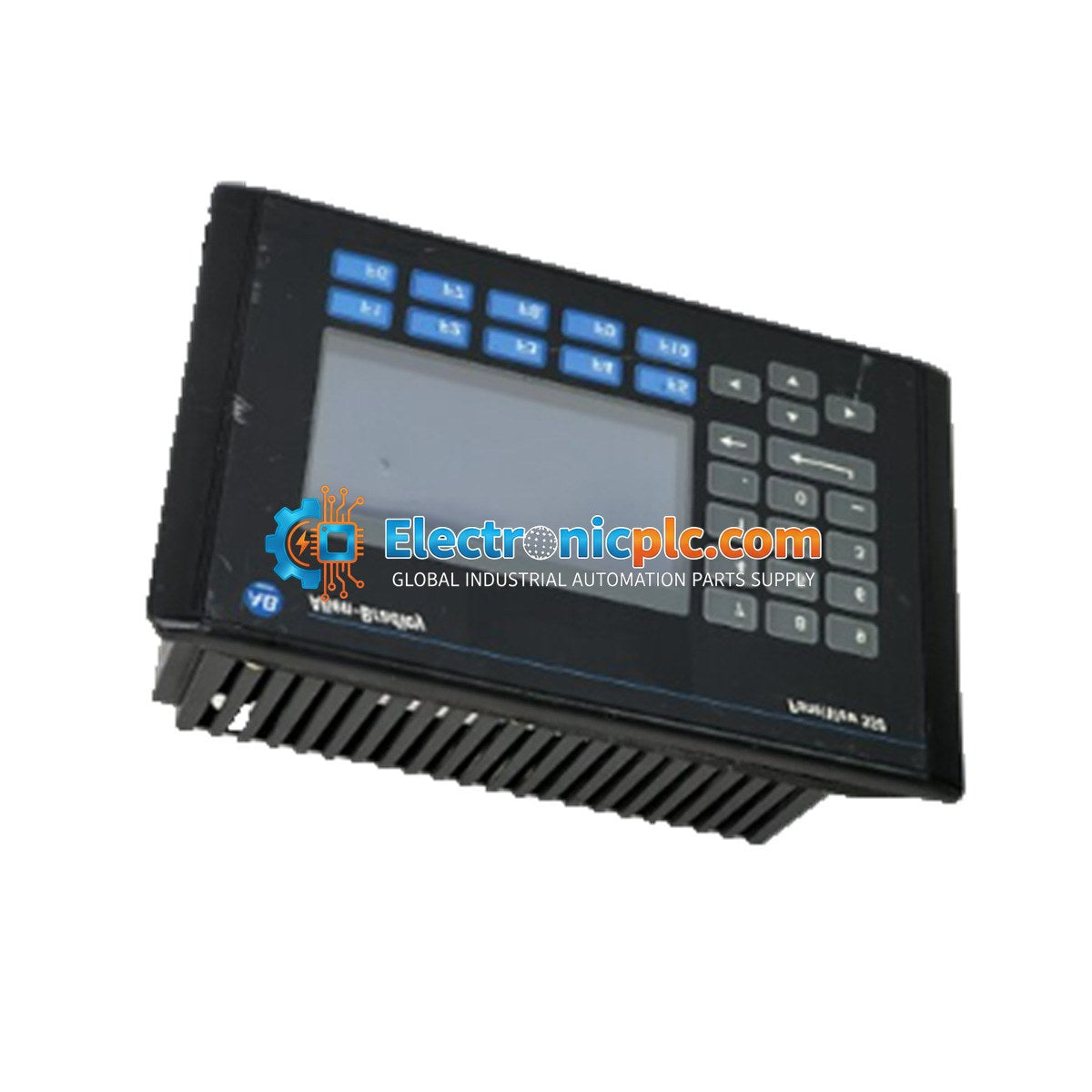

The Allen-Bradley 2711-B5A2X is a high-performance operator terminal belonging to the PanelView 550 Standard series. This human-machine interface (HMI) module is engineered for industrial process monitoring, real-time diagnostics, and manual control command execution. By facilitating seamless data exchange with programmable logic controllers (PLCs), it serves as a critical interface for operators in demanding environments such as chemical processing, petroleum refining, food packaging, and water treatment facilities. The unit is designed to minimize system downtime by providing a reliable, ruggedized physical interface for complex automation tasks.

Features

• Hybrid Input Interface: Combines a resistive touchscreen with a 10-key function matrix (F1-F10) and an integrated numeric keypad for versatile operation, including high-vibration scenarios.
• Visual Display: Features a 5.5-inch monochrome LCD screen with a 256 x 128 pixel resolution for clear process visualization.
• Communication Connectivity: Equipped with a dedicated DH-485 serial port, supporting token-passing network structures for robust point-to-point or multi-node communication with SLC 500 and MicroLogix controllers.
• Rugged Construction: Built to withstand harsh industrial conditions with high-integrity ingress protection, ensuring resistance against dust and liquid contamination.

Applications

The 2711-B5A2X is suitable for a wide range of industrial automation applications, including:

• Petroleum and chemical processing plants
• Food and beverage packaging lines
• Water and wastewater treatment utilities
• Manufacturing and assembly line control

Technical Specifications

Installation Guidelines

• Mounting: Ensure the terminal is installed in a panel cutout that meets the manufacturer's specified dimensions to maintain the NEMA/IP seal integrity.
• Grounding: Always connect the chassis ground terminal to a low-impedance earth ground to mitigate EMI and protect against electrical surges.
• Wiring: Use shielded communication cables for the DH-485 port and keep them routed away from high-voltage power lines to prevent signal interference.
• Environment: Ensure adequate ventilation around the unit to maintain operating temperatures within the 0 to 55 deg C range.
• Safety: Power down the system before connecting or disconnecting any communication cables or power supply leads.

FAQ

What communication protocol does the 2711-B5A2X use?

This terminal utilizes the DH-485 communication protocol, which is a token-passing network standard designed for reliable connectivity with Allen-Bradley SLC 500 and MicroLogix controller families.

Can this unit be used in outdoor environments?

The 2711-B5A2X is rated for NEMA 4X indoor use only. It is not designed for direct exposure to outdoor weather conditions or direct sunlight.
