Description

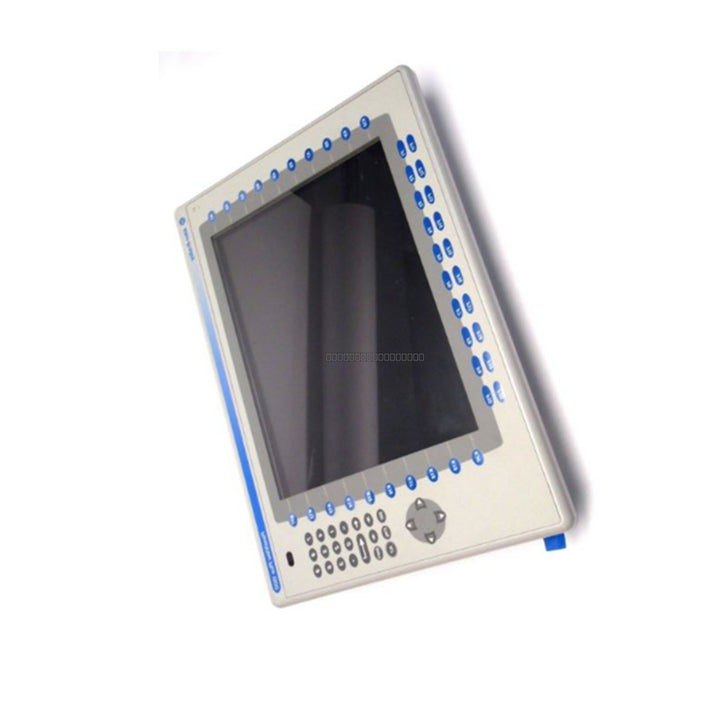

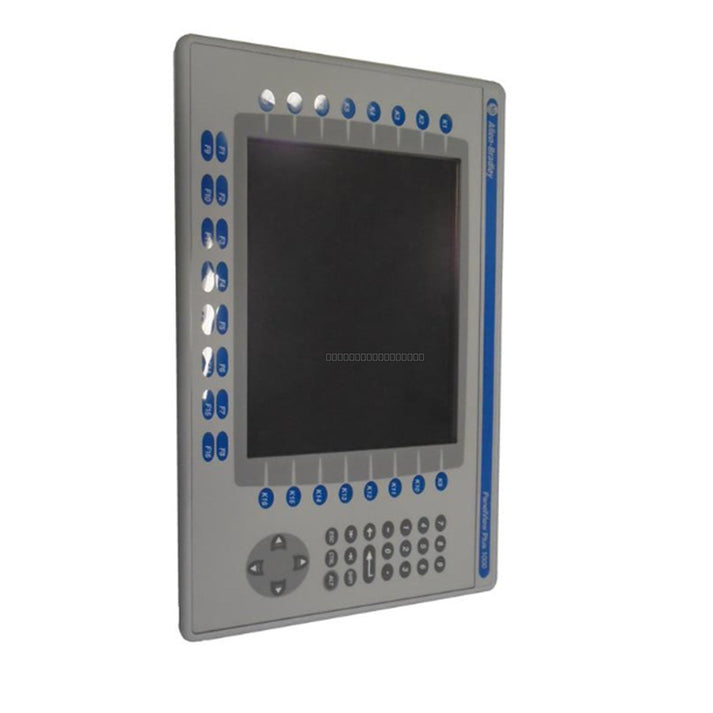

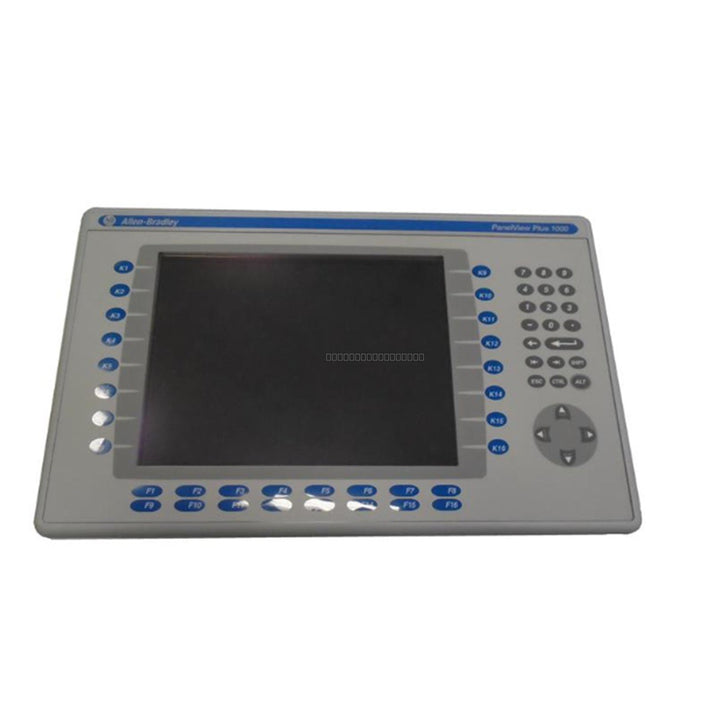

The 2711P-B10C15A2 is an Allen-Bradley PanelView Plus 1000 operator interface terminal designed for demanding industrial automation environments. This unit provides a robust visualization solution featuring a 10.4-inch color display with a resolution of 640 x 480 pixels. It offers dual-input functionality, allowing operators to interact via both a physical keypad and an analog resistive touch screen. The module is equipped with an upgraded 128 MB logic module to support complex visualization tasks and high-performance data processing.

Features

• 10.4-inch color display with 640 x 480 resolution for clear process monitoring.
• Dual-input interface: Integrated keypad and analog resistive touch screen.
• Upgraded 128 MB logic module for enhanced application performance.
• Versatile communication suite including ControlNet, Ethernet, RS-232, and USB ports.
• Designed for modular integration within the PanelView Plus 1000 architecture.

Applications

This operator interface is suitable for various industrial applications, including machine control, process visualization, and data logging in manufacturing, water treatment, and power distribution systems where reliable HMI performance is required.

Technical Specifications

Installation Guidelines

• Ensure the terminal is mounted in a panel enclosure that provides adequate protection against environmental hazards.
• Verify that the power supply voltage is within the 100-240 VAC range before connection.
• Use shielded cables for communication ports to minimize EMI interference in noisy industrial environments.
• Maintain proper clearance around the unit to ensure adequate ventilation and cooling.
• Always power down the system before installing or removing the logic module or communication cables.

FAQ

Does this terminal support both touch and keypad input? Yes, the 2711P-B10C15A2 features both a physical keypad and an analog resistive touch screen for flexible operator control.

What is the primary communication protocol for this model? This unit supports multiple protocols, including ControlNet and Ethernet, along with standard RS-232 and USB connectivity.
