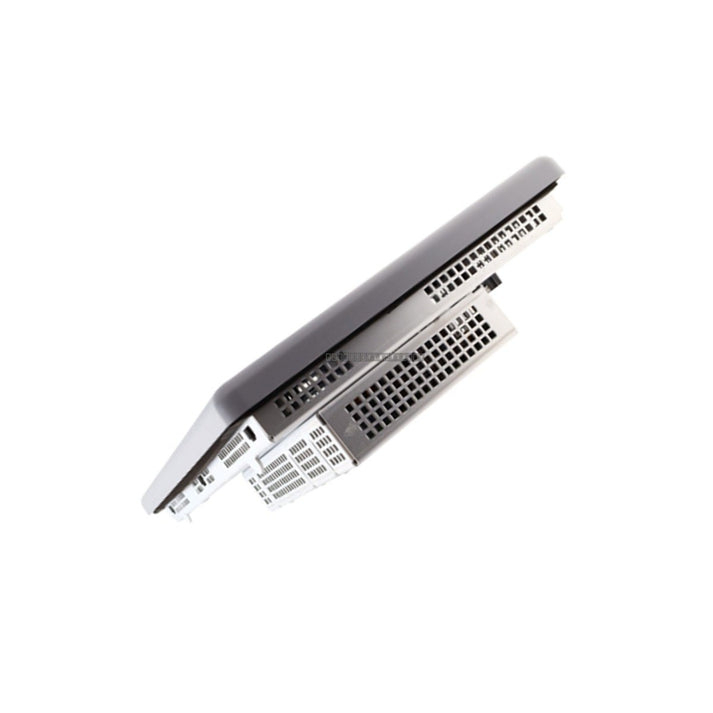

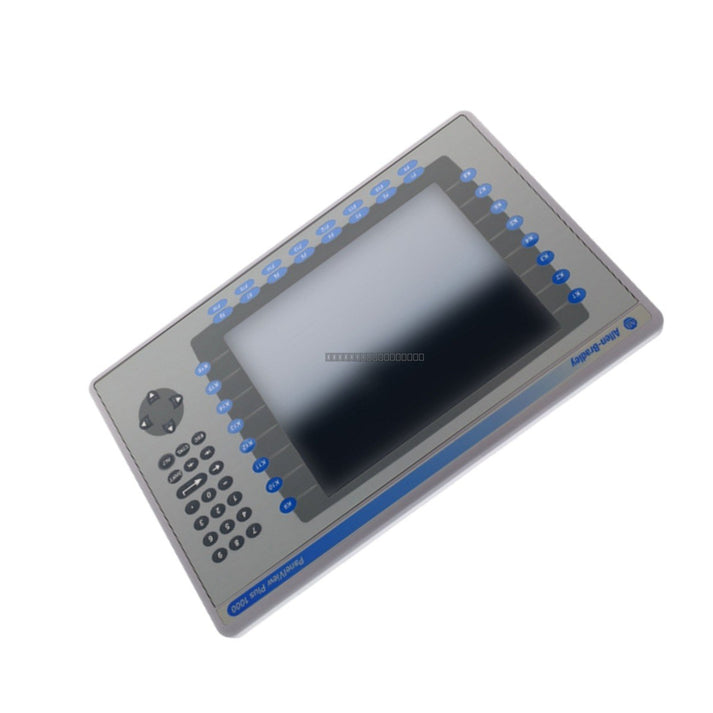

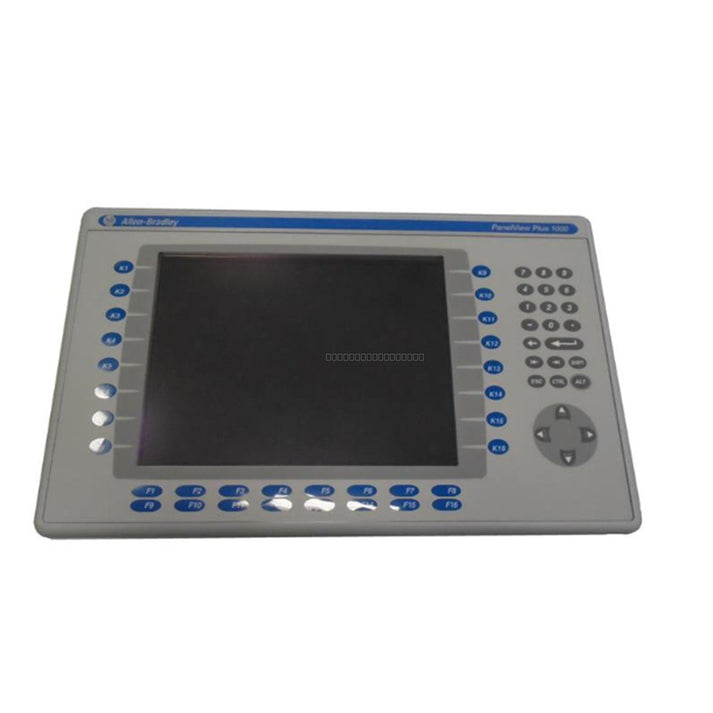

The Allen-Bradley 2711P-B12C4A7 operator interface terminal functions as a robust data visualization and control hub for industrial automation environments. Designed for seamless integration into manufacturing lines, automotive assembly, and material handling systems, this unit provides real-time monitoring and precise command execution. Its dual-input design ensures reliable operation in demanding conditions, helping to maintain system availability and minimize downtime.

Features

• Dual-input interface featuring both an analog resistive touchscreen and a 30-key tactile keypad for glove-safe operation.
• 12.1-inch color TFT active matrix display providing clear, high-resolution visual feedback.
• Integrated 256 MB memory capacity for application storage and dynamic data logging.
• Versatile communication suite including Ethernet (RJ45) and RS-232 serial ports for PLC and supervisory network connectivity.
• Dual USB ports for peripheral support and data transfer.
• Internal AC power supply designed to handle wide-range input voltages, ensuring stability during grid fluctuations.

Applications

This terminal is suitable for a wide range of industrial applications, including:

• Automated assembly and manufacturing lines.
• Material handling and logistics control systems.
• Supervisory control and data acquisition (SCADA) interfaces.
• Human-Machine Interface (HMI) nodes for programmable logic controllers (PLCs).

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to manufacturer specifications to maintain the NEMA/IP rating of the enclosure.
• Mount the terminal in a location with adequate ventilation to maintain operating temperatures within the 0 to 55 deg C range.
• Use shielded communication cables and ensure proper grounding of the chassis to minimize electromagnetic interference (EMI).
• Verify that the AC power source is stable and within the 85-264 VAC range before connecting.
• Always power down the unit before performing any maintenance or cable connections to prevent electrical damage.
• Handle the touchscreen with care; avoid using sharp objects that may damage the resistive overlay.
