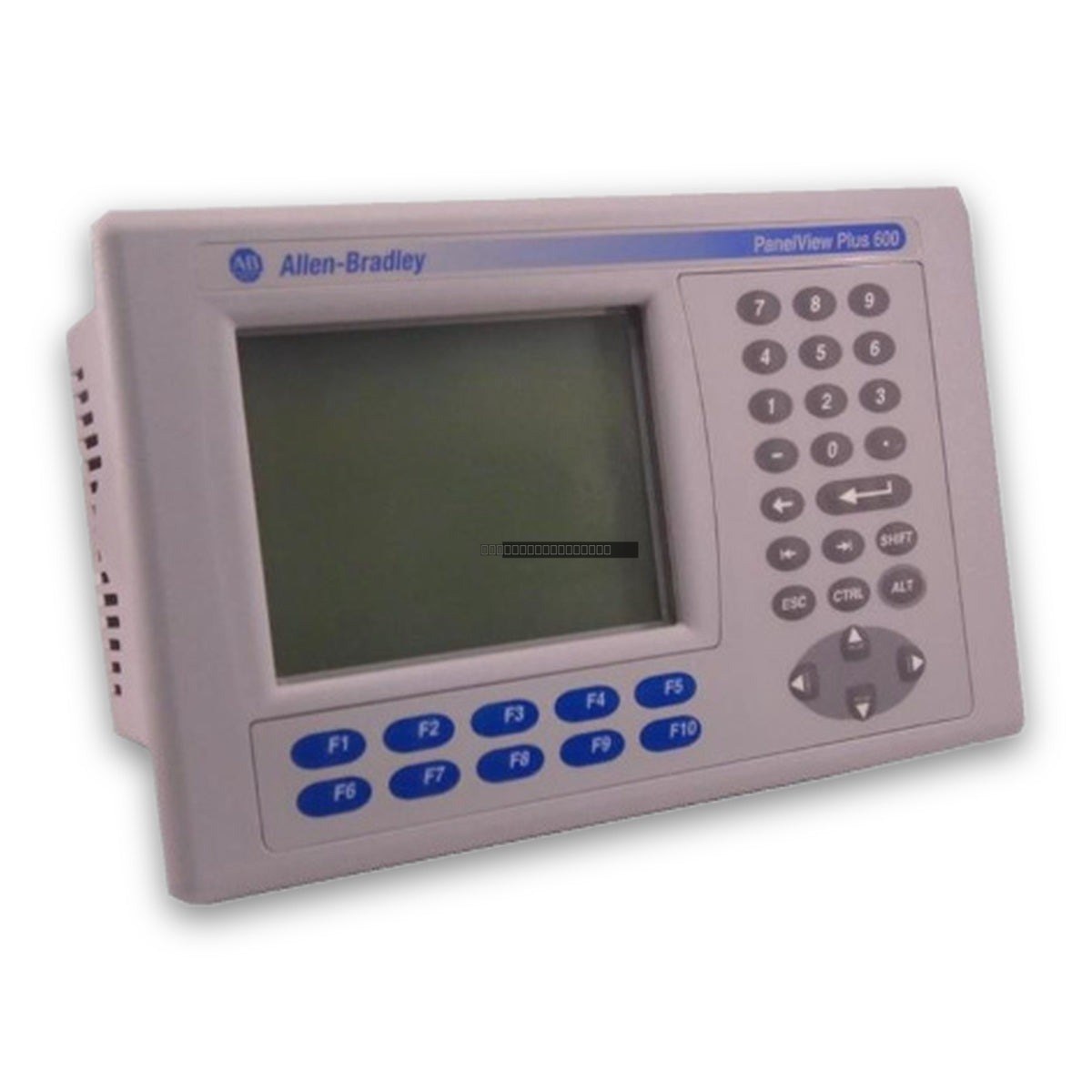

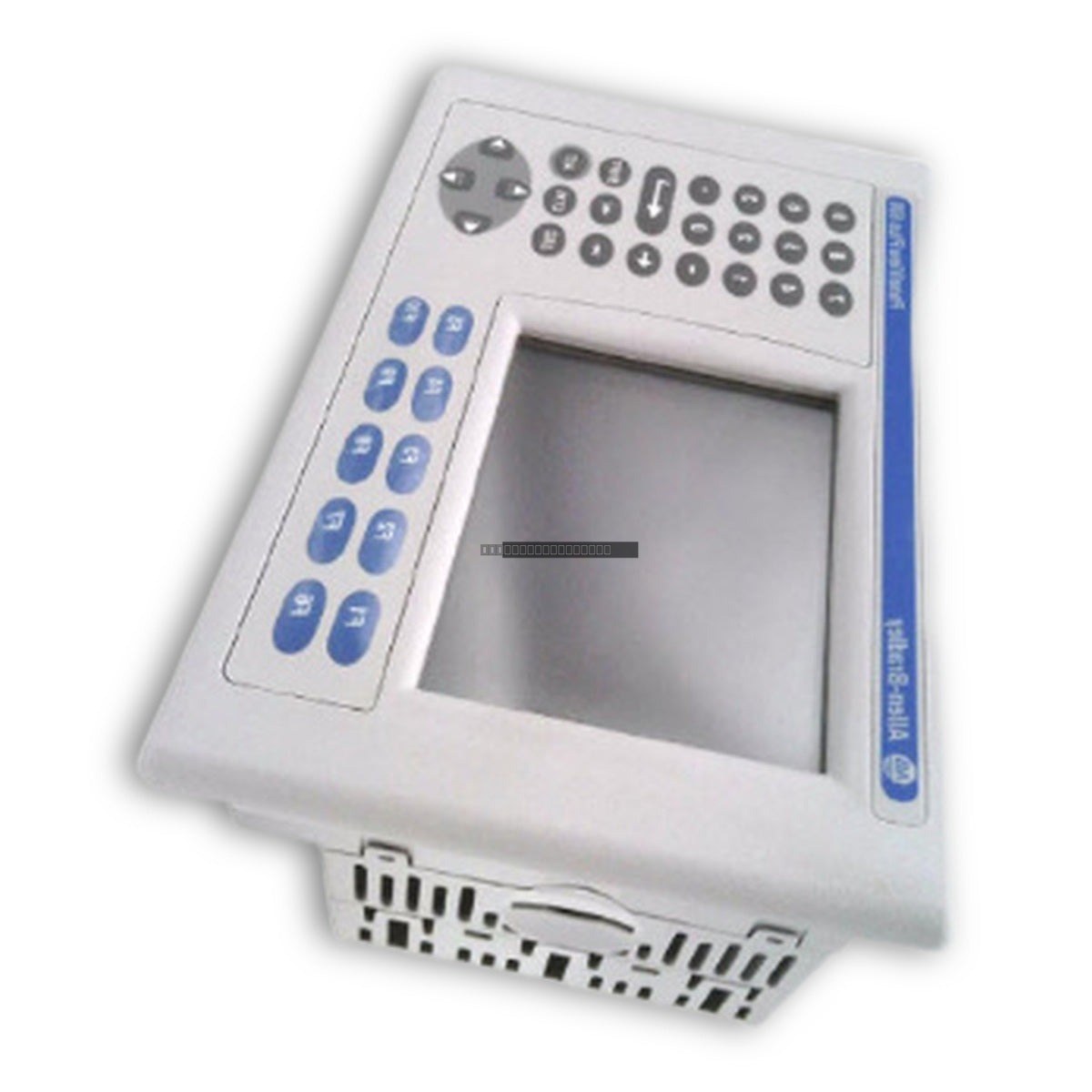

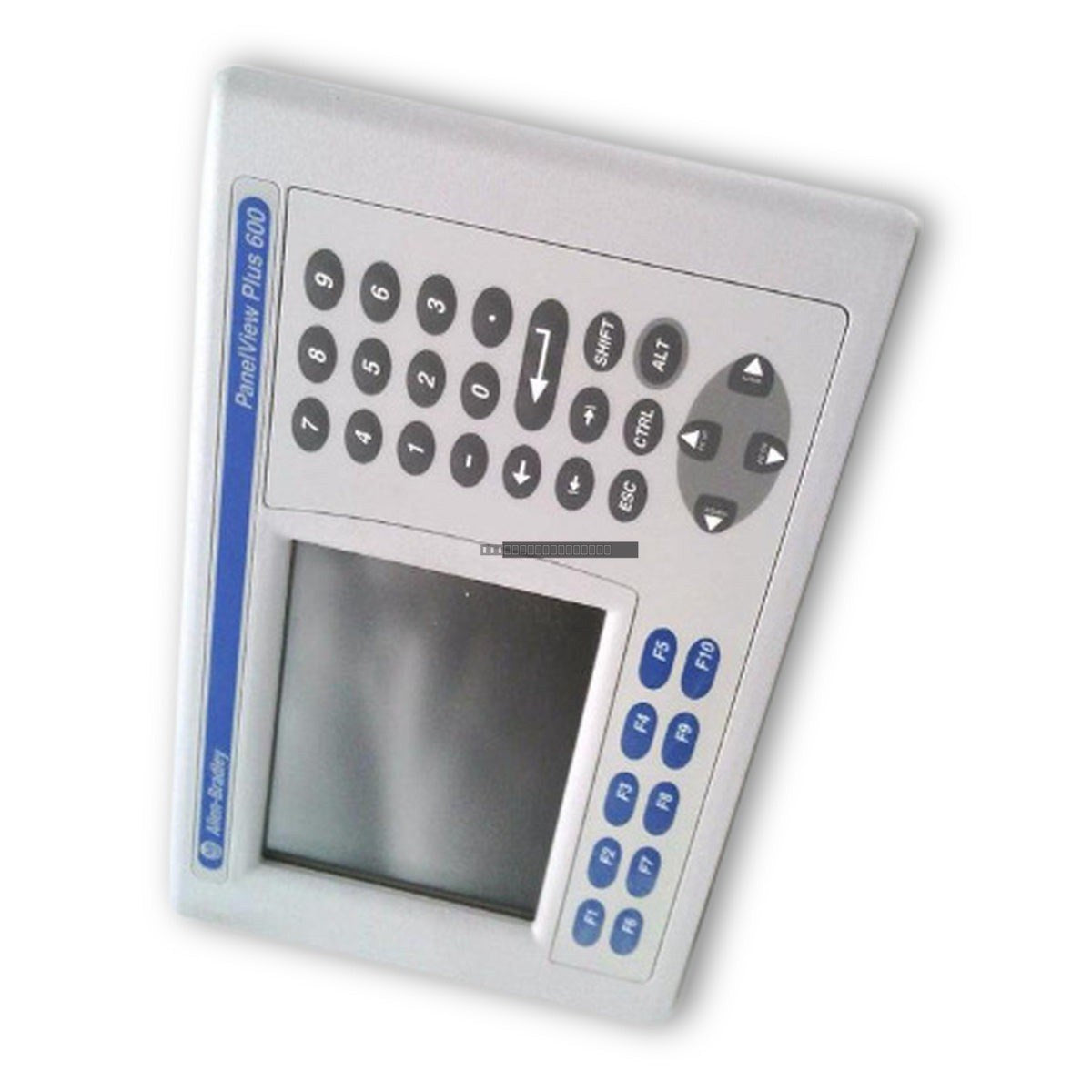

The Allen-Bradley 2711P-B6M20A is a robust operator interface terminal from the PanelView Plus 6 series, designed for machine-level visualization and control. This unit features a 5.7-inch monochrome display and a hybrid input system, combining a tactile keypad with an analog resistive touchscreen to provide reliable interaction in industrial environments. It is engineered to facilitate seamless communication with automation controllers, supporting efficient monitoring and command execution in factory floor applications.

Features

• Hybrid Input Design: Equipped with both a physical keypad and an analog resistive touchscreen for versatile and secure operator control.
• Monochrome Display: 5.7-inch active-matrix display providing high-contrast visuals suitable for standard industrial lighting environments.
• Connectivity Options: Includes integrated Ethernet, RS-232 serial, and USB ports to support flexible networking and peripheral integration.
• Industrial Durability: Rated at IP65 for protection against dust and low-pressure water jets, ensuring longevity in demanding plant conditions.

Applications

This operator terminal is ideal for use in automated manufacturing cells, process control stations, and various industrial automation environments where reliable, machine-level human-machine interface (HMI) capabilities are required.

Technical Specifications

Installation Guidelines

• Ensure the terminal is mounted in a panel cutout that meets the manufacturer's specified dimensions to maintain the IP65 seal.
• Verify that the power source is within the 100-240 VAC range before connection.
• Use shielded communication cables for Ethernet and serial connections to minimize electromagnetic interference (EMI).
• Maintain adequate clearance around the unit to allow for proper ventilation and cooling during operation.
• Always power down the device before performing any wiring or maintenance tasks to prevent electrical hazards.

FAQ

What type of power input does the 2711P-B6M20A support?

This model is designed for AC power networks and supports a voltage range of 100 to 240 VAC at 50 to 60 Hz.

Is this terminal suitable for high-vibration environments?

The PanelView Plus 6 series is built for industrial use; however, ensure that the mounting surface is rigid and that the unit is secured according to the installation manual to mitigate the effects of vibration.
