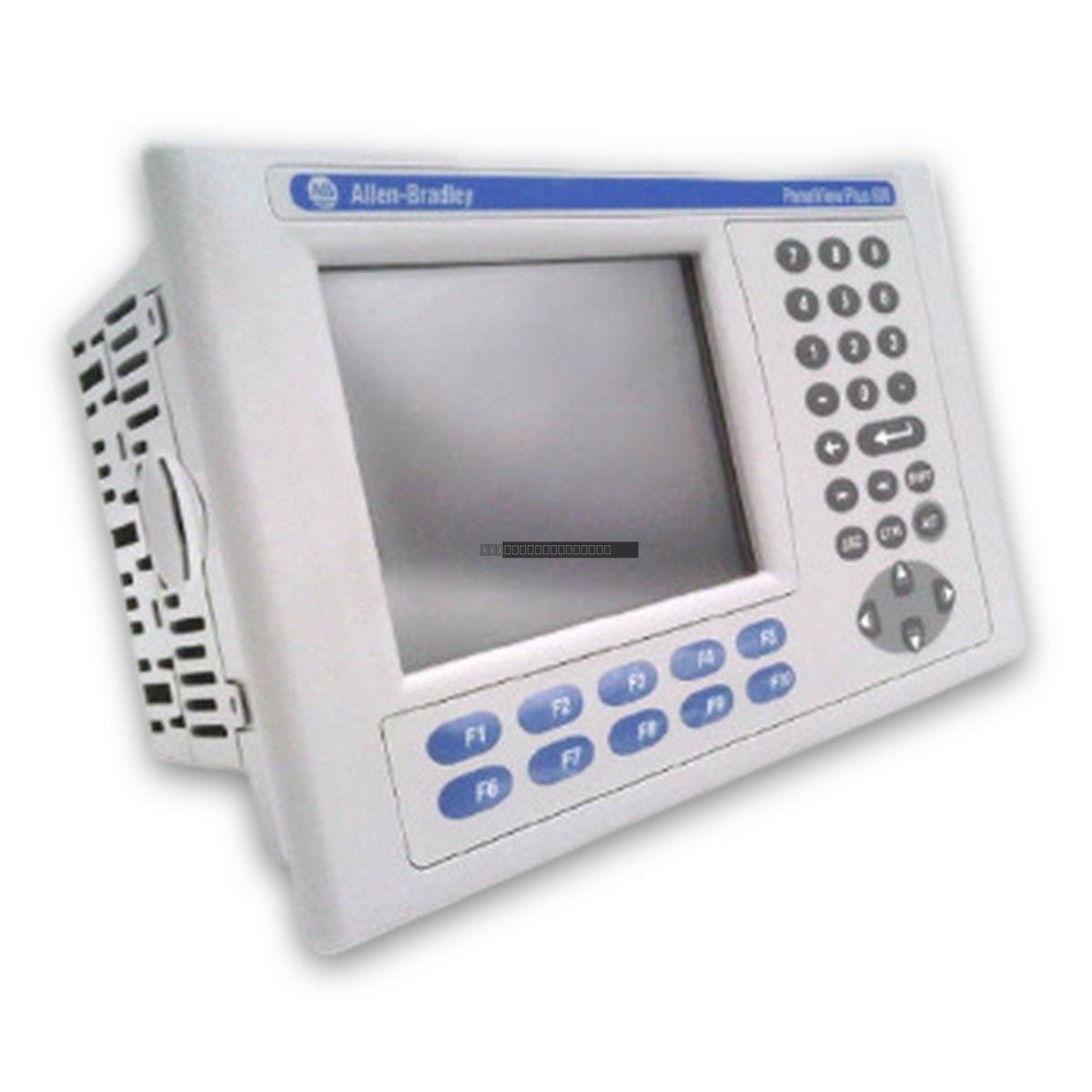

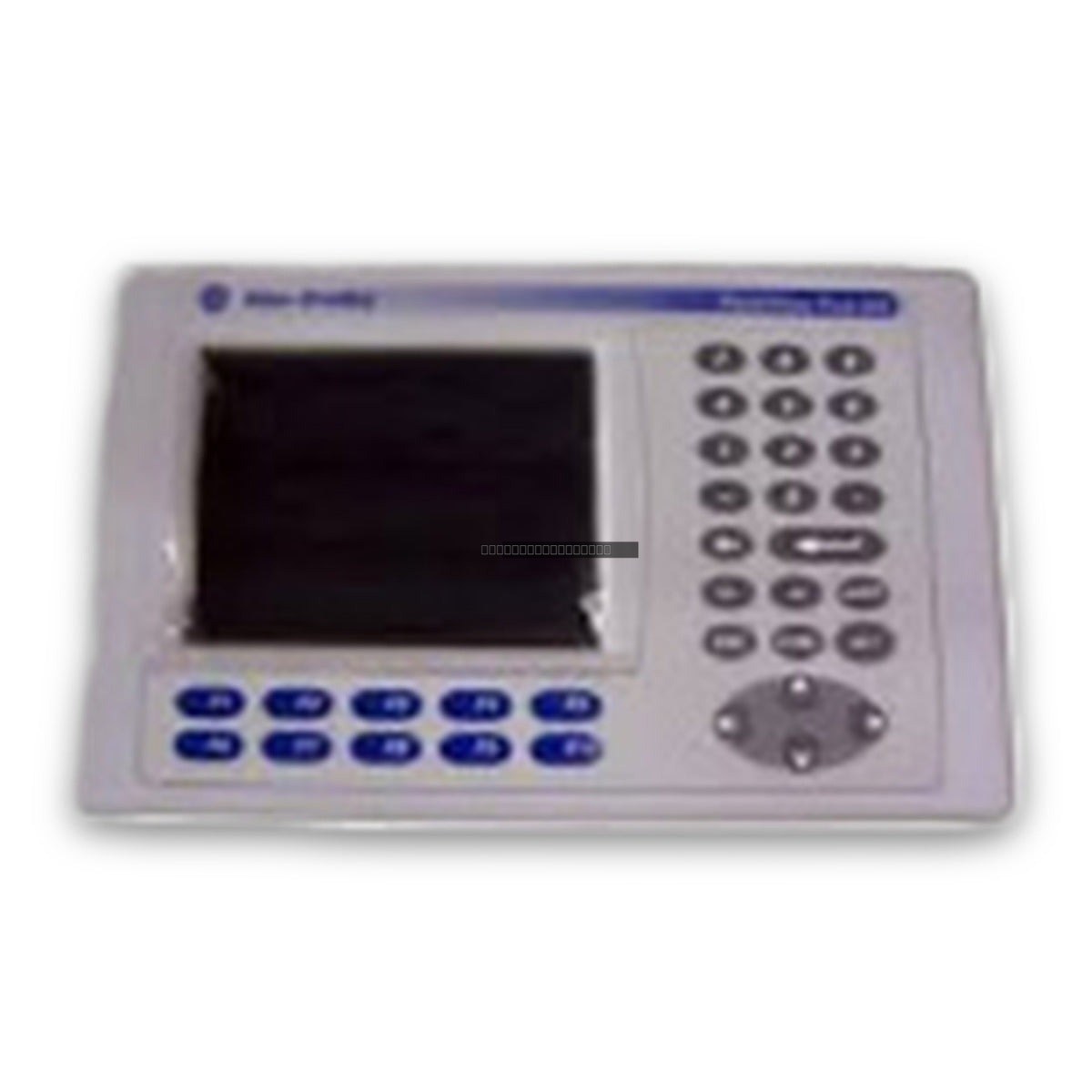

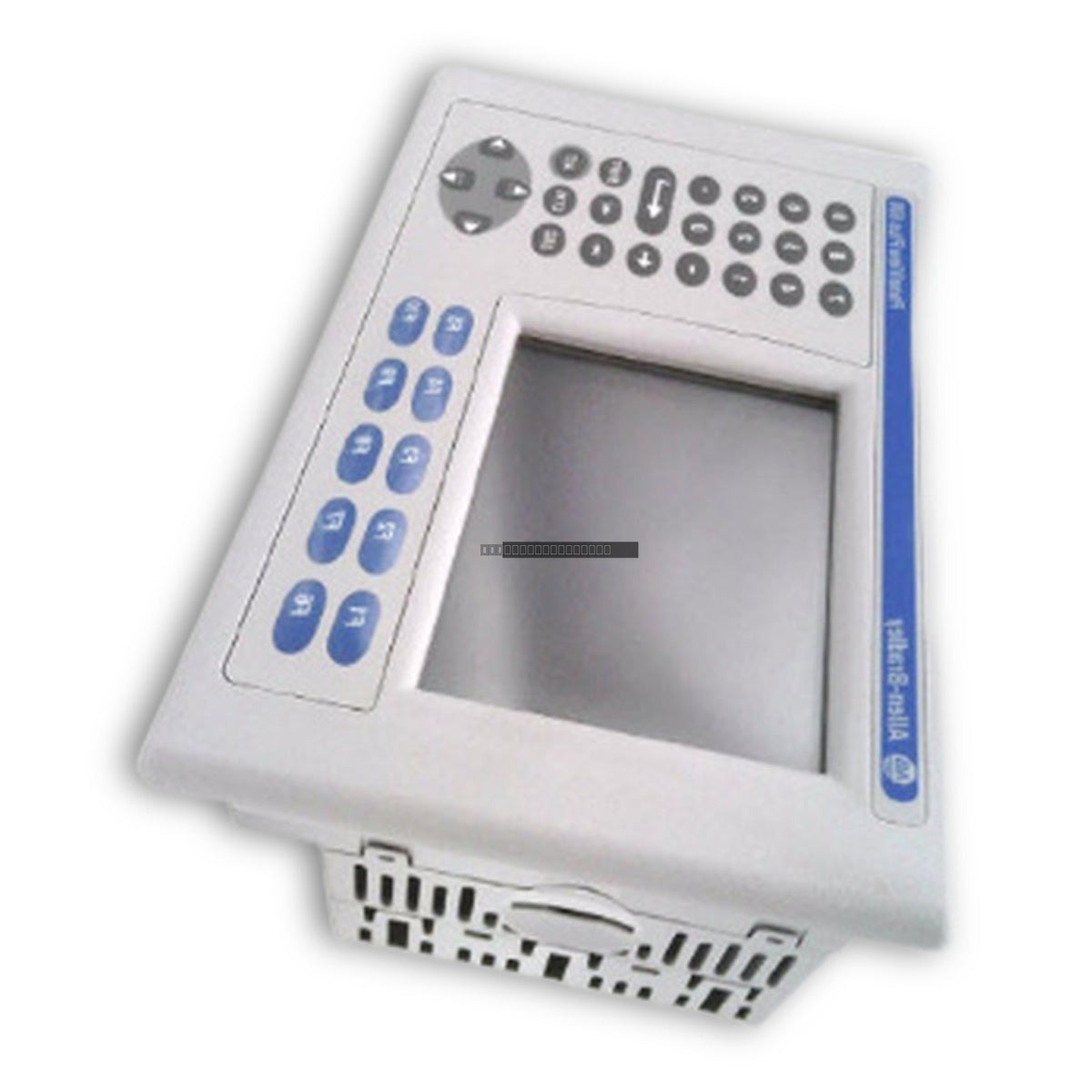

The Allen-Bradley 2711P-K12C4A7 is a high-performance PanelView Plus 1250 operator terminal designed for demanding industrial visualization and supervisory control applications. Featuring a 12.1-inch active matrix color TFT display and a robust tactile keypad interface, this HMI provides reliable operator interaction in environments ranging from chemical processing to heavy manufacturing.

Features

• 12.1-inch color TFT display with 800 x 600 resolution for clear process monitoring.
• Tactile membrane keypad with numeric, navigation, and customizable function keys, rated for 1 million actuations.
• Open Windows CE platform supporting advanced web browsing, remote VNC connectivity, and file viewing.
• Integrated 256 MB RAM/Flash memory architecture for efficient alarm handling and data logging.
• Dual USB ports and 10/100 Mbps Ethernet connectivity for flexible peripheral and network integration.
• AC isolated power supply (85-264 VAC) for stable operation in industrial power environments.

Applications

This terminal is suitable for complex automation tasks, including real-time machine diagnostics, process parameter tracking, and supervisory control in automated manufacturing lines and refinery operations.

Technical Specifications

Installation Guidelines

• Ensure the panel cutout is prepared according to the specified dimensions to maintain the NEMA 4X seal integrity.
• Use shielded Ethernet cables and route communication lines away from high-voltage power cables to minimize EMI.
• Verify that the AC power source is within the 85-264 VAC range before applying power.
• Always power down the unit before inserting or removing any communication modules or CompactFlash cards.
• Maintain proper ventilation clearance around the unit to ensure heat dissipation within the specified 240 BTU/hr limit.

FAQ

What is the primary input method for this model? This unit features a tactile membrane keypad with dedicated numeric and function keys, ideal for environments where glove use or precise input is required.

Does this unit support external storage? Yes, it includes a CompactFlash Type I slot and two USB-A ports for data logging and peripheral expansion.
