Description

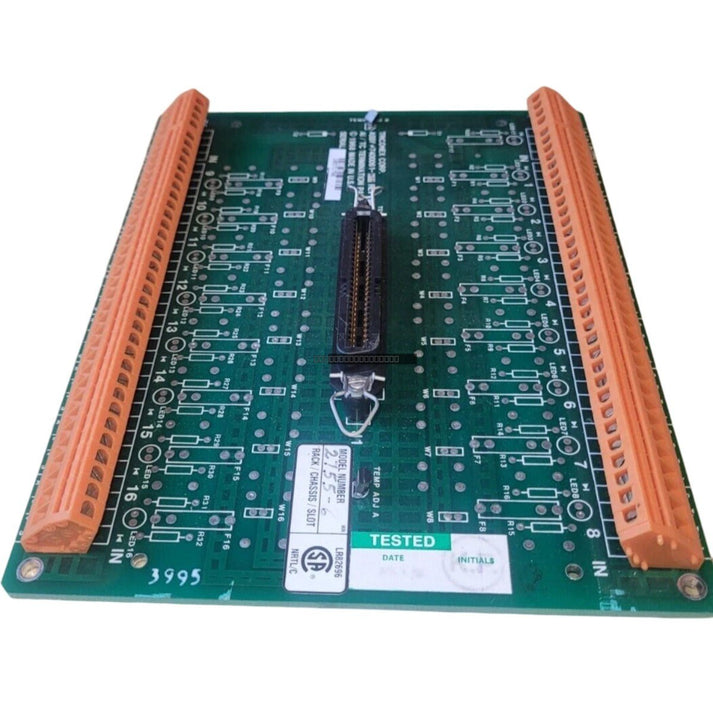

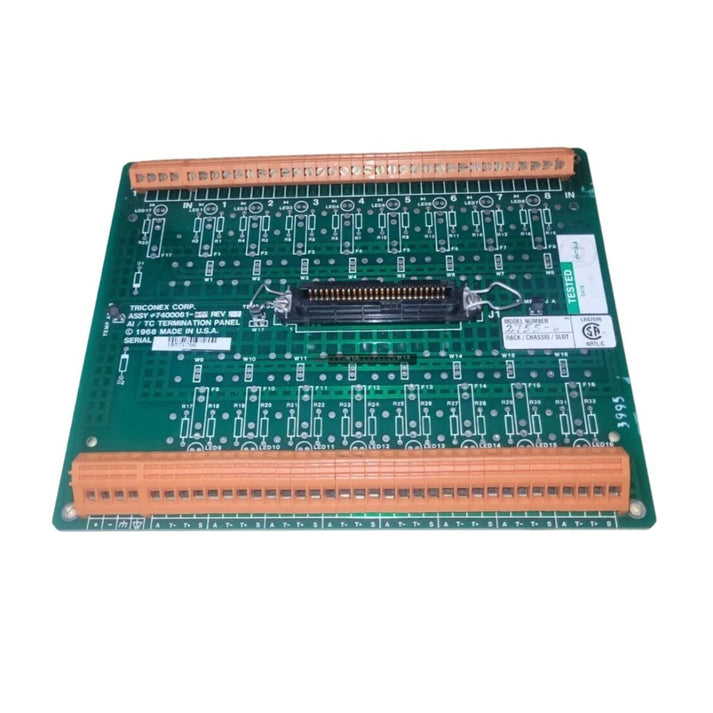

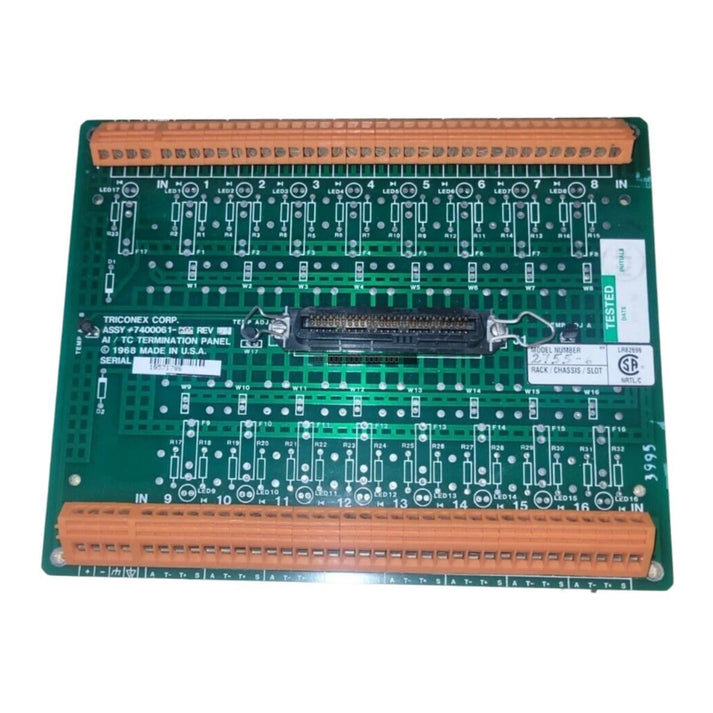

The Triconex 2755 7400061-600 is a specialized interface module engineered for integration within Tricon Safety Instrumented Systems (SIS). This module serves as a critical bridge between the safety controller and essential field components, such as sensors, actuators, and distributed control network nodes. Designed for high-reliability environments including power generation, chemical processing, and oil and gas refining, the unit provides robust monitoring and fault isolation to maintain continuous, safe plant operation.

Features

• Triple Modular Redundancy (TMR) support for parallel data verification and fault tolerance.
• Real-time diagnostic capabilities to identify and isolate communication or control failures.
• Hot-swappable design, facilitating module replacement without requiring system shutdown or wiring disconnection.
• Galvanic isolation between field-side signals and the system backplane to mitigate electrical interference.
• Optimized for 32-bit SIS architectures to ensure high operational availability.

Applications

This interface module is typically deployed in mission-critical safety loops where uptime is paramount. It is widely utilized in emergency shutdown systems (ESD), fire and gas monitoring, and burner management systems where TMR architecture is required to prevent common-cause failures.

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is powered down if required by specific site safety protocols, though the module supports hot-swapping under normal operating conditions.
• Handle with appropriate ESD precautions to prevent damage to internal sensitive electronics.
• Verify that the module is fully seated in the designated backplane slot to ensure proper engagement of the communication and power pins.
• Ensure adequate ventilation in the cabinet to maintain ambient temperatures within the specified 0 to 60 deg C range.
• Route field wiring away from high-voltage AC lines to minimize electromagnetic interference (EMI) on the signal path.

FAQ

Does this module support hot-swapping? Yes, the 2755 7400061-600 is designed to be replaced while the system is online without interrupting the control loop.

What is the primary function of this module? It acts as an interface between the Tricon SIS and external field devices, providing the necessary isolation and diagnostic data to ensure safety-critical communications.
