The Honeywell 2MLF-DC8A operates as a high-density analog output module within the MasterLogic-200 Programmable Logic Controller (PLC) series. This module converts digital control values from the central processor...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

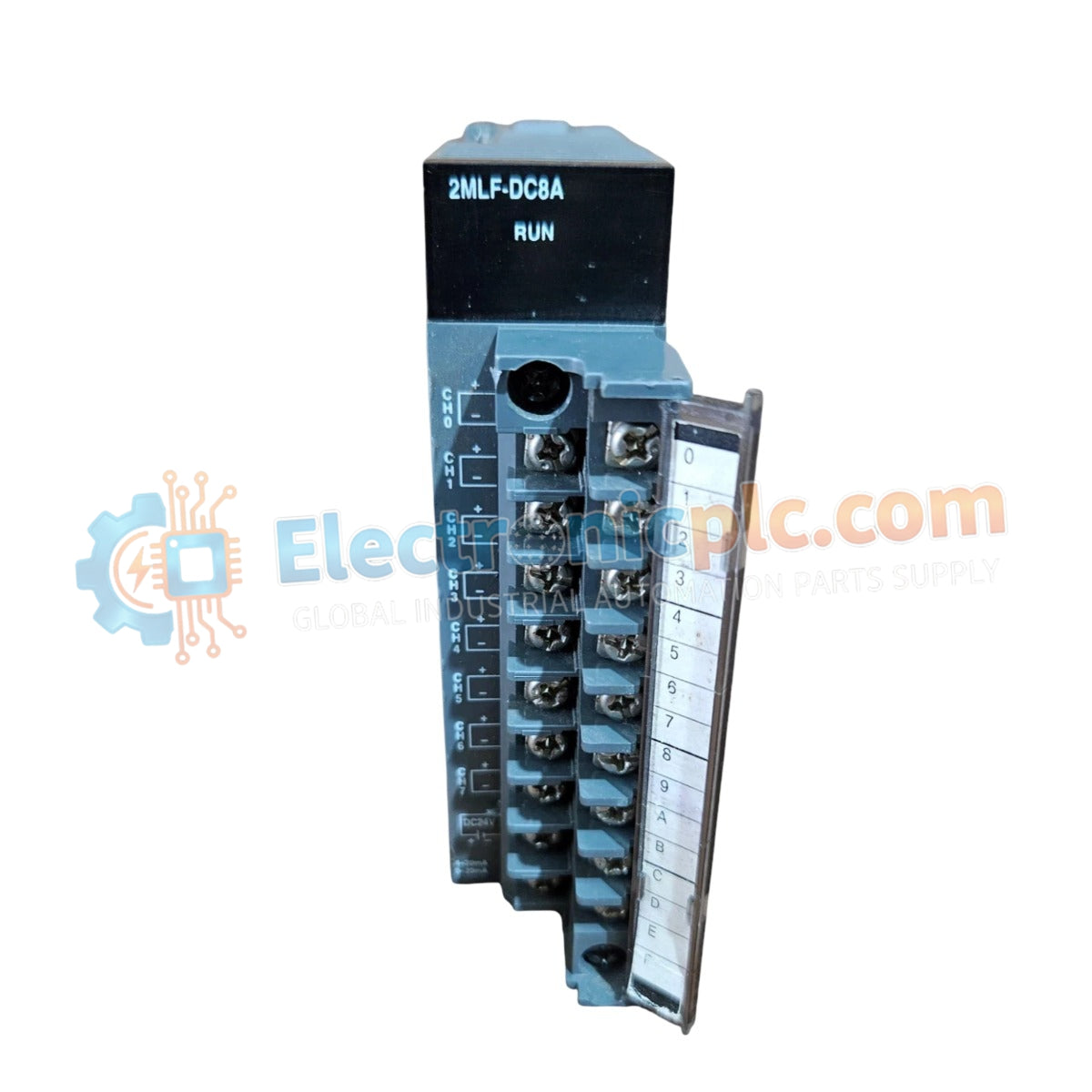

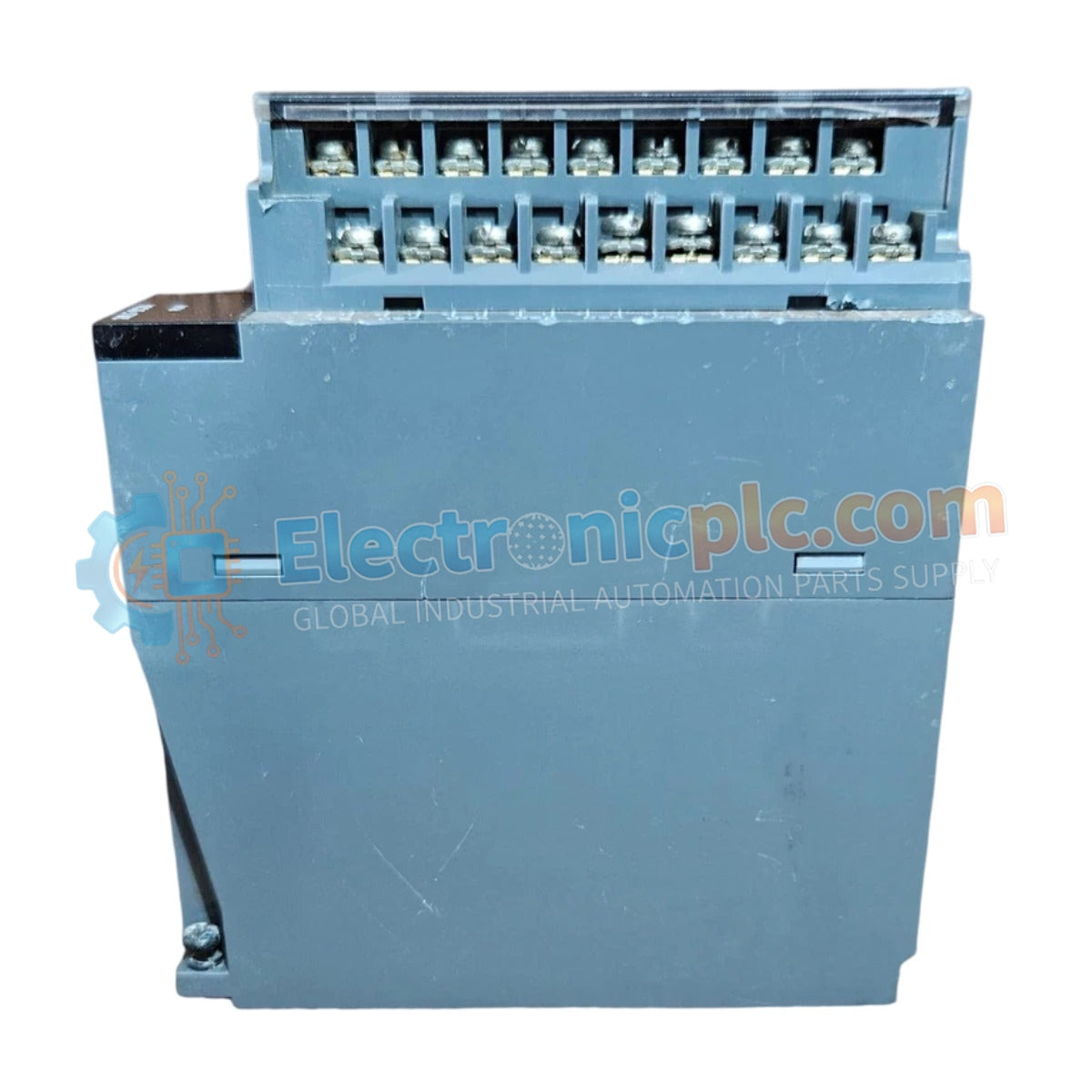

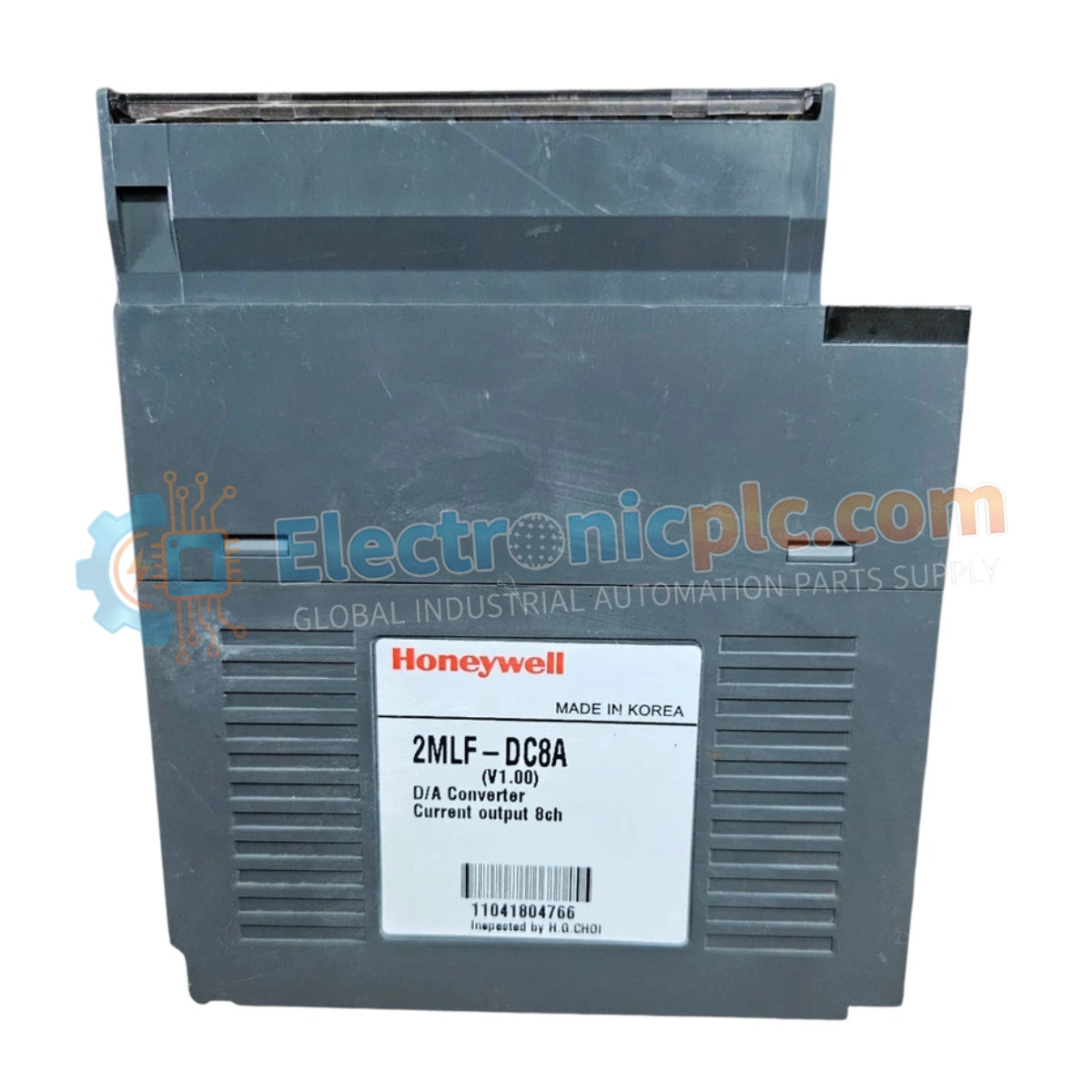

The Honeywell 2MLF-DC8A operates as a high-density analog output module within the MasterLogic-200 Programmable Logic Controller (PLC) series. This module converts digital control values from the central processor into precise, independent analog current signals to drive field devices like control valves, actuators, and variable speed motor drives. We supply this premium industrial component in 100% brand new, original factory condition to guarantee maximum system uptime and verified performance metrics.
| Parameter | Specification |
|---|---|
| Model Number | 2MLF-DC8A |
| Condition | 100% Brand New |
| Manufacturer | Honeywell |
| Series | MasterLogic-200 / ML200 |
| Module Type | Analog Output / Digital-to-Analog (D/A) Converter |
| Number of Channels | 8 independent current output channels |
| Output Signal Ranges | DC 4–20 mA / DC 0–20 mA (selectable per channel via software) |
| Maximum Load Resistance | 550 Ω or less per channel |
| Hardware Precision | 12-bit Digital-to-Analog Converter (DAC) with ±0.1% full-scale accuracy |
| Channel Update Time | 10 ms per output channel |
| Electrical Isolation | Photo-coupler isolation protects the main PLC backplane power rail |
| Module Dimensions | 12.7 cm x 12.7 cm x 12.7 cm (Standard high-density form factor) |
| Net Weight | 0.8 kg |
Packaging 8 independent analog current outputs into a compact 12.7 cm enclosure maximizes rack density and reduces total cabinet hardware costs.
Engineers select individual 4–20 mA or 0–20 mA operational ranges via standard MasterLogic programming parameters, eliminating physical jumper adjustments on the card.
Integrated photo-couplers shield critical CPU backplane electronics from field-side electrical noise, voltage surges, and ground loop interference.
A 10 ms update rate per channel ensures tight, real-time tracking for highly dynamic process loops and fast-acting control elements.
Yes. We deliver this item in 100% brand new condition, and it includes a comprehensive one-year warranty covering any manufacturing defects.
Yes. The application software allows independent range parameters for each of the 8 channels, enabling custom configurations for diverse field equipment requirements.
The module provides robust photo-coupler isolation between the 8 output channels and the internal PLC system power rail. However, the 8 analog output channels share a common return path and do not feature mutual channel-to-channel isolation.
