The Honeywell 2MLQ-TR4B is a 32-point digital output module designed for MasterLogic-200 PLC systems. This 100% brand new module uses source-type transistor outputs for high-speed and reliable switching...
التوافر: الكمية المتبقية: 99
توصيل موثوق به في جميع أنحاء العالم
ضمان استرداد الأموال خلال 30 يومًا
هل تحتاج إلى مزيد من التفاصيل؟ اقرأ سياسة الشحن وسياسة الاسترداد الكاملة.

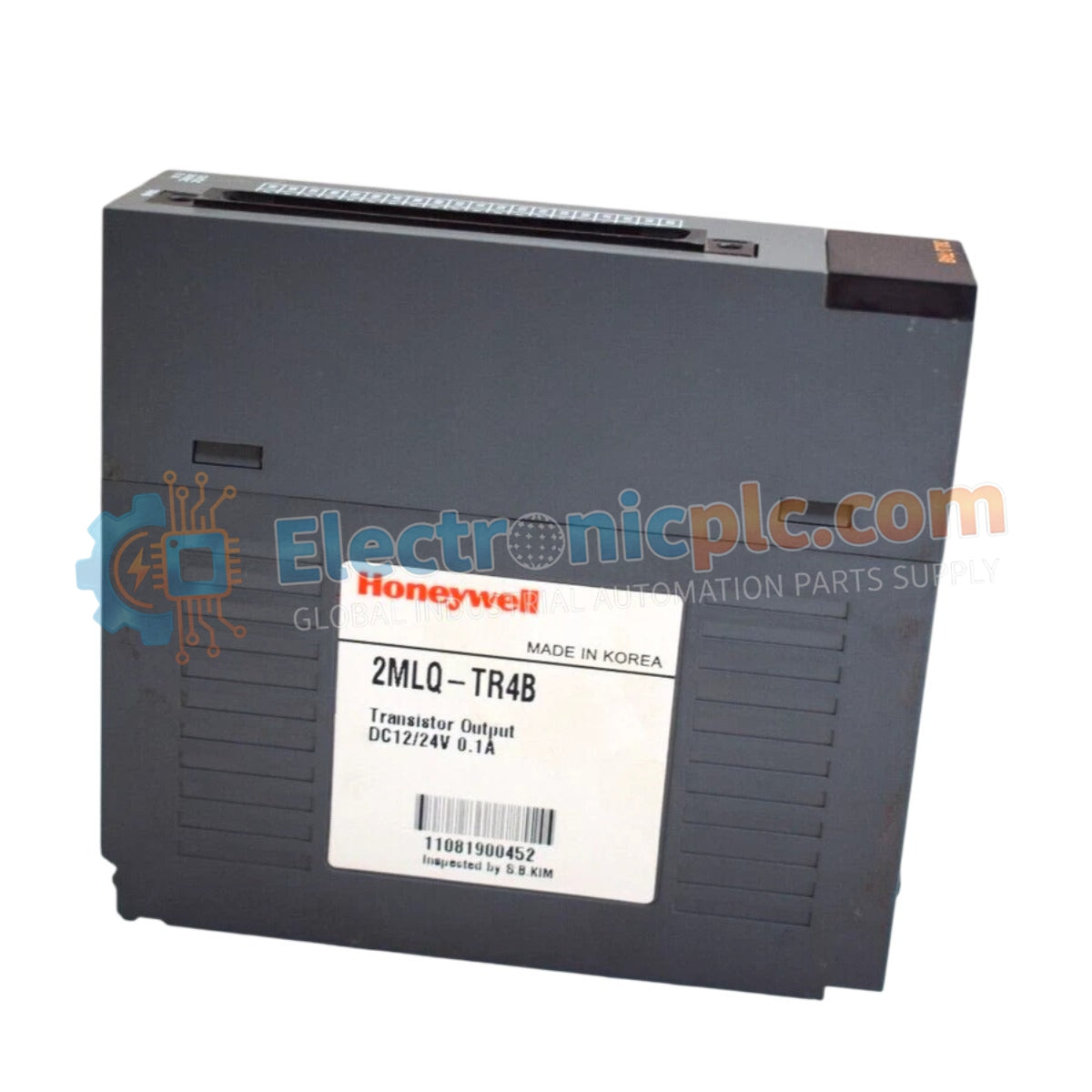

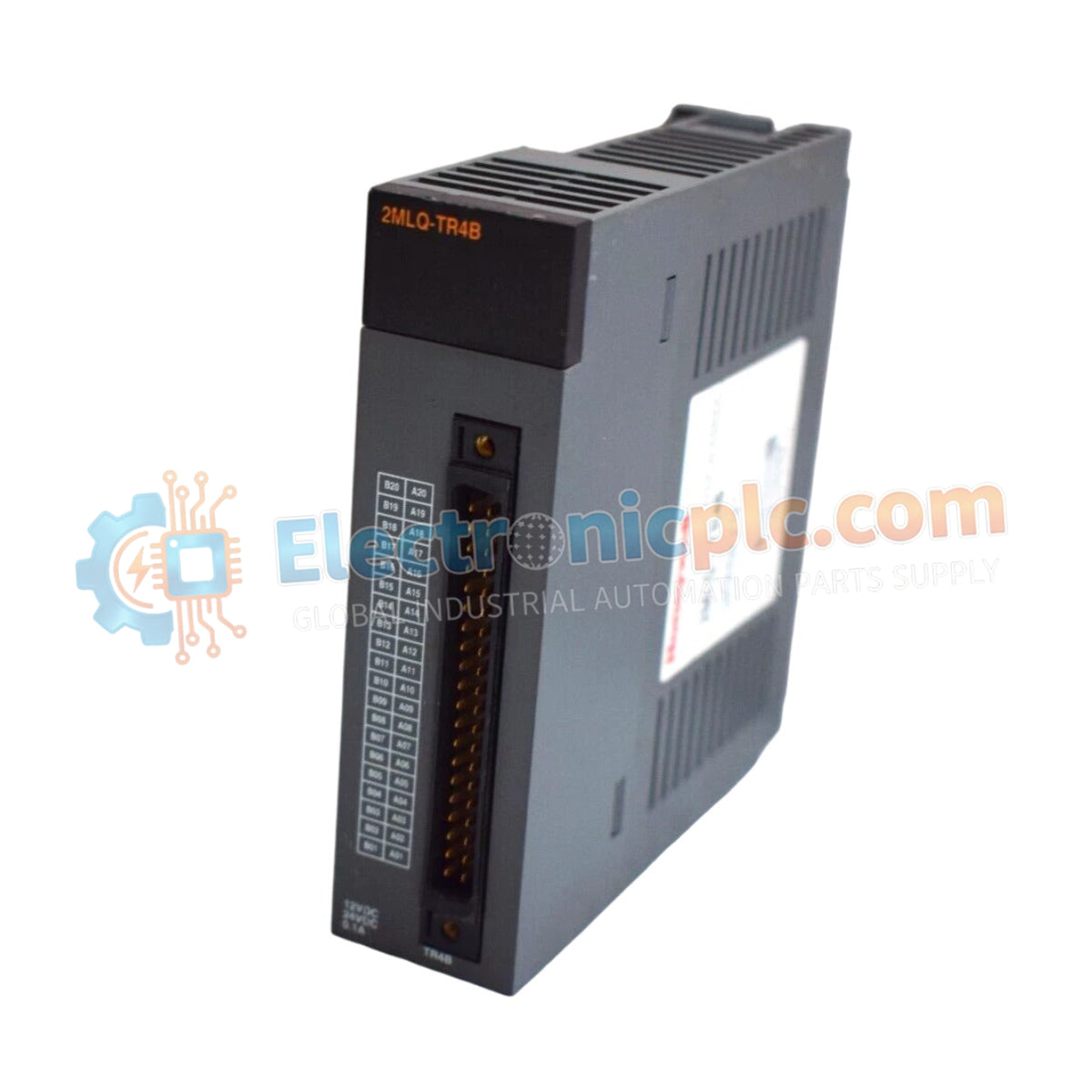

The Honeywell 2MLQ-TR4B is a 32-point digital output module designed for MasterLogic-200 PLC systems. This 100% brand new module uses source-type transistor outputs for high-speed and reliable switching of industrial field devices.
| Specification | Details |
|---|---|
| Model Number | 2MLQ-TR4B |
| Output Type | Source-type transistor |
| Output Points | 32 |
| Rated Load Voltage | DC 12 / 24V |
| Max. Load Current | 0.1A per point / 2A per COM |
| Response Time | ≤ 1 ms |
| Isolation Method | Photo-coupler isolation |
| Voltage Drop (On) | ≤ 0.3V |
| Off Leakage Current | ≤ 0.1mA |
| Inrush Current | 4A ≤ 10 ms |
| Dimensions | 426 × 98 × 19 mm |
| Weight | 0.2 kg |
| Connection | 40-pin connector |
High-Density Output Control
32 output points reduce wiring complexity and cabinet space usage.
Fast Switching Response
≤ 1 ms response time supports high-speed automation tasks.
Electrical Protection
Photo-coupler isolation improves system safety and signal stability.
Compact Design
Slim structure simplifies installation in limited panel space.
What type of output does the module use?
It uses source-type transistor outputs.
Can the module drive inductive loads?
Yes, but external suppression protection is recommended for inductive devices.

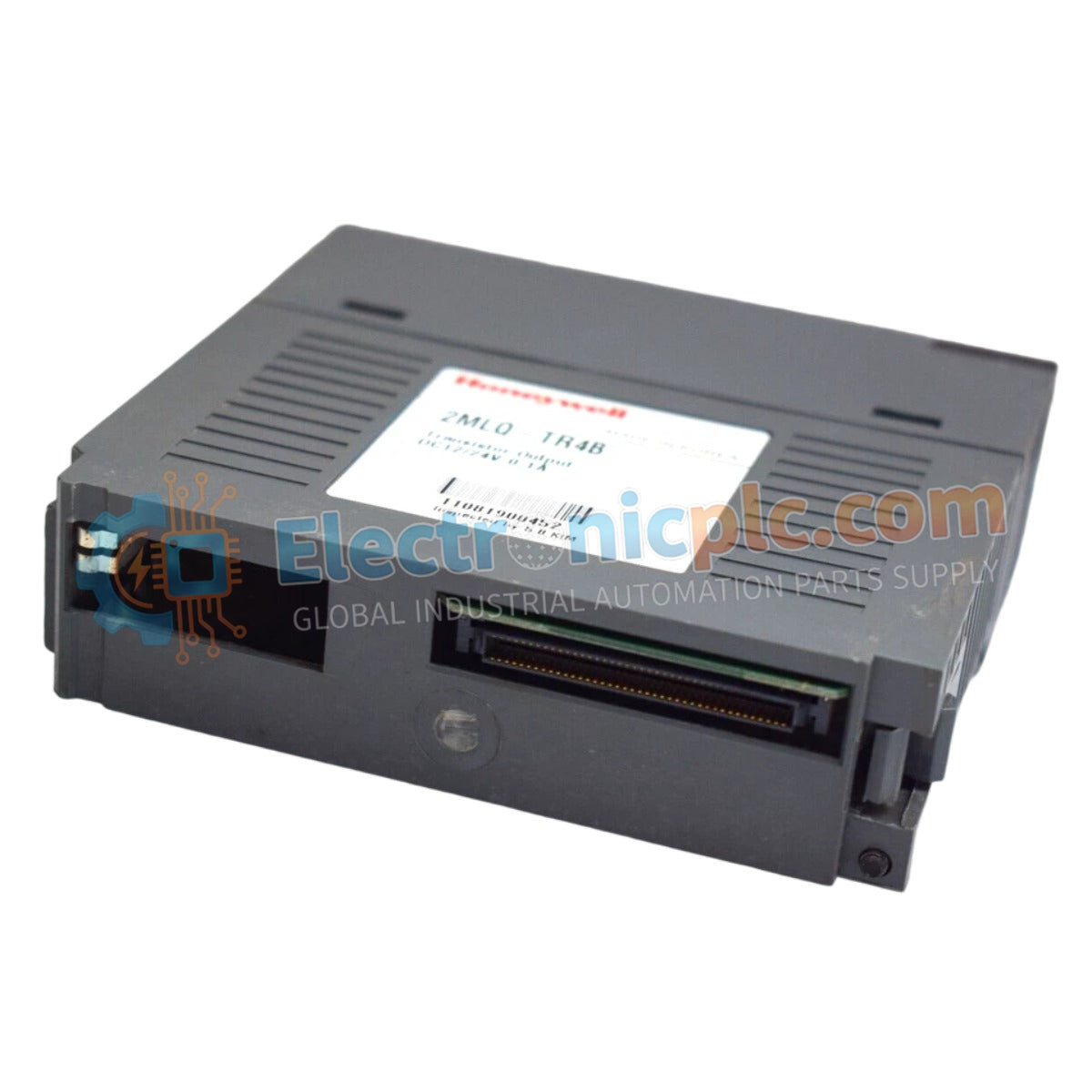

How is the module connected?
The module uses a standard 40-pin connector interface.
