Description

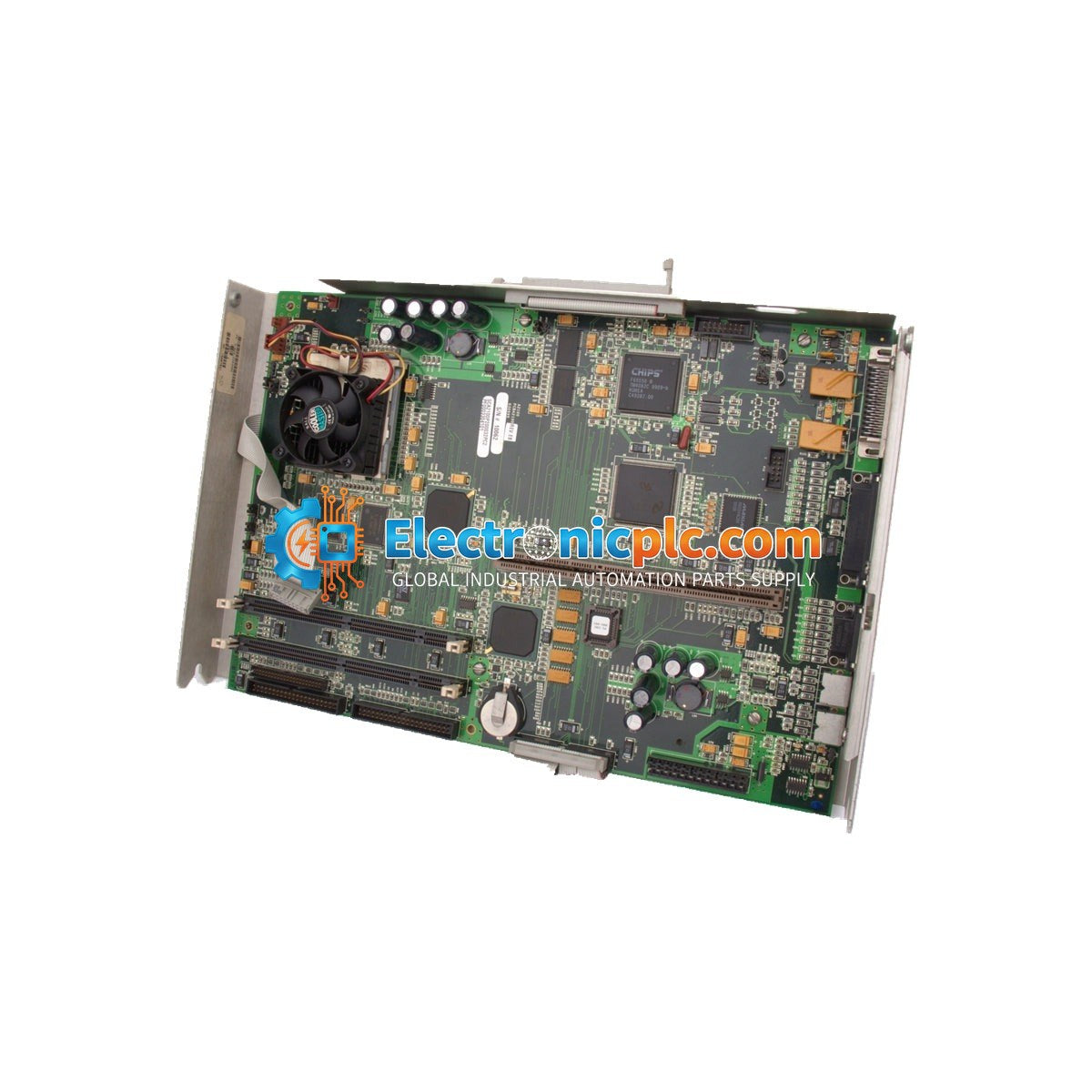

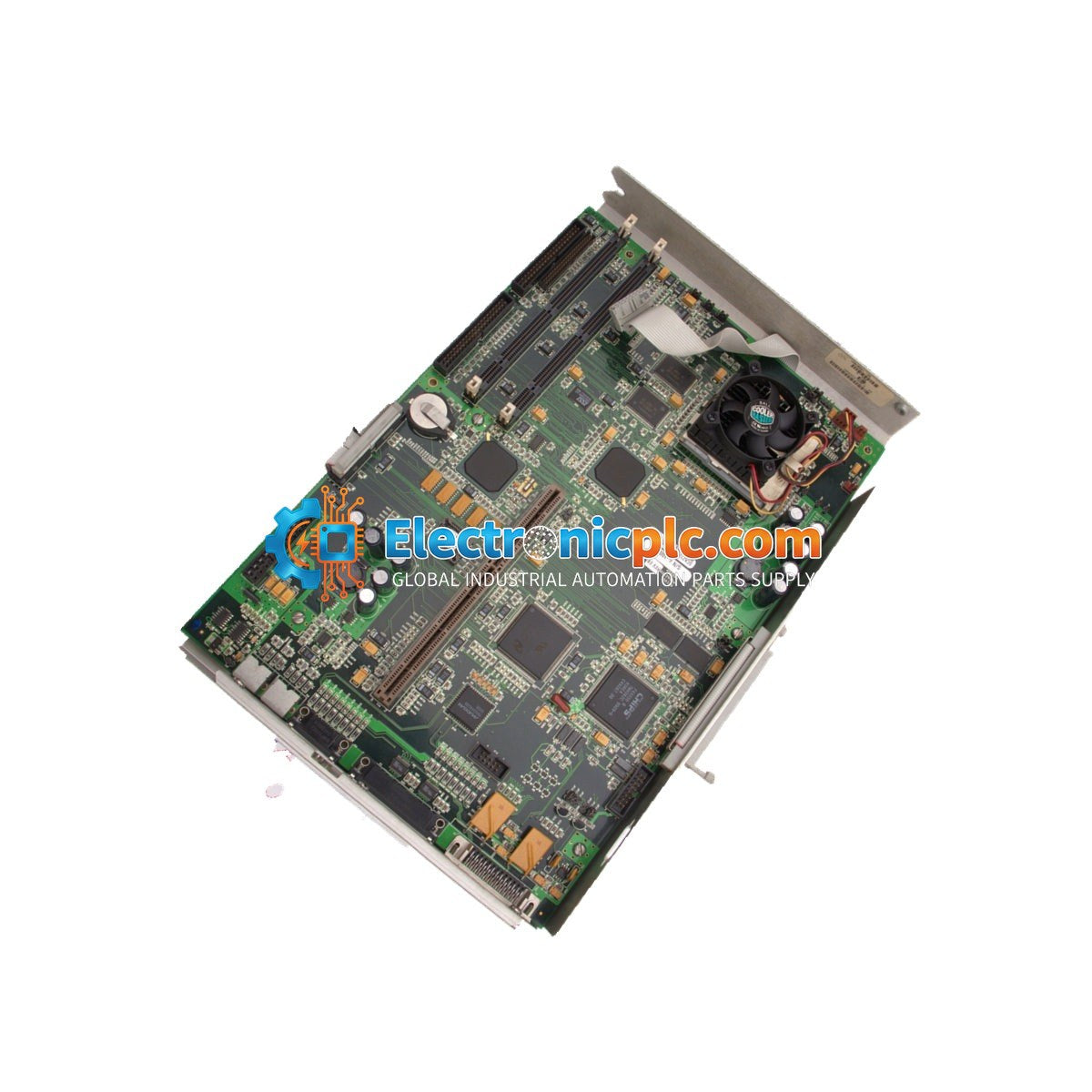

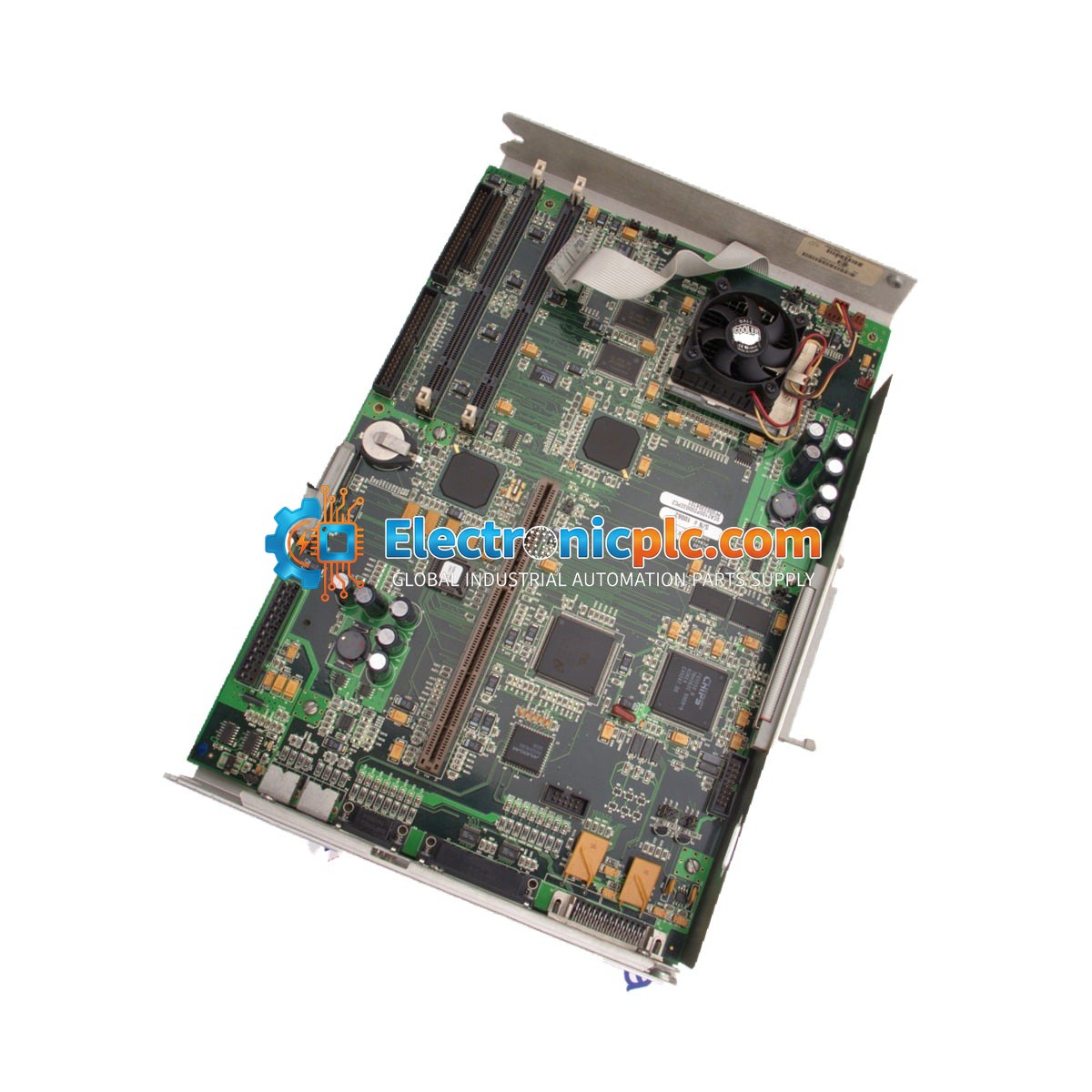

The Siemens 3-424-2283A02 is a dedicated CPU assembly designed for use within the A2100 workstation environment. This board serves as the central processing unit for the workstation, managing system operations, command execution, and data processing tasks essential for industrial control and monitoring applications.

Features

• Engineered specifically for compatibility with A2100 workstation systems.
• Robust CPU assembly architecture for reliable industrial computing.
• Integrated design for seamless replacement or maintenance of existing workstation hardware.

Applications

This CPU board is primarily utilized in industrial automation environments where A2100 workstations are deployed for machine control, process visualization, and data management tasks.

Technical Specifications

Installation Guidelines

• Ensure the workstation is fully powered down and disconnected from the main power supply before attempting to access or replace the CPU board.
• Use proper ESD (Electrostatic Discharge) protection, such as a grounded wrist strap, when handling the board to prevent damage to sensitive electronic components.
• Carefully align the board with the workstation slot connectors; do not force the installation.
• Verify that all seating connections are secure and that the board is properly fastened before restoring power.
• Ensure the workstation environment is free from excessive dust and moisture to maintain optimal cooling and performance.

FAQ

Q: Is this board compatible with other Siemens workstation series?
A: This specific model, 3-424-2283A02, is designed for the A2100 workstation. Please verify your system model number against the part number before installation.

Q: Does this board come with software pre-installed?
A: This is a hardware component (CPU assembly). Any necessary firmware or system software must be configured according to your specific A2100 workstation setup requirements.
