Description

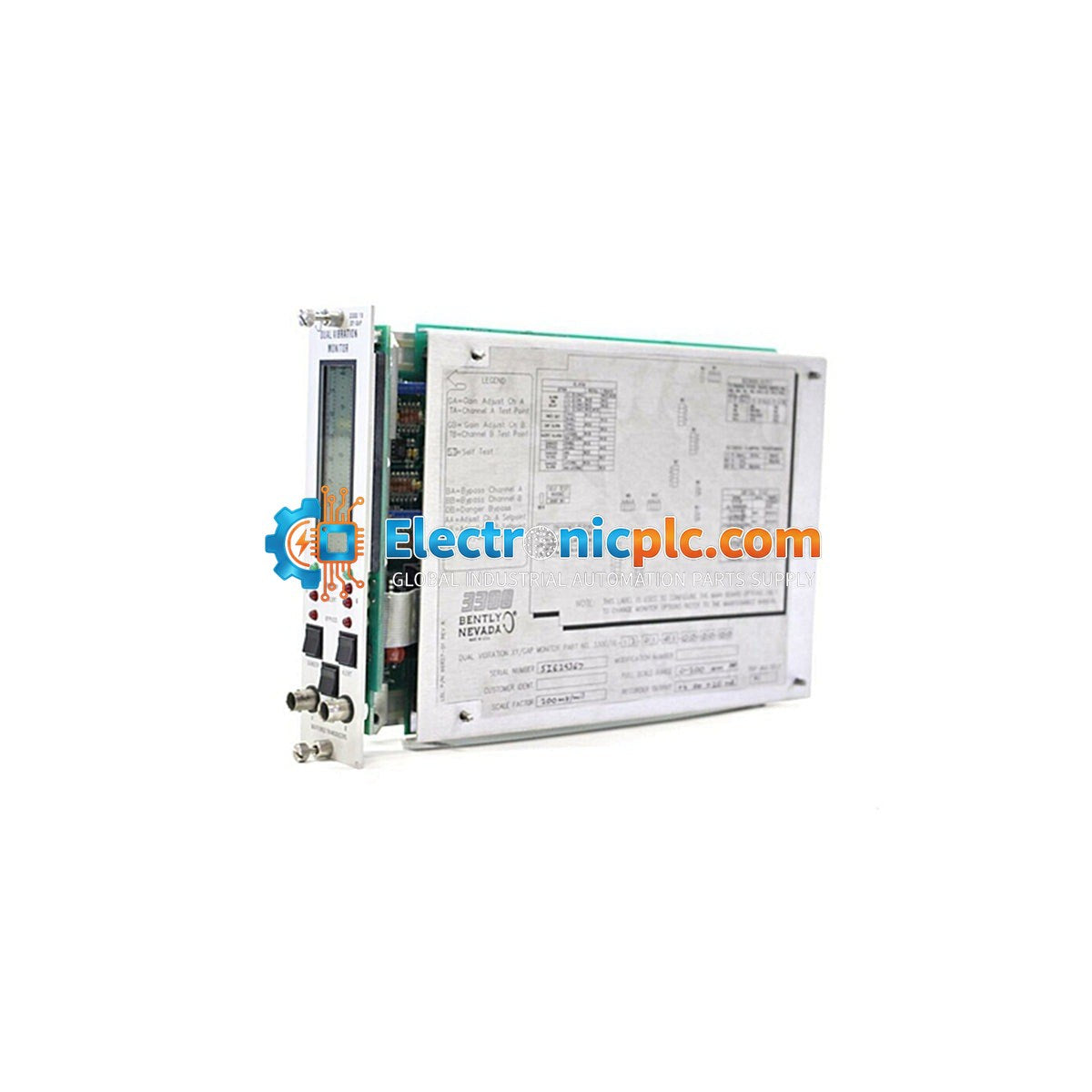

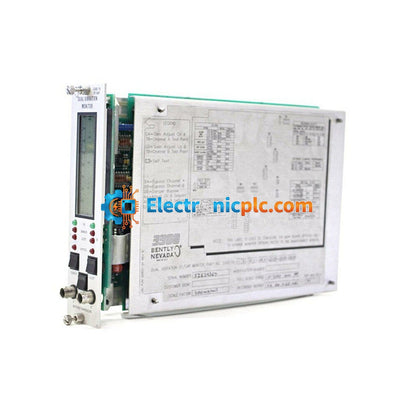

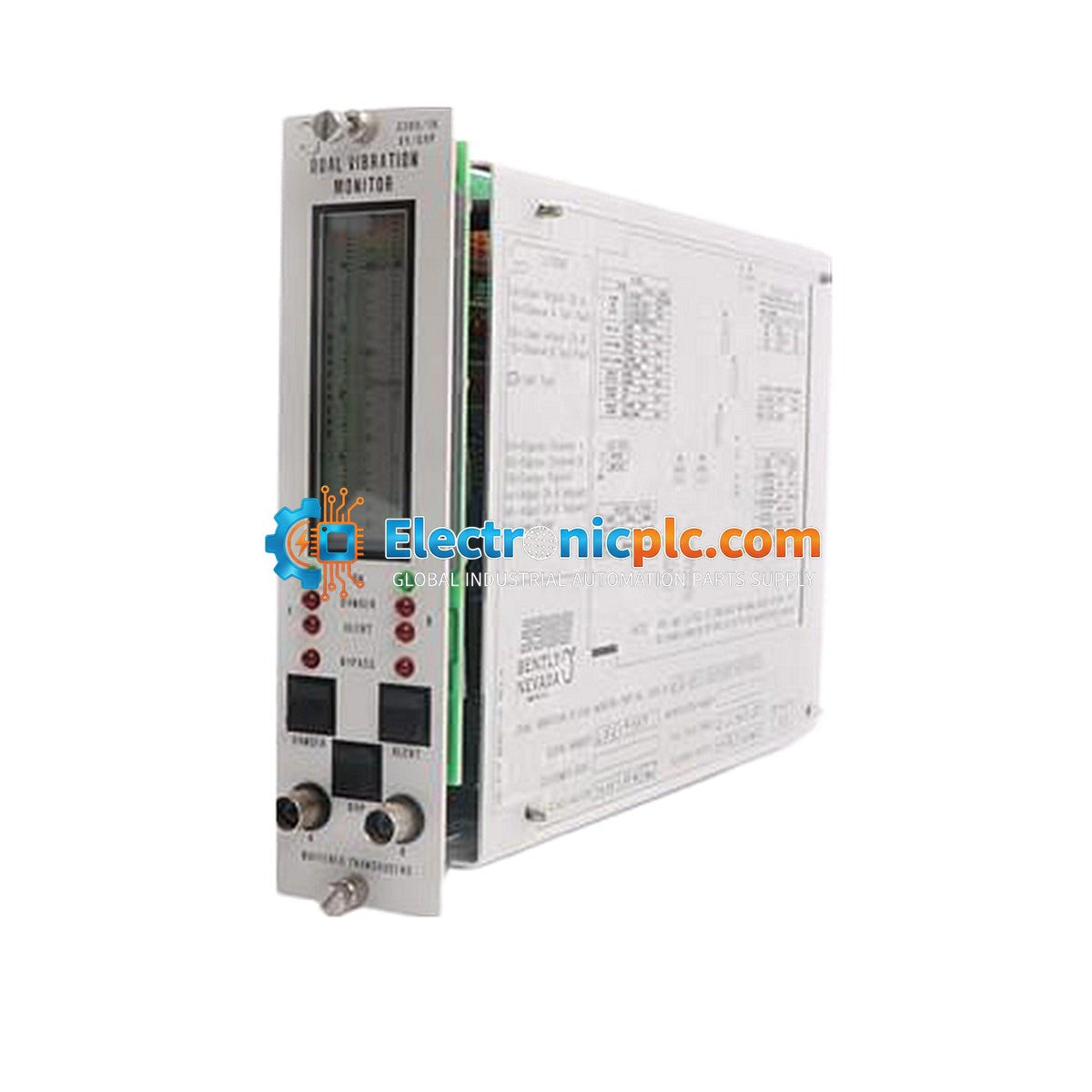

The Bently Nevada 3300/25-04-04-04-01-02-01-01 is a Dual Accelerometer Monitor designed for machinery protection and diagnostics within the 3300 Series monitoring system. This module provides continuous, reliable monitoring of casing vibration using accelerometer inputs, delivering both dynamic and proportional outputs for critical alarm and trip functions. It is engineered for integration into turbines, compressors, and pumps where precise casing vibration detection is essential for operational reliability and safety.

Features

• Dual Channel Monitoring: Supports two independent accelerometer inputs for redundant or multi-point measurement configurations.
• Signal Processing: Converts raw accelerometer signals into proportional values for precise alarm and danger setpoint management.
• System Integration: Fully compatible with the 3300 system architecture for seamless rack-mounted installation.
• Protection Role: Facilitates early detection of mechanical faults through continuous casing vibration monitoring.
• Outputs: Provides dynamic vibration signals and proportional 4–20 mA outputs for direct integration with DCS or PLC control systems.

Applications

This module is primarily utilized in industrial environments requiring high-reliability machinery protection, including power generation turbines, large centrifugal compressors, and critical pumping systems. It is designed to interface with existing 3300 rack configurations to provide real-time vibration analysis.

Technical Specifications

Installation Guidelines

• Rack Seating: Ensure the module is fully seated in the 3300 rack slot to ensure proper backplane connection.
• ESD Protection: Always use a grounded wrist strap when handling the module to prevent electrostatic discharge damage to internal components.
• Power Status: Ensure the system rack is powered down before inserting or removing the monitor module to prevent electrical arcing or configuration corruption.
• Wiring: Use shielded cabling for accelerometer inputs to minimize EMI interference. Route signal cables away from high-voltage AC power lines.
• Grounding: Verify that the rack is properly grounded according to site safety standards to maintain signal integrity.

FAQ

What is the primary function of the 3300/25 monitor?

The 3300/25 is designed to monitor casing vibration on rotating machinery. It processes signals from accelerometers to provide alarm and trip functions, protecting equipment from potential mechanical failure.

Is this module compatible with other 3300 series components?

Yes, this monitor is designed specifically for the Bently Nevada 3300 series rack architecture and is compatible with standard 3300 system components.

What type of output does this module provide?

It provides both dynamic vibration signals for diagnostic analysis and proportional 4–20 mA outputs for integration into external DCS or PLC systems.
