Description

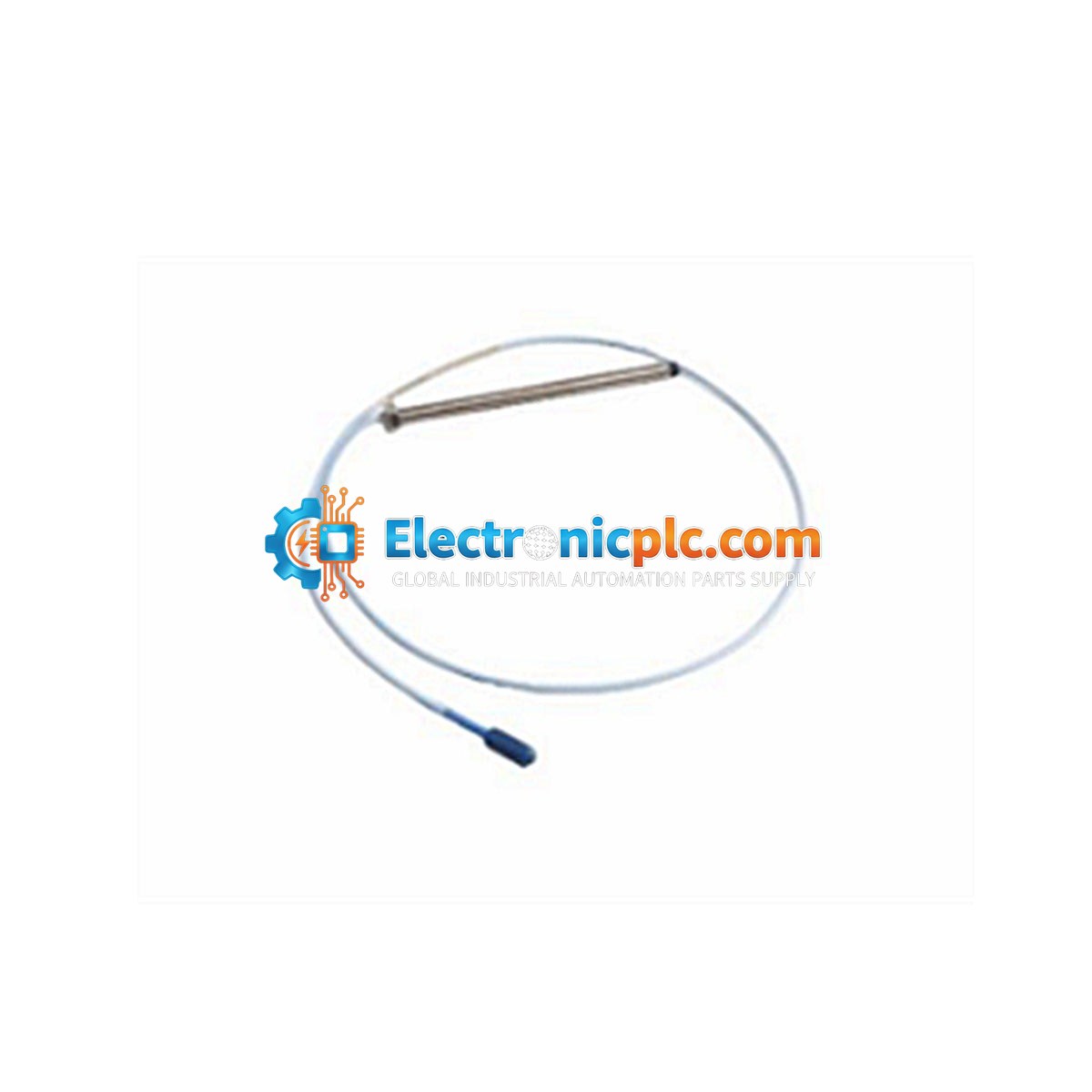

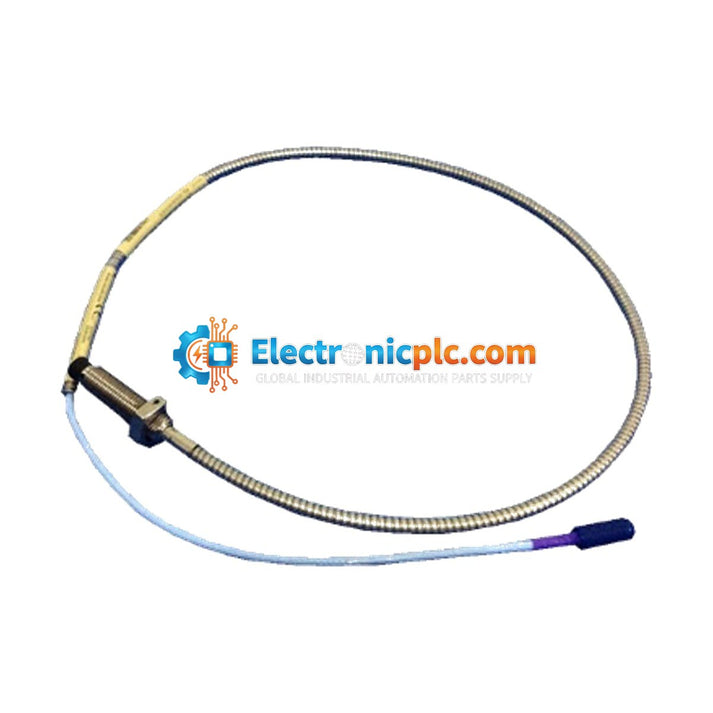

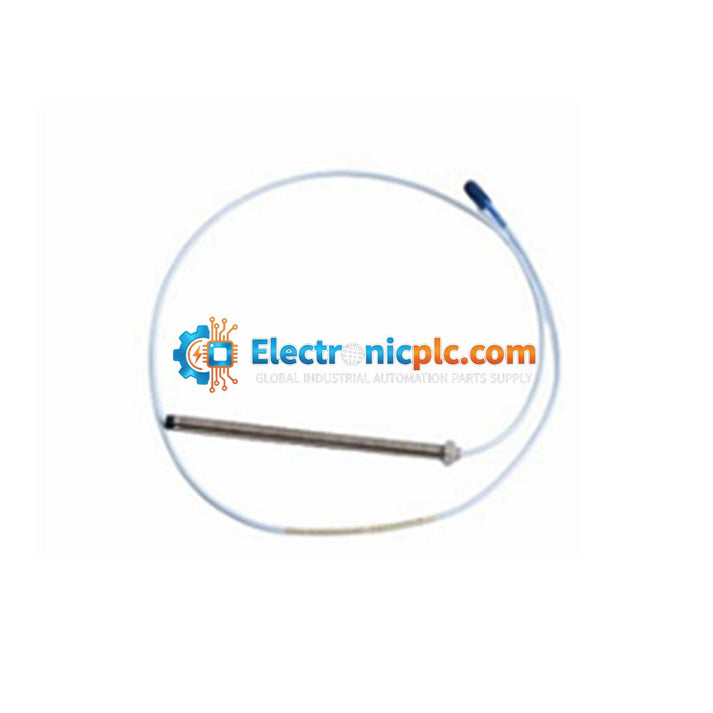

The Bently Nevada 330710-000-060-10-02-00 is a 3300 XL 11 mm proximity probe designed for high-precision vibration and position monitoring in industrial rotating machinery. As part of the Bently Nevada 3300 XL series, this probe provides reliable non-contact measurement of shaft displacement, position, and speed. The 11 mm probe tip offers an extended linear range compared to standard 5 mm or 8 mm probes, making it ideal for applications requiring larger gap measurements.

Features

• 11 mm probe tip diameter for extended linear range.
• M16 x 1.5 thread for secure mounting in machine housings.
• Integrated armored cable for enhanced physical protection in harsh industrial environments.
• Equipped with a miniature coaxial ClickLoc connector for reliable signal transmission.
• Compatible with Bently Nevada 3300 XL proximity transducer systems.

Technical Specifications

Installation Guidelines

• Ensure the probe is installed in a location free from excessive mechanical stress or vibration that could damage the probe tip.
• Use appropriate mounting brackets and locknuts to secure the probe, ensuring the specified gap distance is maintained according to the system calibration requirements.
• Handle the probe tip with care; avoid contact with hard surfaces to prevent damage to the sensing element.
• Route the armored cable away from high-voltage power lines and sources of significant electromagnetic interference (EMI) to maintain signal integrity.
• Verify that all connections are clean and fully seated before system startup.

FAQ

What is the primary application for the 11 mm probe?

The 11 mm probe is typically used in applications where a larger linear range is required compared to smaller diameter probes, often in large rotating equipment where shaft displacement or vibration amplitudes exceed the range of standard 8 mm probes.

Is this probe compatible with older 3300 series systems?

The 3300 XL series is designed to be compatible with 3300 XL transducer systems. For retrofitting older 3300 series installations, please consult the specific system documentation to ensure impedance and calibration compatibility.
