Description

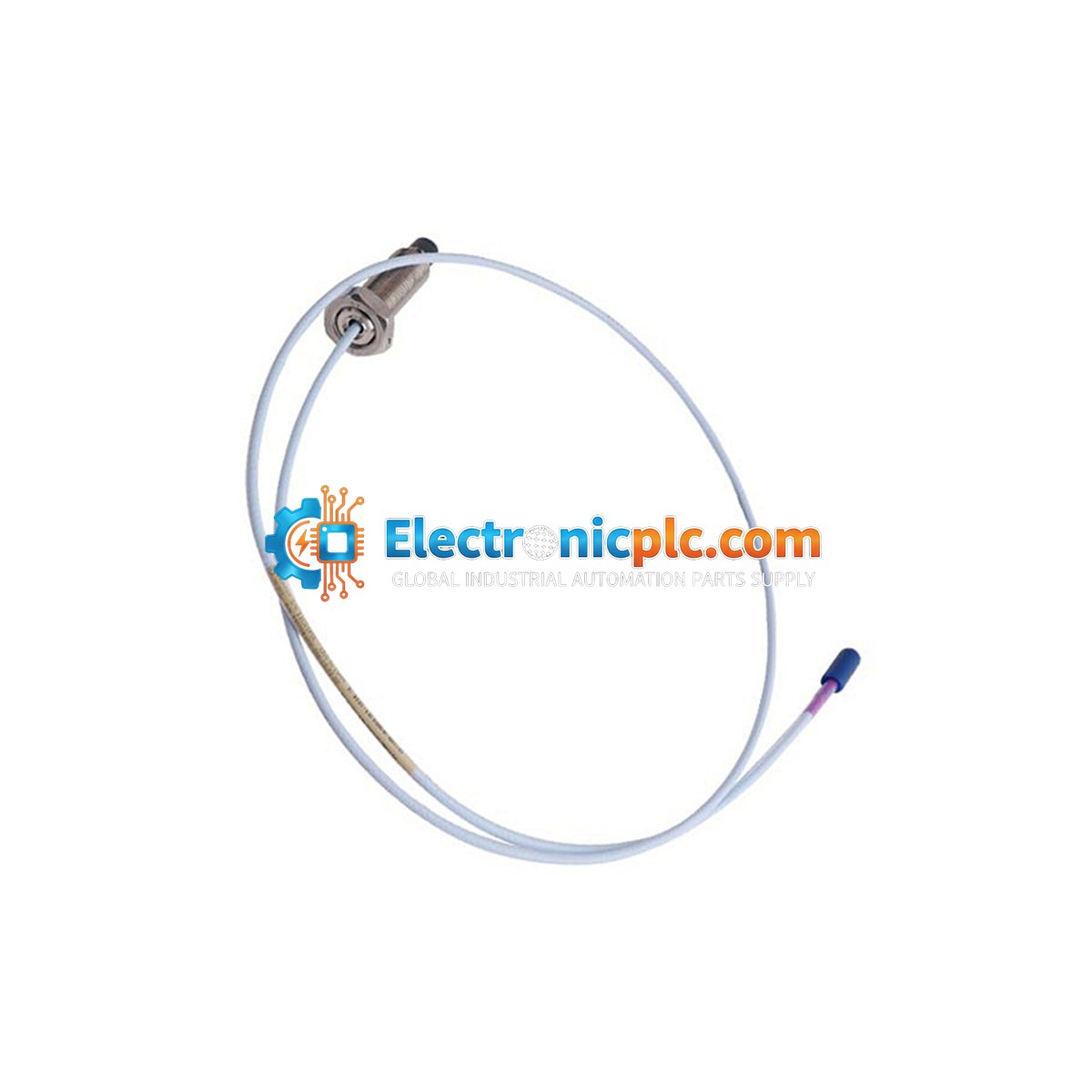

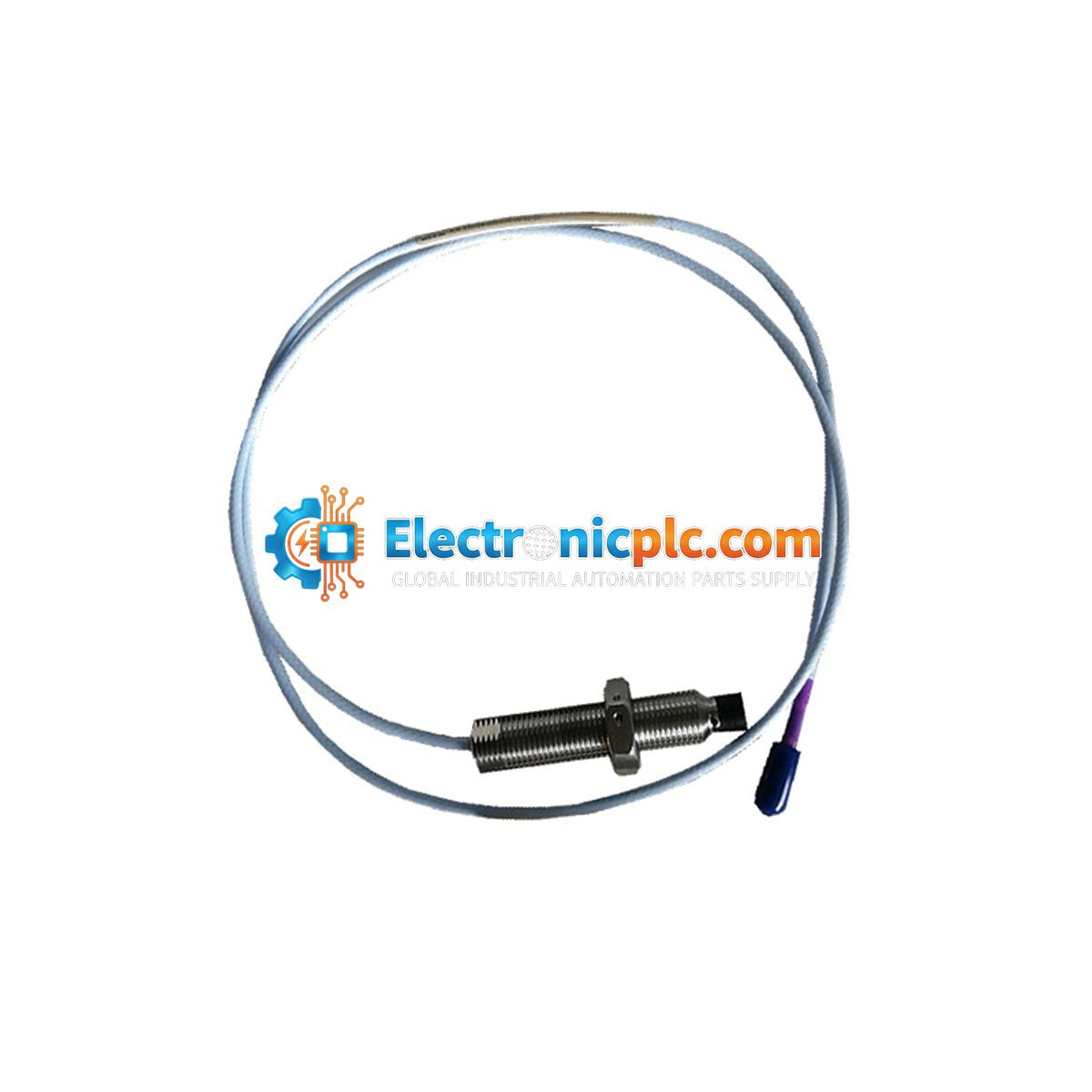

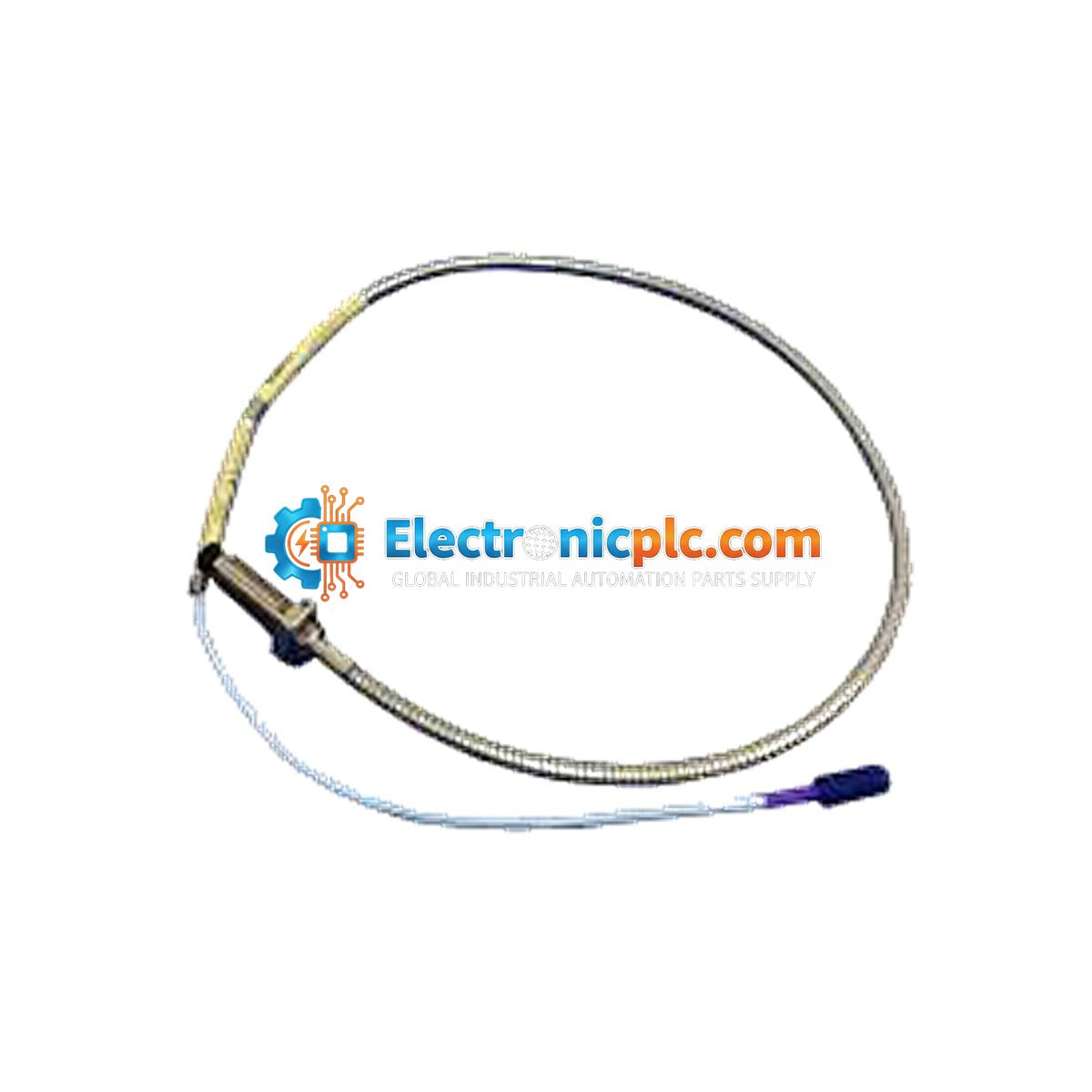

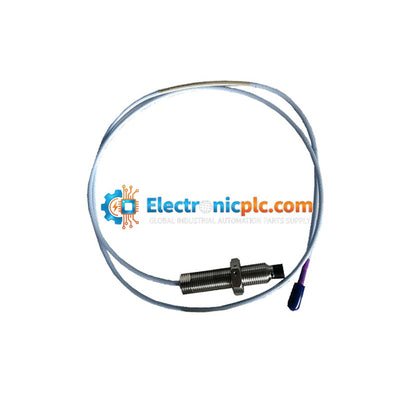

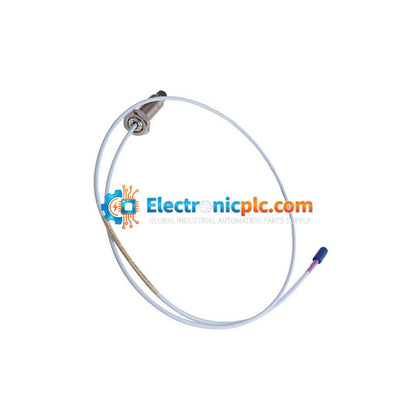

The Bently Nevada 330709-000-040-50-02-00 is a high-performance 3300 XL 11 mm proximity probe designed for critical machinery protection and condition monitoring applications. This probe is engineered to provide precise, non-contact measurements of shaft displacement, vibration, and position in industrial rotating equipment. The 11 mm probe tip offers an extended linear range compared to standard 8 mm probes, making it suitable for applications requiring higher measurement sensitivity and range.

Features

• Advanced 3300 XL series design for superior reliability and signal integrity.
• 11 mm probe tip diameter for enhanced measurement range.
• M16 x 1.5 threading for secure mounting in probe housings.
• Equipped with a miniature coaxial ClickLoc connector for reliable signal transmission.
• Standard cable configuration for robust performance in industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the probe is installed in a rigid, vibration-free housing to maintain measurement accuracy.
• Handle the probe tip with care; avoid physical impact or scratching of the sensing face.
• Route the coaxial cable away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
• Ensure all connections are clean and properly seated; use the ClickLoc connector mechanism to ensure a secure, vibration-resistant fit.
• Verify that the probe gap is set according to the specific machinery monitoring requirements and the 3300 XL system calibration curve.
• Always power down the monitoring system before disconnecting or replacing the probe to prevent electrical damage.

FAQ

What is the primary application for the 330709 probe?

This probe is primarily used in Bently Nevada 3300 XL proximity transducer systems to monitor shaft vibration and position in industrial rotating machinery such as turbines, compressors, and pumps.

Does this probe come with armor?

No, this specific model (330709-000-040-50-02-00) is configured without armor.

What is the purpose of the ClickLoc connector?

The ClickLoc connector is designed to provide a secure, reliable connection that resists loosening due to machine vibration, ensuring consistent signal transmission between the probe and the extension cable.
