Description

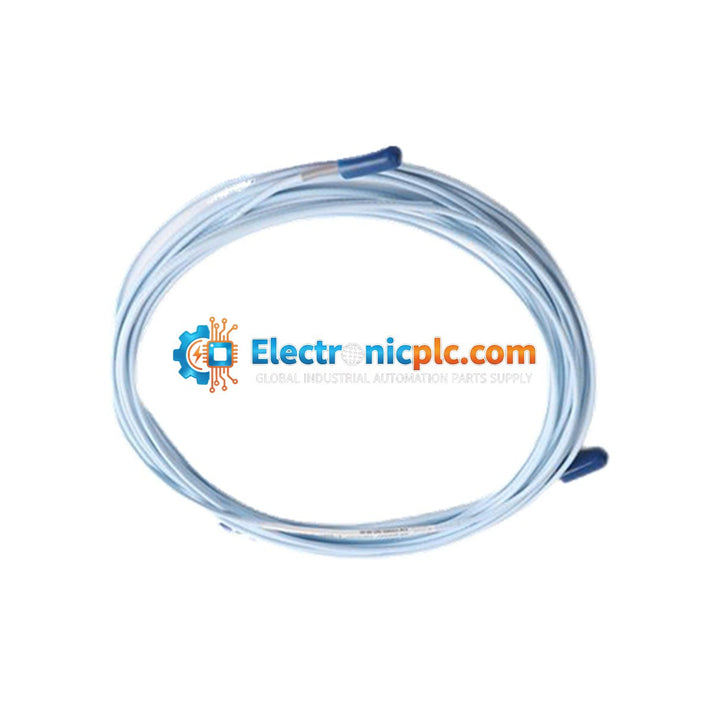

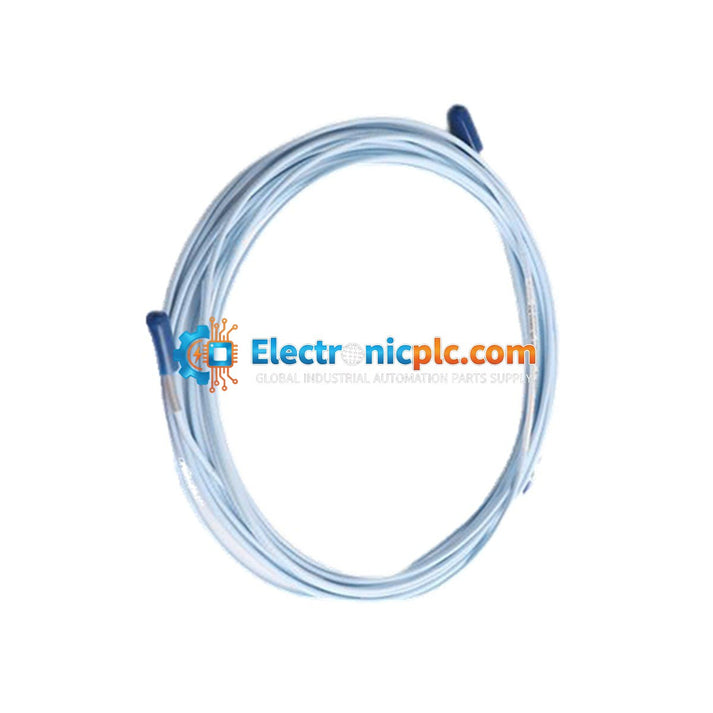

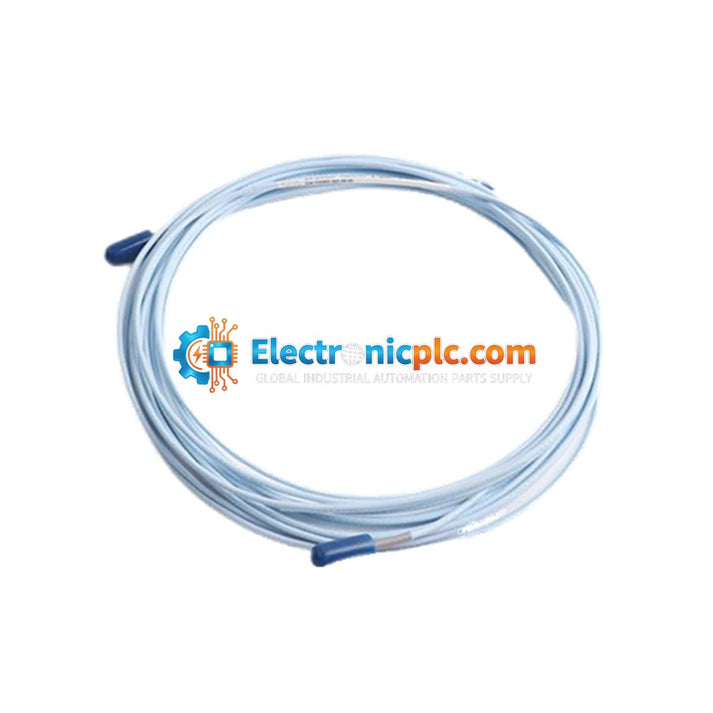

The Bently Nevada 330930-065-02-00 is a high-quality extension cable designed for use with the 3300 NSv Proximity Transducer System. This cable serves as the critical link between the proximity probe and the Proximitor sensor, ensuring accurate signal transmission in vibration monitoring applications. This specific model features a length of 6.5 meters and includes stainless steel armor for enhanced mechanical protection in demanding industrial environments.

Features

• Designed specifically for the Bently Nevada 3300 NSv system.
• Cable length: 6.5 meters (21.3 feet).
• Equipped with stainless steel armor for robust physical protection.
• Wide operating temperature range suitable for extreme industrial conditions.
• Reliable signal integrity for precision proximity measurement.

Technical Specifications

Installation Guidelines

• Ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal accuracy.
• Handle with care to avoid kinking or sharp bends, which can damage the internal shielding and coaxial structure.
• When connecting to the probe or Proximitor, ensure the connectors are clean and free of debris.
• Tighten connectors to the recommended torque (finger tight) to prevent damage to the connector threads or internal seals.
• Use appropriate cable ties or conduits to secure the cable and prevent vibration-induced wear or strain on the connection points.

FAQ

What is the primary function of the 330930-065-02-00 extension cable?

This cable is a component of the Bently Nevada 3300 NSv Proximity Transducer System, used to extend the connection between the proximity probe and the Proximitor sensor in machinery protection and condition monitoring setups.

Does this cable include a protective jacket?

No, this specific model (option 02) includes stainless steel armor for physical protection but does not include an FEP (Fluorinated Ethylene Propylene) jacket.

What is the recommended installation torque for this cable?

The manufacturer recommends tightening the connectors to finger tight. Do not exceed the maximum torque of 0.56 N-m (5 in-lb) to avoid damaging the connector assembly.
