Description

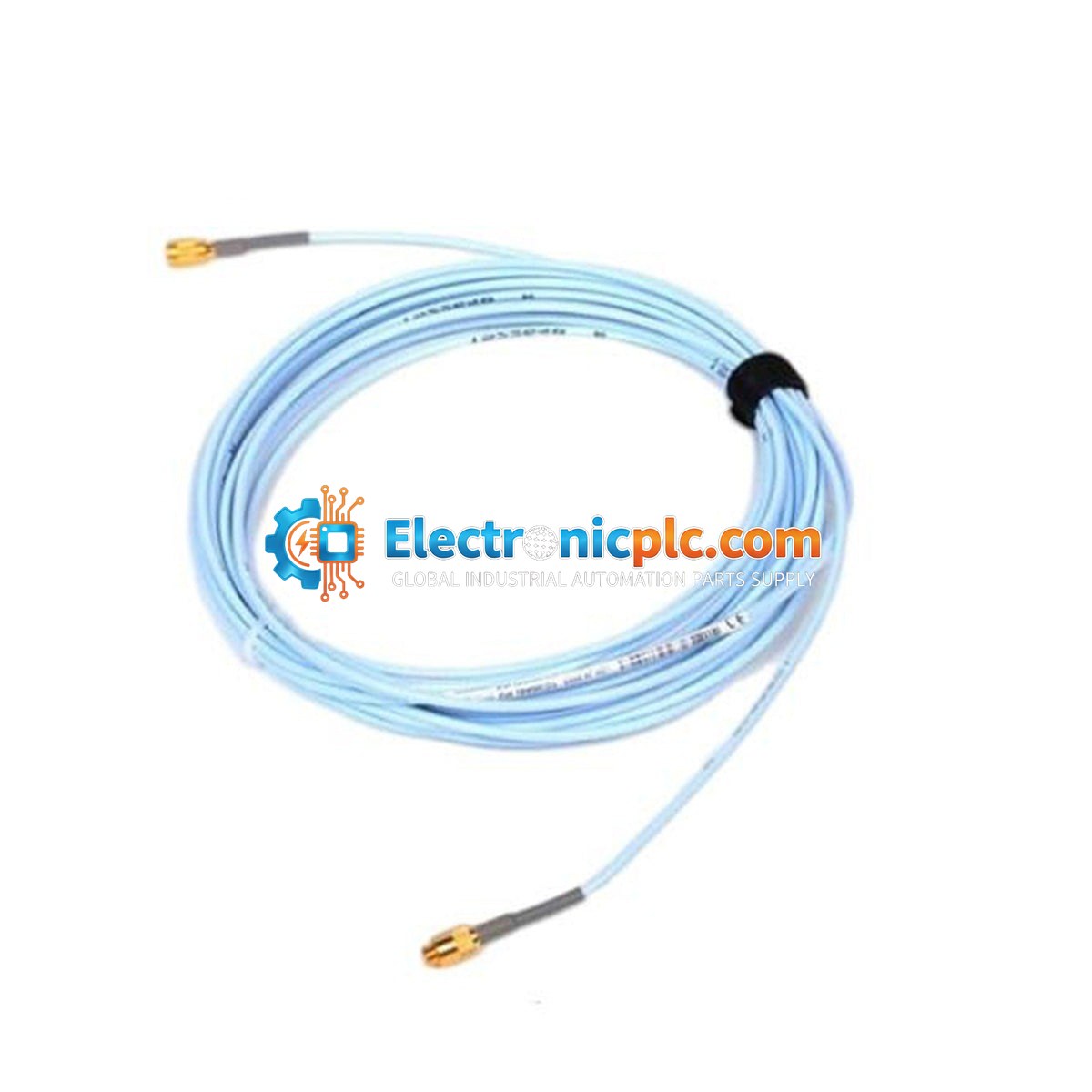

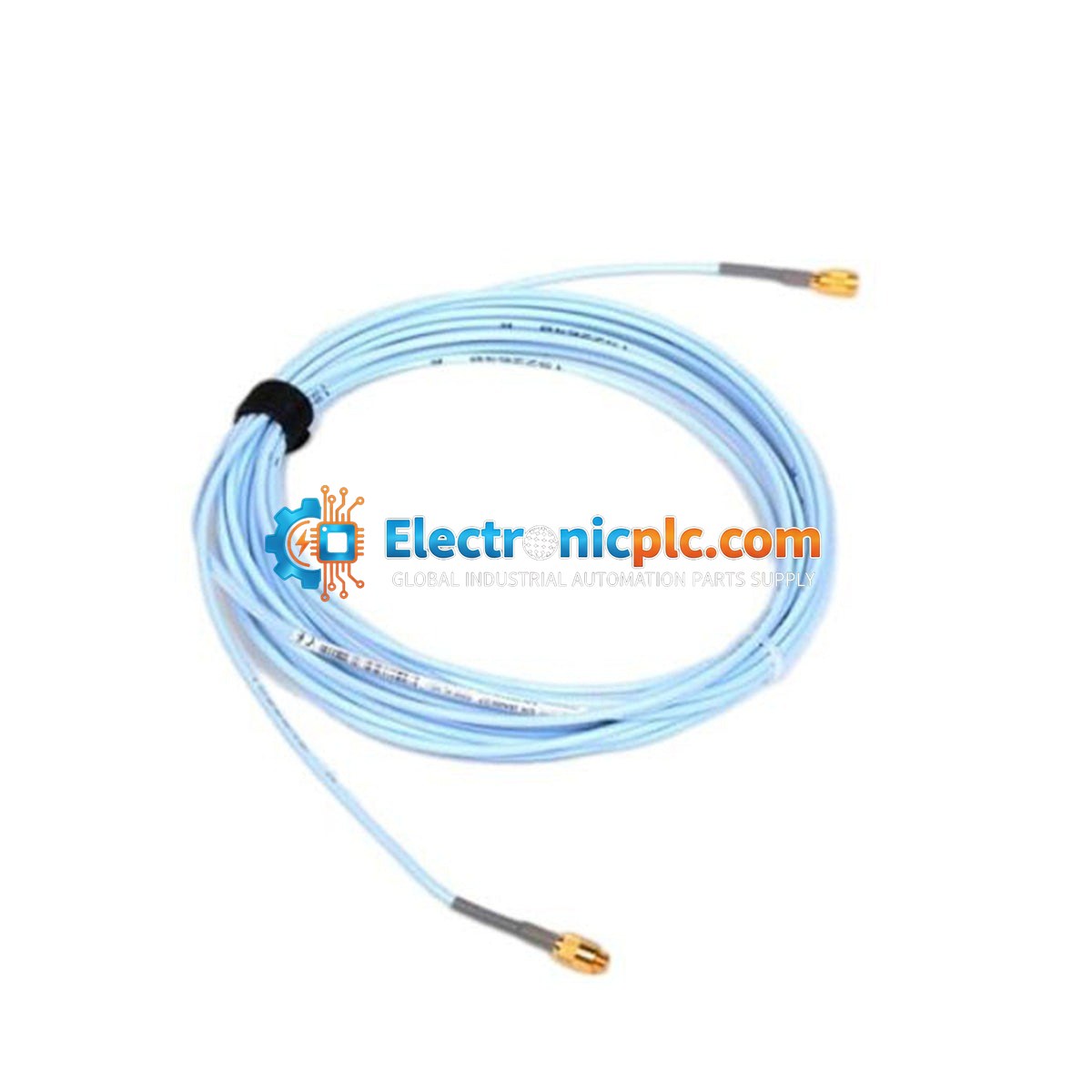

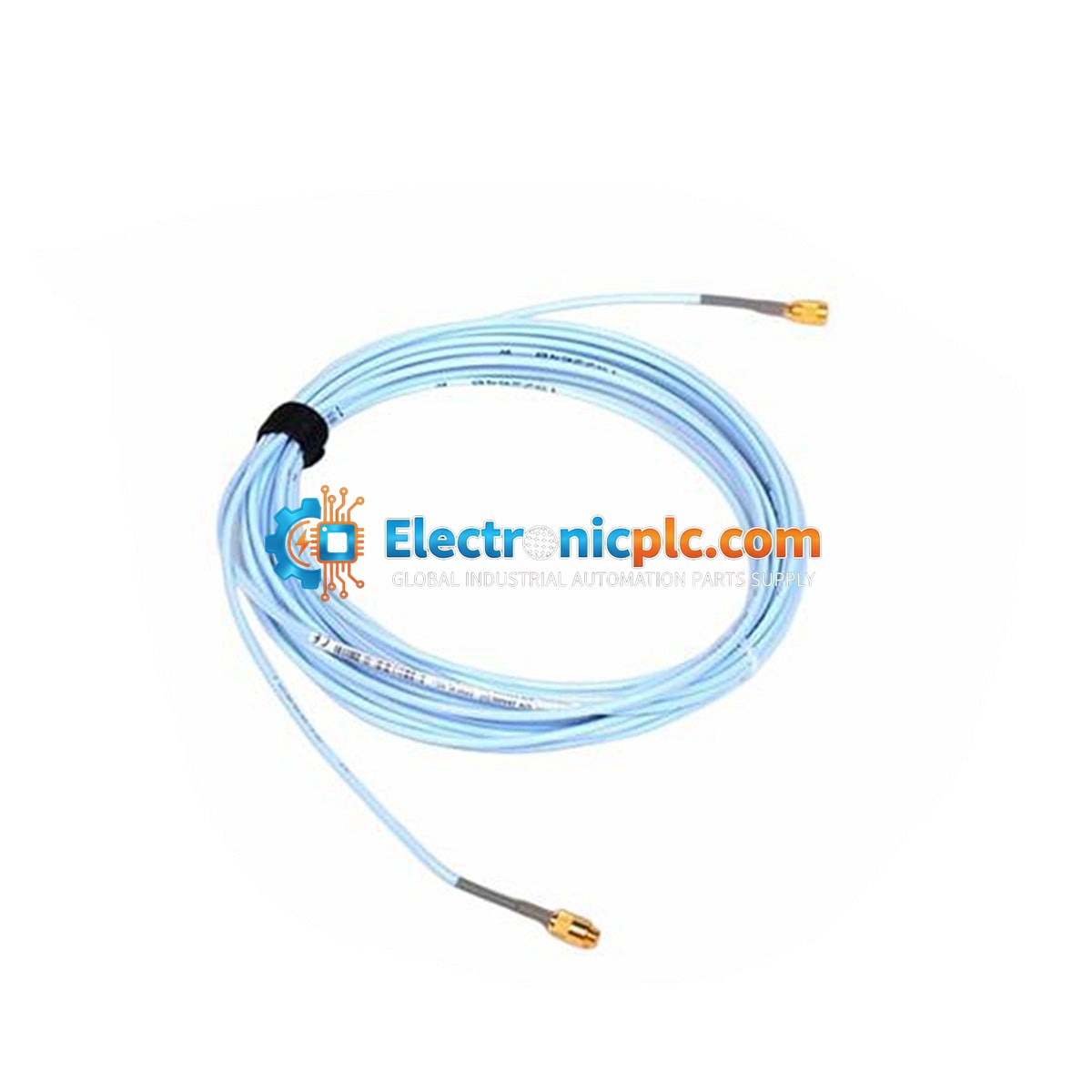

The Bently Nevada 330930-060-00-00 is a standard extension cable designed for use with the 3300 NSv Proximity Transducer System. This cable provides a reliable connection between the proximity probe and the proximitor sensor, ensuring signal integrity in critical machinery monitoring applications. This specific model features a length of 6.0 meters (19.7 feet) and is supplied without stainless steel armor.

Features

• Designed specifically for the 3300 NSv Proximity Transducer System.
• Provides a robust, low-loss signal path for vibration and position monitoring.
• Cable length: 6.0 meters (19.7 feet).
• Standard construction without stainless steel armor.
• Optimized for performance in industrial environments where precise gap measurement is required.

Technical Specifications

Installation Guidelines

• Ensure the cable is routed away from high-voltage power lines and sources of electromagnetic interference (EMI) to prevent signal noise.
• Avoid sharp bends or kinks in the cable during installation to maintain the integrity of the internal conductors and shielding.
• Use appropriate cable ties to secure the extension cable, ensuring it is not under tension.
• Verify that all connectors are clean and properly seated before tightening to the specified torque.
• Handle with care to prevent damage to the connector pins and the coaxial cable jacket.

FAQ

What is the primary purpose of the 330930-060-00-00 extension cable?

This cable is used to extend the distance between the proximity probe and the Proximitor sensor in a Bently Nevada 3300 NSv system, allowing for flexible installation in large machinery.

Does this cable include protective armor?

No, this specific model (330930-060-00-00) is the standard version and does not include stainless steel armor.
