Description

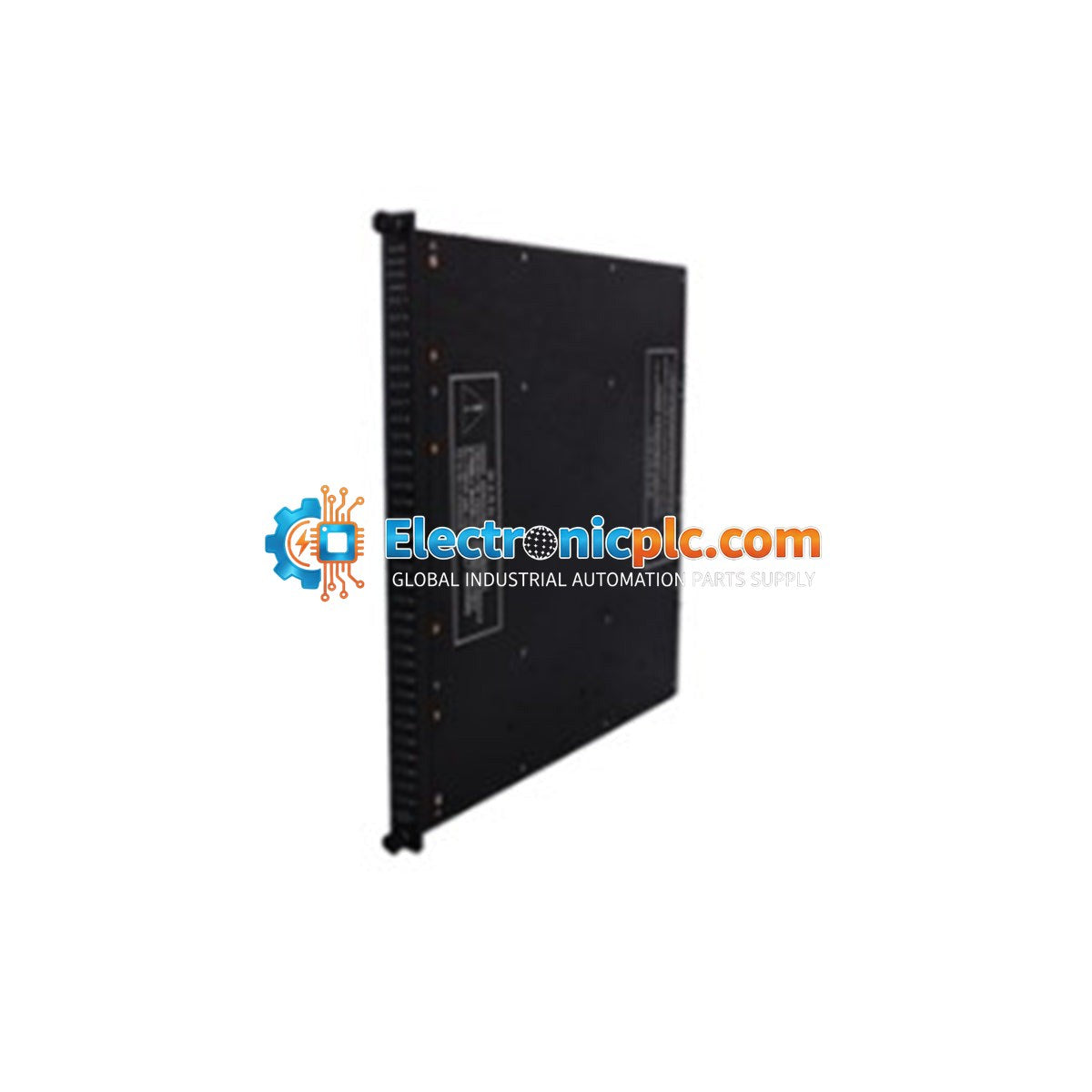

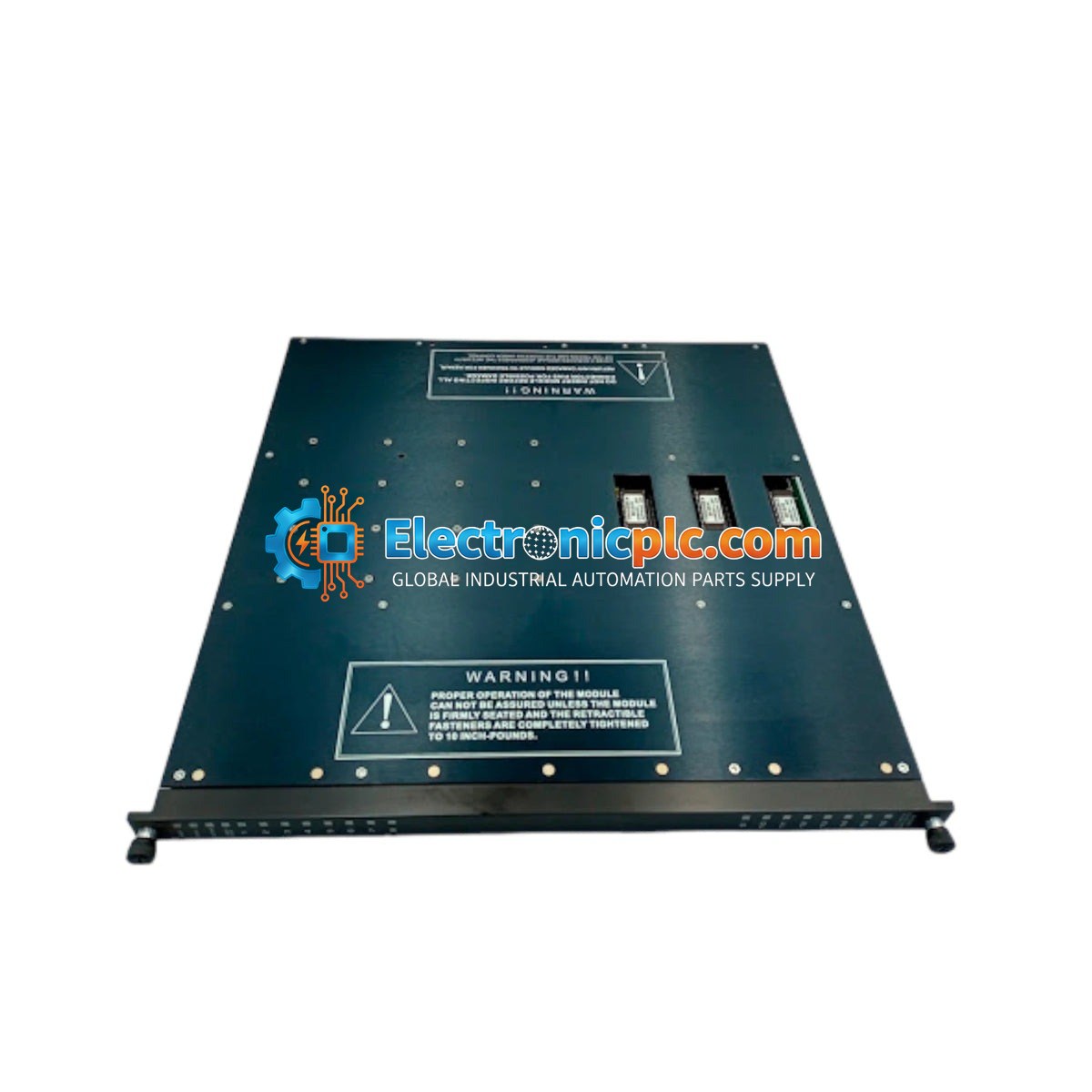

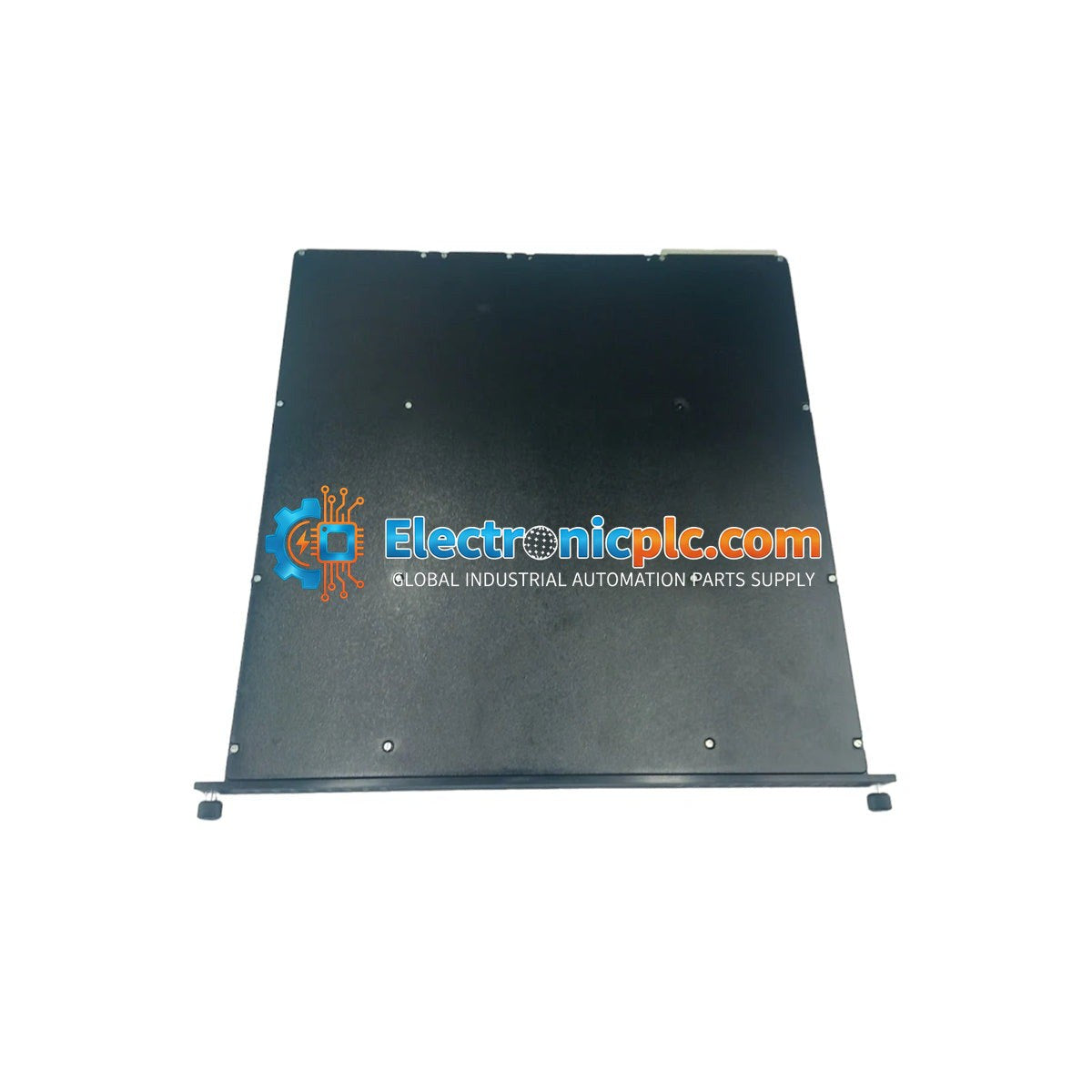

The Triconex 3603B is a High Voltage Digital Output (HVDO) module engineered for the Triconex Triple Modular Redundant (TMR) safety system. Operating at a nominal 120 VAC, this module provides reliable switching for critical final control elements, including motor starters, solenoid valves, and industrial actuators. Designed for high-availability environments such as oil and gas refineries, power generation plants, and mining operations, the 3603B ensures safety-critical commands are executed with high integrity through comprehensive self-diagnostics and fault-tolerant switching.

Features

• Triple Modular Redundant (TMR) architecture for high-integrity safety applications.
• 16-channel output configuration for high-density control.
• Integrated optical isolation to protect the controller backplane from field-side transients.
• Supports hot-swapping under energized conditions, allowing maintenance without disrupting the safety loop.
• Comprehensive internal diagnostics to monitor output switch health and field load integrity.
• SIL 3 rated for use in safety-instrumented systems (SIS).

Applications

The 3603B is specifically designed for critical safety applications where process uptime and safety integrity are paramount. Typical uses include emergency shutdown (ESD) systems, burner management systems (BMS), and fire and gas detection systems in hazardous industrial environments.

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is properly grounded before installing the module.
• Handle the module using standard ESD protection practices to prevent damage to sensitive internal components.
• The 3603B supports hot-swapping; however, ensure that field wiring is secured and that the module is fully seated in the backplane connector before locking the retention levers.
• Verify that the field load voltage matches the module's 120 VAC nominal rating to prevent damage.
• Maintain adequate ventilation in the cabinet to ensure the ambient temperature remains within the 0 to 60 deg C operating range.

FAQ

Is the 3603B compatible with all Triconex systems?

The 3603B is designed for use within the Triconex TMR safety systems. Please verify your specific system configuration and chassis compatibility in the Triconex planning and installation guide before deployment.

Does this module support hot-swapping?

Yes, the 3603B is designed for hot-swapping, allowing for module replacement while the system is energized without interrupting the safety-critical control logic.
