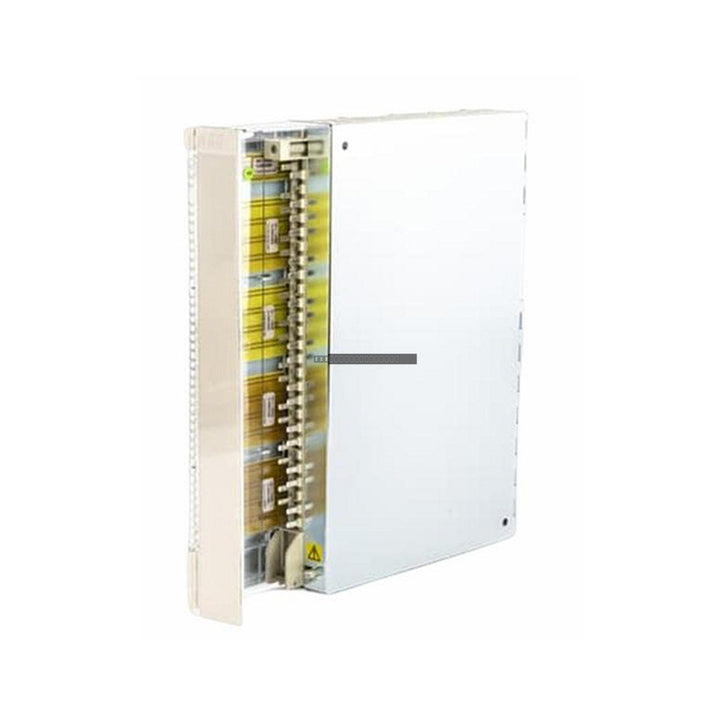

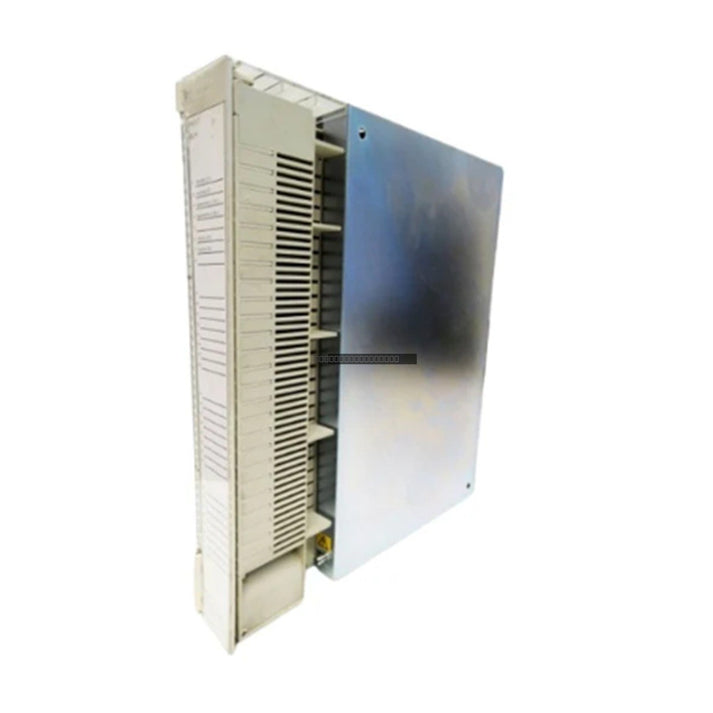

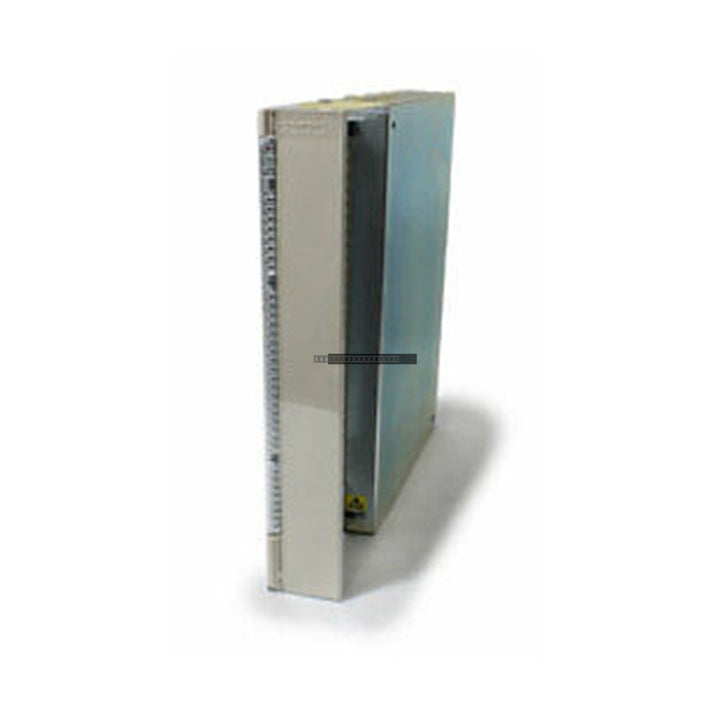

The ABB DO630 (3BHT300007R1) is a high-performance 16-channel digital output relay module designed for integration within the Advant OCS automation environment. This module provides reliable switching capabilities for industrial control applications, featuring 16 independent relay channels capable of handling high-voltage switching requirements.

Features

• 16 independent relay output channels for versatile control logic.
• High-voltage switching capability up to 250VAC per channel.
• Robust isolation of 500VAC between channels and the system bus to ensure signal integrity.
• Fast response time of less than 1ms for real-time process control.
• Integrated protection features including overload and short-circuit monitoring.
• Engineered for reliable operation in industrial environments with a wide operating temperature range.

Applications

This module is primarily utilized in Advant OCS systems for driving field actuators, interposing relays, and signaling devices. It is suitable for process automation, manufacturing lines, and power distribution control where galvanic isolation and relay-based switching are required.

Technical Specifications

Installation Guidelines

• Ensure the cabinet environment meets IP20 protection standards.
• Mount the module securely using the designated DIN rail or cabinet mounting hardware.
• Always disconnect power from the system before inserting or removing the module to prevent electrical damage or arc faults.
• Maintain proper cable routing to minimize EMI interference with sensitive control signals.
• Verify that all field wiring is properly terminated and adheres to the specified voltage and current ratings.

FAQ

What is the primary function of the DO630 module?
The DO630 is an output module designed for the ABB Advant OCS series, providing 16 relay-isolated channels to control field devices.

Is this module suitable for high-current loads?
The module is rated for 0.5A per channel. For loads exceeding this current, it is recommended to use the DO630 to drive an external interposing relay.
