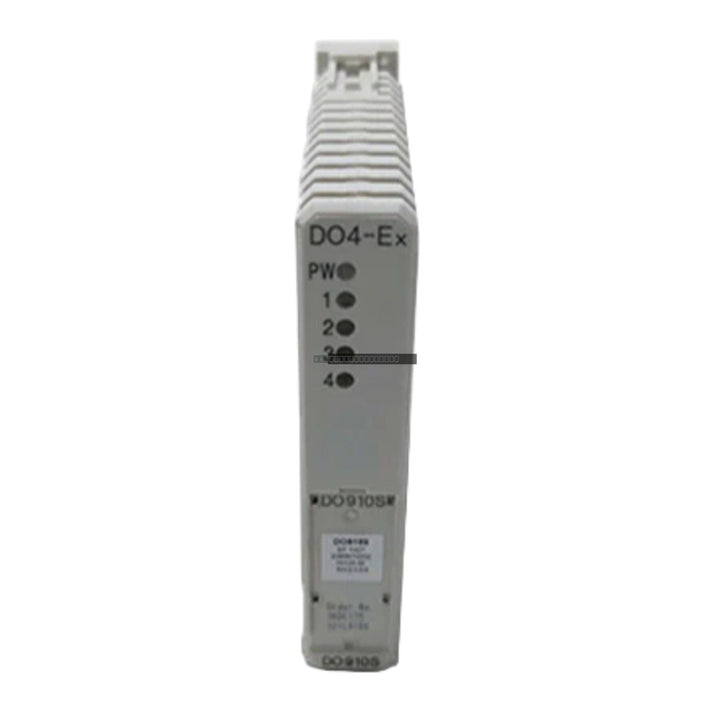

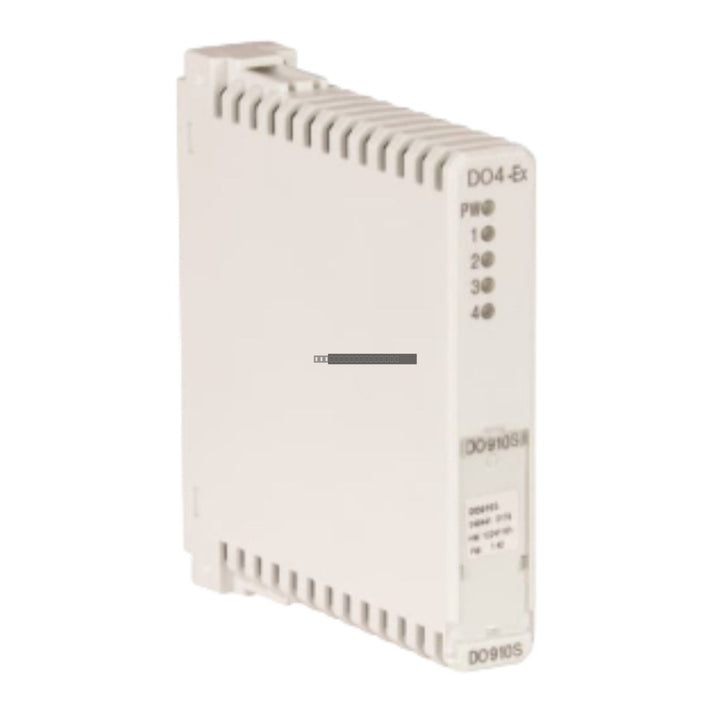

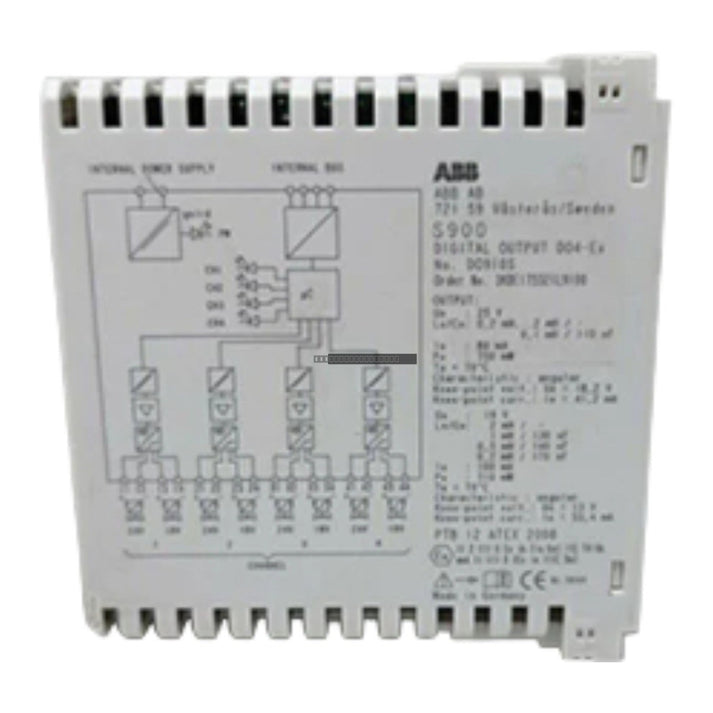

The ABB DO910 (3KDE175321L9100) is a high-performance, 4-channel digital output module engineered for the S900 I/O system. Designed specifically for hazardous environments, this module provides intrinsically safe outputs, making it suitable for deployment in Zone 1 and Zone 2 explosive atmospheres. Its robust design incorporates G3-level coating to ensure reliable operation in corrosive industrial environments.

Features

• 4-channel intrinsically safe digital output capability.
• Supports system-level redundancy for both power and communication paths.
• Designed for high availability with hot-swap support and hot configuration during runtime.
• Integrated G3-coating for enhanced resistance against environmental corrosion.
• Comprehensive diagnostics and setup via standard FDT/DTM interfaces.

Technical Specifications

Installation Guidelines

• Ensure the module is installed in an appropriate S900 I/O rack configuration.
• Always power down the segment or follow site-specific hot-swap safety procedures before removing or inserting the module.
• Maintain proper grounding practices to ensure the integrity of the intrinsic safety barriers.
• Ensure that all field wiring is routed according to hazardous area cabling requirements to prevent interference or safety breaches.
• Verify that the ambient operating temperature remains within the specified range of -20 degC to +60 degC to prevent premature component failure.

FAQ

Is the DO910 module suitable for hazardous locations?

Yes, the DO910 is ATEX approved for use in Zone 1 and Zone 2 hazardous areas, provided it is installed in accordance with the relevant safety documentation and local regulations.

Does this module support hot-swapping?

Yes, the module is designed to support hot-swapping and hot configuration while the system is running, allowing for maintenance without requiring a total system shutdown.
