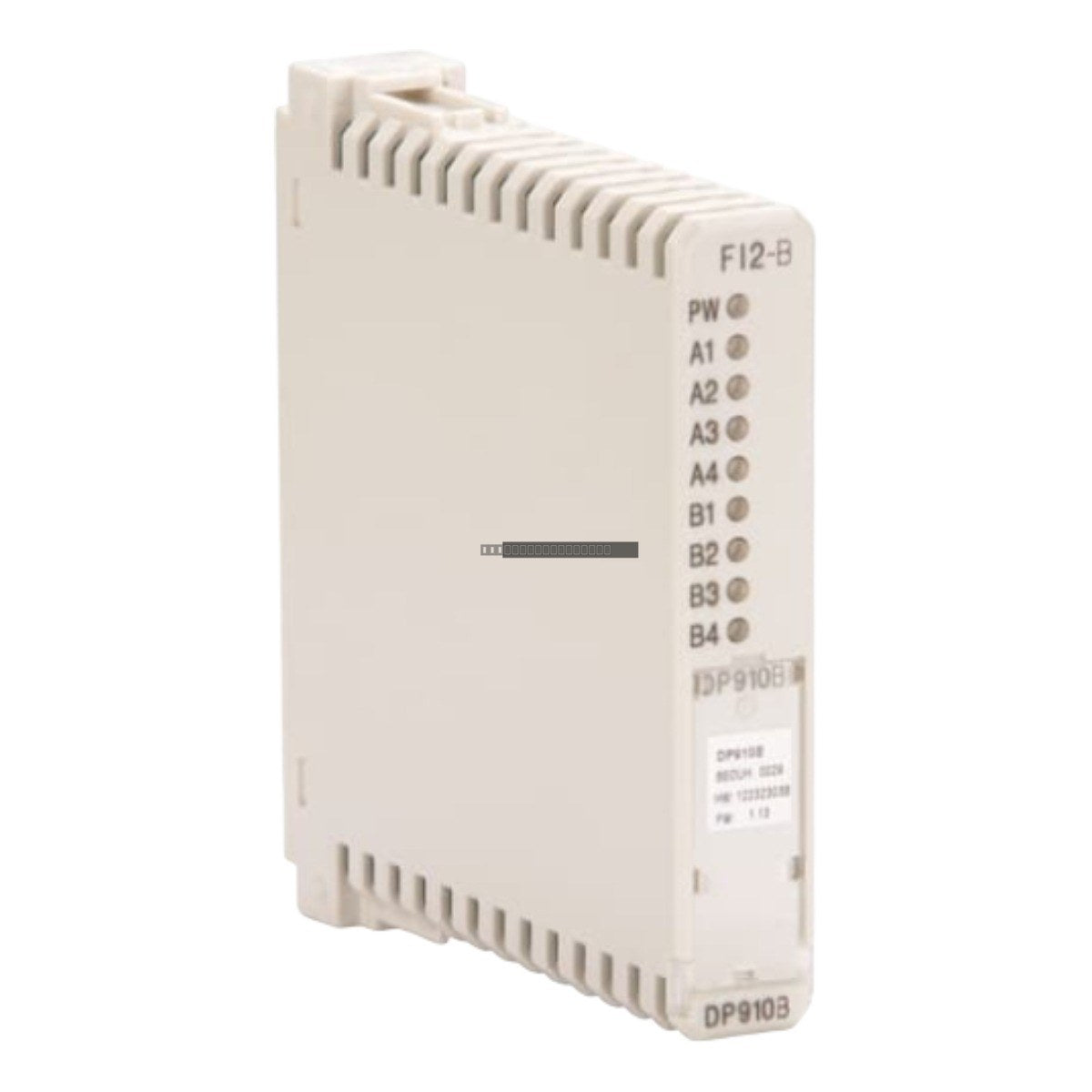

The ABB DP910 (Order Code: 3KDE175362L9100) is a high-performance, 2-channel frequency input module designed for integration within the S900 I/O system. This module is engineered for demanding industrial environments, featuring ATEX certification for deployment in Zone 1 and Zone 2 hazardous areas. It provides reliable signal processing for frequency measurement, pulse counting, and direction detection.

Features

• Dual-channel input architecture supporting dry contacts and proximity sensors.
• High-frequency processing capability up to 10 kHz.
• Advanced diagnostics including short-circuit and wire-break detection.
• Supports hot-swapping and hot configuration during system operation to maximize uptime.
• Equipped with G3-level corrosion protection for enhanced durability in harsh atmospheres.
• Redundancy support for both power supply and communication paths.

Applications

The DP910 is primarily utilized in process automation environments requiring precise frequency, speed, or flow monitoring. It is commonly integrated into S900 I/O racks for hazardous area applications, such as chemical processing, oil and gas monitoring, and manufacturing plants where intrinsic safety and system reliability are critical.

Technical Specifications

Installation Guidelines

• Ensure the module is installed within an appropriate S900 I/O mounting base.
• The module supports hot-swapping; however, always verify system power status before performing maintenance in non-hazardous locations.
• Ensure all wiring is shielded and routed away from high-voltage cables to prevent electromagnetic interference.
• Maintain proper ventilation within the cabinet to ensure operating temperatures remain within the -20 degC to +60 degC range.
• Use FDT/DTM software tools for initial configuration and ongoing diagnostics.

FAQ

Is the DP910 suitable for hazardous areas? Yes, the module is ATEX approved for use in Zone 1 and Zone 2 hazardous locations.

Does this module support hot-swapping? Yes, the DP910 is designed for hot-swapping and hot configuration while the system is running, allowing for maintenance without requiring a total system shutdown.

What type of sensors can be connected? The module accepts inputs from standard dry contacts or proximity switches.
