Description

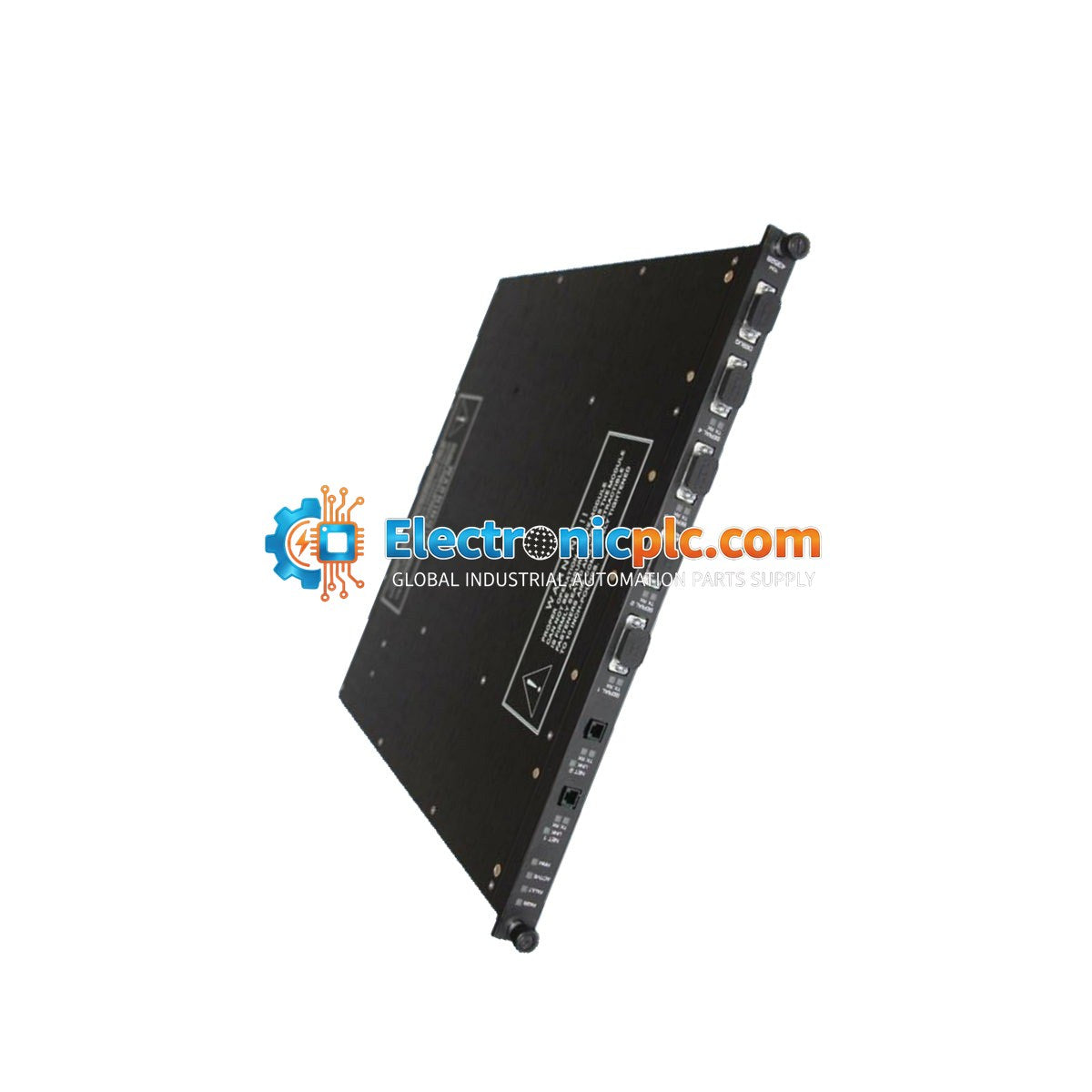

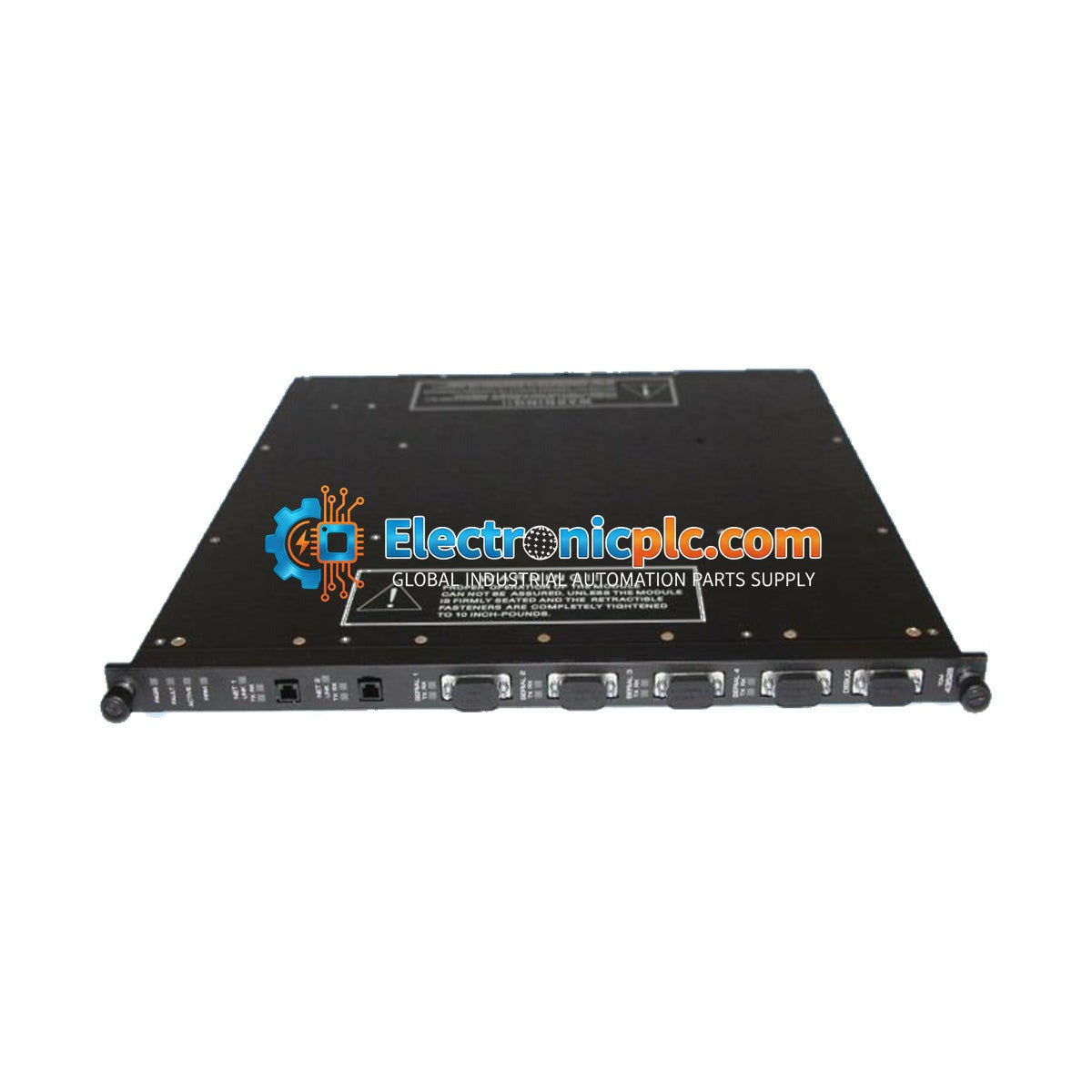

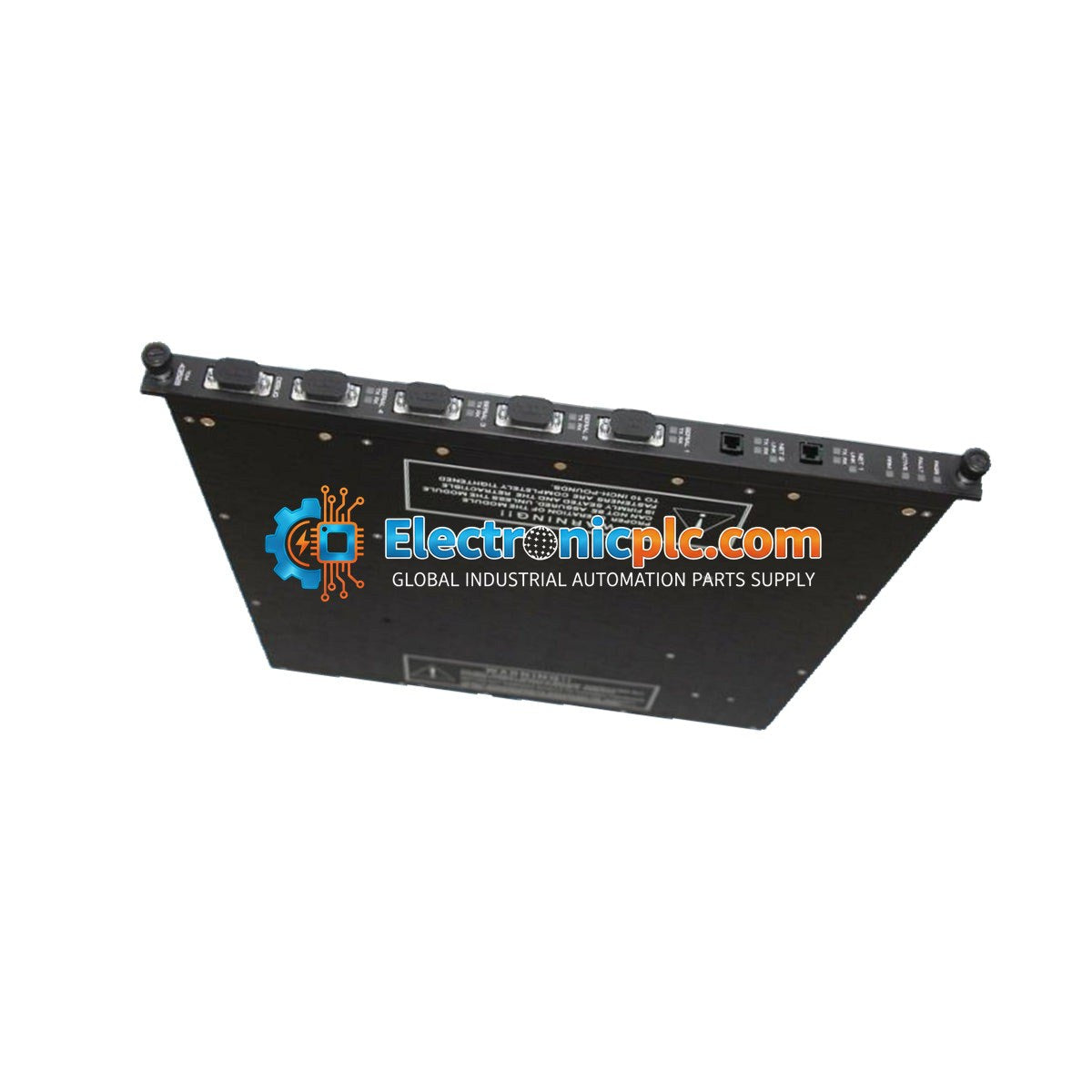

The 4352B is a high-performance Tricon Communication Module (TCM) designed for the Triconex Triple Modular Redundant (TMR) controller platform. This module serves as the primary interface for external data exchange, facilitating seamless connectivity between the safety controller and DCS, SCADA, or HMI systems. Engineered for critical safety applications in oil and gas refineries, nuclear power generation, and chemical processing, the 4352B supports high-speed data throughput while maintaining strict electrical isolation. By providing reliable, multi-protocol communication pathways, this component reduces diagnostic latency and ensures real-time safety data accessibility across the plant network.

Features

• High-speed Ethernet-based communication via 2 x Net Link ports.
• Support for legacy device integration via 4 x 9-pin serial ports (RS-232/RS-485).
• Dedicated 9-pin debug port for localized system diagnostics and maintenance.
• Offloads communication overhead from the Main Processors to maintain deterministic safety function execution.
• Supports Modbus (Master/Slave), TCP/IP, TSAA, and Peer-to-Peer protocols.

Applications

The 4352B TCM is utilized in safety-critical environments requiring high-availability communication, including oil and gas processing facilities, petrochemical plants, and power generation stations where integration with distributed control systems and supervisory control and data acquisition networks is mandatory.

Technical Specifications

Installation Guidelines

• Ensure the Triconex chassis is powered down before inserting or removing the TCM module to prevent electrical damage.
• Verify that the module is correctly seated in the designated slot and that the locking mechanisms are fully engaged.
• Use shielded cables for all serial and Ethernet connections to minimize EMI/RFI interference in industrial environments.
• Maintain proper ventilation within the cabinet to ensure the module operates within the specified 0 to 60 deg C range.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal circuitry.

FAQ

What is the primary function of the 4352B TCM?

The 4352B serves as the communication gateway for the Triconex TMR system, offloading communication tasks from the main processors to handle external data exchange with DCS, HMI, and SCADA systems.

Does this module support Modbus communication?

Yes, the 4352B supports Modbus (Master/Slave) protocols via its serial ports, allowing for integration with legacy industrial devices.
