Description

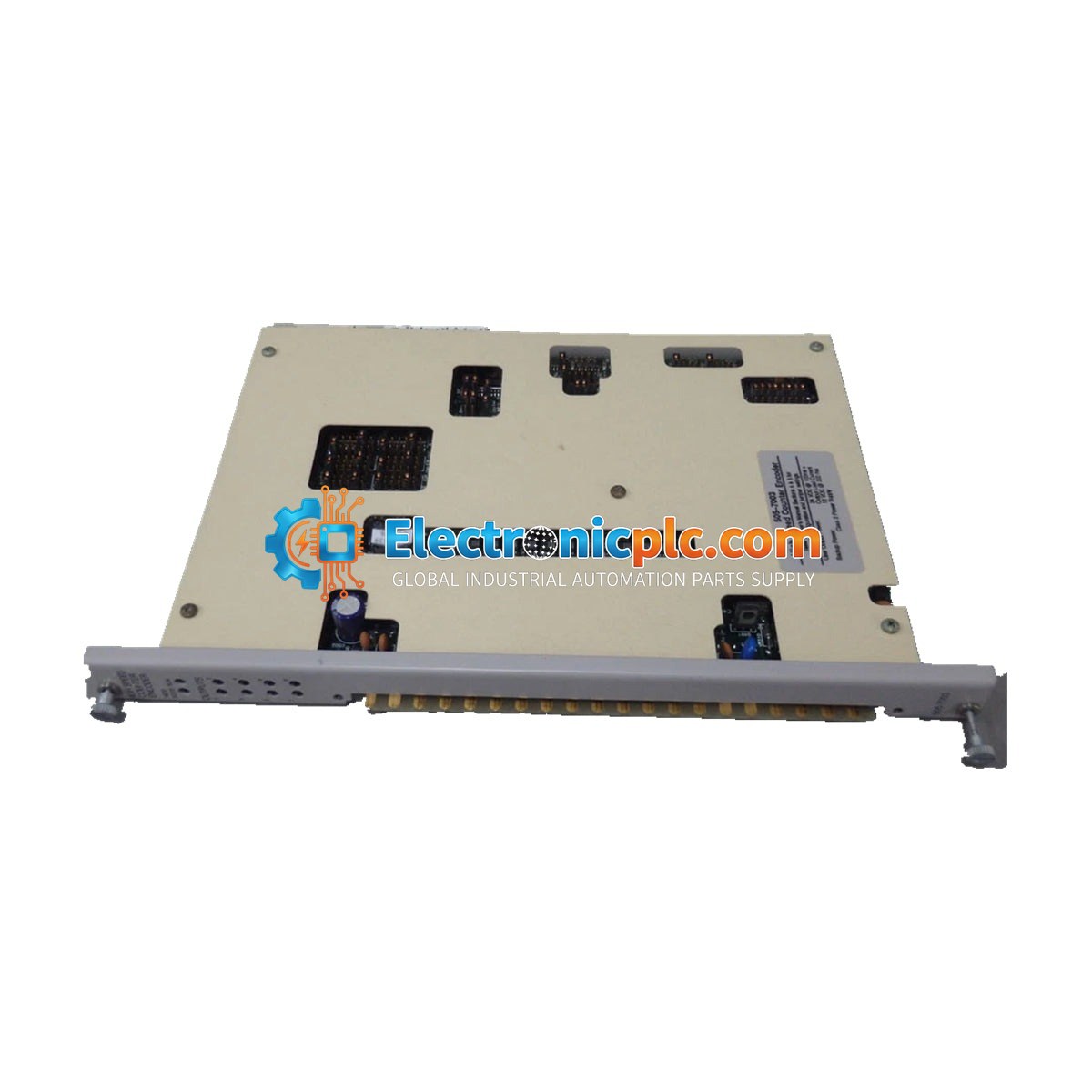

The Siemens 505-7003 is a specialized High Speed Counter module designed for the TI 505 programmable logic controller series. This module is engineered to interface with high-frequency pulse inputs, such as those from encoders or proximity sensors, providing precise counting and positioning data to the control system. It is a critical component for motion control and high-speed process monitoring applications where standard PLC scan times are insufficient for pulse capture.

Features

• High-speed pulse counting capability up to 100 kHz.
• Designed for seamless integration with the Siemens TI 505 series I/O rack architecture.
• Supports encoder input processing for accurate position or rate monitoring.
• Includes 8 integrated outputs for high-speed triggering based on counter values.
• Discontinued by manufacturer; ideal for legacy system maintenance and replacement.

Applications

This module is typically utilized in industrial automation environments requiring high-speed event counting, such as:

• Conveyor belt speed monitoring and synchronization.
• Packaging and bottling line pulse counting.
• Rotary encoder feedback for motion control axes.
• Flow metering and totalizing applications.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack power is disconnected before inserting or removing the module to prevent electrical damage.
• Verify that the module is fully seated in the backplane connector to ensure reliable communication with the CPU.
• Use shielded twisted-pair cabling for high-speed pulse inputs to minimize electromagnetic interference (EMI).
• Route signal cables away from high-voltage power lines and motor drives to prevent signal noise.
• Ensure the module is installed in a clean, dry environment within the specified operating temperature range of the TI 505 system.

FAQ

Is the 505-7003 still supported by Siemens?

No, the 505-7003 has been discontinued by the manufacturer. It is primarily available through secondary markets for the maintenance of legacy TI 505 control systems.

What is the maximum frequency this module can handle?

The 505-7003 is rated for a maximum input frequency of 100 kHz.
