Description

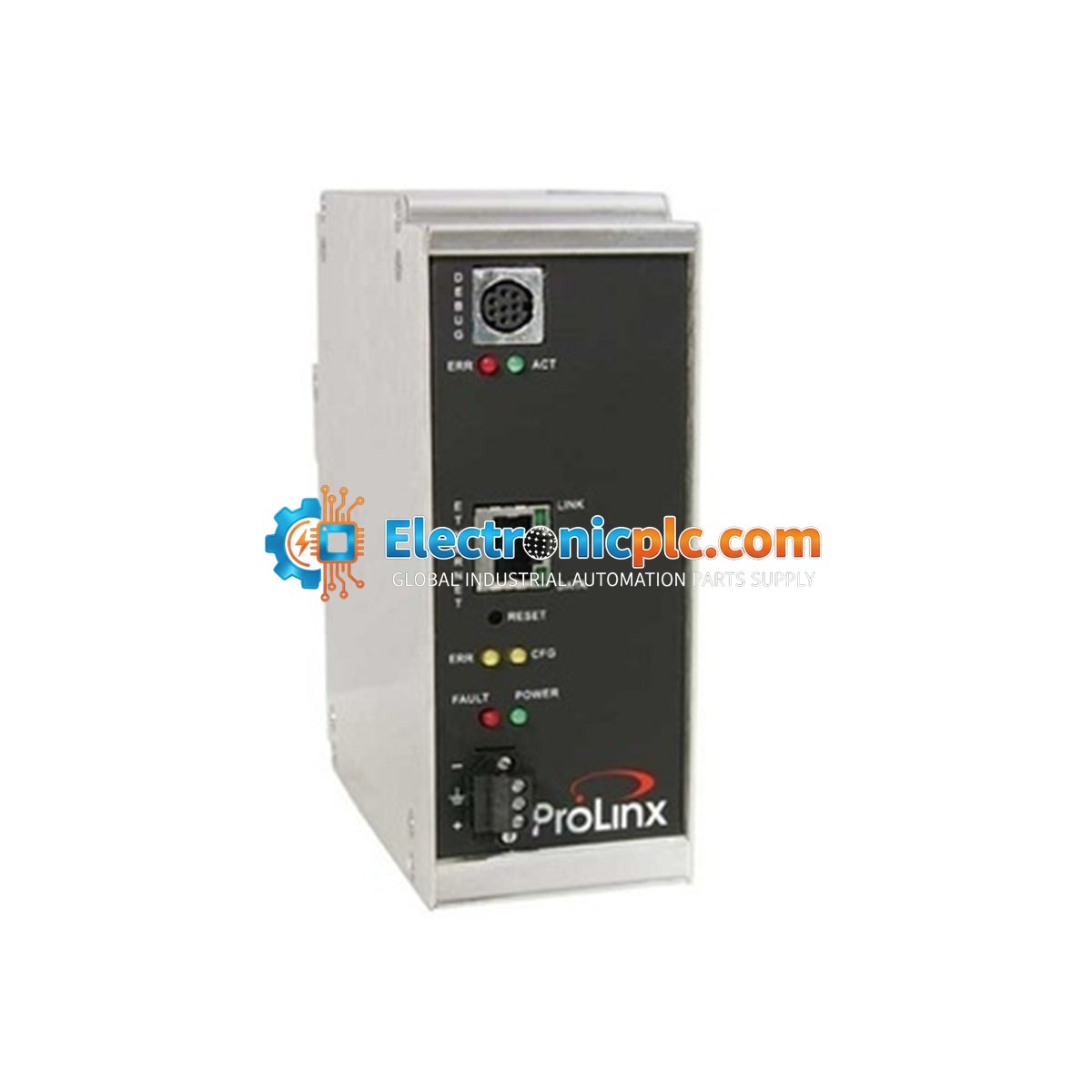

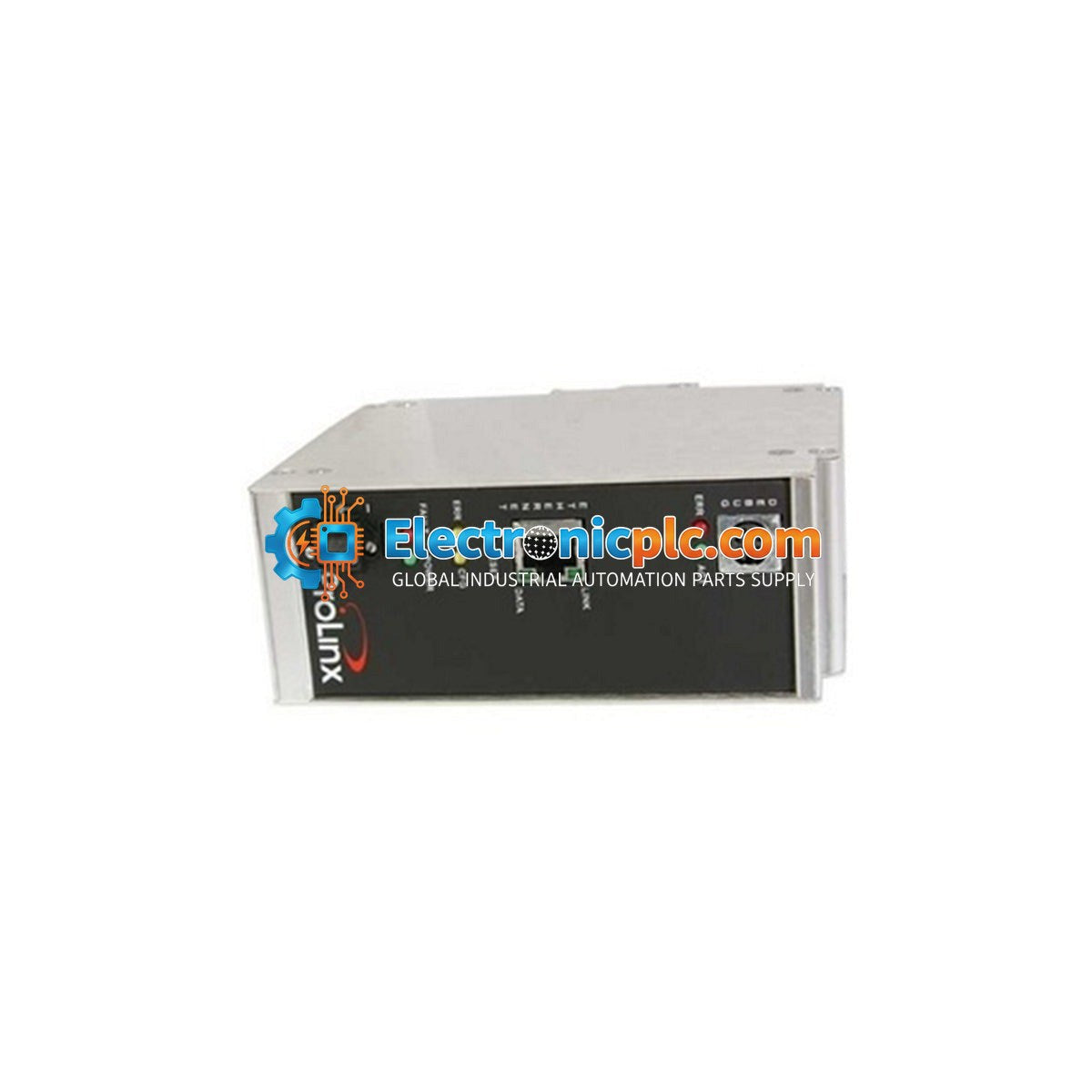

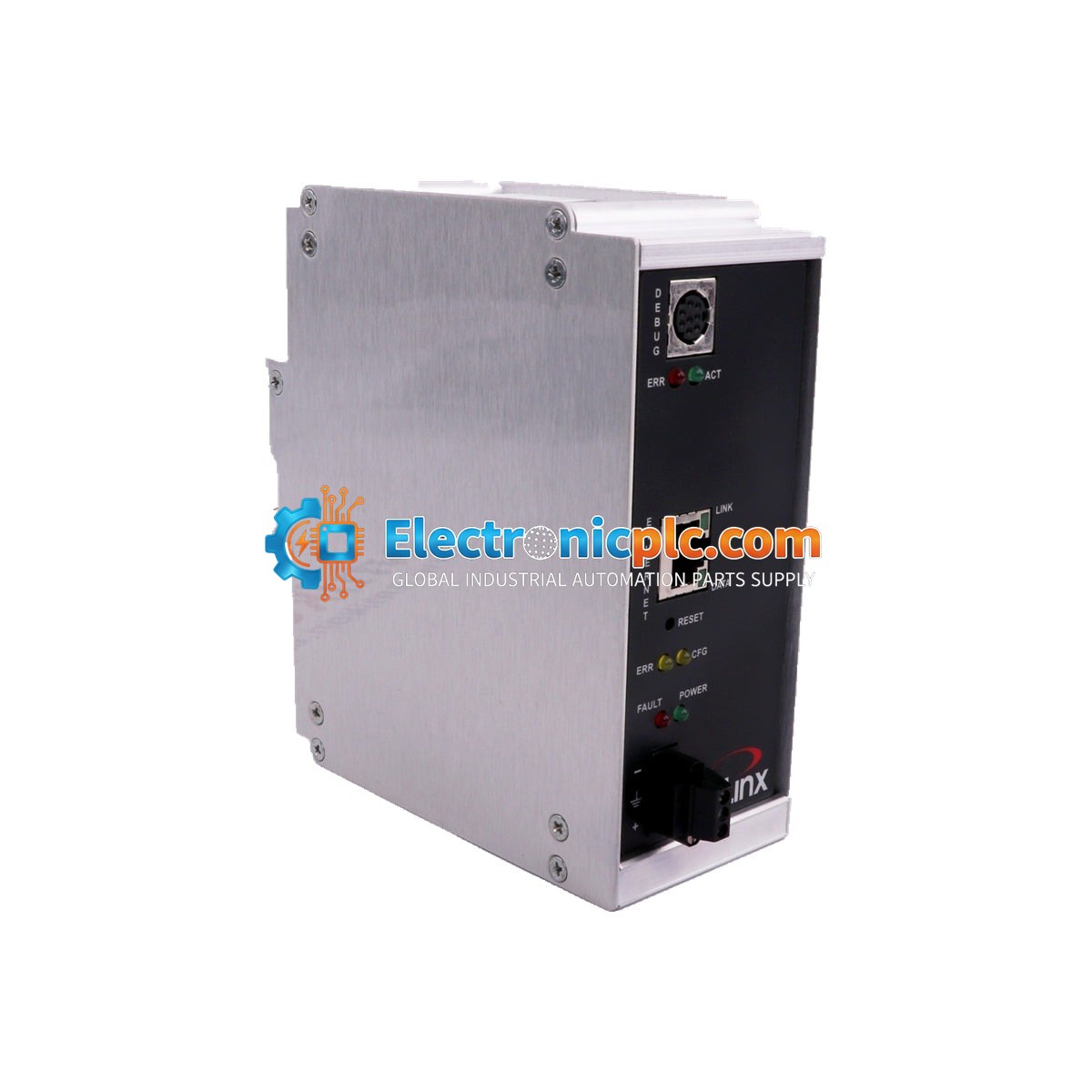

The ProSoft 5201-DFNT-EGD is a specialized communication gateway designed to facilitate seamless data exchange between EtherNet/IP-enabled devices and GE Ethernet Global Data (EGD) networks. This module acts as a protocol converter, allowing disparate industrial control systems to share data efficiently within a unified automation architecture.

Features

• Protocol conversion between EtherNet/IP and GE Ethernet Global Data (EGD).
• Enables interoperability between heterogeneous industrial control networks.
• Compact hardware design suitable for standard industrial control panels.
• Reliable data transfer for real-time monitoring and control applications.

Applications

This gateway is typically utilized in industrial automation environments where integration between Allen-Bradley or other EtherNet/IP controllers and GE Fanuc or GE Intelligent Platforms control systems is required. It is commonly found in manufacturing, water/wastewater treatment, and energy management systems requiring cross-platform communication.

Technical Specifications

Installation Guidelines

• Ensure the device is mounted in a clean, dry environment within the specified operating temperature range.
• Use shielded Ethernet cabling to minimize EMI/RFI interference in industrial environments.
• Verify power supply voltage compatibility before connection to prevent damage to internal circuitry.
• Ensure proper grounding of the module chassis to the control panel backplane or earth ground to maintain signal integrity.
• Power down the system before inserting or removing the module from the DIN rail or rack assembly.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive electronic components.

FAQ

What is the primary function of the 5201-DFNT-EGD?

The 5201-DFNT-EGD serves as a protocol gateway that translates data between EtherNet/IP and GE Ethernet Global Data (EGD) protocols, allowing for data exchange between different manufacturer control systems.

Does this module require external configuration?

Yes, like most ProSoft communication gateways, this module requires configuration via the appropriate software tools to map data points between the two protocols correctly.
