Description

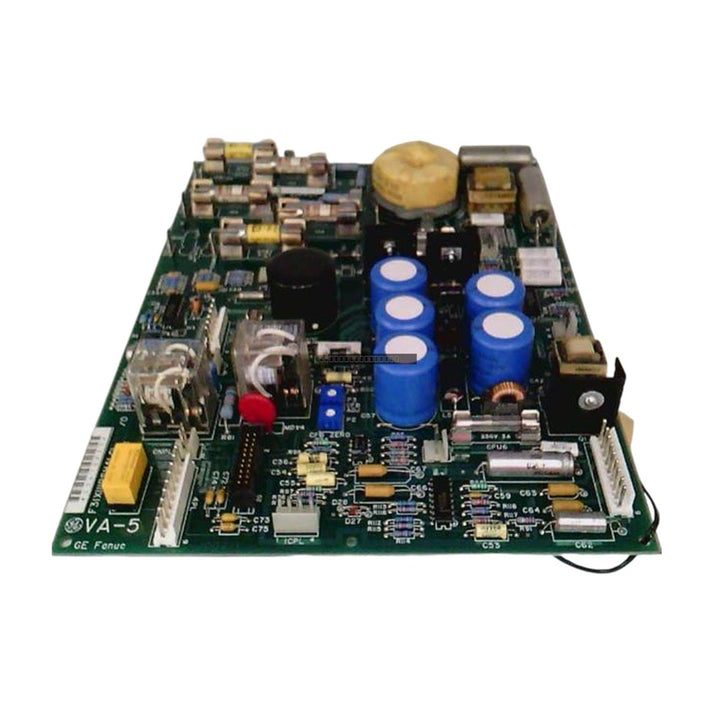

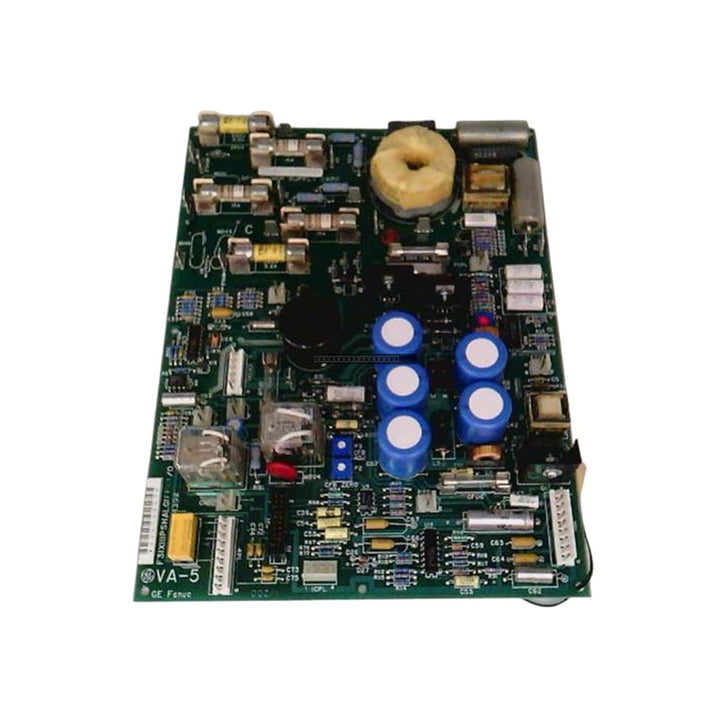

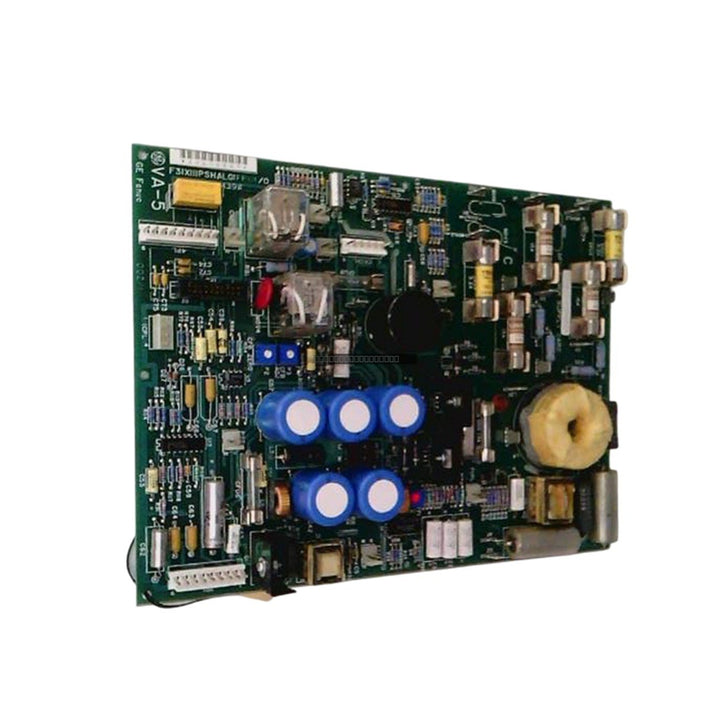

The 531X111PSHAPG3 is a specialized terminal board and relay card designed for integration within General Electric drive systems. This module functions as a primary power distribution node, delivering regulated 5 VDC, 15 VDC, and 24 VDC outputs required for drive control logic. In addition to power regulation, the board features integrated pulse transformers to support motor field circuitry management, ensuring signal isolation and operational stability in demanding industrial environments.

Features

• Provides regulated DC outputs (5V, 15V, 24V) for control logic stability.
• Integrated pulse transformers for motor field circuit management.
• On-board capacitors act as energy reservoirs to mitigate voltage transients.
• Designed for secure mounting within the 3TB assembly.
• Engineered for robust performance in heavy industrial applications.

Applications

This terminal board is utilized in GE drive systems, particularly in heavy-duty industrial sectors such as metal processing, material handling, and large-scale manufacturing where consistent motor control and power distribution are critical for operational uptime.

Technical Specifications

Installation Guidelines

• Safety First: The board contains capacitors that may retain electrical charge. Always verify complete energy dissipation using calibrated testing equipment before handling.
• Tooling: Use only certified, fully insulated hand tools for all terminal adjustments to prevent short-circuits or electrical hazards.
• Mounting: Ensure the board is securely seated within the 3TB assembly to maintain proper electrical contact and mechanical stability.
• Sequence: Follow the manufacturer's recommended sequence for removal and installation to preserve the integrity of the 3TB assembly connections.
• Environment: Ensure the drive cabinet is free of conductive debris and moisture prior to installation.

FAQ

Does this board require specific maintenance?

Yes. Due to the presence of energy-storing capacitors, technicians must confirm that all stored energy has been discharged before performing any maintenance or removal. Always use insulated tools to avoid accidental damage to the board or electrical shock.

What is the primary function of the 531X111PSHAPG3?

This module acts as a power distribution and relay interface for GE drive systems, providing the necessary regulated voltage levels for control logic and managing motor field circuitry via integrated pulse transformers.
