Description

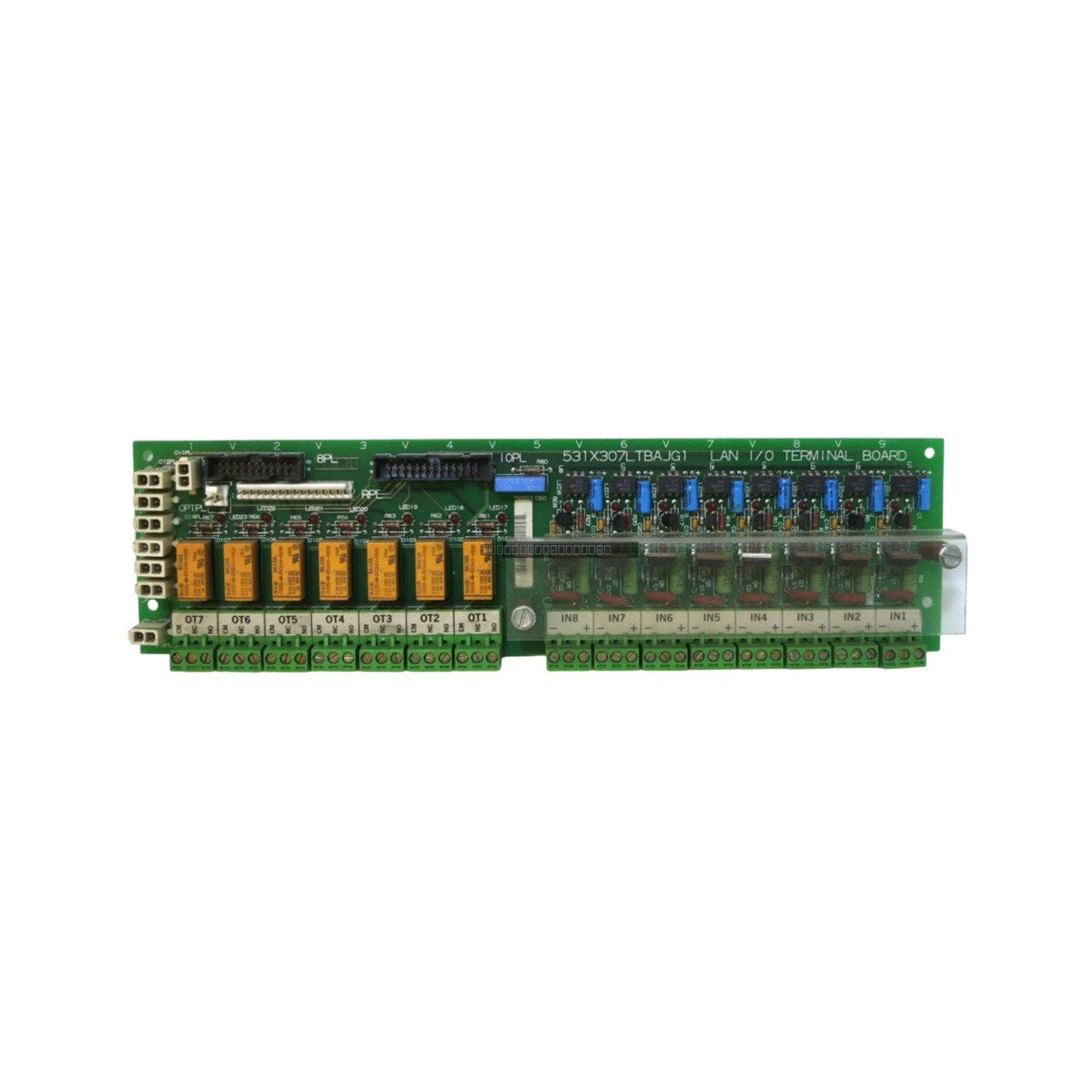

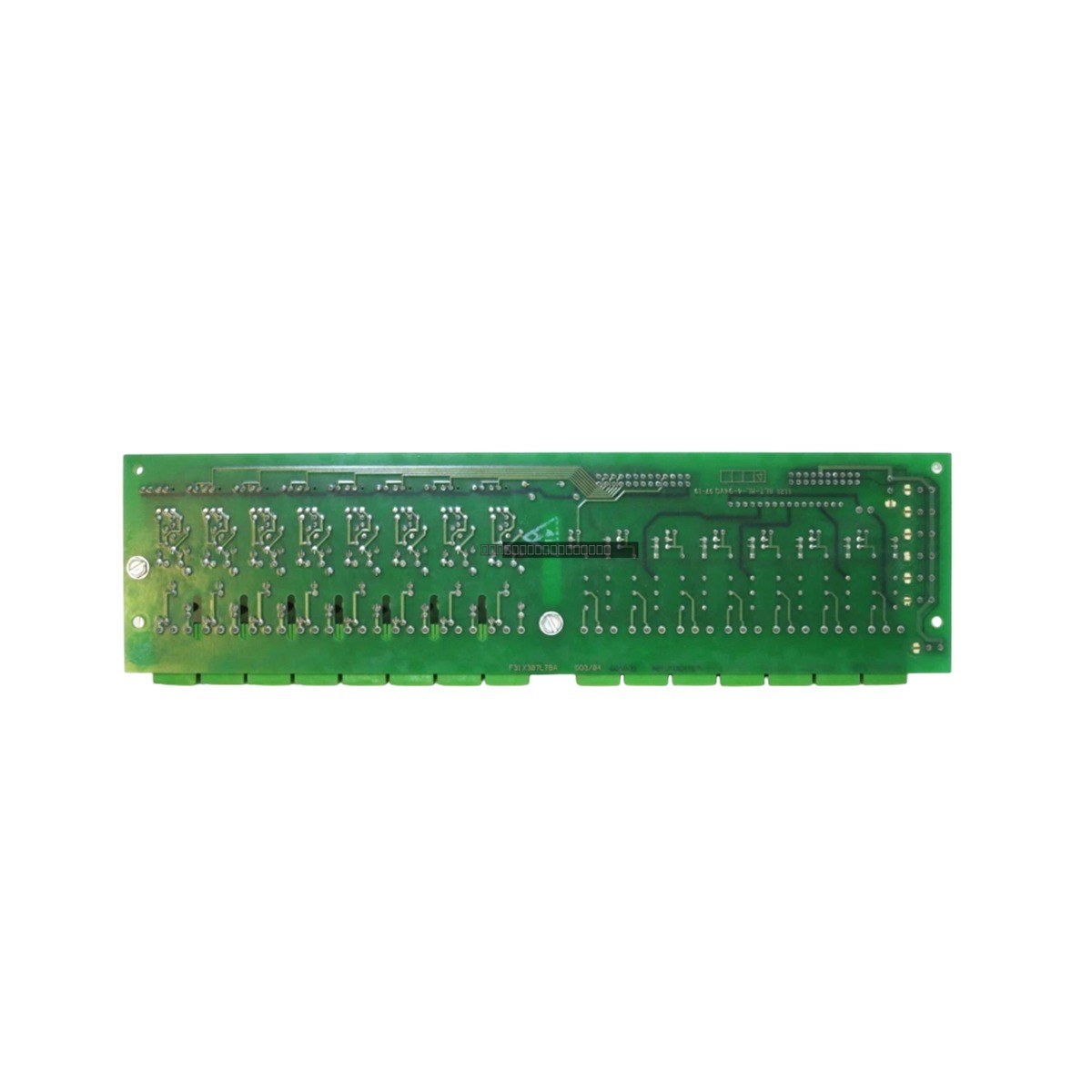

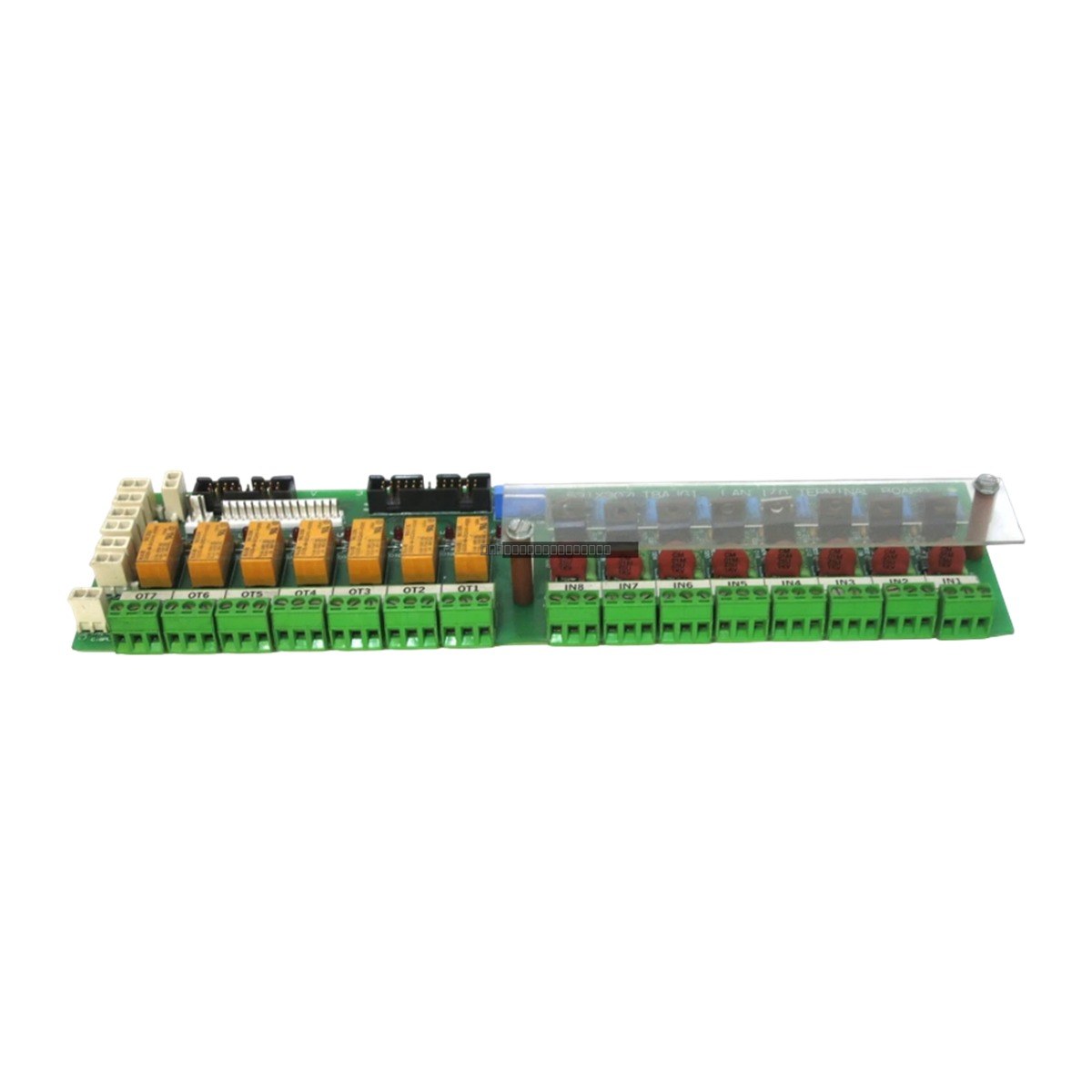

The GE 531X307LTBAJG1 is a specialized LAN I/O Terminal Card designed for the EX2000 digital excitation and drive control system. This module serves as a critical interface for discrete field inputs and control outputs, enabling seamless communication within the drive network processor. It is widely utilized in demanding industrial environments such as power generation facilities, petroleum refineries, and large-scale mining operations. By integrating with the RTBA auxiliary assembly, this card ensures robust loop stability and helps prevent unnecessary drive trips, thereby reducing operational downtime.

Features

• Design Version: G1 iteration, featuring specific onboard plug connectivity for input channels.
• Input Capacity: Eight configurable 24 VDC control input circuits.
• Input Interfacing: Connectivity provided via CI1PL through CI8PL plugs and an additional 8PL connector block.
• Output Configuration: Seven Form C (SPDT) low-voltage, low-current relay outputs.
• Control Logic: Designed for pilot control path switching to activate high-voltage, high-current slave relays.
• System Compatibility: Engineered for full integration within the EX2000 drive control architecture.

Installation Guidelines

• ESD Protection: Always handle the module using proper electrostatic discharge (ESD) grounding techniques to prevent damage to internal logic components.
• Power Status: Ensure the drive control system is completely de-energized before inserting or removing the terminal card from the rack.
• Mounting: Ensure the card is securely seated into the RTBA terminal base board to maintain reliable signal path continuity.
• Wiring: Verify that all connections to the 3-terminal blocks and plug connectors are tightened to prevent intermittent signal loss or contact resistance.
• Environment: Maintain ambient operating temperatures between 0 deg C and 60 deg C with non-condensing humidity to ensure optimal board longevity.

Technical Specifications

FAQ

What is the primary difference between the G1 and G2 versions of this card?

The G1 version (531X307LTBAJG1) utilizes specific physical plugs (CI1PL to CI8PL) and an 8PL connector block for input connectivity, whereas the G2 version typically relies on direct wire terminations at points IN1 through IN8.

Does this card control high-voltage loads directly?

No, the relay outputs on this card are designed as low-voltage, low-current pilot paths. They are intended to trigger secondary high-voltage, high-current slave interlock relays within the terminal board architecture.
