Description

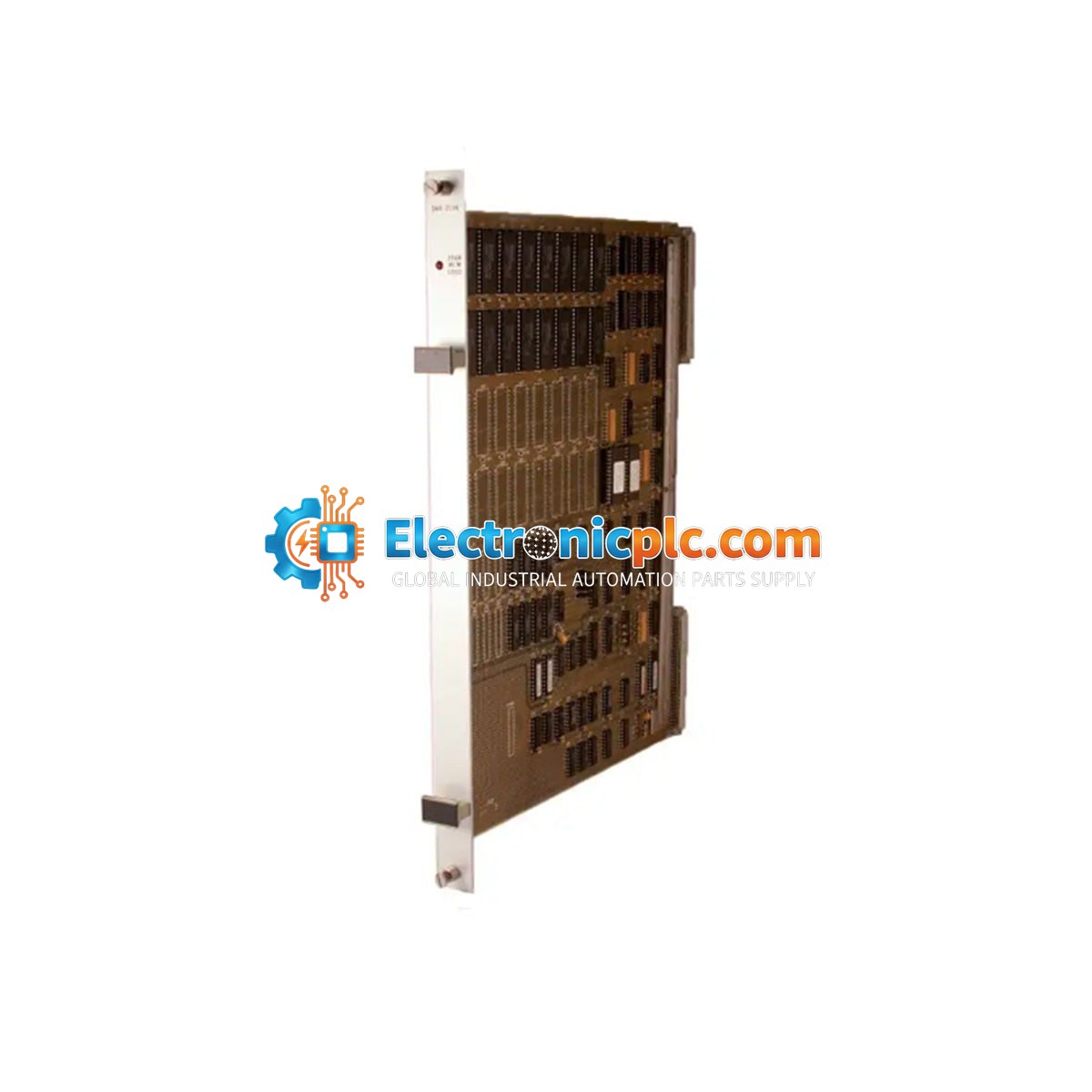

The Siemens 560-2136 is a Global Memory Card designed for use with the Siemens TI 560 and TI 565 programmable logic controller (PLC) systems. This memory module provides 256 words of global memory, serving as a critical component for expanding the data storage and operational capacity of the legacy TI 500 series control architecture.

Features

• Compatible with Siemens TI 560 and TI 565 PLC platforms.
• Provides 256 words of global memory for program and data management.
• Robust construction designed for industrial rack-mounted environments.
• Directly interfaces with the PLC backplane for high-speed data access.

Applications

This memory card is primarily used in legacy industrial automation systems where TI 560/565 controllers are deployed. It is essential for applications requiring additional global memory for complex logic, data logging, or inter-processor communication within the TI 500 series environment.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before inserting or removing the memory card to prevent electrical damage or data corruption.
• Handle the module by its edges; avoid touching the gold-plated edge connectors to prevent oxidation or contamination.
• Ensure the card is fully seated in the designated slot of the PLC rack to maintain reliable electrical contact.
• Maintain a clean, dry, and vibration-free environment to ensure the longevity of the module and the host controller.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.

FAQ

What is the primary function of the 560-2136?

The 560-2136 acts as a global memory expansion module, providing 256 words of additional storage for the Siemens TI 560 and 565 PLC systems.

Is this module compatible with other TI series controllers?

This module is specifically engineered for the TI 560/565 series. Compatibility with other TI series controllers should be verified against the specific hardware manual for that controller model.
