Description

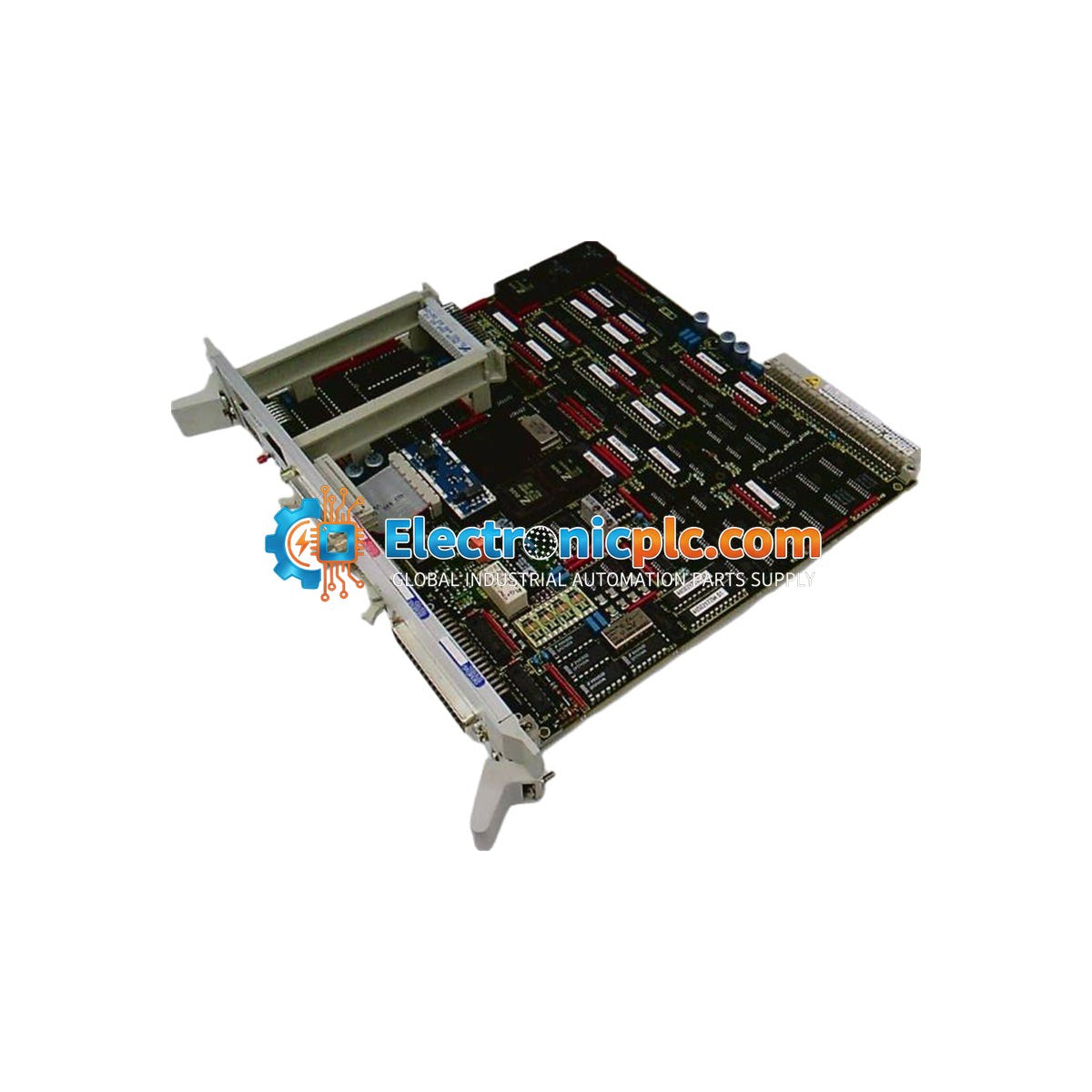

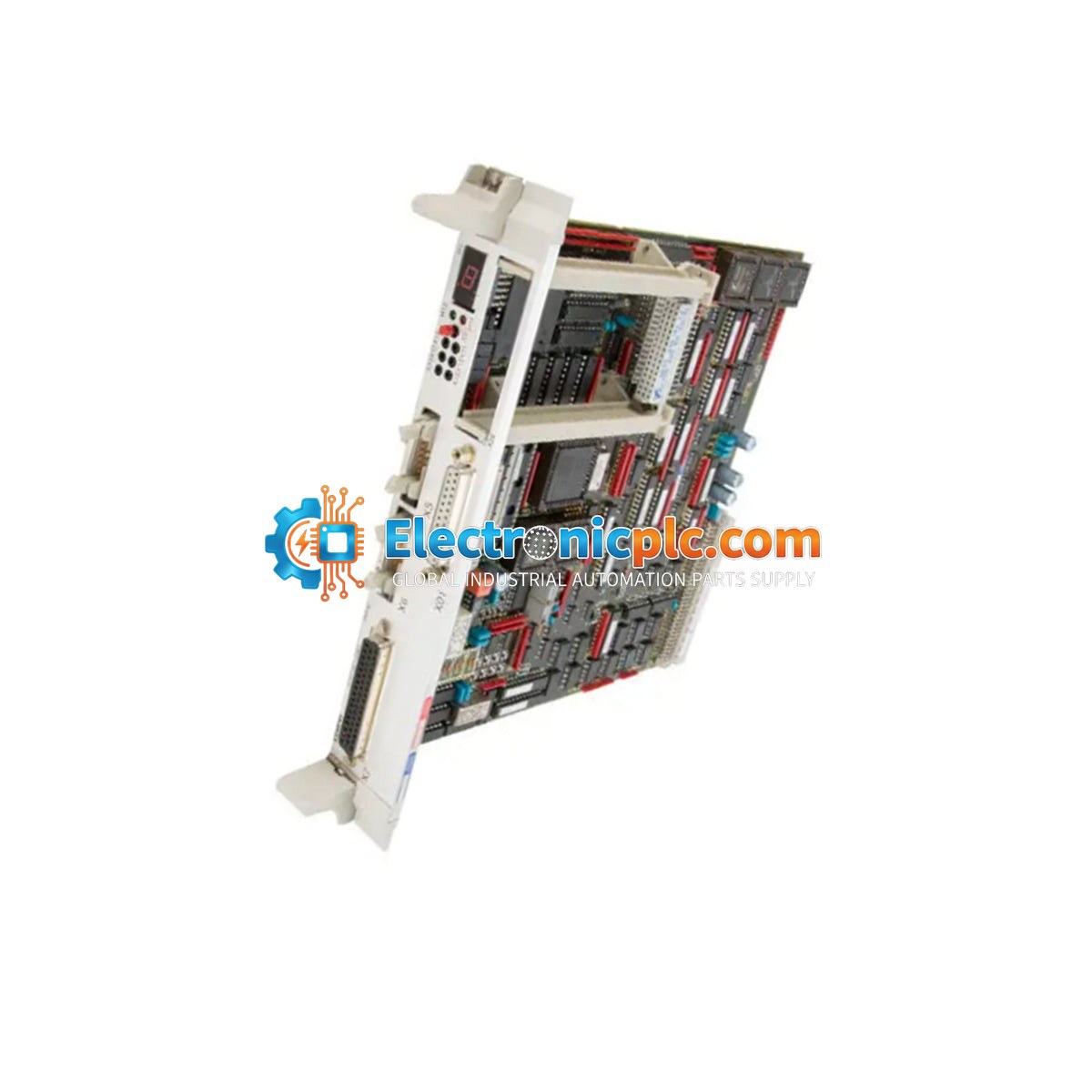

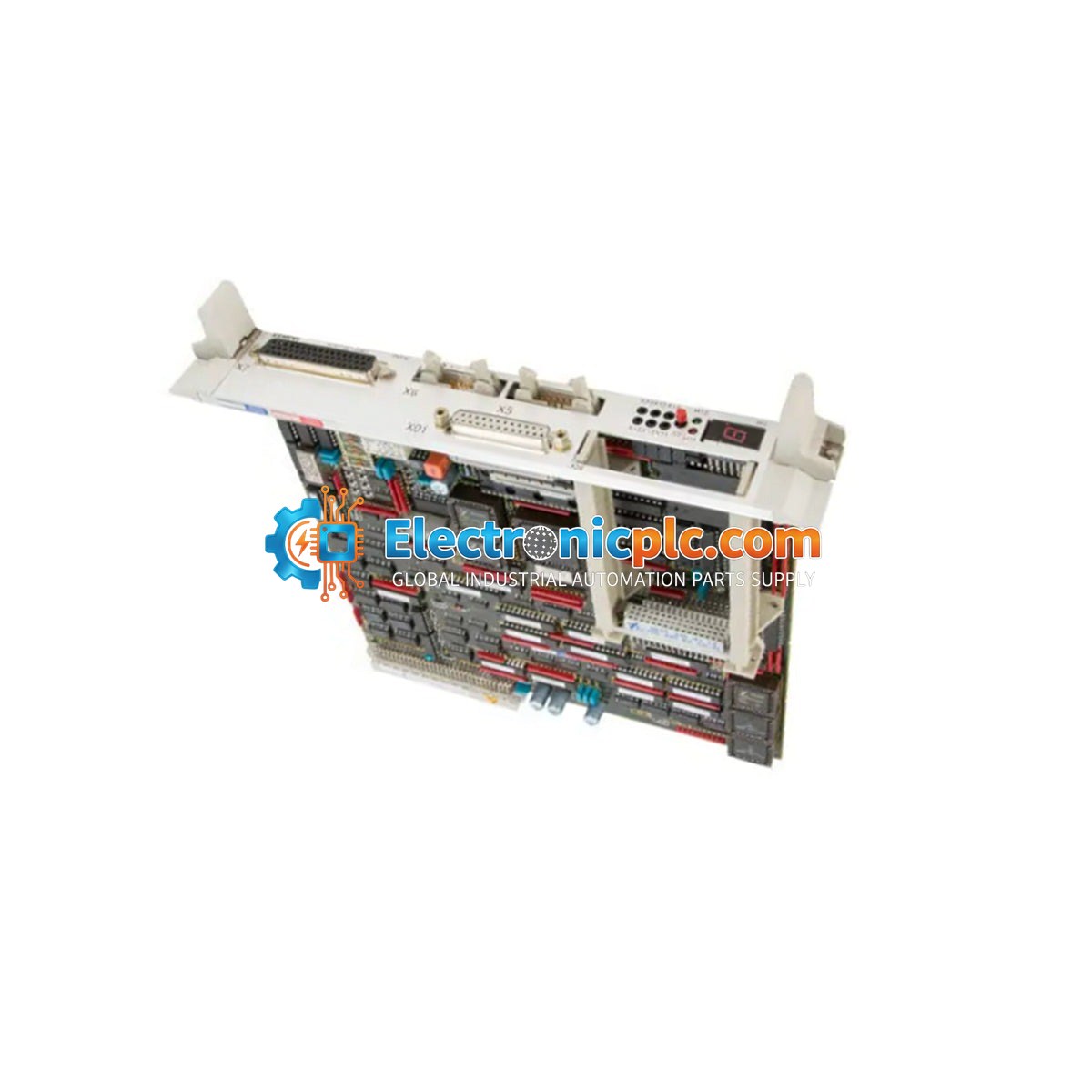

The Siemens 6DD1601-0AE0 (PG16) is a high-performance processor module engineered for the SIMADYN D automation system. Serving as a central computational unit, this module is designed for high-speed, closed-loop control tasks in demanding industrial applications. It is capable of executing complex mathematical algorithms and real-time data processing with deterministic cycles, making it essential for high-dynamic drive control and synchronization in environments such as metal rolling mills, power plants, and mining facilities.

Features

• High-performance multiprocessor architecture for concurrent task execution.
• Deterministic processing cycles for mission-critical control loops.
• Integrated front-panel diagnostic display and LED status indicators for real-time monitoring.
• Hardened hardware design to withstand electromagnetic interference (EMI) in industrial environments.
• Seamless integration with SIMADYN D backplane bus for high-speed communication with I/O and memory modules.

Applications

The PG16 module is primarily utilized in large-scale industrial automation where high-speed logic and precise motion control are required. Common applications include:

• Metal rolling mill drive control systems.
• Power plant generation and distribution control.
• Large-scale mining equipment automation.
• High-dynamic synchronization processes.

Technical Specifications

Installation Guidelines

• Ensure the SIMADYN D rack is powered down before inserting or removing the processor module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) protection practices.
• Ensure the module is fully seated in the designated rack slot and that the locking mechanism is engaged.
• Verify that the rack ventilation is unobstructed to maintain operating temperatures within the specified 0-55 deg C range.
• Route communication cables away from high-voltage power lines to minimize potential EMI impact.

FAQ

What is the primary function of the 6DD1601-0AE0?

This module acts as the central processor for the SIMADYN D system, handling real-time, high-speed control tasks and complex mathematical logic for industrial automation.

Can I diagnose errors without an external programming tool?

Yes, the module features an integrated diagnostic display and LED indicators on the front panel that provide real-time status updates on CPU load and system errors.

How is the module powered?

The module receives its operating voltage directly from the SIMADYN D rack backplane.
