Description

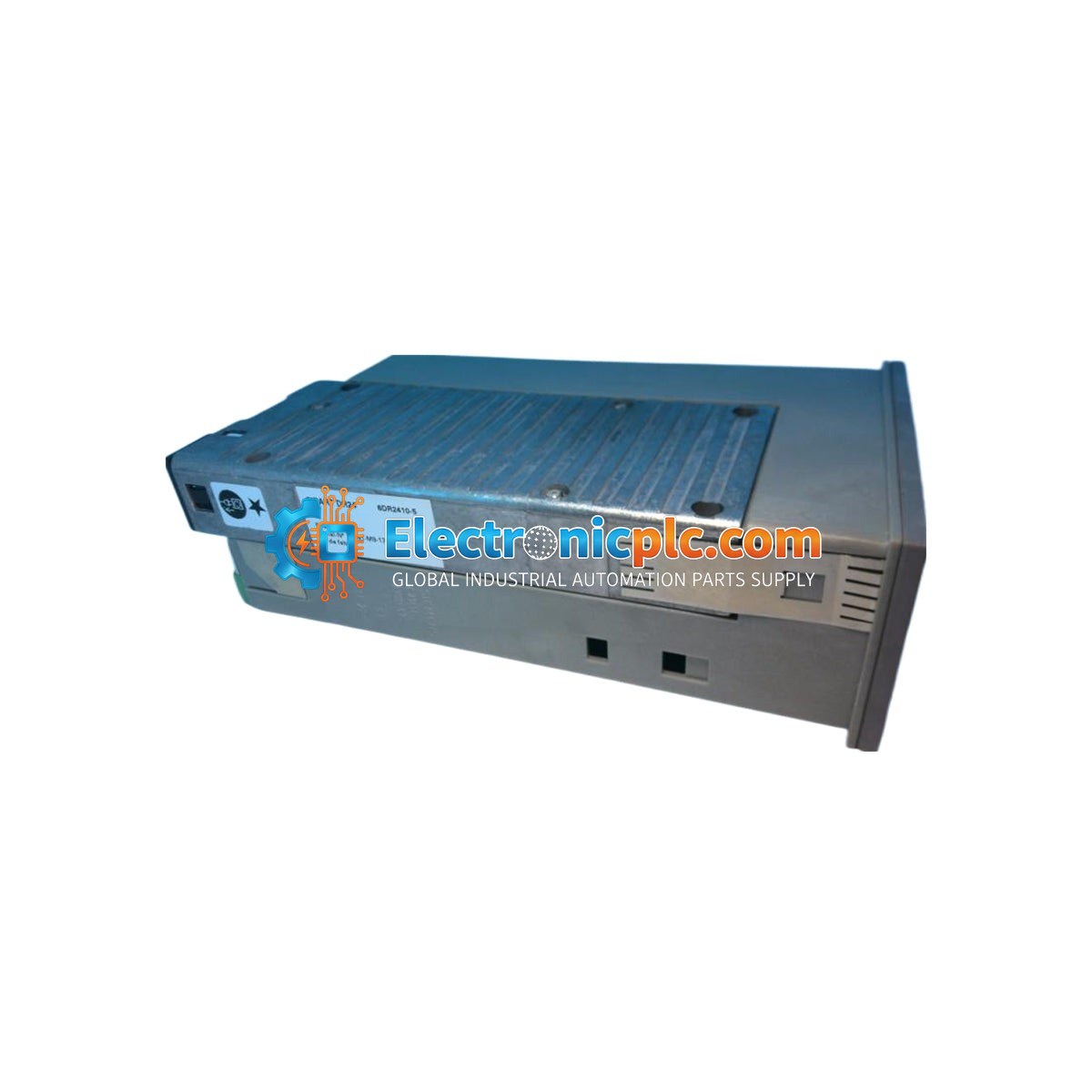

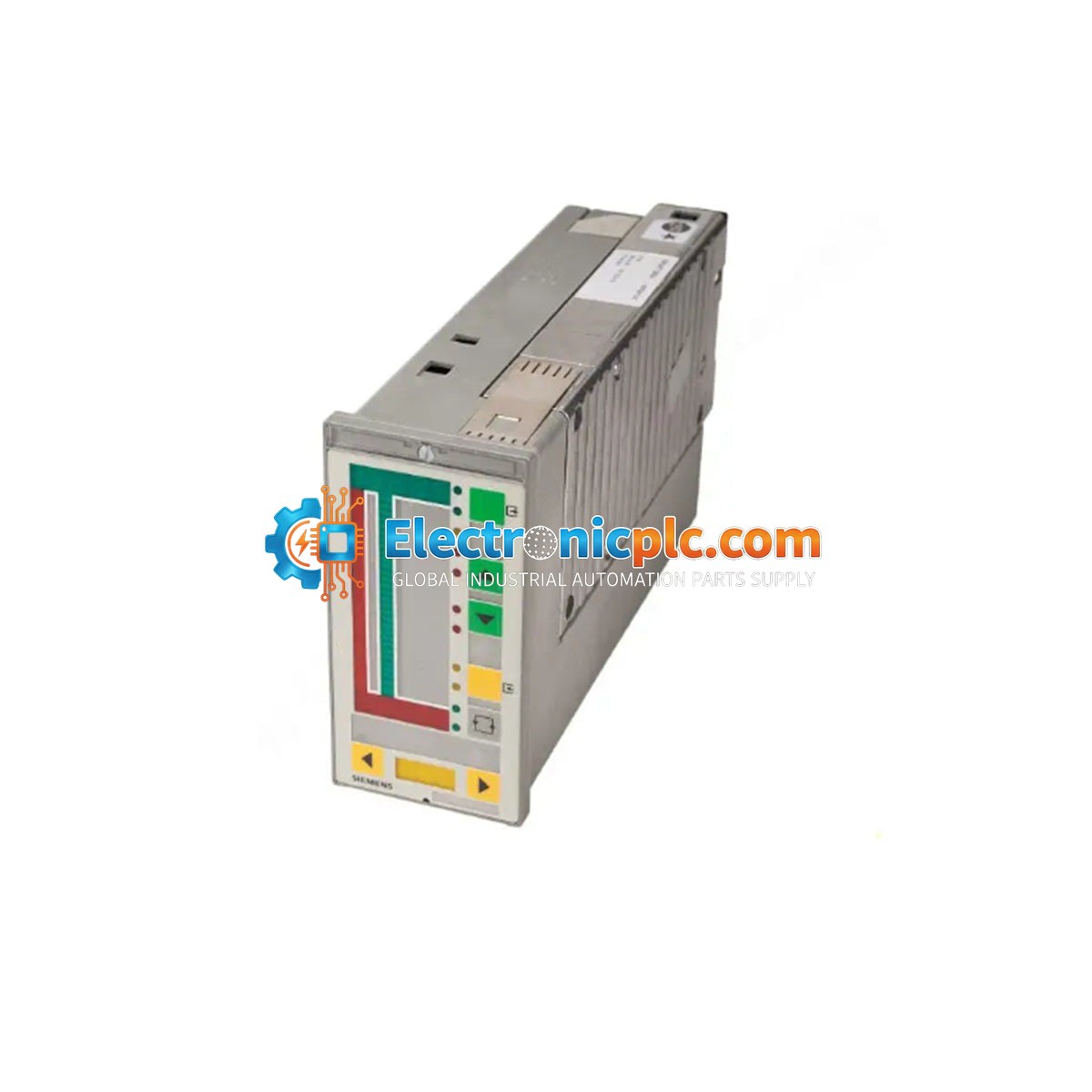

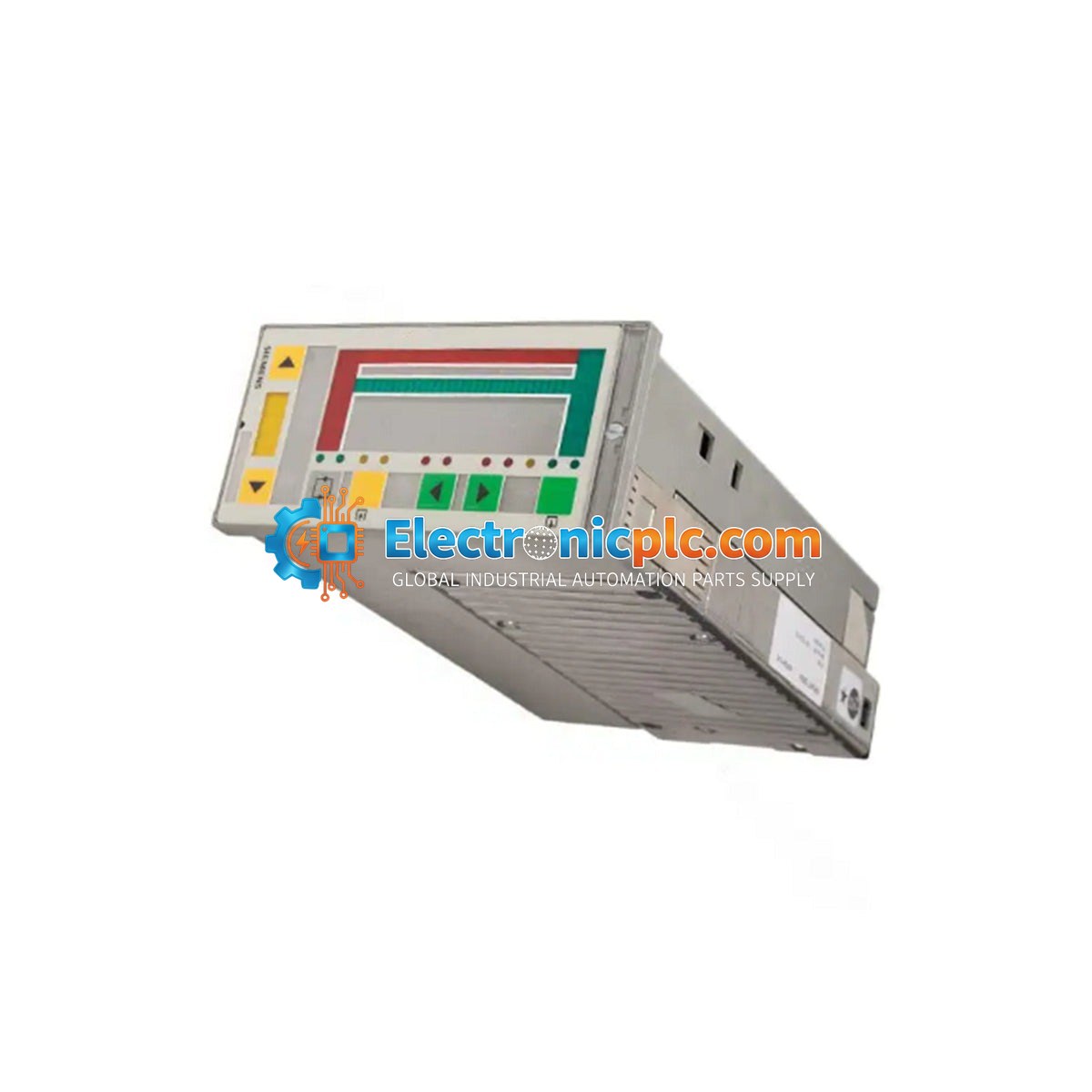

The Siemens 6DR2410-5 is a high-performance multi-function process controller from the Sipart DR24 series. Designed for demanding industrial applications, this controller provides robust PID control and advanced logic processing capabilities. It is engineered to optimize closed-loop control precision in complex continuous processes, such as those found in oil refineries, chemical plants, and power generation facilities, helping to minimize downtime and improve operational stability.

Features

• Advanced PID control with support for cascade, ratio, and feed-forward compensation strategies.
• Integrated modular architecture for high-reliability signal processing.
• Wide power supply input range (115-230 VAC) for versatile installation.
• Configurable analog inputs and outputs for flexible sensor and actuator interfacing.
• Robust design with high electromagnetic compatibility for harsh industrial environments.

Applications

This controller is suitable for a variety of process automation tasks, including flow, pressure, temperature, and level control. It is commonly utilized in continuous process industries where high-precision regulation and sequential logic are required for safe and efficient operation.

Technical Specifications

Installation Guidelines

• Ensure the controller is mounted in a clean, dry, and vibration-free environment.
• Maintain adequate clearance around the unit to ensure proper ventilation and cooling.
• Use shielded cables for all analog signal connections to minimize EMI interference.
• Verify that the power supply voltage matches the 115-230 VAC specification before applying power.
• Always disconnect power before performing any wiring changes or module maintenance.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module.

FAQ

What is the primary function of the 6DR2410-5?
The 6DR2410-5 is a multi-function process controller used for closed-loop PID control and complex logic processing in industrial automation systems.

Can this unit handle different analog signal types?
Yes, the analog inputs are configurable to support either 0/4-20 mA or 0/2-10 V signals, allowing for compatibility with a wide range of industrial transmitters.
