Description

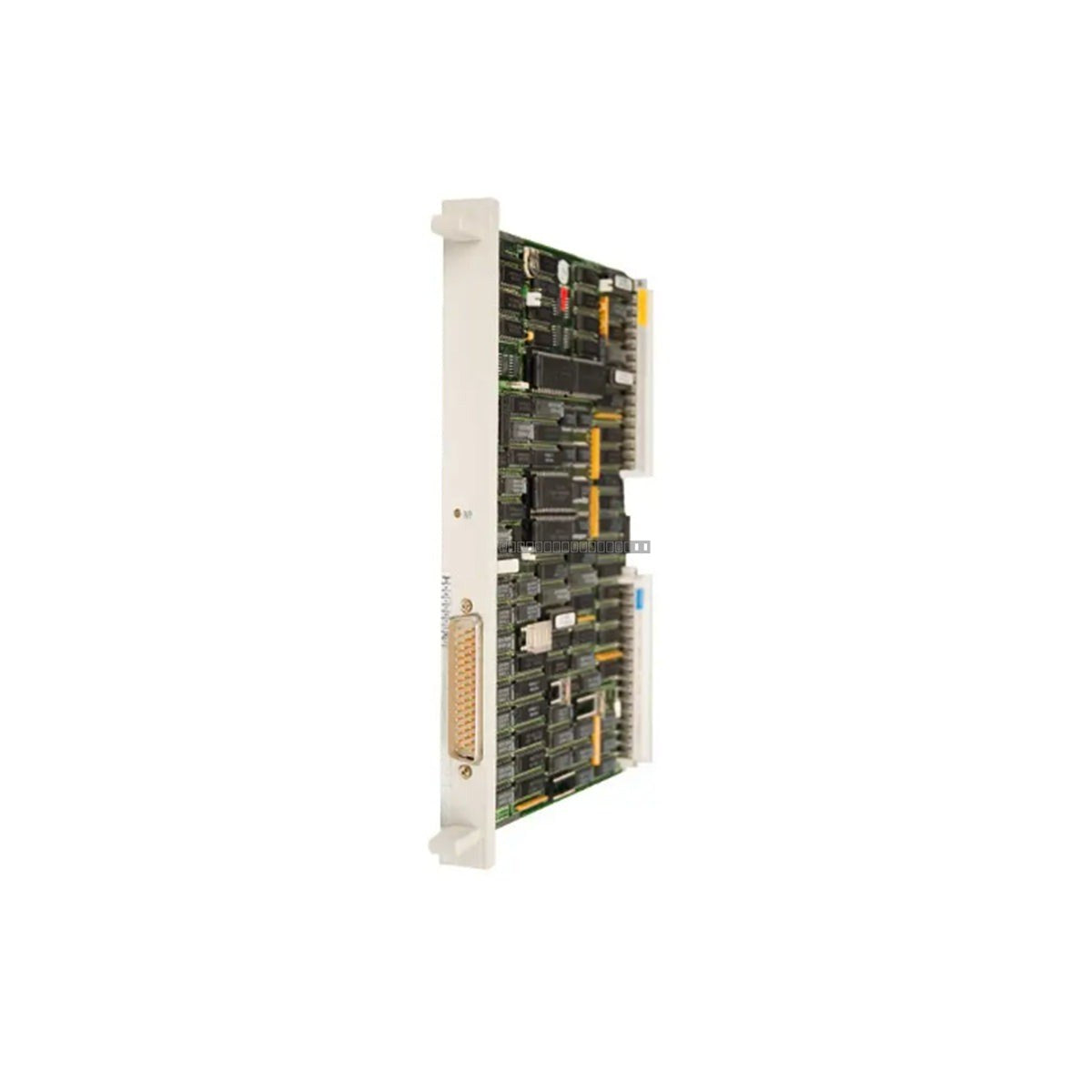

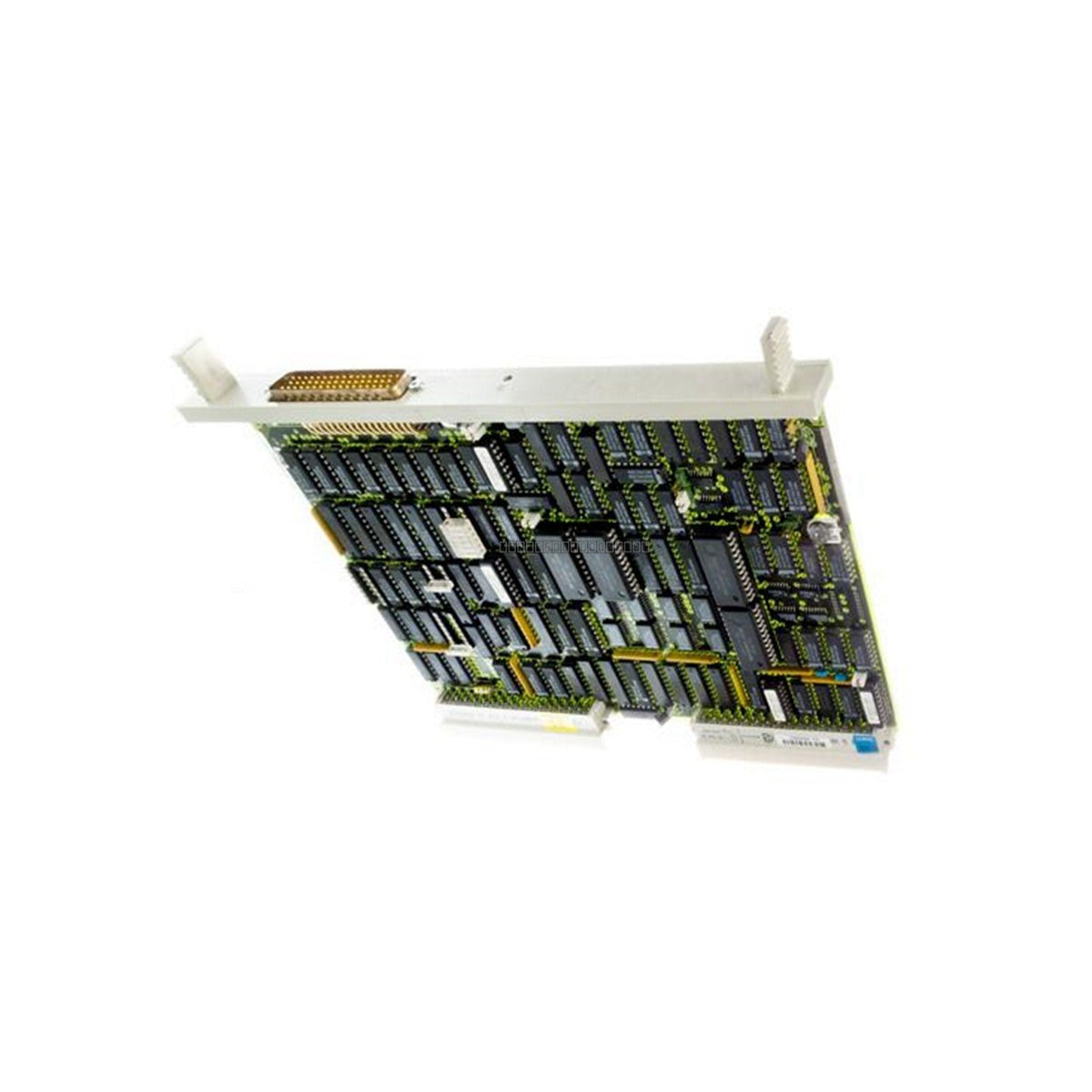

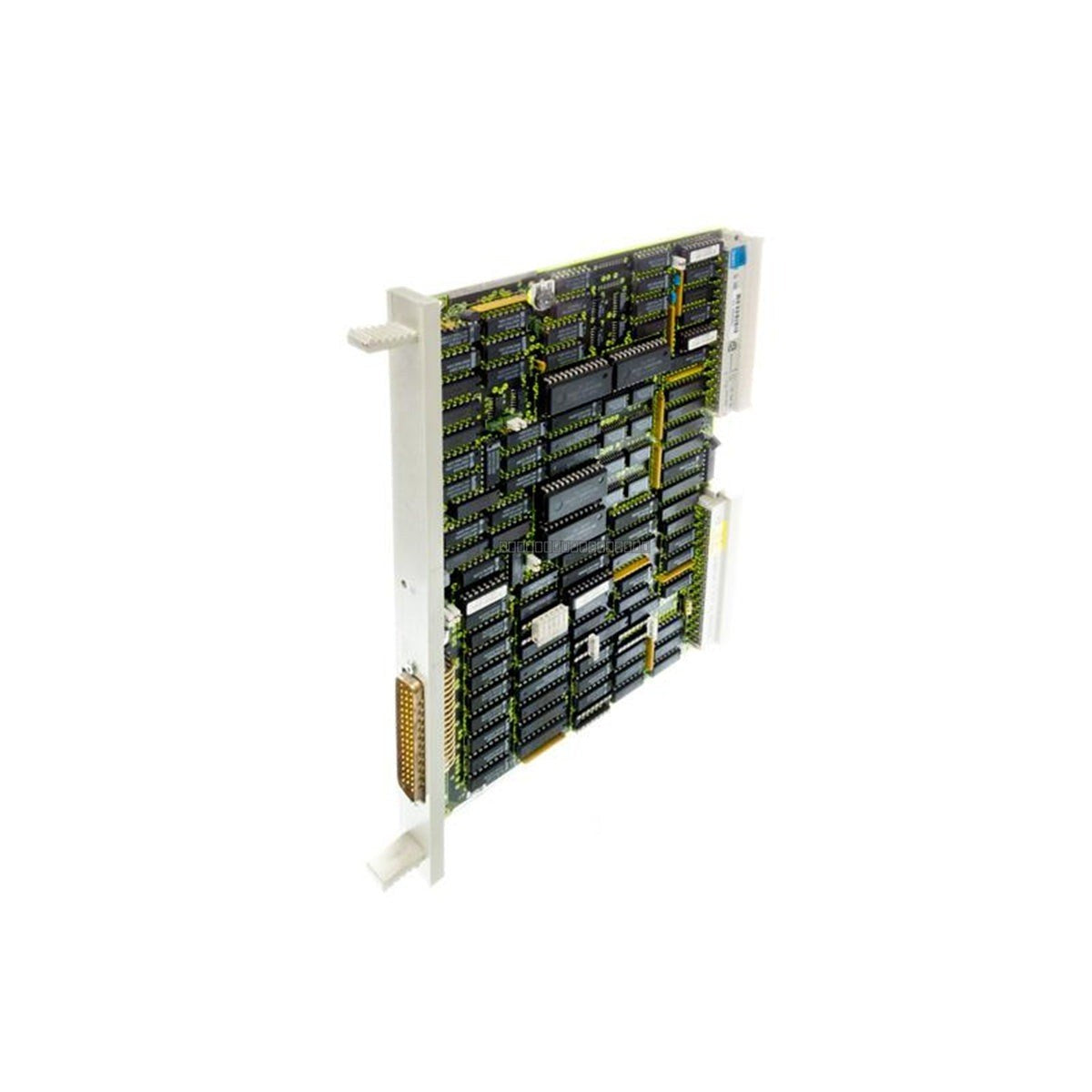

The 6ES5 324-3UA12 (6ES53243UA12) is an IM 324 connection interface module engineered to establish direct coupling between central controllers in fault-tolerant and safety-critical configurations, specifically for Siemens Simatic S5-150H and S5-115F platforms. By executing high-speed, deterministic backplane signal transmission, this unit synchronizes master and standby central processing units in high-availability environments. It performs continuous data mirroring across mission-critical systems, such as nuclear power generation, offshore oil platforms, and chemical batching facilities. By maintaining dual-redundant communication links and immediate failover capabilities, the module prevents system lockups, eliminates single points of failure, and significantly reduces costly operational downtime.

Features

• High-speed, deterministic backplane signal transmission for master/standby CPU synchronization.
• Specialized bus driver logic and high-speed optocouplers for robust signal isolation.
• Integrated error-checking circuits for continuous monitoring of signal integrity and frame errors.
• High-noise-immunity differential signaling for reliable communication across interconnected racks.
• Front-panel diagnostic indicators for real-time status monitoring of link health and bus errors.
• Galvanic optical isolation to protect against electrical interference between racks.

Applications

This module is designed for use in high-availability Simatic S5 automation environments, including:

• Nuclear power generation control systems.
• Offshore oil and gas platform automation.
• Chemical batching and processing facilities.
• Safety-critical fault-tolerant controller configurations.

Technical Specifications

Installation Guidelines

• Ensure the system power is completely disconnected before inserting or removing the IM 324 module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) protection protocols to prevent component damage.
• Ensure the module is fully seated in the designated backplane slot and secured with the front-panel locking mechanisms.
• Use shielded interface cables for all rack-to-rack connections to maintain signal integrity and noise immunity.
• Route communication cables away from high-voltage power lines and sources of electromagnetic interference (EMI).
• Verify that the front-panel diagnostic LEDs indicate a successful link synchronization after power-up.

FAQ

What is the primary function of the 6ES5 324-3UA12?

The module acts as a synchronization interface for redundant Simatic S5 CPU configurations, ensuring that master and standby controllers remain in sync for seamless failover in high-availability applications.

Does this module require external power?

No, the module is powered directly via the Simatic S5 backplane at 5 VDC with a maximum power consumption of 2.8 W.
