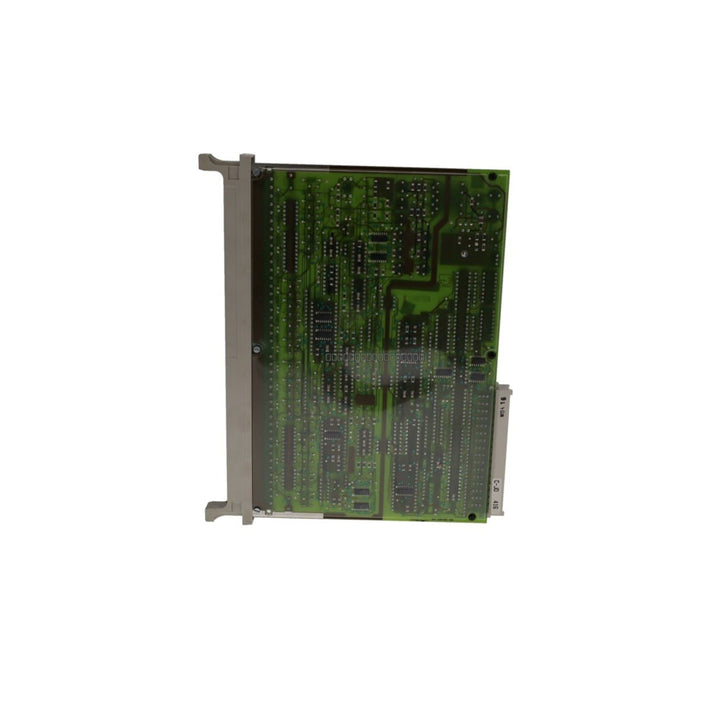

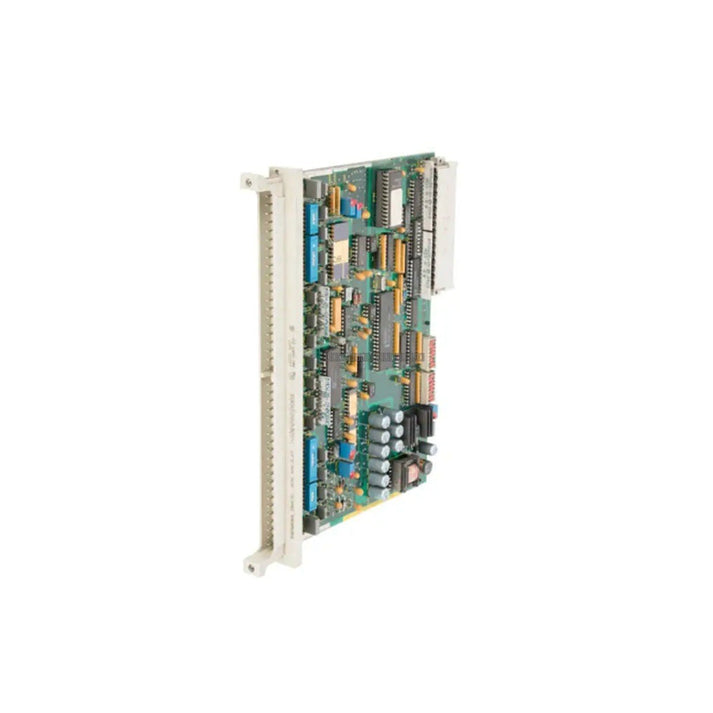

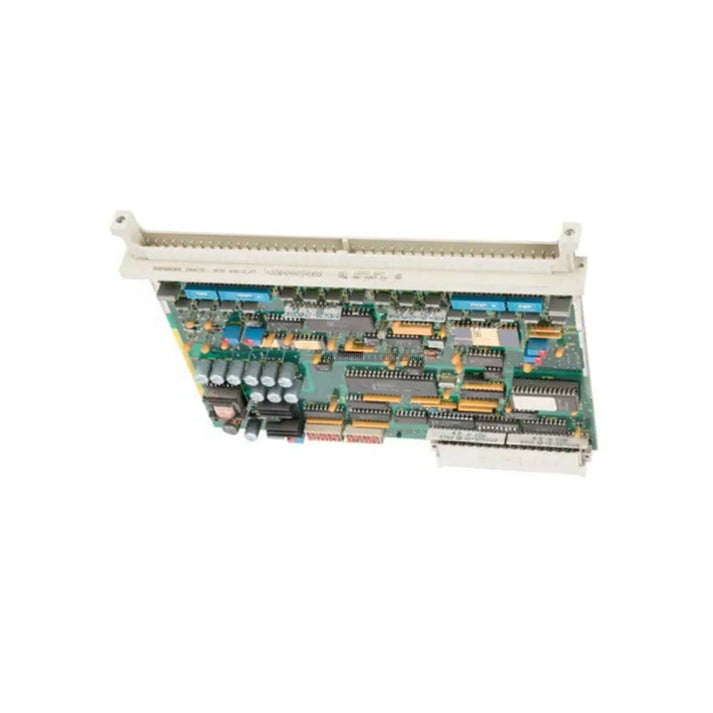

The Siemens 6ES5466-3LA11 is a floating (galvanically isolated) analog input module designed for integration within the SIMATIC S5 automation family. It is compatible with S5-115U/H/F, S5-135U, and S5-155U/H PLC systems, providing reliable signal acquisition for industrial process control.

Features

• Compatible with S5-115U/H/F, S5-135U, and S5-155U/H PLC series.
• Configurable for 16 single-ended or 8 differential analog input channels.
• Floating design ensures galvanic isolation between input circuits and the PLC internal bus.
• Supports a wide range of voltage and current input signals.
• Designed for integration in electrically noisy industrial environments.

Applications

• Process variable monitoring (temperature, pressure, flow, and level).
• Motion and position control systems.
• Industrial infrastructure, including water treatment and oil and gas facilities.
• Logic control in automated production lines.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is powered down before inserting or removing the module from the rack.
• Use shielded twisted-pair cabling for all analog signal connections to minimize EMI/RFI interference.
• The module does not provide power to 2-wire transducers; ensure an external power supply is used in series with the loop.
• Maintain proper grounding practices to ensure the integrity of the floating isolation barrier.
• Ensure adequate ventilation in the cabinet to dissipate the 3 W typical power loss.

FAQ

What is the 6ES5466-3LA11 module?

The 6ES5466-3LA11 is an analog input module used in S5-115U/H/F, S5-135U, and S5-155U/H PLC systems to acquire field analog voltage or current signals.

How many analog inputs does the 6ES5466-3LA11 have?

The module supports 16 single-ended analog input channels or 8 differential analog input channels, depending on the configuration.

What is the input impedance of the 6ES5466-3LA11 module?

For voltage inputs, the input impedance is greater than 10 MΩ; for current inputs, the input loop resistance is 125 Ω.
