Description

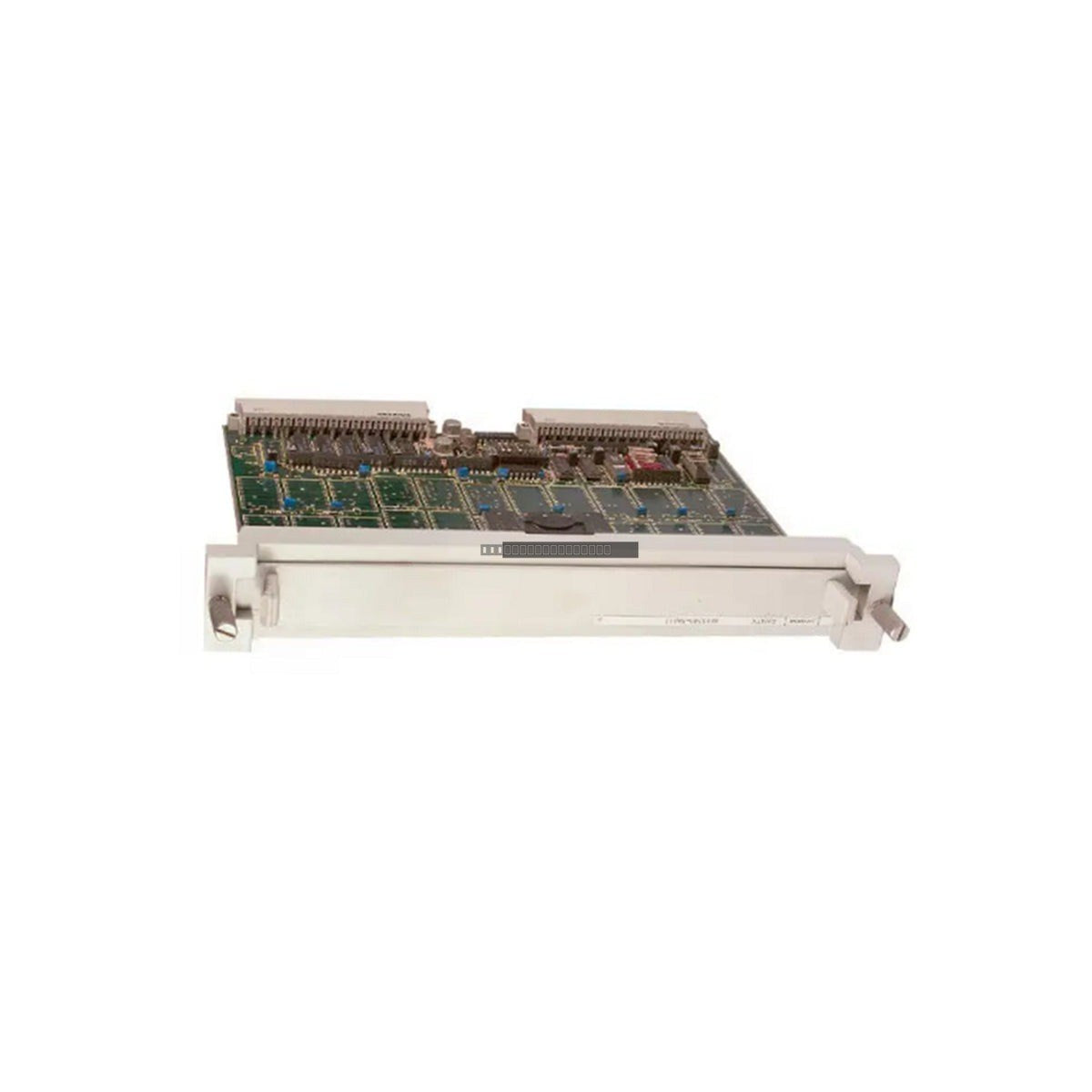

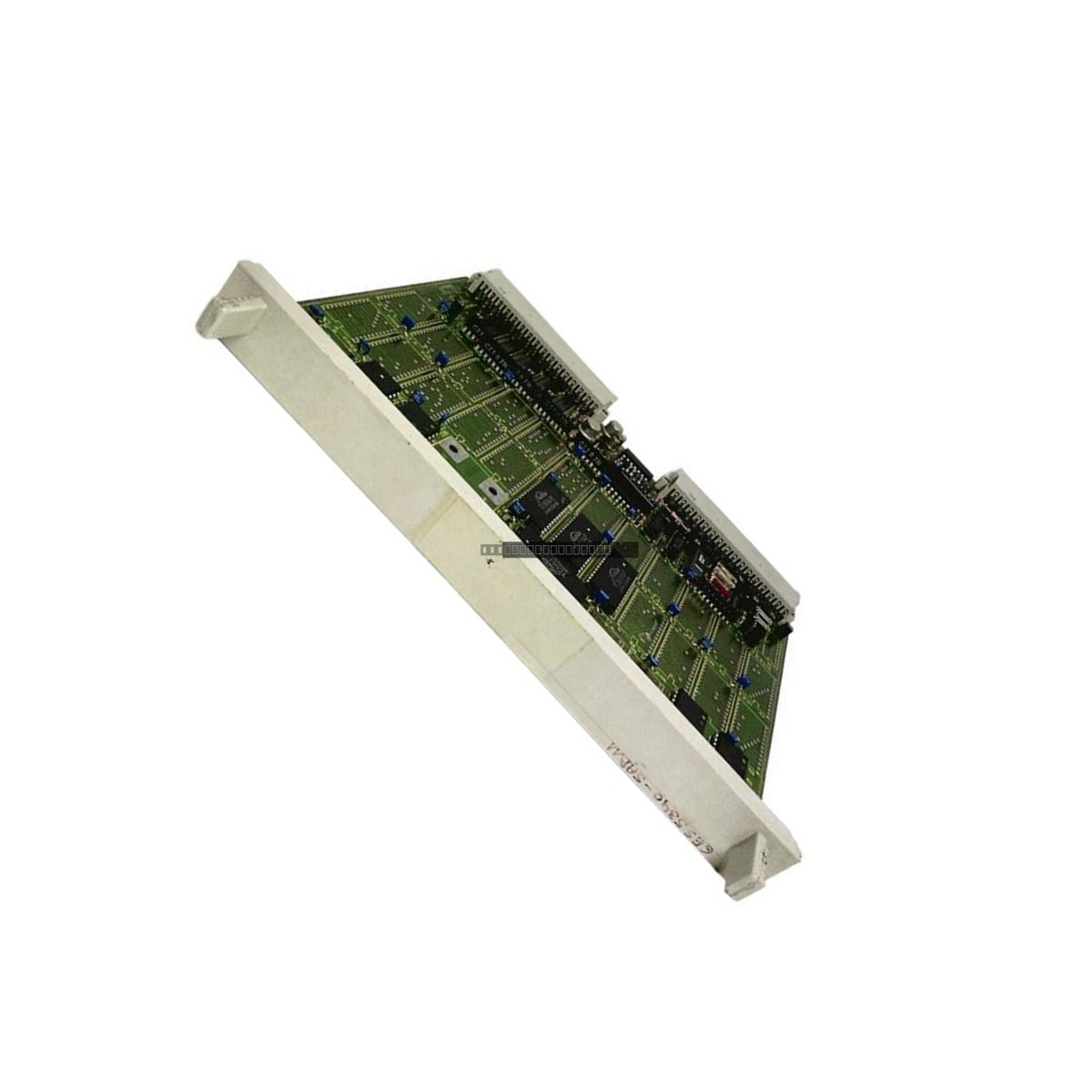

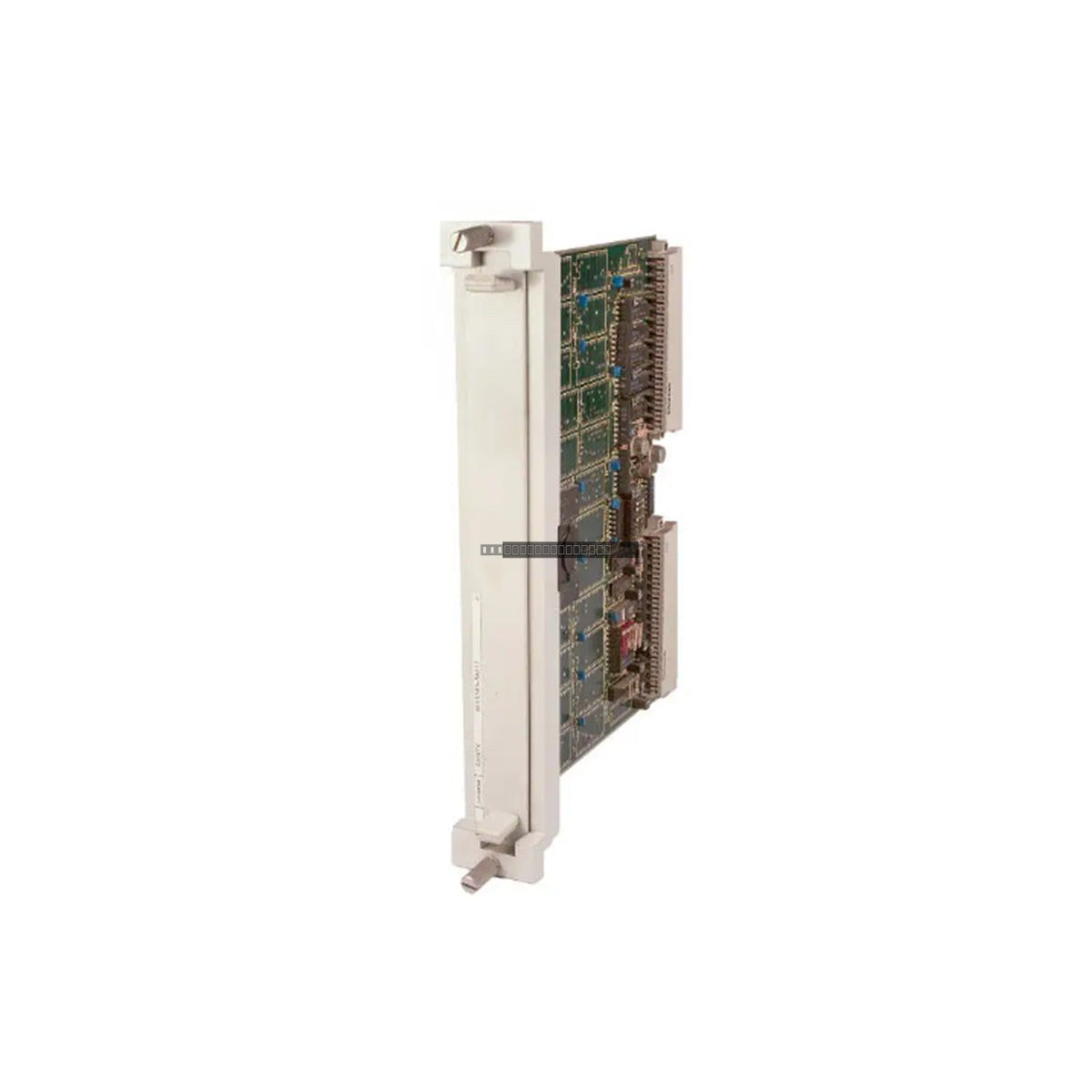

The Siemens 6ES5340-5AB11 is a specialized memory module engineered for the legacy Simatic S5 programmable logic controller (PLC) platform. This component provides essential non-volatile storage for user programs and system configuration data, ensuring that critical logic remains intact during power cycles or system resets. Built for industrial reliability, this module supports the consistent execution of automation tasks in demanding environments, including chemical processing, automotive assembly, and energy infrastructure.

Features

• Designed specifically for integration within the Siemens Simatic S5 PLC architecture.
• Provides stable, non-volatile memory retention to safeguard program integrity.
• Engineered for high-vibration industrial environments with secure rack-locking mechanisms.
• Facilitates low-latency data retrieval via standard S5 parallel bus interfaces.
• Robust construction to minimize downtime in legacy control systems.

Applications

This memory module is primarily utilized in legacy Siemens Simatic S5 control systems where reliable program storage is required for continuous operation. It is suitable for maintenance, repair, and operations (MRO) support in facilities still relying on S5-series controllers for factory automation, process control, and machine management.

Technical Specifications

Installation Guidelines

• Ensure the PLC system is fully powered down before inserting or removing the memory module to prevent electrical damage.
• Verify that the module is correctly aligned with the dedicated memory slot on the CPU rack.
• Ensure the mechanical locking mechanism is fully engaged to prevent loosening due to vibration.
• Handle the module using standard ESD (electrostatic discharge) precautions to protect internal semiconductor components.
• Avoid installation in areas with excessive moisture, corrosive gases, or extreme dust accumulation.

FAQ

Is the 6ES5340-5AB11 compatible with all Simatic S5 CPUs?
This module is designed for specific Simatic S5 configurations. Please verify your CPU model and existing memory requirements against your system documentation before installation.

What should I do if the module is not recognized by the PLC?
First, ensure the module is firmly seated in the slot. If the issue persists, check the PLC diagnostic buffer for memory-related error codes and verify that the module is not damaged or experiencing contact oxidation.
