Description

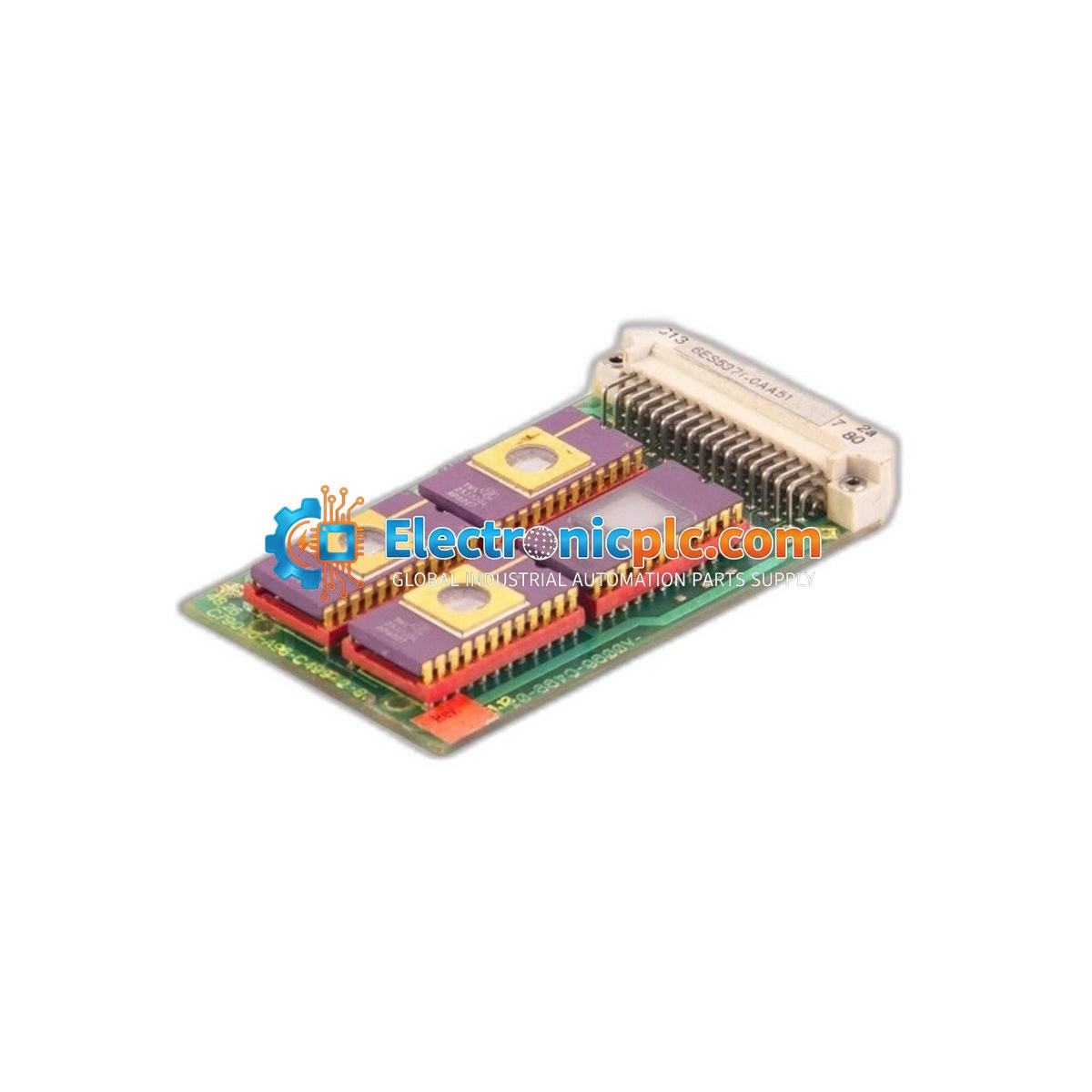

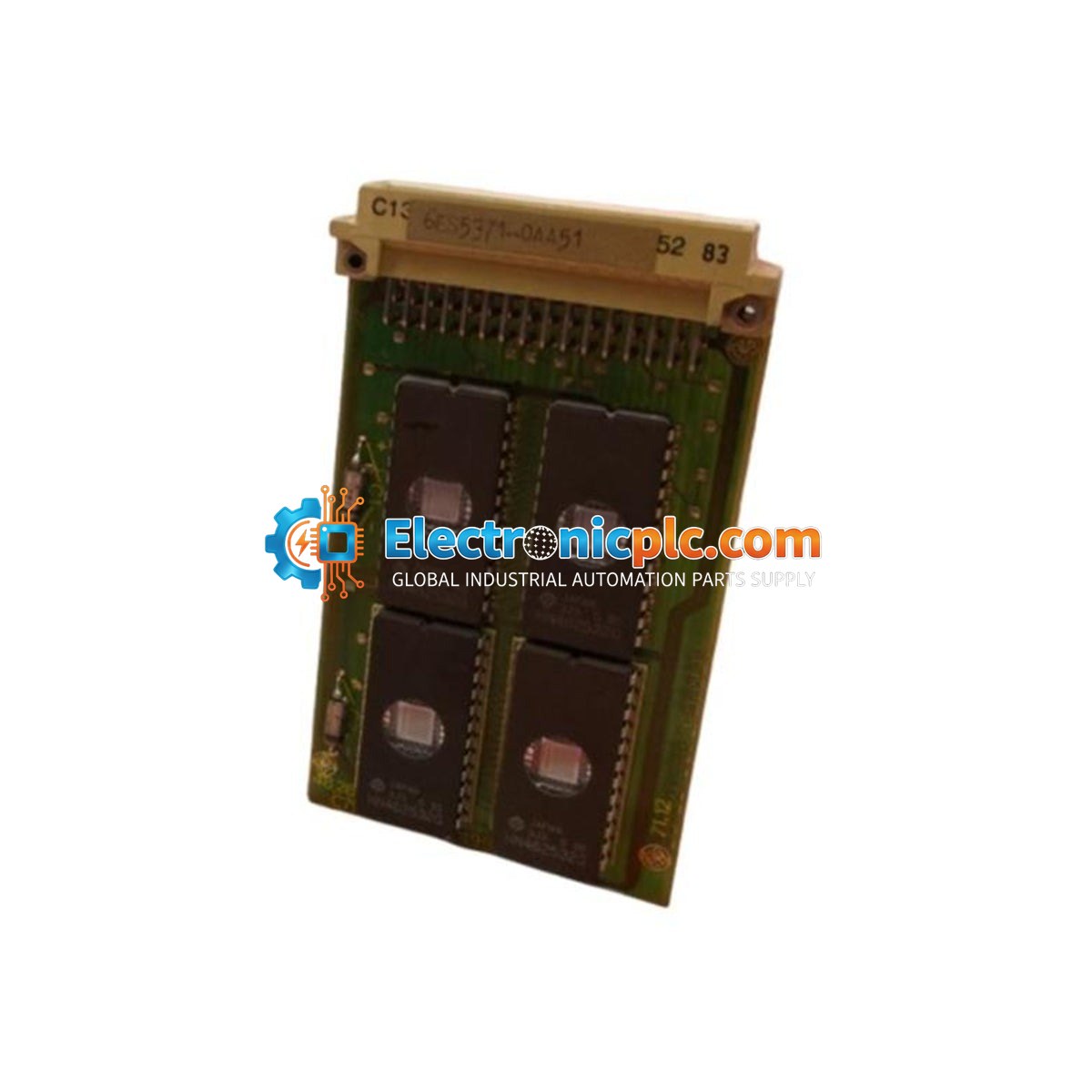

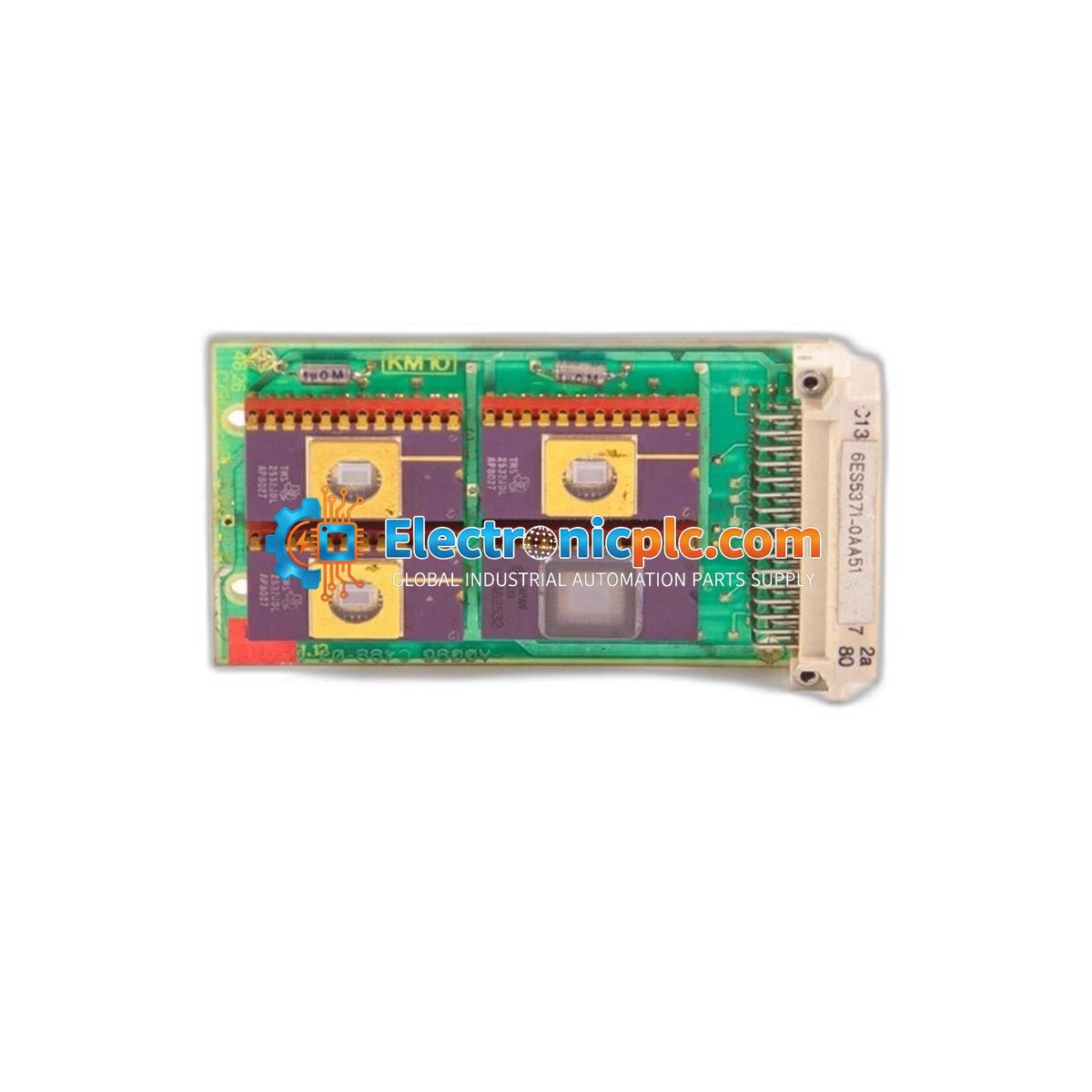

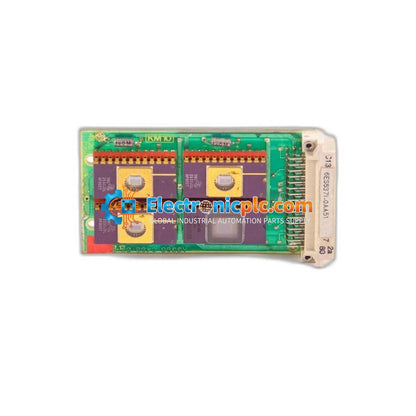

The Siemens Simatic S5 6ES5371-0AA51 is an EPROM memory card module specifically engineered for the Siemens Simatic S5 programmable logic controller (PLC) platform. This module provides reliable, non-volatile storage for user programs, ladder logic, and configuration data. It is a critical component for maintaining system integrity in legacy industrial control environments, ensuring that control logic remains intact through power cycles and system reboots without reliance on battery-backed RAM.

Features

• Non-Volatile Storage: Utilizes EPROM technology to ensure long-term data retention without the need for continuous power or battery maintenance.
• Reliable Integration: Designed for seamless seating within S5 CPU modules or dedicated memory expansion slots.
• Deterministic Performance: Maintains compatibility with S5 series bus cycle timings for consistent PLC operation.
• Industrial Durability: Engineered to withstand the rigors of manufacturing, power generation, and processing environments.

Applications

This memory module is widely used in legacy automation systems where the Simatic S5 platform remains in operation. Typical applications include:

• Automated manufacturing and assembly lines.
• Petrochemical and process control facilities.
• Power generation and distribution control systems.
• Legacy infrastructure requiring stable, non-volatile firmware storage.

Technical Specifications

Installation Guidelines

• Power Down: Always ensure the PLC rack power is disconnected or the CPU is in a safe state before inserting or removing the memory module.
• ESD Handling: Use standard electrostatic discharge (ESD) precautions when handling the module to prevent damage to internal components.
• Seating: Ensure the module is fully and firmly seated in the designated slot to prevent intermittent contact or bus errors.
• UV Erasure: Note that EPROM modules require exposure to ultraviolet light for erasure prior to reprogramming; ensure proper equipment is used if updates are required.

FAQ

Is this module compatible with all S5 CPUs?

The 6ES5371-0AA51 is designed for the Simatic S5 series; however, compatibility depends on the specific CPU model and its memory slot requirements. Please consult your S5 hardware manual to confirm the memory card type supported by your specific CPU module.

Does this module require a battery?

No, this is an EPROM-based module. Unlike RAM-based memory modules, it does not require a battery to retain its data, making it ideal for long-term storage of stable control programs.
