Description

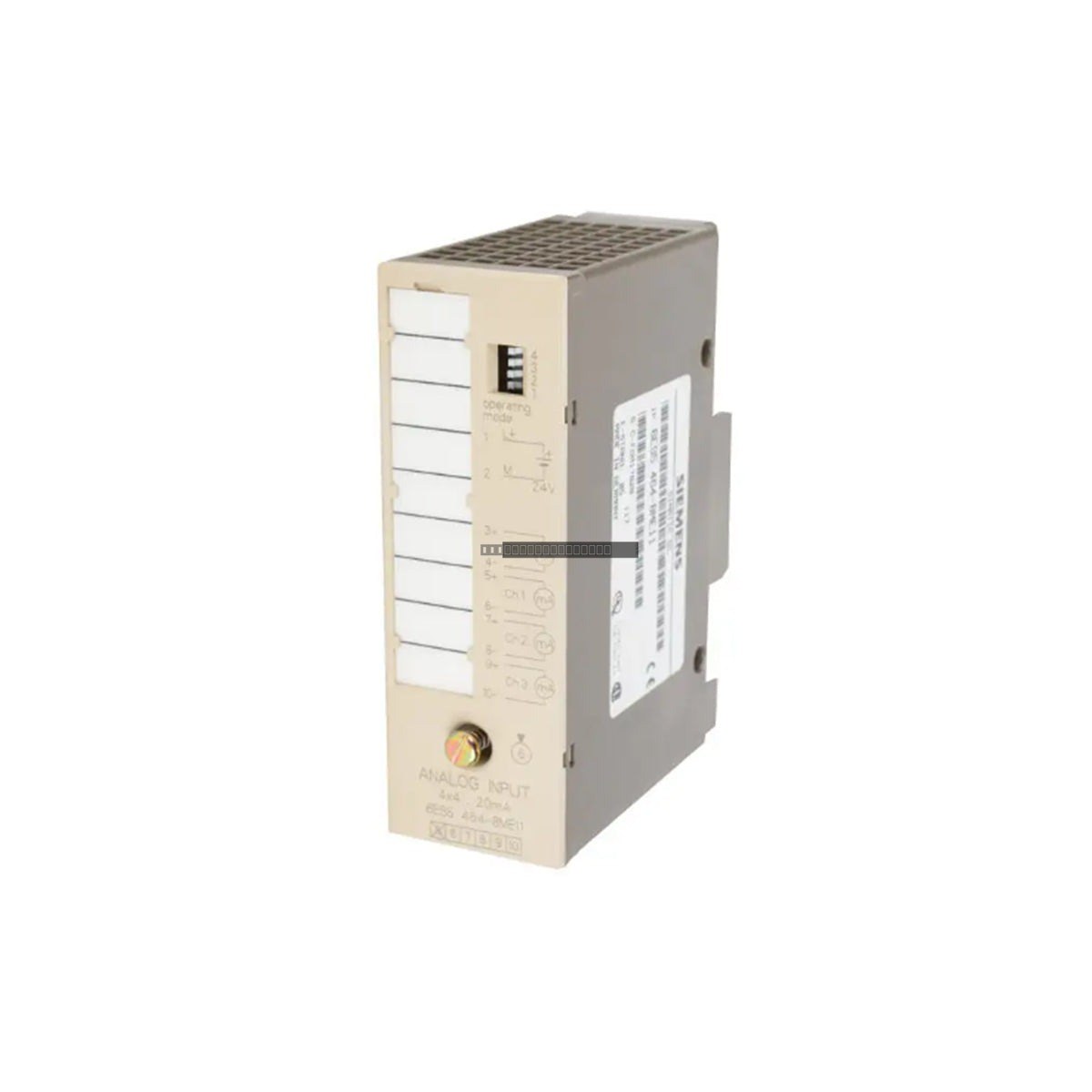

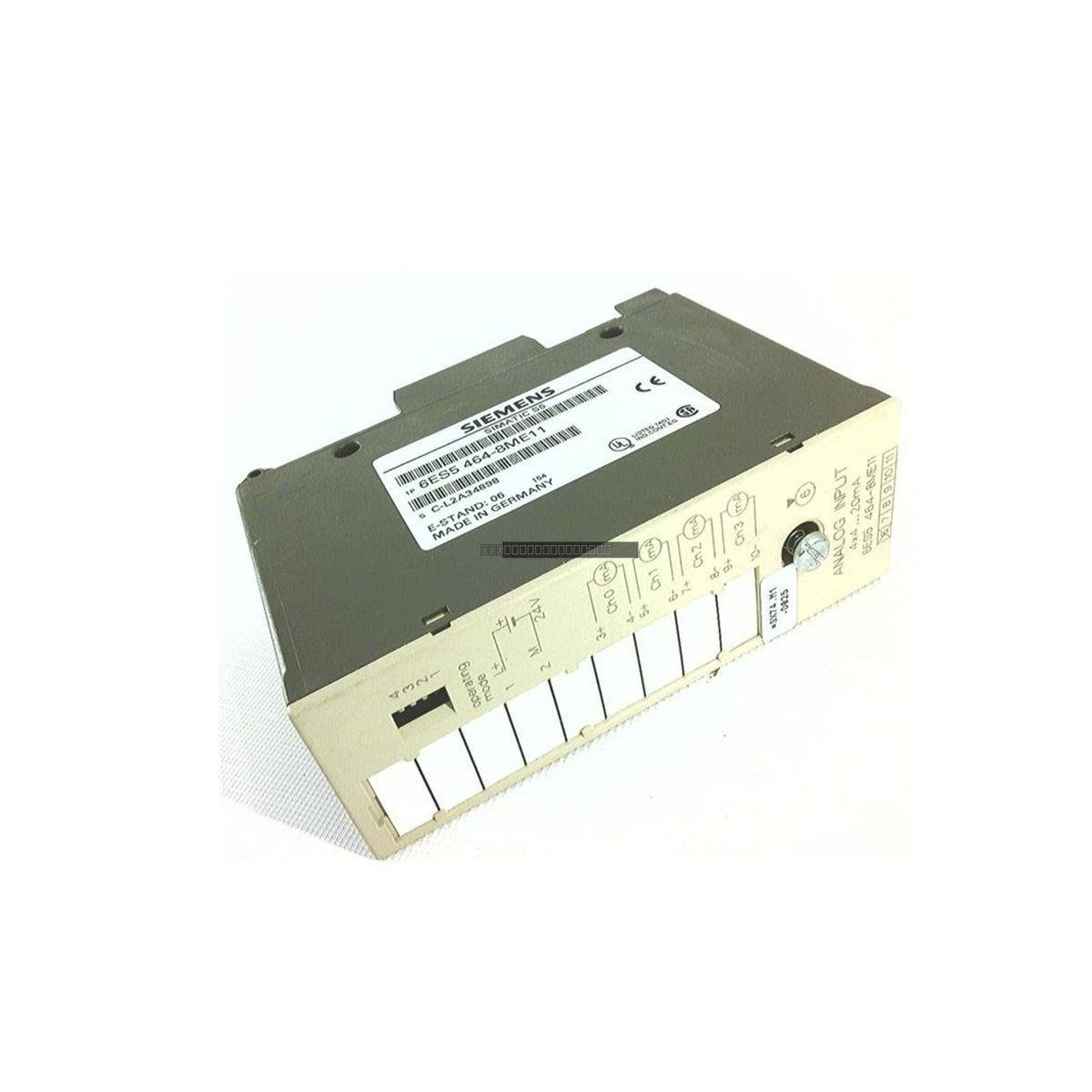

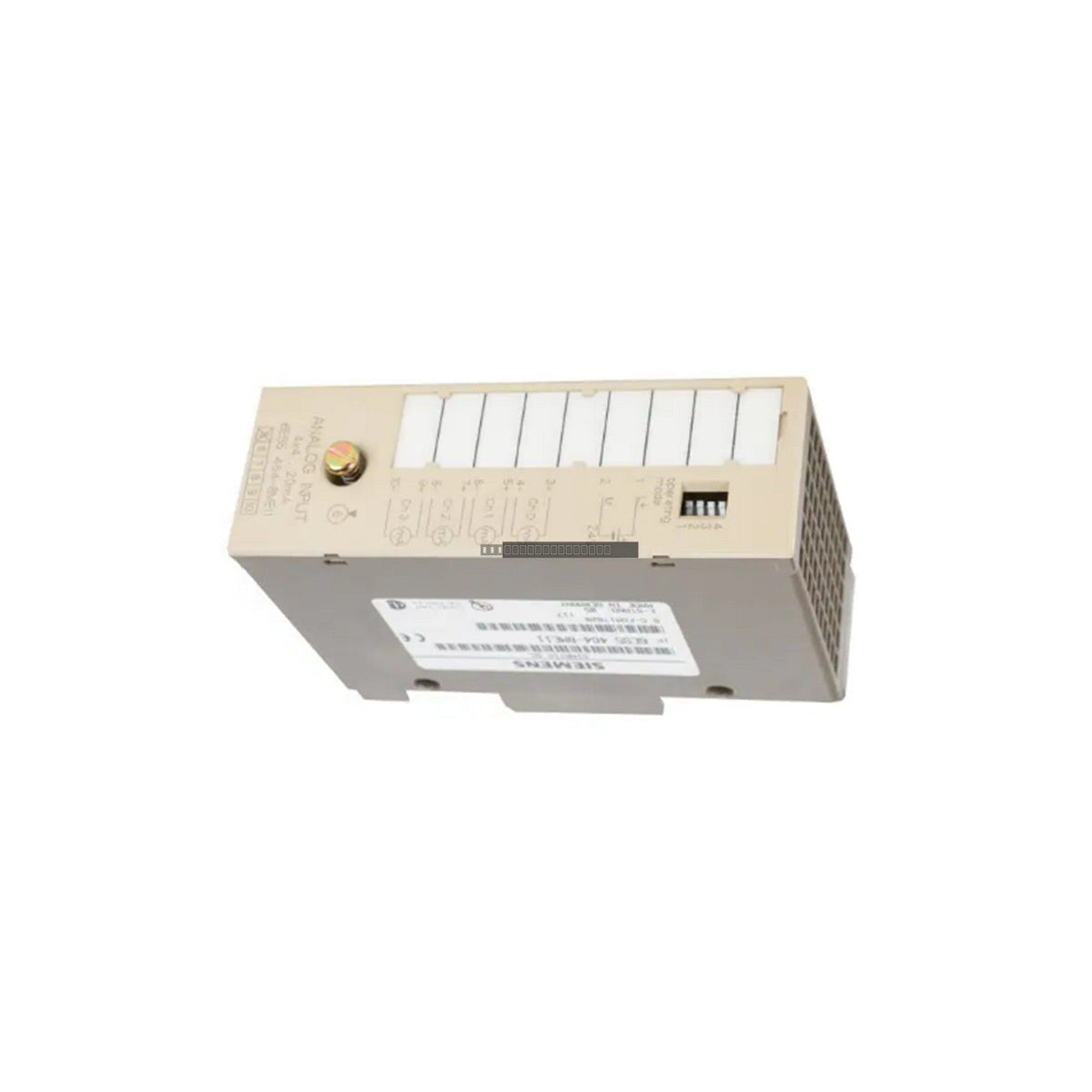

The Siemens 6ES5464-8ME11 is an analog input module designed for the SIMATIC S5 automation series. It is compatible with S5-90U, S5-95U, and S5-100U programmable logic controllers, as well as ET 100U and ET 200U distributed I/O systems. This module is specifically engineered to process 4 to 20 mA current loop signals, providing reliable signal conversion for industrial control applications. By incorporating galvanic isolation, the module effectively mitigates the risk of ground loops and electromagnetic interference, ensuring stable data acquisition in demanding environments such as water treatment, chemical processing, and power generation.

Features

• Galvanic Isolation: Provides robust protection for internal PLC circuitry against field-side voltage spikes and electrical noise.
• Signal Precision: Designed for high-accuracy digitization of standard 4 to 20 mA current loops.
• System Integration: Designed for seamless mounting within S5 tier baseboards and ET 100U/200U distributed I/O racks.
• Industrial Reliability: Built to withstand standard industrial temperature ranges, ensuring consistent performance in harsh operational conditions.

Applications

This module is suitable for various industrial automation tasks requiring analog signal monitoring, including pressure, flow, and temperature sensing within legacy SIMATIC S5 infrastructure.

Technical Specifications

Installation Guidelines

• Ensure the PLC power supply is disconnected before inserting or removing the module from the rack or baseboard.
• Use shielded twisted-pair cabling for 4-20 mA signals to minimize EMI influence.
• Verify that the module is fully seated in the backplane connector to ensure proper bus communication.
• Maintain adequate clearance around the module to allow for proper heat dissipation and ventilation.
• Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal components.

FAQ

Is this module compatible with modern S7 systems?

No, the 6ES5464-8ME11 is specifically designed for the legacy SIMATIC S5 and ET 100U/200U product families and is not natively compatible with S7-series hardware.

Does this module require external power for the current loop?

The module is designed to interface with 4-20 mA loops; please refer to the specific S5 system manual for wiring requirements regarding loop power and signal commonality.
