Description

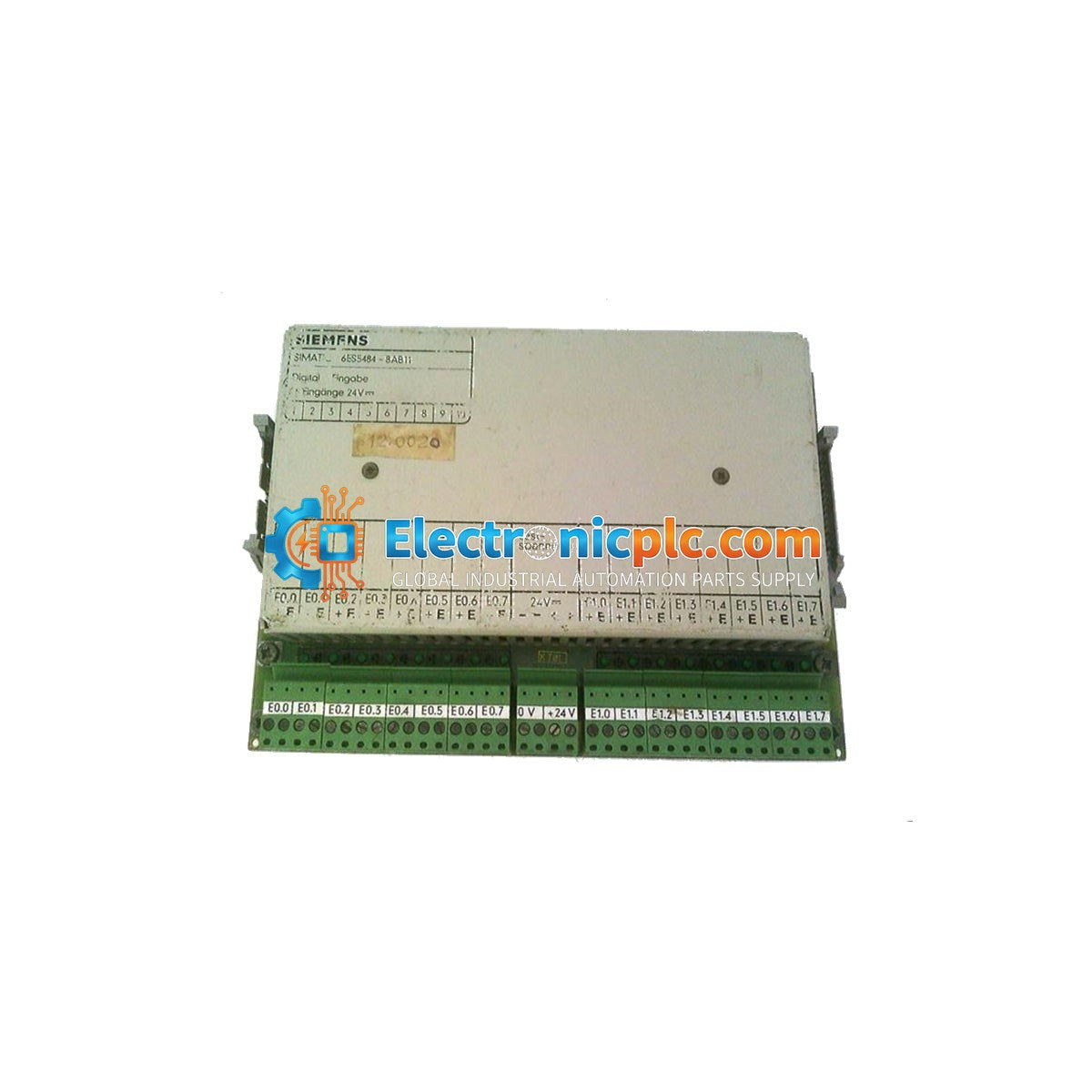

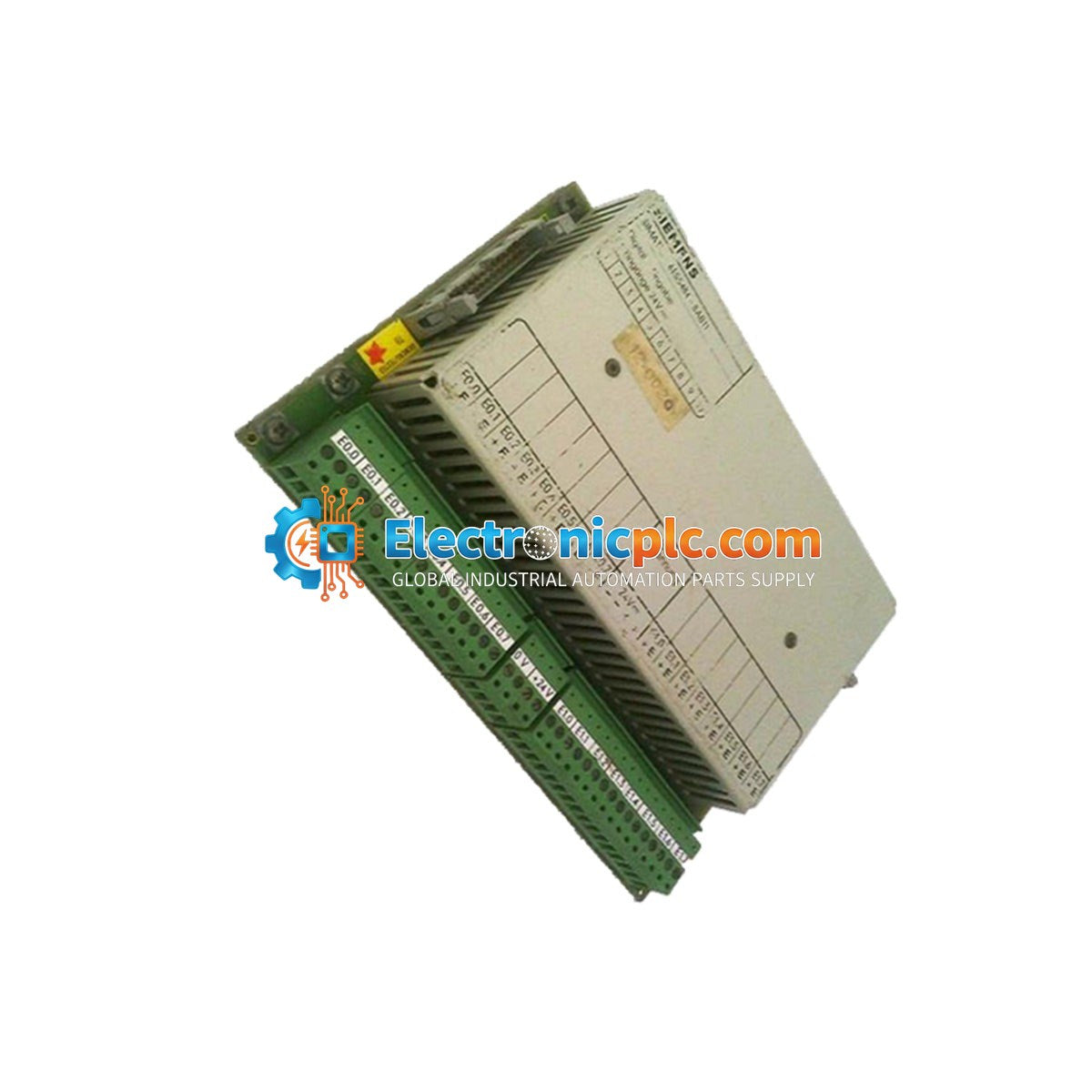

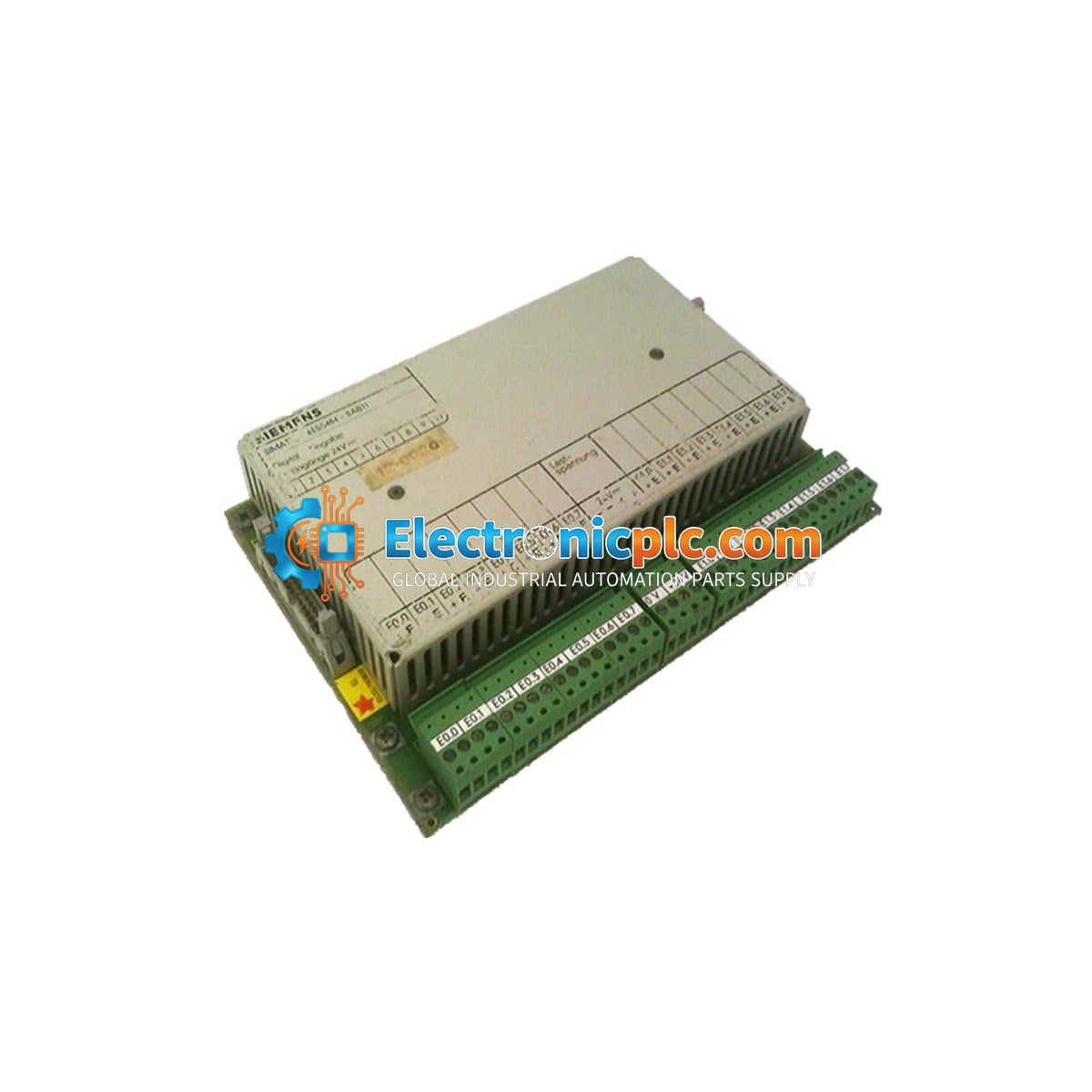

The Siemens 6ES5484-8AB11 is a high-density digital input module designed for integration within the Simatic S5-090, S5-095, and S5-100 automation systems. This module serves as a critical interface for signal acquisition, converting discrete field telemetry from sensors, limit switches, and proximity indicators into logic-level data for the central processing unit. By facilitating reliable signal processing, the module supports efficient control loop execution and reduces diagnostic latency in legacy industrial automation environments.

Features

• 16 isolated input channels for high-density signal monitoring.
• Standard 24 VDC input voltage compatibility.
• Galvanic isolation via internal optocouplers to protect the backplane from field-side transients and ground loops.
• Integrated RC filtering networks to suppress mechanical contact bounce and ensure stable binary state detection.
• Direct backplane mounting for seamless integration into the Simatic S5 rack architecture.

Applications

This module is engineered for use in discrete manufacturing, assembly line control, and various legacy industrial processing applications where reliable 24 VDC signal acquisition is required for the Simatic S5 platform.

Technical Specifications

Installation Guidelines

• Ensure the CPU is powered down before inserting or removing the module from the S5 rack to prevent electrical damage.
• Verify that the module is securely seated in the designated rack slot and that the backplane connector is properly aligned.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Ensure that external power supplies for field sensors are correctly fused and grounded according to local safety standards.
• Maintain proper ventilation within the control cabinet to ensure the module operates within its specified temperature range of 0 to 60 deg C.
• Handle the module using ESD-safe practices to prevent damage to sensitive internal circuitry.

FAQ

Is this module compatible with S5-115U systems?

No, the 6ES5484-8AB11 is specifically designed for the S5-090, S5-095, and S5-100 series. Please verify your specific rack and CPU model before installation.

Does this module provide power to the field sensors?

No, the module requires an external 24 VDC power supply to be connected to the field-side distribution blocks for sensor excitation.
