Description

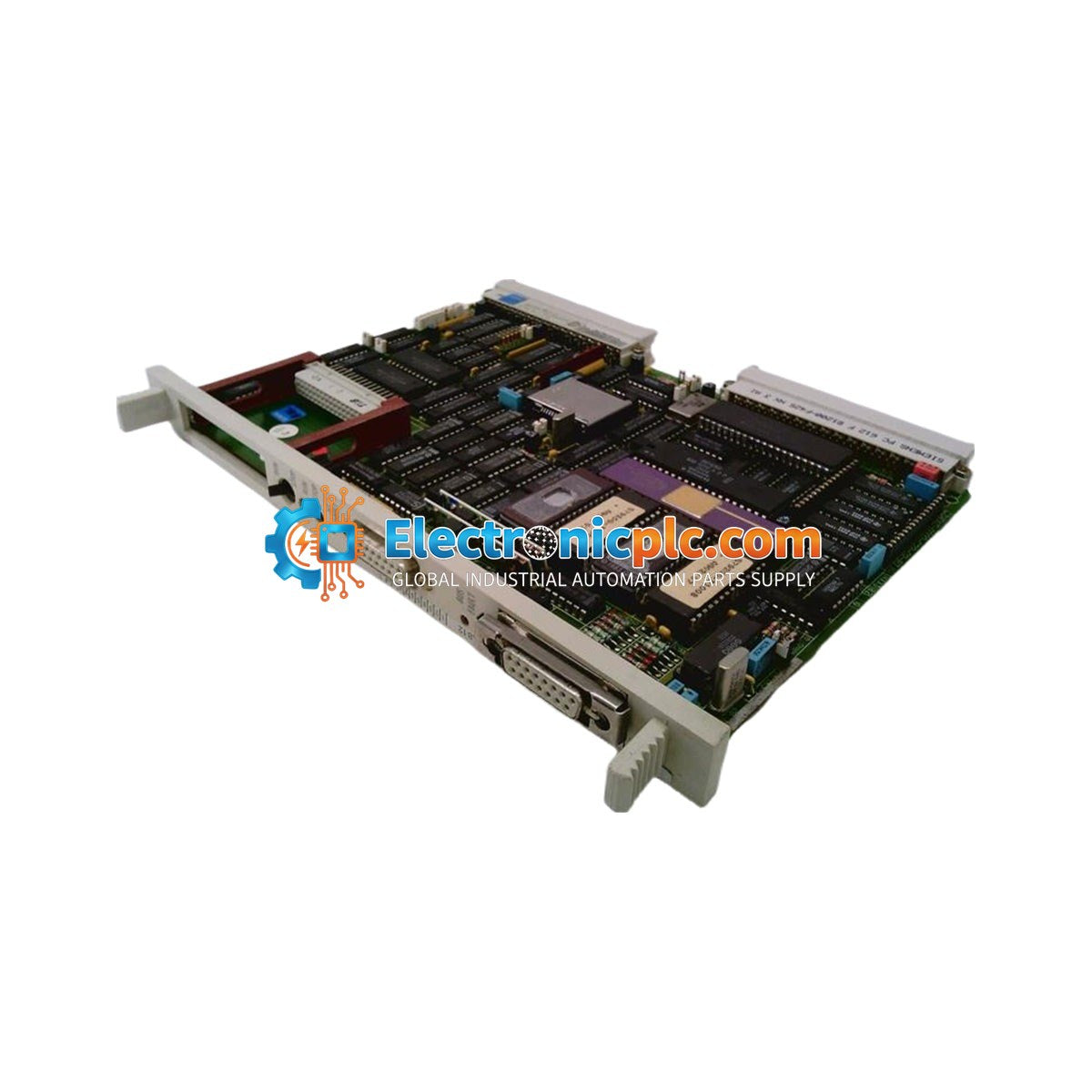

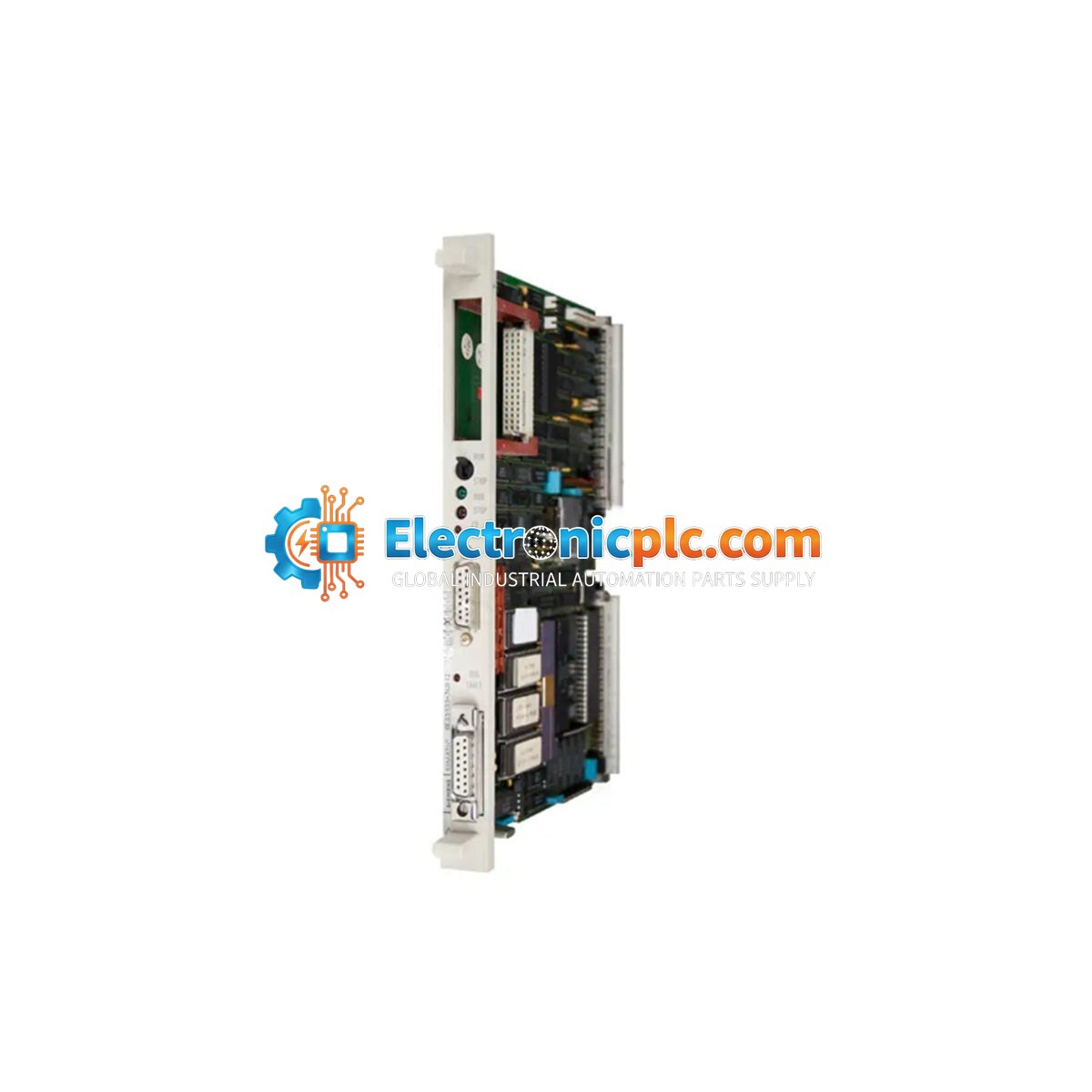

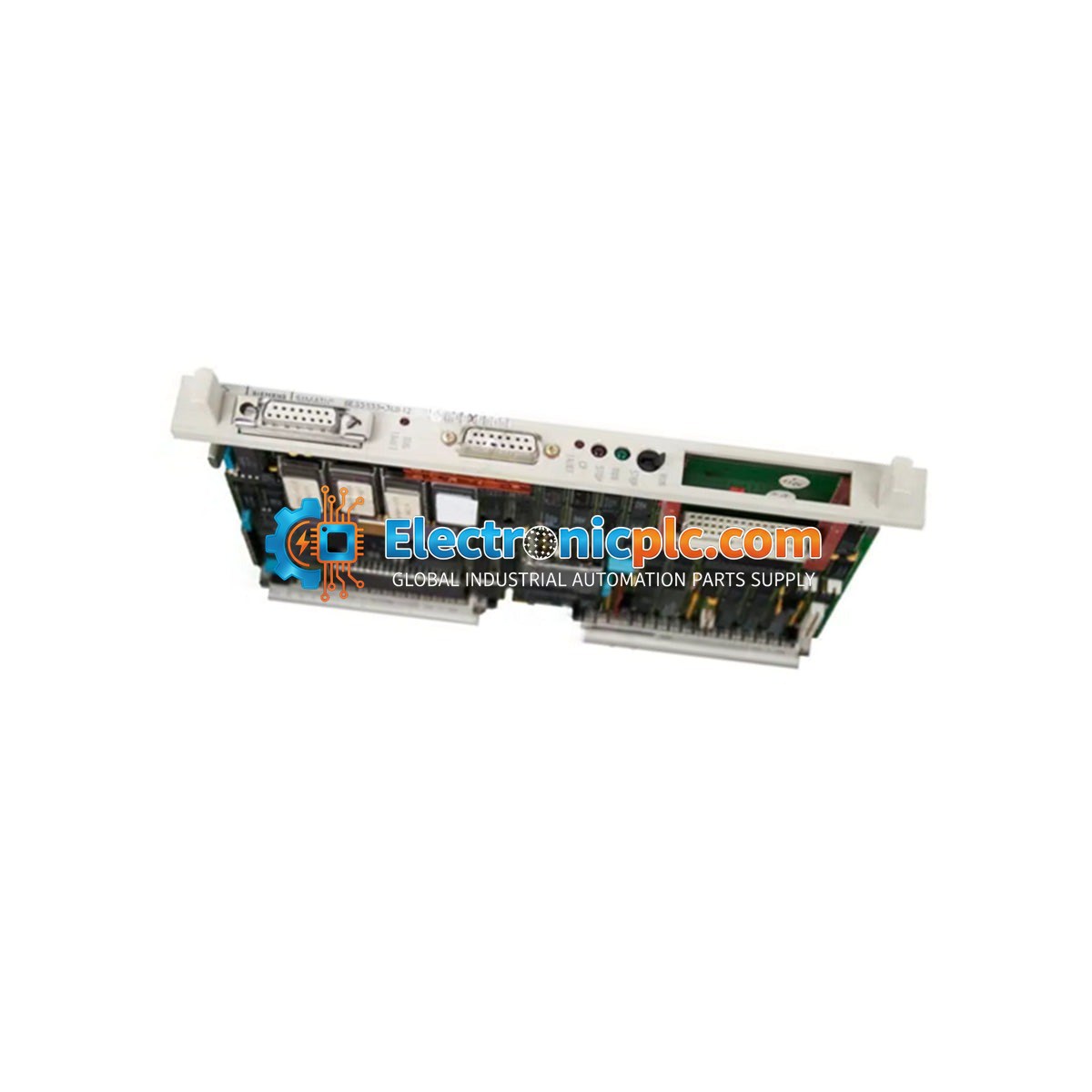

The Siemens 6ES5535-3LB12 is a Communications Processor (CP 535) designed for the SIMATIC S5 programmable logic controller system. This module facilitates data exchange and communication management within the S5 automation environment. Please note that this product was officially discontinued by the manufacturer as of October 1, 2002, and is primarily utilized for legacy system maintenance and spare part replacement.

Features

• Designed for integration with Siemens SIMATIC S5 PLC systems.
• Provides specialized communication processing capabilities for industrial networking.
• Operating voltage: 15V.
• Robust construction suitable for standard industrial control cabinet environments.

Applications

The CP 535 is typically deployed in legacy industrial automation systems where SIMATIC S5 controllers are still in operation. It is used to manage communication tasks between the PLC and other networked devices or fieldbus components.

Technical Specifications

Installation Guidelines

• Ensure the PLC rack is powered down before inserting or removing the CP 535 module to prevent electrical damage.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to protect sensitive internal circuitry.
• Verify that the module is firmly seated in the correct slot of the SIMATIC S5 rack.
• Ensure that all communication cables are properly shielded and routed away from high-voltage power lines to minimize EMI interference.
• Check for proper ventilation within the control cabinet to maintain operating temperatures within the specified range for S5 components.

FAQ

Is the 6ES5535-3LB12 still being manufactured?

No, this module was discontinued by Siemens on October 1, 2002. Units currently available are typically refurbished, surplus, or new-old-stock.

What system is this module compatible with?

The CP 535 is specifically designed for the Siemens SIMATIC S5 series PLC architecture.
